EVAL-ADIN1320FMCZ

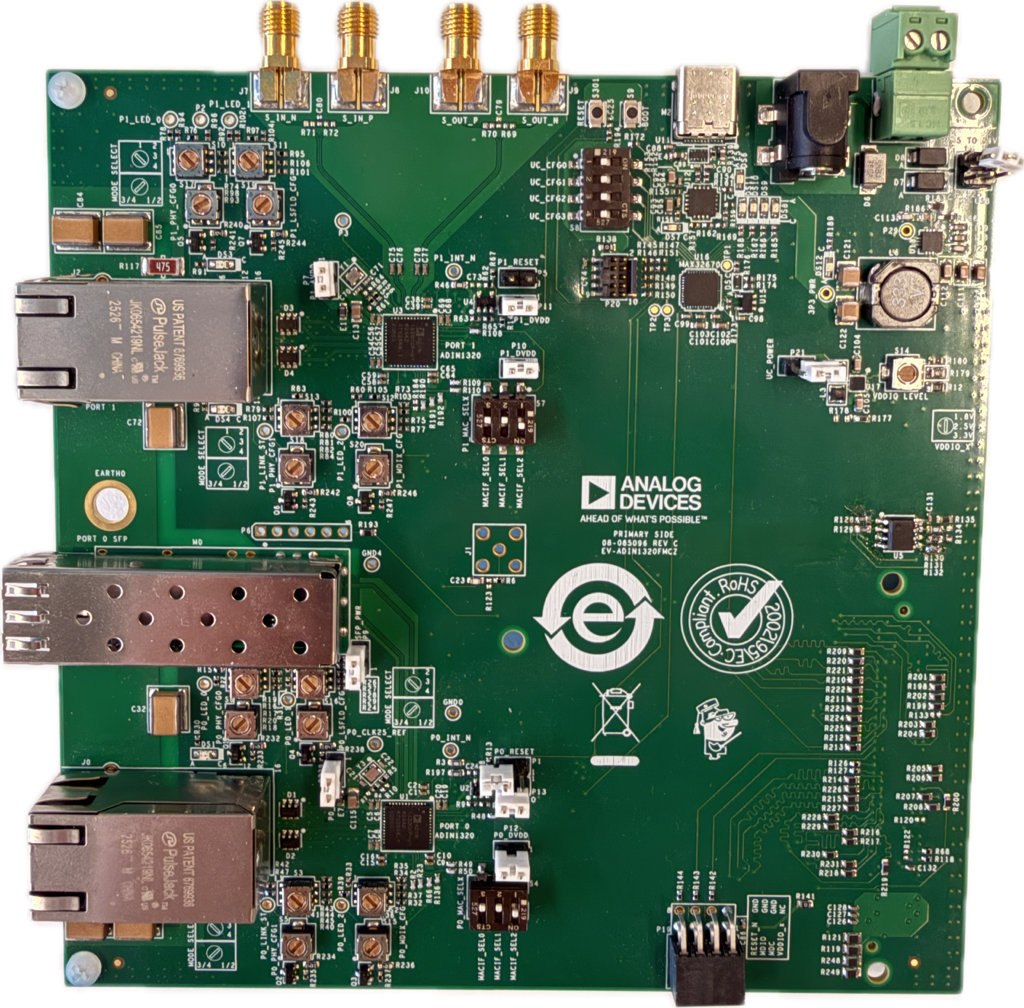

ADIN1320 PHY Evaluation Board.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/eval-adin1320fmcz/eval-adin1320fmcz.png

The EVAL-ADIN1320FMCZ evaluation board is designed to simplify the testing and integration of the ADIN1320, a low power, single port Gigabit Ethernet physical layer (PHY) optimized for industrial applications. The platform enables comprehensive evaluation of the ADIN1320 functionality, including its Ethernet and serializer/deserializer (SerDes) interfaces. By supporting the ADIN1320 copper and fiber Ethernet capabilities, the platform allows evaluation of copper Ethernet (10BASE-Te, 10BASE-T, 100BASE-TX, 1000BASE-T) as well as fiber and SerDes protocols (1000BASE-X, 100BASE-FX, 1000BASE-KX).

The evaluation board integrates two ADIN1320 PHYs, each connected to an RJ45 connector with integrated magnetics for copper connectivity. Both PHYs have their media access control (MAC) I/O pins routed to a field programmable gate array (FPGA) mezzanine card (FMC) connector, which allows seamless integration with FMC-compatible FPGA or system on a chip (SoC) platforms.

Overview

The following carriers are supported, followed by the target firmware:

Carrier

Linux

Zedboard (Zynq-7000)

✓

Features

  • Dual ADIN1320 PHY with configurable port connectivity

  • Port 0 ADIN1320 supports connection to both RJ45 and SFP connectors

  • Port 1 ADIN1320 supports connection to RJ45 and SMA connectors for SGMII signal access.

  • FMC connector for FPGA/SoC integration.

  • MII, RMII, RGMII (with optional internal RX/TX delay) host interfaces

  • Selectable copper (RJ45) or fiber (1000BASE-X, 1000BASE-KX, 100BASE-FX) media

  • PHY address and operating mode (line and MAC interface selection) configured via on-board hardware strapping

Evaluation board kit contents

  • ADIN1320EBZ-U1 evaluation board

  • LPC FMC to GPIO converter

Equipment needed

  • Zedboard - Zynq-7000 development board

  • Cat5+ Ethernet cable or a 1000BASE-X capable SFP module

  • SD card

User Guides

Developers

Drivers

Firmware

Source code

Documentation

Linux

drivers/net/phy/adin.c

Documentation/devicetree/bindings/net/adi,adin.yaml

Note

The mainline adin PHY driver (CONFIG_ADIN_PHY), shared with the ADIN1200/ADIN1300 family, does not yet support the ADIN1320. Until support is merged upstream, use the adin driver from the ADI Linux kernel fork’s release/adin1320 branch.

Help and Support

For questions and more information, please visit:

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.
