ADRV1CRR-BOB Breakout Carrier
Top Level BOM
Molex 105263-0003 Cellular 6 Band Antenna, 200.00mm Cable Length
Pulse W1900 3G Pentaband 824-2170MHz, Right angle SMA Antenna
Hardware
Rev C Breakout Carrier
This is the Rev C schematic and layout files for the ADRV1CRR-BOB breakout carrier.
Download
Rev C STP File (Note: some DNI components are populated)

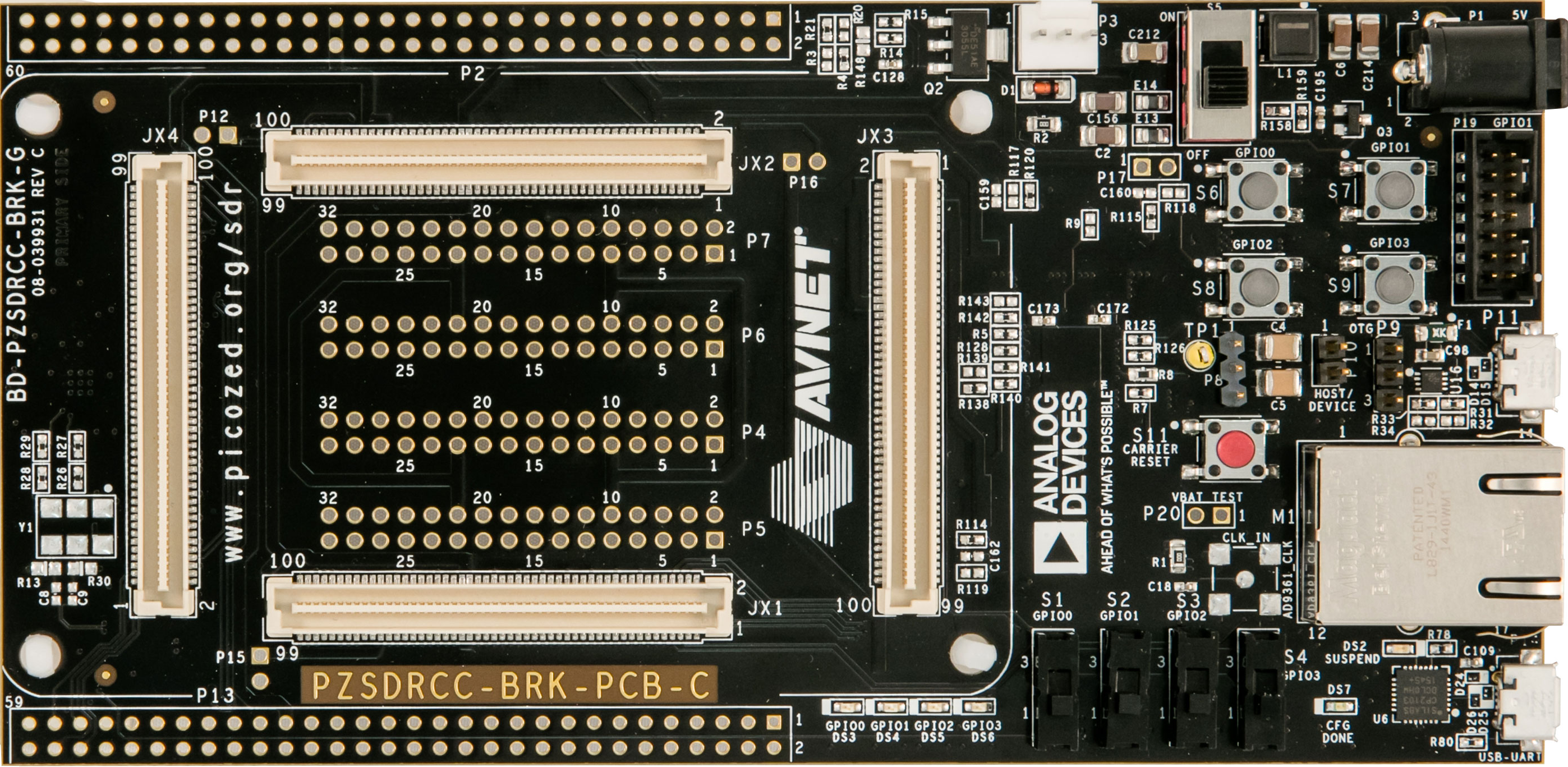

Top Board Picture
Feature List
10/100/1000 Mbps Ethernet
USB2.0 OTG
USB-UART
PC4 JTAG interface
162 User I/O pins
Two 60-pin (2×30) 0.1” footprints
Four 32-pin (2×16) 0.1” footprints
4 user push buttons
4 user switches
4 user LEDs
5V @ 2A input
Selectable 1.8V, 2.5V, or 3.3V for SOM I/O or insert an external supply
Measure Zynq PL I/O bank current with convenient access points
