ADRV-PackRF Hardware

PackRF Downloads

This section contains information regarding mechanical aspects of the PackRF Radios: pictures of the copper, board dimensions, PCB stackup, and 3D models.

Download

• PackRF Carrier Card Bill of Materials

Kit Contents

Quantity	Description
1	Pelican Case
2	Portable Radios
2	GPS Antenna
2	Power over Ethernet Injector
2	Ethernet Cables
2	AC-DC Wall-wart Power Supply (12V, 4A)
2	Power Plug to DC Cigarette Lighter
2	Micro SD Card with image
2	USB OTG Cable
2	USB 2.0 cables (A male to micro B male)
20	Pulse W1910 3G Pentaband 824-2170MHz, SMA Antenna
2	USB Webcam
1	JTAG Adapter

Figure 1 Pelican Case

Figure 2 Portable Radios

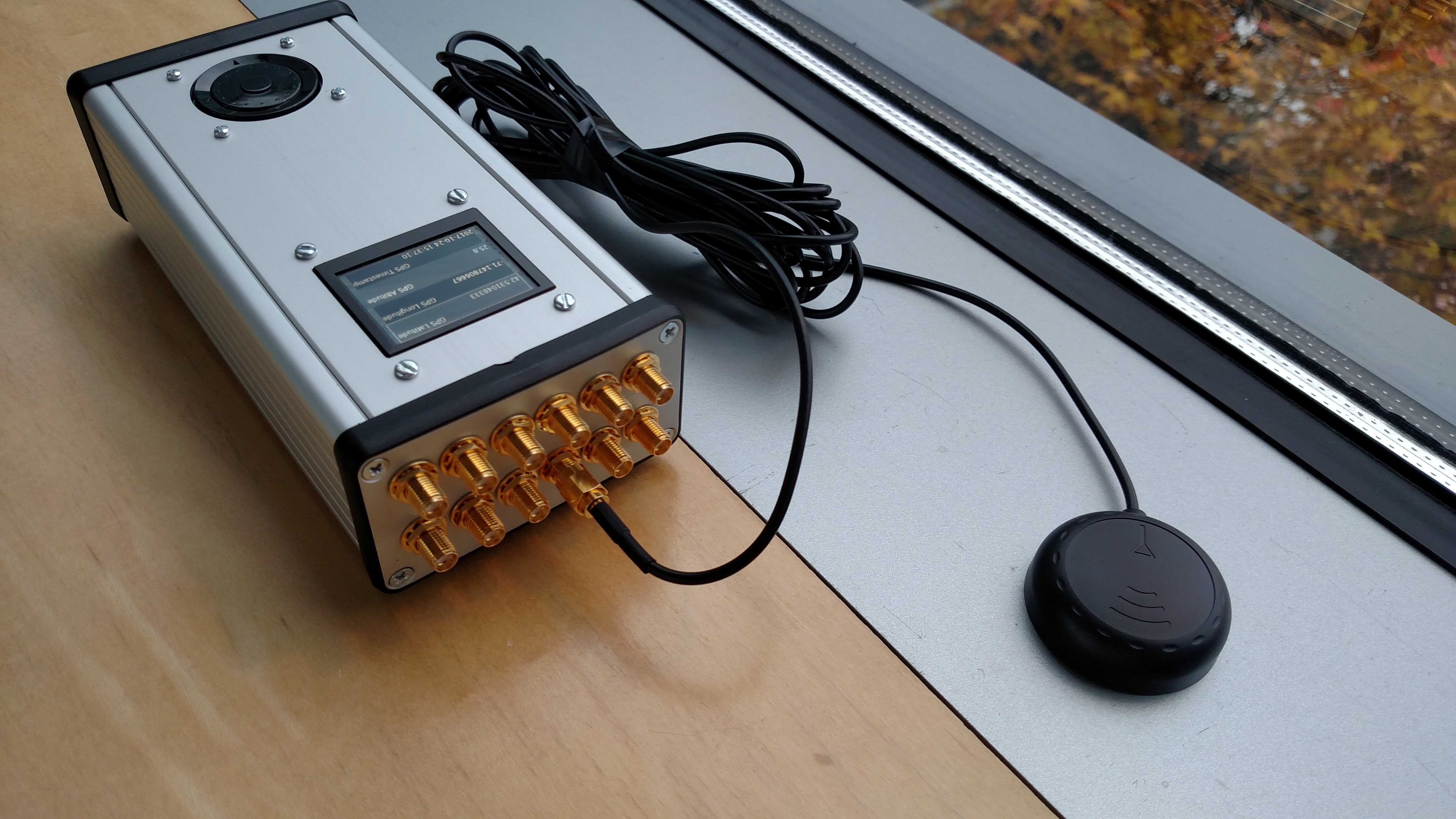

Figure 3 GPS Antenna
