Welcome to ADI SpO2 Watch SDK documentation!¶

Install the whl file¶

pip install adi_spo2_watch

Firmware Setup¶

Follow the link (pdf) to setup firmware for the study watch.

Working with hexadecimal values in python¶

>>> val = 13
>>> '0x%X' % val # convert int value to hexadecimal
# '0xD'
>>> hex_val = '0xD'
>>> int(hex_val, 16) # convert hexadecimal value to int
# 13

Basic Example using USB:¶

import time
from datetime import datetime
from adi_spo2_watch import SDK

# Callback function to receive adxl data
def callback_data(data):
    sequence_number = data["payload"]["sequence_number"]
    for stream_data in data["payload"]["stream_data"]:
        dt_object = datetime.fromtimestamp(stream_data['timestamp'] / 1000)  # convert timestamp from ms to sec.
        print(f"seq :{sequence_number} timestamp: {dt_object} x,y,z :: ({stream_data['x']}, "
                f"{stream_data['y']}, {stream_data['z']})")


if __name__ == "__main__":
    sdk = SDK("COM4")
    application = sdk.get_sensorhub_application()

    # Quickstart adxl stream
    application.set_callback(callback_data, stream=application.SH_ADXL_STREAM)
    application.enable_csv_logging("adxl.csv", stream=application.SH_ADXL_STREAM) # Logging adxl data to csv file
    application.subscribe_stream(stream=application.SH_ADXL_STREAM)
    application.set_operation_mode(application.SH_CONFIG_ADXL_MODE)
    application.start_sensor()
    time.sleep(10)
    application.stop_sensor()
    application.unsubscribe_stream(stream=application.SH_ADXL_STREAM)
    application.disable_csv_logging(stream=application.SH_ADXL_STREAM)

Example using BLE:¶

import time
from datetime import datetime
from adi_spo2_watch import SDK

# Callback function to receive adxl data
def callback_data(data):
    sequence_number = data["payload"]["sequence_number"]
    for stream_data in data["payload"]["stream_data"]:
        dt_object = datetime.fromtimestamp(stream_data['timestamp'] / 1000)  # Convert timestamp from ms to sec.
        print(f"seq :{sequence_number} timestamp: {dt_object} x,y,z :: ({stream_data['x']}, "
                f"{stream_data['y']}, {stream_data['z']})")


if __name__ == "__main__":
    sdk = SDK("COM6", mac_address="C5-05-CA-F1-67-D5") # Watch MAC address.
    application = sdk.get_sensorhub_application()

    # Quickstart adxl stream
    application.set_callback(callback_data, stream=application.SH_ADXL_STREAM)
    application.enable_csv_logging("adxl.csv", stream=application.SH_ADXL_STREAM) # Logging adxl data to csv file
    application.subscribe_stream(stream=application.SH_ADXL_STREAM)
    application.set_operation_mode(application.SH_CONFIG_ADXL_MODE)
    application.start_sensor()
    time.sleep(10)
    application.stop_sensor()
    application.unsubscribe_stream(stream=application.SH_ADXL_STREAM)
    application.disable_csv_logging(stream=application.SH_ADXL_STREAM)

How to log and download adxl stream data.¶

import time
from adi_spo2_watch import SDK

# SDK setup
sdk = SDK("COM4")
sh_application = sdk.get_sensorhub_application()
fs_application = sdk.get_fs_application()


# START LOGGING
fs_application.subscribe_stream(fs_application.SH_ADXL_STREAM)
fs_application.start_logging()
sh_application.set_operation_mode(sh_application.SH_CONFIG_ADXL_MODE)
sh_application.start_sensor()
print(fs_application.get_status()["payload"]["status"])

print("logging...")
time.sleep(20)

# STOP LOGGING
sh_application.stop_sensor()
fs_application.unsubscribe_stream(fs_application.SH_ADXL_STREAM)
fs_application.stop_logging()
print(fs_application.get_status()["payload"]["status"])

# List all the files available to download.
files = fs_application.ls()
for x in files:
    print(x["payload"]["filename"])

# Download data from the watch and save it to a file.
fs_application.download_file(files[-1]["payload"]["filename"], download_to_file=True, display_progress=True)

# Convert downloaded file into CSVs
sdk.convert_log_to_csv(files[-1]["payload"]["filename"])

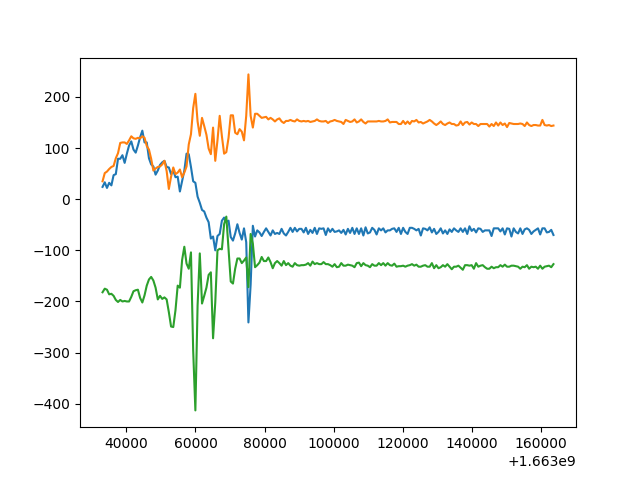

How to plot adxl data with Matplotlib.¶

from adi_spo2_watch import SDK
from matplotlib import pyplot
from matplotlib.animation import FuncAnimation

# Callback to store adxl data in array, we are only storing 200 values.
def callback_data(data, adxl_time, adxl_x, adxl_y, adxl_z):
    if len(adxl_time) > 200:
        del adxl_time[:5]
        del adxl_x[:5]
        del adxl_y[:5]
        del adxl_z[:5]

    for value in data["payload"]["stream_data"]:
        adxl_time.append(value["timestamp"])
        adxl_x.append(value["x"])
        adxl_y.append(value["y"])
        adxl_z.append(value["z"])

x_data, y_data, z_data, time = [], [], [], []

# Figure and x,y,z line initiated.
figure = pyplot.figure()
x_line, = pyplot.plot(time, x_data, '-')
y_line, = pyplot.plot(time, y_data, '-')
z_line, = pyplot.plot(time, z_data, '-')

# Plot update function
def update(frame, plot_time, plot_x_data, plot_y_data, plot_z_data):
    x_line.set_data(plot_time, plot_x_data)
    y_line.set_data(plot_time, plot_y_data)
    z_line.set_data(plot_time, plot_z_data)
    figure.gca().relim()
    figure.gca().autoscale_view()
    return x_line, y_line, z_line

# SDK setup and sensor start
sdk = SDK("COM4")
application = sdk.get_sensorhub_application()
# Setting callback with some reference list to plot from
application.set_callback(callback_data, args=(time, x_data, y_data, z_data), stream=application.SH_ADXL_STREAM)

# Start sensor
application.subscribe_stream(application.SH_ADXL_STREAM)
application.set_operation_mode(application.SH_CONFIG_ADXL_MODE)
application.start_sensor()

# Plot started
animation = FuncAnimation(figure, update, interval=10, fargs=(time, x_data, y_data, z_data))
pyplot.show()

# Stop sensor
application.unsubscribe_stream(application.SH_ADXL_STREAM)
application.stop_sensor()
