app_config_stm32.c File Reference

STM32 Specific configuration files for AD4080 IIO Application. More...

#include <stdint.h>
#include "app_config.h"

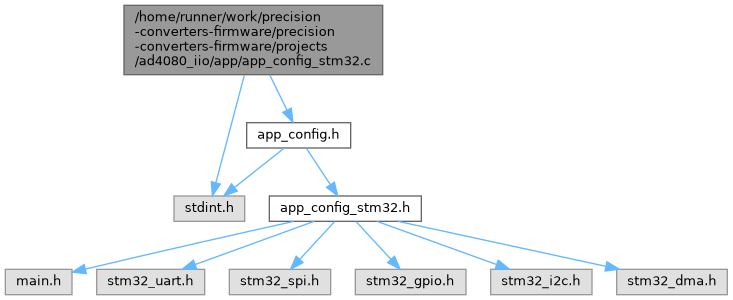

Include dependency graph for app_config_stm32.c:

Macros
#define	NUM_PERIODS   30

Functions
void	SystemClock_Config (void)
void	stm32_system_init (void)
	Initialize the STM32 system peripherals.

Variables
struct stm32_spi_init_param	stm32_config_spi_extra_init_params
struct stm32_spi_init_param	stm32_data_spi_extra_init_params
struct stm32_uart_init_param	stm32_uart_extra_init_params
struct stm32_gpio_init_param	stm32_gpio_xtal_osc_en_init_params
struct stm32_gpio_init_param	stm32_gpio_gp1_init_params
struct stm32_gpio_init_param	stm32_gpio_gp2_init_params
struct stm32_gpio_init_param	stm32_gpio_gp3_init_params
struct stm32_gpio_init_param	stm32_gpio_40m_osc_init_params
struct stm32_gpio_init_param	stm32_gpio_20m_osc_init_params
struct stm32_gpio_init_param	stm32_gpio_10m_osc_init_params
struct stm32_gpio_init_param	stm32_gpio_afe_ctrl_init_params
struct stm32_i2c_init_param	stm32_i2c_extra_init_params

Detailed Description

STM32 Specific configuration files for AD4080 IIO Application.

This module contains the STM32 platform specific configurations

Copyright (c) 2024-25 Analog Devices, Inc. All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

NUM_PERIODS

#define NUM_PERIODS   30

Function Documentation

stm32_system_init()

void stm32_system_init

(

void

)

Initialize the STM32 system peripherals.

Returns

None

SystemClock_Config()

void SystemClock_Config ( void  )

extern

Variable Documentation

stm32_config_spi_extra_init_params

struct stm32_spi_init_param stm32_config_spi_extra_init_params

Initial value:

= {
    .chip_select_port = SPI_CS_PORT,
    .get_input_clock = HAL_RCC_GetPCLK2Freq
}

stm32_data_spi_extra_init_params

struct stm32_spi_init_param stm32_data_spi_extra_init_params

Initial value:

= {
    .chip_select_port = SPI_DCS_CSB_PORT,
    .get_input_clock = HAL_RCC_GetPCLK2Freq
}

stm32_gpio_10m_osc_init_params

struct stm32_gpio_init_param stm32_gpio_10m_osc_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_20m_osc_init_params

struct stm32_gpio_init_param stm32_gpio_20m_osc_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_40m_osc_init_params

struct stm32_gpio_init_param stm32_gpio_40m_osc_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_afe_ctrl_init_params

struct stm32_gpio_init_param stm32_gpio_afe_ctrl_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_gp1_init_params

struct stm32_gpio_init_param stm32_gpio_gp1_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_gp2_init_params

struct stm32_gpio_init_param stm32_gpio_gp2_init_params

Initial value:

= {
    .mode = GPIO_MODE_INPUT,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_gp3_init_params

struct stm32_gpio_init_param stm32_gpio_gp3_init_params

Initial value:

= {
    .mode = GPIO_MODE_INPUT,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_gpio_xtal_osc_en_init_params

struct stm32_gpio_init_param stm32_gpio_xtal_osc_en_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_LOW
}

stm32_i2c_extra_init_params

struct stm32_i2c_init_param stm32_i2c_extra_init_params

Initial value:

= {
    .i2c_timing = I2C_TIMING
}

stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

Initial value:

= {
    .huart = &APP_UART_HANDLE
}
