app_config_stm32.c File Reference

STM32 Specific configuration files for AD4134 IIO Application. More...

#include "app_config.h"
#include "no_os_error.h"
#include "app_config_stm32.h"
#include "stm32_tdm_support.h"
#include "ad4134_support.h"

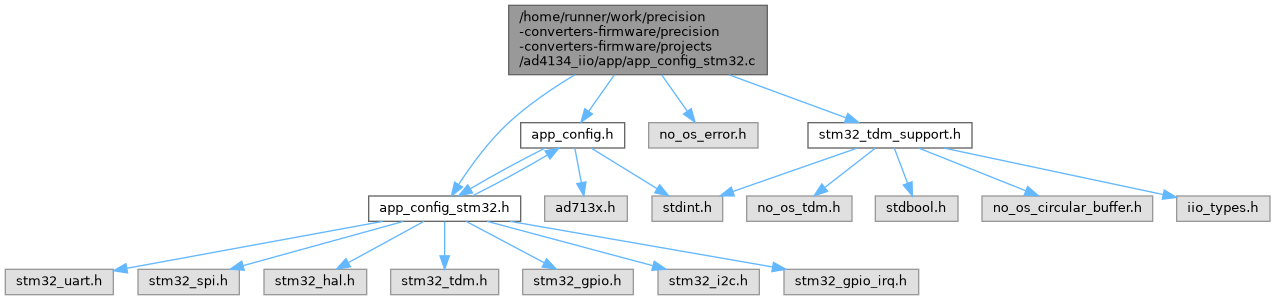

Include dependency graph for app_config_stm32.c:

Functions
void	SystemClock_Config (void)
void	EXTI15_10_IRQHandler (void)
	This function handles EXTI line[15:10] interrupts.
void	stm32_system_init (void)
	Initialize the STM32 system peripherals.
void	ad7134_dma_rx_half_cplt (void *hsai)
	SAI DMA Receive Half Complete Callback function.
void	ad7134_dma_rx_cplt (void *hsai)
	SAI DMA Receive Complete Callback function.

Variables
struct stm32_uart_init_param	stm32_uart_extra_init_params
struct stm32_spi_init_param	stm32_spi_extra_init_params
struct stm32_tdm_init_param	stm32_tdm_extra_init_params
struct stm32_gpio_irq_init_param	stm32_trigger_gpio_irq_init_params
struct stm32_gpio_init_param	stm32_pdn_extra_init_params
struct stm32_i2c_init_param	stm32_i2c_extra_init_params
struct stm32_pwm_init_param	stm32_pwm_extra_init_params
struct stm32_gpio_init_param	stm32_pwm_gpio_init_params
struct stm32_gpio_init_param	stm32_input_extra_init_params
struct stm32_gpio_init_param	stm32_output_extra_init_params
uint16_t	adc_data_continuous_mode [AD7134_NUM_CHANNELS]

Detailed Description

STM32 Specific configuration files for AD4134 IIO Application.

This module contains the STM32 platform specific configurations

Copyright (c) 2021,2023-25 Analog Devices, Inc. All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Function Documentation

ad7134_dma_rx_cplt()

void ad7134_dma_rx_cplt

(

void *

hsai

)

SAI DMA Receive Complete Callback function.

Parameters

hsai	- pointer to a SAI Handle structure

Returns

None

ad7134_dma_rx_half_cplt()

void ad7134_dma_rx_half_cplt

(

void *

hsai

)

SAI DMA Receive Half Complete Callback function.

Parameters

hsai	- pointer to a SAI Handle

Returns

None

EXTI15_10_IRQHandler()

void EXTI15_10_IRQHandler

(

void

)

This function handles EXTI line[15:10] interrupts.

stm32_system_init()

void stm32_system_init

(

void

)

Initialize the STM32 system peripherals.

Returns

None

SystemClock_Config()

void SystemClock_Config ( void  )

extern

Variable Documentation

adc_data_continuous_mode

uint16_t adc_data_continuous_mode[AD7134_NUM_CHANNELS]

extern

stm32_i2c_extra_init_params

struct stm32_i2c_init_param stm32_i2c_extra_init_params

Initial value:

= {
    .i2c_timing = I2C_TIMING
}

stm32_input_extra_init_params

struct stm32_gpio_init_param stm32_input_extra_init_params

Initial value:

= {
    .mode = GPIO_MODE_INPUT,
    .speed = GPIO_SPEED_FREQ_HIGH,
    .alternate = 0
}

stm32_output_extra_init_params

struct stm32_gpio_init_param stm32_output_extra_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP,
    .speed = GPIO_SPEED_FREQ_HIGH,
    .alternate = 0
}

stm32_pdn_extra_init_params

struct stm32_gpio_init_param stm32_pdn_extra_init_params

Initial value:

= {
    .mode = GPIO_MODE_OUTPUT_PP
}

stm32_pwm_extra_init_params

struct stm32_pwm_init_param stm32_pwm_extra_init_params

Initial value:

= {
    .htimer = &PWM_HANDLE,
    .prescaler = PWM_PRESCALER,
    .timer_autoreload = true,
    .mode = TIM_OC_PWM1,
    .timer_chn = PWM_CHANNEL,
    .get_timer_clock = HAL_RCC_GetPCLK1Freq,
    .clock_divider = PWM_CLK_DIVIDER
}

stm32_pwm_gpio_init_params

struct stm32_gpio_init_param stm32_pwm_gpio_init_params

Initial value:

= {
    .mode = GPIO_MODE_AF_PP,
    .speed = GPIO_SPEED_FREQ_VERY_HIGH,
    .alternate = GPIO_AF2_TIM4
}

stm32_spi_extra_init_params

struct stm32_spi_init_param stm32_spi_extra_init_params

Initial value:

= {
    .chip_select_port = STM32_SPI_CS_PORT,
    .get_input_clock = HAL_RCC_GetPCLK2Freq,
    .dma_init = NULL,
    .rxdma_ch = NULL,
    .txdma_ch = NULL,
    .irq_num = 0,
    .alternate = 0,
}

stm32_tdm_extra_init_params

struct stm32_tdm_init_param stm32_tdm_extra_init_params

Initial value:

= {
    .base = STM32_SAI_BASE,
}

stm32_trigger_gpio_irq_init_params

struct stm32_gpio_irq_init_param stm32_trigger_gpio_irq_init_params

Initial value:

= {
    .port_nb = GPIO_TRIGGER_INT_PORT
}

stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

Initial value:

= {
    .huart = &APP_UART_HANDLE
}
