ad552xr_user_config.c File Reference

User configuration source for the AD552XR IIO Application. More...

#include "ad552xr_user_config.h"
#include "app_config.h"

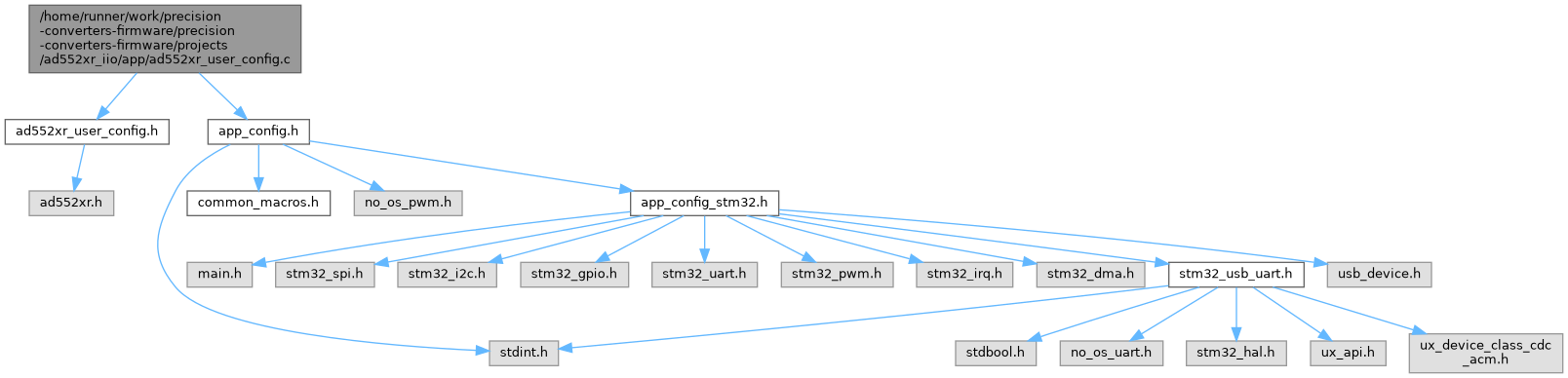

Include dependency graph for ad552xr_user_config.c:

Variables
struct ad552xr_init_param	ad552xr_user_config

Detailed Description

User configuration source for the AD552XR IIO Application.

Copyright (c) 2026 Analog Devices, Inc.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Variable Documentation

ad552xr_user_config

struct ad552xr_init_param ad552xr_user_config

Initial value:

= {
    .dev_addr = 0,
    .gpio_alarmb = &gpio_alarm_n_init_params,
    .gpio_clearb = &gpio_clear_n_init_params,
    .gpio_ldac_tgp = {
        &gpio_ldac_tgpx_init_params[0],
        &gpio_ldac_tgpx_init_params[1],
        &gpio_ldac_tgpx_init_params[2],
        &gpio_ldac_tgpx_init_params[3],
    },
    .gpio_md_addr = {&gpio_md_addr0_init_params, &gpio_md_addr1_init_params},
    .gpio_resetb = &gpio_reset_n_init_params,
    .spi_init_prm = &spi_init_params,
}
