Configuration file for AD5706R IIO firmware application. More...

#include <stdint.h>
#include "no_os_gpio.h"
#include "no_os_uart.h"
#include "no_os_pwm.h"
#include "common_macros.h"
#include "app_config_stm32.h"

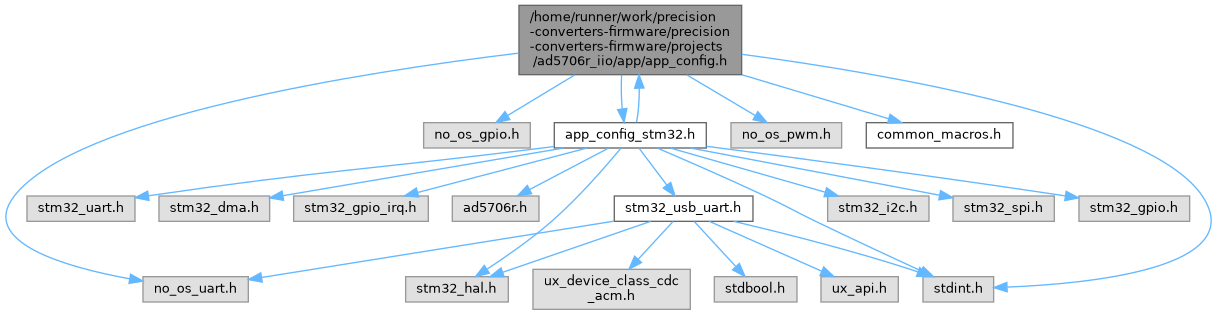

Include dependency graph for app_config.h:

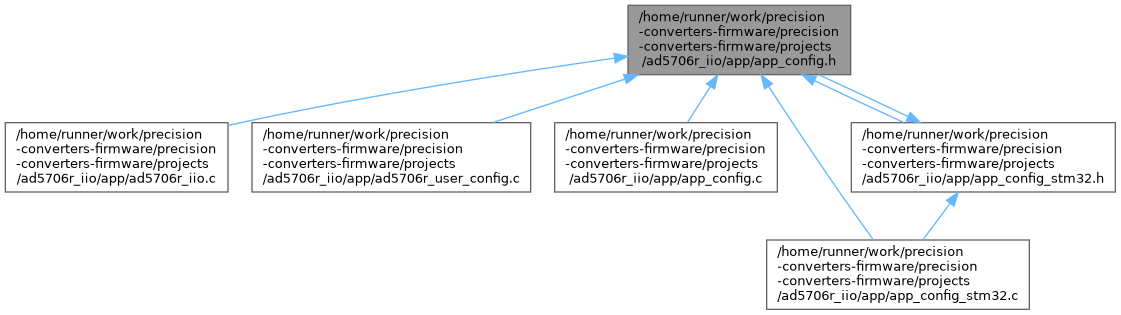

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SPI_INTERRUPT 1

#define	SPI_DMA 2

#define	XSTR(s) #s

#define	STR(s) XSTR(s)

#define	ACTIVE_DEVICE_NAME "ad5706r"

#define	AD5706_DAC_RESOLUTION 16

#define	USE_VIRTUAL_COM_PORT

#define	ACTIVE_PLATFORM STM32_PLATFORM

#define	INTERFACE_MODE SPI_DMA

#define	IIO_UART_BAUD_RATE (230400)

#define	FIRMWARE_NAME "ad5706r_iio"

#define	VIRTUAL_COM_PORT_VID 0x0456

#define	VIRTUAL_COM_PORT_PID 0xb66c

#define	VIRTUAL_COM_SERIAL_NUM (FIRMWARE_NAME "_" DEVICE_NAME "_" STR(PLATFORM_NAME))

#define	FREQ_TO_NSEC(x) (((float)(1.0 / x) * 1000000) * 1000)

#define	LDAC_DUTY_CYCLE_NSEC(x) (x * 0.5)

#define	DAC_UPDATE_DUTY_CYCLE_NSEC(x) (x * 0.05)

Functions
int32_t	init_system (void)
	Initialize the system peripherals.

int32_t	init_pwm (void)
	Initialize the PWM interface.

Variables
struct no_os_uart_desc *	uart_iio_comm_desc

struct no_os_uart_desc *	uart_console_stdio_desc

struct no_os_gpio_desc *	gpio_ad0_desc

struct no_os_gpio_desc *	gpio_ad1_desc

struct no_os_gpio_desc *	gpio_ldac_tg_desc

struct no_os_pwm_desc *	ldac_pwm_desc

struct no_os_pwm_desc *	dac_update_pwm_desc

struct no_os_gpio_init_param	gpio_ldac_tg_params

struct no_os_eeprom_desc *	eeprom_desc

struct no_os_gpio_desc *	gpio_shutdown_desc

struct no_os_irq_ctrl_desc *	trigger_irq_desc

struct no_os_pwm_init_param	cs_init_params

struct no_os_gpio_init_param	csb_gpio_init_param

struct no_os_pwm_desc *	tx_trigger_desc

struct no_os_pwm_init_param	tx_trigger_init_params

struct no_os_gpio_init_param	ldac_pwm_gpio_params

Detailed Description

Configuration file for AD5706R IIO firmware application.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

◆ ACTIVE_DEVICE_NAME

#define ACTIVE_DEVICE_NAME "ad5706r"

◆ ACTIVE_PLATFORM

#define ACTIVE_PLATFORM STM32_PLATFORM

◆ AD5706_DAC_RESOLUTION

#define AD5706_DAC_RESOLUTION 16

◆ DAC_UPDATE_DUTY_CYCLE_NSEC

#define DAC_UPDATE_DUTY_CYCLE_NSEC ( x ) (x * 0.05)

◆ FIRMWARE_NAME

#define FIRMWARE_NAME "ad5706r_iio"

◆ FREQ_TO_NSEC

#define FREQ_TO_NSEC ( x ) (((float)(1.0 / x) * 1000000) * 1000)

◆ IIO_UART_BAUD_RATE

#define IIO_UART_BAUD_RATE (230400)

◆ INTERFACE_MODE

#define INTERFACE_MODE SPI_DMA

◆ LDAC_DUTY_CYCLE_NSEC

#define LDAC_DUTY_CYCLE_NSEC ( x ) (x * 0.5)

◆ SPI_DMA

#define SPI_DMA 2

◆ SPI_INTERRUPT

#define SPI_INTERRUPT 1

◆ STR

#define STR ( s ) XSTR(s)

◆ USE_VIRTUAL_COM_PORT

#define USE_VIRTUAL_COM_PORT

◆ VIRTUAL_COM_PORT_PID

#define VIRTUAL_COM_PORT_PID 0xb66c

◆ VIRTUAL_COM_PORT_VID

#define VIRTUAL_COM_PORT_VID 0x0456

◆ VIRTUAL_COM_SERIAL_NUM

#define VIRTUAL_COM_SERIAL_NUM (FIRMWARE_NAME "_" DEVICE_NAME "_" STR(PLATFORM_NAME))

◆ XSTR

#define XSTR ( s ) #s

Function Documentation

◆ init_pwm()

int32_t init_pwm ( void )

Initialize the PWM interface.

Returns: 0 in case of success, negative error code otherwise.

Initialize the PWM interface.

Returns: 0 in case of success, negative error code otherwise

◆ init_system()

int32_t init_system ( void )

Initialize the system peripherals.

Returns: 0 in case of success, negative error code otherwise

Initialize the system peripherals.

Returns: 0 in case of success, negative error code otherwise.

This function initializes system peripherals for the application

Returns: - 0 in case of success, negative error code otherwise

Initialize the system peripherals.

Returns: 0 in case of success, negative error code otherwise.

Variable Documentation

◆ cs_init_params

struct no_os_pwm_init_param cs_init_params

extern

◆ csb_gpio_init_param

struct no_os_gpio_init_param csb_gpio_init_param

extern

◆ dac_update_pwm_desc

struct no_os_pwm_desc* dac_update_pwm_desc

extern

◆ eeprom_desc

struct no_os_eeprom_desc* eeprom_desc

extern

◆ gpio_ad0_desc

struct no_os_gpio_desc* gpio_ad0_desc

extern

◆ gpio_ad1_desc

struct no_os_gpio_desc* gpio_ad1_desc

extern

◆ gpio_ldac_tg_desc

struct no_os_gpio_desc* gpio_ldac_tg_desc

extern

◆ gpio_ldac_tg_params

struct no_os_gpio_init_param gpio_ldac_tg_params

extern

◆ gpio_shutdown_desc

struct no_os_gpio_desc* gpio_shutdown_desc

extern

◆ ldac_pwm_desc

struct no_os_pwm_desc* ldac_pwm_desc

extern

◆ ldac_pwm_gpio_params

struct no_os_gpio_init_param ldac_pwm_gpio_params

extern

◆ trigger_irq_desc

struct no_os_irq_ctrl_desc* trigger_irq_desc

extern

◆ tx_trigger_desc

struct no_os_pwm_desc* tx_trigger_desc

extern

◆ tx_trigger_init_params

struct no_os_pwm_init_param tx_trigger_init_params

extern

◆ uart_console_stdio_desc

struct no_os_uart_desc* uart_console_stdio_desc

extern

◆ uart_iio_comm_desc

struct no_os_uart_desc* uart_iio_comm_desc

extern
