ad5706r_user_config.c File Reference

User configuration source for the AD5706R IIO Application. More...

#include <stdint.h>
#include "ad5706r_user_config.h"
#include "app_config.h"
#include "no_os_spi.h"
#include "no_os_gpio.h"

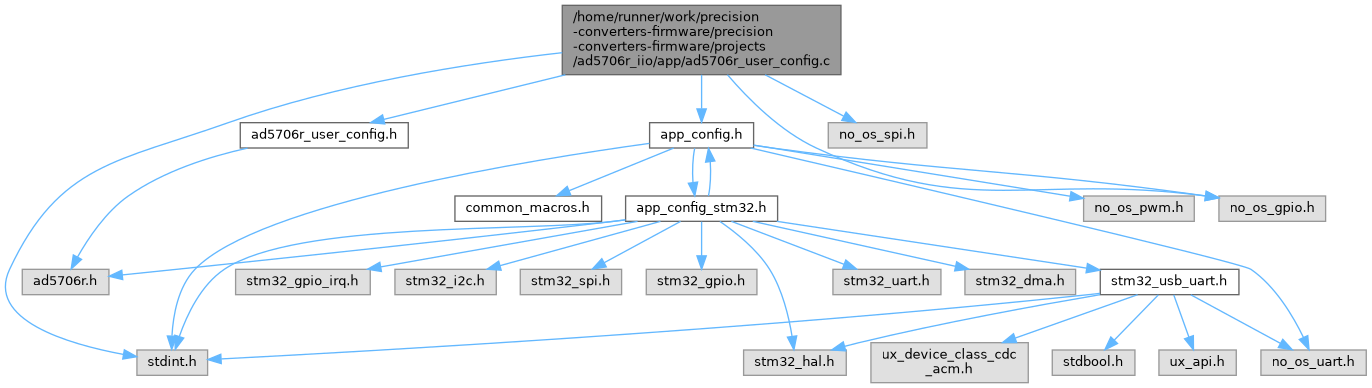

Include dependency graph for ad5706r_user_config.c:

Variables
struct no_os_gpio_init_param	gpio_reset_params
struct ad5706r_init_param	ad5706r_init_params

Detailed Description

User configuration source for the AD5706R IIO Application.

Copyright (c) 2024-2026 Analog Devices, Inc.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Variable Documentation

ad5706r_init_params

struct ad5706r_init_param ad5706r_init_params

Initial value:

= {
    .spi_init_prm = &spi_init_params,
    .gpio_ldac_tgp = &gpio_ldac_tg_params,
    .gpio_reset = &gpio_reset_params,
    .vref_enable = AD5706R_EXTERNAL_VREF_PIN_INPUT,
    .op_mode = { AD5706R_SHUTDOWN_SW, AD5706R_SHUTDOWN_SW, AD5706R_SHUTDOWN_SW, AD5706R_SHUTDOWN_SW },
    .range = { AD5706R_50mA, AD5706R_50mA, AD5706R_50mA, AD5706R_50mA },
    .crc_en = false,
    .spi_cfg = { false, false, false, false, 1 },
    .dac_mode = { AD5706R_DIRECT_WRITE_REG, AD5706R_DIRECT_WRITE_REG, AD5706R_DIRECT_WRITE_REG, AD5706R_DIRECT_WRITE_REG },
    .ldac_cfg = {
        .func_en_mask = 0x0000,
        .func_mode = { AD5706R_TOGGLE, AD5706R_TOGGLE, AD5706R_TOGGLE, AD5706R_TOGGLE },
        .ldac_hw_sw_mask = 0x0000,
        .ldac_sync_async_mask = 0x0000,
        .multi_dac_ch_mask = 0x0000,
        .dither_period = { AD5706R_SAMPLES_4, AD5706R_SAMPLES_4, AD5706R_SAMPLES_4, AD5706R_SAMPLES_4 },
        .dither_phase = { AD5706R_DEGREES_0, AD5706R_DEGREES_0, AD5706R_DEGREES_0, AD5706R_DEGREES_0 },
        .edge_trig = { AD5706R_RISING_EDGE_TRIG, AD5706R_RISING_EDGE_TRIG, AD5706R_RISING_EDGE_TRIG, AD5706R_RISING_EDGE_TRIG }
    },
    .dev_addr = 0x0,
    .mux_out_mode = AD5706R_HIGH_Z,
    .mux_out_sel = AD5706R_AGND,
}

gpio_reset_params

struct no_os_gpio_init_param gpio_reset_params

Initial value:

= {
    .port = RESET_PORT,
    .number = GPIO_RESET,
    .platform_ops = &gpio_ops,
    .extra = &gpio_reset_extra_params
}
