AD5710r No-OS driver support header file. More...
#include <stdint.h>#include "ad5710r.h"
Include dependency graph for ad5710r_support.h:

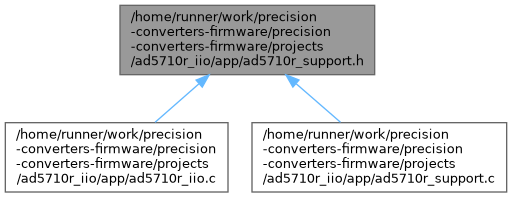

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Enumerations | |
| enum | ad5710r_ldac_pin_state { AD5710R_LDAC_GPIO_OUTPUT , AD5710R_LDAC_PWM } |
Functions | |
| int | ad5710r_spi_read_mask (struct ad5710r_desc *desc, uint32_t addr, uint32_t mask, uint16_t *val) |
| SPI read from device using a mask. | |
| int | ad5710r_reconfig_ldac (struct ad5710r_desc *device, enum ad5710r_ldac_pin_state pin_state) |
| Reconfigure LDAC pin as either GPIO output or PWM based on the pin_state value. | |
Detailed Description
AD5710r No-OS driver support header file.
Copyright (c) 2024-25 Analog Devices, Inc. All rights reserved.
This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.
Enumeration Type Documentation
◆ ad5710r_ldac_pin_state
Function Documentation
◆ ad5710r_reconfig_ldac()
| int ad5710r_reconfig_ldac | ( | struct ad5710r_desc * | device, |
| enum ad5710r_ldac_pin_state | pin_state | ||
| ) |
Reconfigure LDAC pin as either GPIO output or PWM based on the pin_state value.
- Parameters
-
device[in] - AD3530r device instance pin_state[in] - State of conversion pin
- Returns
- 0 in case of success, negative error code otherwise
◆ ad5710r_spi_read_mask()
| int ad5710r_spi_read_mask | ( | struct ad5710r_desc * | desc, |
| uint32_t | addr, | ||
| uint32_t | mask, | ||
| uint16_t * | val | ||
| ) |
SPI read from device using a mask.
- Parameters
-
desc[in] - AD5710R device instance addr[in] - Register address mask[in] - Mask for a specific register field val[in,out] - Register value
- Returns
- 0 in case of success, negative error code otherwise
