ad5710r_user_config.c File Reference

User configuration file for AD5710R. More...

#include <stdint.h>
#include "ad5710r_user_config.h"
#include "app_config.h"
#include "no_os_spi.h"
#include "no_os_gpio.h"

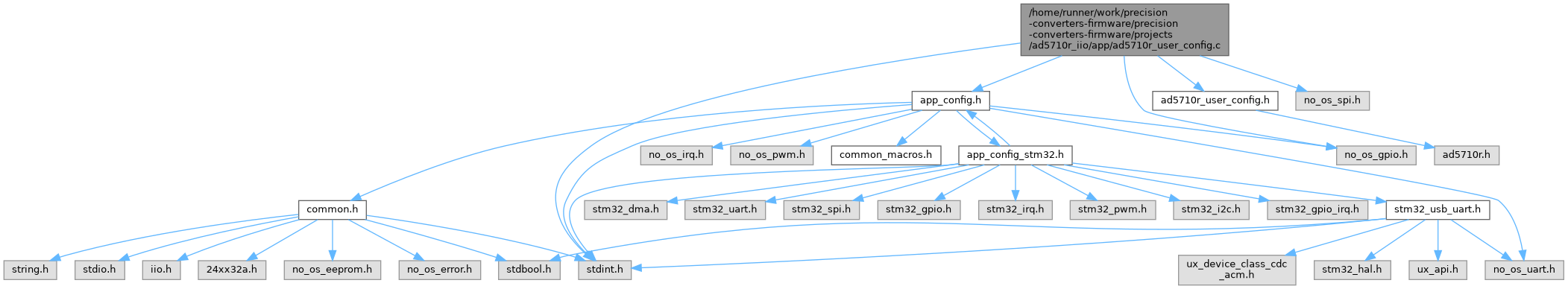

Include dependency graph for ad5710r_user_config.c:

Variables
struct no_os_gpio_init_param	gpio_reset_init
struct no_os_gpio_init_param	gpio_ldac_init
struct no_os_spi_init_param	spi_init_params
struct ad5710r_init_param	ad5710r_init_params

Detailed Description

User configuration file for AD5710R.

Copyright (c) 2024-25 Analog Devices, Inc.

All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Variable Documentation

ad5710r_init_params

struct ad5710r_init_param ad5710r_init_params

Initial value:

= {
    .chip_id = AD5710R_ID,
    .spi_param = &spi_init_params,
    .spi_cfg = {
        .stream_mode_length = 0,
        .addr_asc = 0,
        .single_instr = 1,
        .short_instr = 0,
        .stream_length_keep_value = 0
    },

    .reset_gpio_param_optional = &gpio_reset_init,

    .ldac_gpio_param_optional = &gpio_ldac_init,

    .vref_enable = AD5710R_EXTERNAL_VREF_PIN_INPUT,
    .chn_op_mode = {
        AD5710R_CH_OPERATING_MODE_3, AD5710R_CH_OPERATING_MODE_3,
        AD5710R_CH_OPERATING_MODE_3, AD5710R_CH_OPERATING_MODE_3,
        AD5710R_CH_OPERATING_MODE_3, AD5710R_CH_OPERATING_MODE_3,
        AD5710R_CH_OPERATING_MODE_3, AD5710R_CH_OPERATING_MODE_3
    },
    .range = AD5710R_CH_OUTPUT_RANGE_0_VREF,
    .hw_ldac_mask = 0xff,
    .sw_ldac_mask = 0xff,

    .crc_en = false,
    .dev_addr = 0
}

gpio_ldac_init

struct no_os_gpio_init_param gpio_ldac_init

Initial value:

= {
    .number = LDAC_PIN,
    .port = LDAC_PORT,
    .platform_ops = &gpio_ops,
    .extra = &gpio_ldac_extra_init_params
}

gpio_reset_init

struct no_os_gpio_init_param gpio_reset_init

Initial value:

= {
    .number = RESET_PIN,
    .port = RESET_PORT,
    .platform_ops = &gpio_ops,
    .extra = &gpio_reset_extra_init_params
}

spi_init_params

struct no_os_spi_init_param spi_init_params

Initial value:

= {
    .device_id = SPI_DEVICE_ID,
    .max_speed_hz = MAX_SPI_SCLK,
    .chip_select = SPI_CSB,
    .mode = NO_OS_SPI_MODE_3,
    .platform_ops = &spi_ops,
    .extra = &spi_extra_init_params,
}
