Header file for Mbed platform configurations. More...
#include <stdint.h>#include <PinNames.h>#include "mbed_spi.h"#include "mbed_gpio.h"#include "mbed_platform_support.h"
Include dependency graph for app_config_mbed.h:

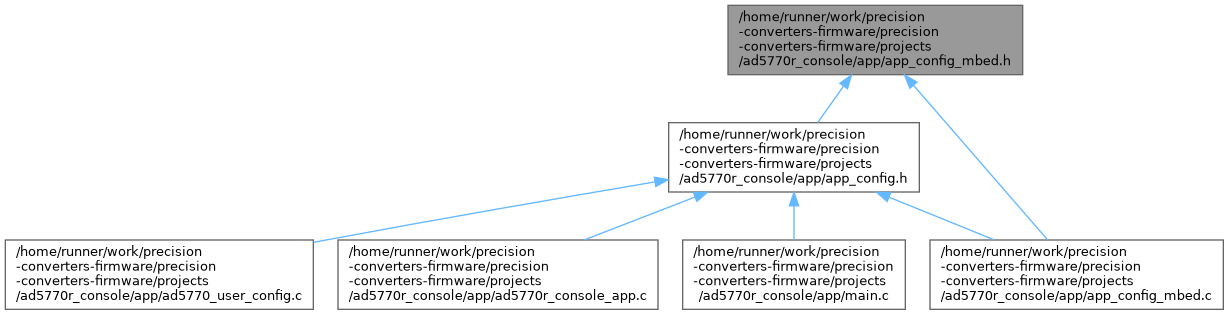

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | SPI_CSB SDP_SPI_CS_A |
| #define | SPI_HOST_SDO SDP_SPI_MOSI |
| #define | SPI_HOST_SDI SDP_SPI_MISO |
| #define | SPI_SCK SDP_SPI_SCK |
| #define | HW_LDACB SDP_GPIO_0 |
| #define | MAX_SPI_CLK 2500000 |
| #define | SPI_DEVICE_ID 0 |
| #define | HW_LDACB_PORT 0 |
| #define | UART_IRQ_ID 0 |
| #define | spi_ops mbed_spi_ops |
| #define | gpio_ops mbed_gpio_ops |
Variables | |
| struct mbed_spi_init_param | mbed_spi_extra_init_params |
| struct mbed_gpio_init_param | mbed_gpio_ldac_init_params |
Detailed Description
Header file for Mbed platform configurations.
Copyright (c) 2025 Analog Devices, Inc. All rights reserved.
This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.
Macro Definition Documentation
◆ gpio_ops
| #define gpio_ops mbed_gpio_ops |
◆ HW_LDACB
| #define HW_LDACB SDP_GPIO_0 |
◆ HW_LDACB_PORT
| #define HW_LDACB_PORT 0 |
◆ MAX_SPI_CLK
| #define MAX_SPI_CLK 2500000 |
◆ SPI_CSB
| #define SPI_CSB SDP_SPI_CS_A |
The ADI SDP_K1 can be used with either arduino headers or the 120-pin SDP connector found on ADI evaluation boards. The default is the SDP-120 connector.
Uncomment the ARDUINO #define to enable the ARDUINO connector
◆ SPI_DEVICE_ID
| #define SPI_DEVICE_ID 0 |
◆ SPI_HOST_SDI
| #define SPI_HOST_SDI SDP_SPI_MISO |
◆ SPI_HOST_SDO
| #define SPI_HOST_SDO SDP_SPI_MOSI |
◆ spi_ops
| #define spi_ops mbed_spi_ops |
◆ SPI_SCK
| #define SPI_SCK SDP_SPI_SCK |
◆ UART_IRQ_ID
| #define UART_IRQ_ID 0 |
Variable Documentation
◆ mbed_gpio_ldac_init_params
|
extern |
◆ mbed_spi_extra_init_params
|
extern |
