app_config_stm32.h File Reference

Header file for STM32 platform configurations. More...

#include "stm32_uart.h"
#include "stm32_spi.h"
#include "stm32_i2c.h"
#include "stm32_gpio.h"
#include "stm32_gpio_irq.h"
#include "main.h"
#include "stm32_usb_uart.h"
#include "app_config.h"
#include "stm32_irq.h"

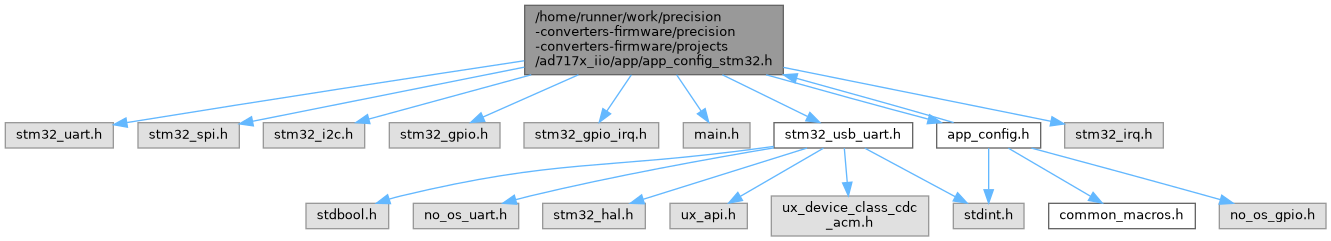

Include dependency graph for app_config_stm32.h:

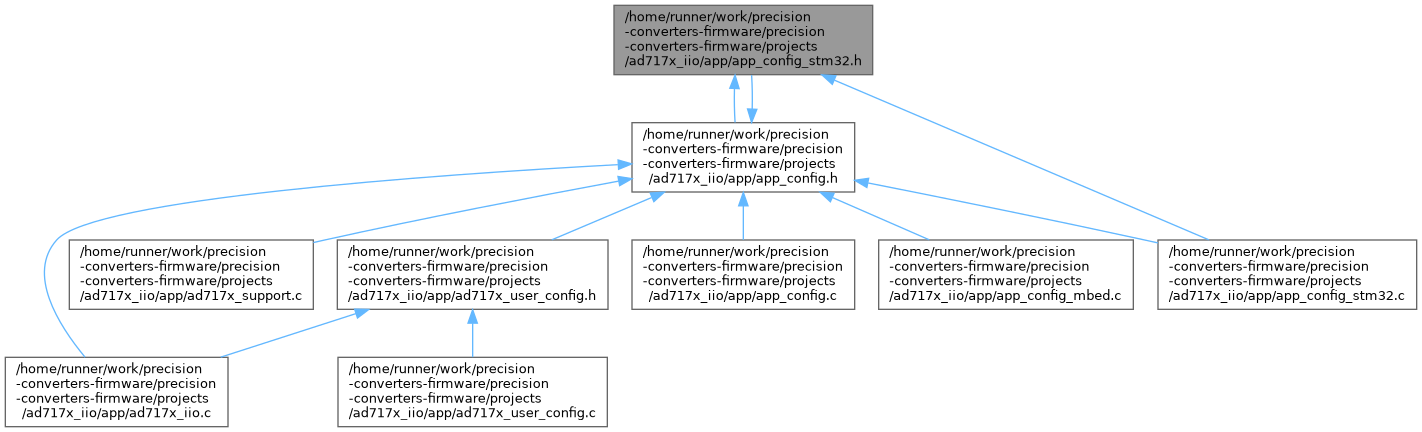

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	TARGET_NAME   SDP-K1
#define	SPI_DEVICE_ID   5
#define	SPI_CS_PORT   1
#define	SPI_CSB   9
#define	I2C_DEVICE_ID   3
#define	UART_IRQ_ID   UART5_IRQn
#define	UART_ID   5
#define	APP_UART_HANDLE   &huart5
#define	APP_UART_USB_HANDLE   hUsbDeviceHS
#define	USB_IRQ_ID   OTG_HS_IRQn
#define	RDY_PORT   6
#define	RDY_PIN   11
#define	RDY_GPIO_PRIORITY   1
#define	MAX_SPI_SCLK   11250000

Functions
void	stm32_system_init (void)
	Initialize the STM32 system peripherals.

Variables
UART_HandleTypeDef	huart5
USBD_HandleTypeDef	APP_UART_USB_HANDLE
struct stm32_usb_uart_init_param	stm32_vcom_extra_init_params
struct stm32_uart_init_param	stm32_uart_extra_init_params
struct stm32_spi_init_param	stm32_spi_extra_init_params
struct stm32_i2c_init_param	stm32_i2c_extra_init_params
struct stm32_gpio_irq_init_param	stm32_trigger_gpio_irq_init_params
struct stm32_uart_desc *	uart_extra_params

Detailed Description

Header file for STM32 platform configurations.

Copyright (c) 2025 Analog Devices, Inc. All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

APP_UART_HANDLE

#define APP_UART_HANDLE   &huart5

APP_UART_USB_HANDLE

#define APP_UART_USB_HANDLE   hUsbDeviceHS

I2C_DEVICE_ID

#define I2C_DEVICE_ID   3

MAX_SPI_SCLK

#define MAX_SPI_SCLK   11250000

RDY_GPIO_PRIORITY

#define RDY_GPIO_PRIORITY   1

RDY_PIN

#define RDY_PIN   11

RDY_PORT

#define RDY_PORT   6

SPI_CS_PORT

#define SPI_CS_PORT   1

SPI_CSB

#define SPI_CSB   9

SPI_DEVICE_ID

#define SPI_DEVICE_ID   5

TARGET_NAME

#define TARGET_NAME   SDP-K1

UART_ID

#define UART_ID   5

UART_IRQ_ID

#define UART_IRQ_ID   UART5_IRQn

USB_IRQ_ID

#define USB_IRQ_ID   OTG_HS_IRQn

Function Documentation

stm32_system_init()

void stm32_system_init ( void  )

extern

Initialize the STM32 system peripherals.

Returns

None

Variable Documentation

APP_UART_USB_HANDLE

USBD_HandleTypeDef APP_UART_USB_HANDLE

extern

huart5

UART_HandleTypeDef huart5

extern

stm32_i2c_extra_init_params

struct stm32_i2c_init_param stm32_i2c_extra_init_params

extern

stm32_spi_extra_init_params

struct stm32_spi_init_param stm32_spi_extra_init_params

extern

stm32_trigger_gpio_irq_init_params

struct stm32_gpio_irq_init_param stm32_trigger_gpio_irq_init_params

extern

stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

extern

stm32_vcom_extra_init_params

struct stm32_usb_uart_init_param stm32_vcom_extra_init_params

extern

uart_extra_params

struct stm32_uart_desc* uart_extra_params

extern
