dpot.c File Reference

#include "dpot.h"

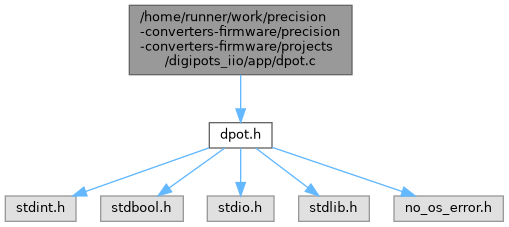

Include dependency graph for dpot.c:

Functions
int	dpot_init (struct dpot_dev **desc, struct dpot_init_param *pdpot_init_param)
	Initialize the digital potentiometer.
int	dpot_remove (struct dpot_dev *desc)
	Free the memory allocated by dpot_init().
int	dpot_reset (struct dpot_dev *desc)
	Reset the digital potentiometer.
int	dpot_shutdown (struct dpot_dev *desc, enum dpot_chn_type chn, bool shutdown_enable)
	Shutdown the digital potentiometer channel.
int	dpot_set_operating_mode (struct dpot_dev *desc, enum dpot_operating_mode operating_mode)
	Set the digital potentiometer operating mode.
int	dpot_input_reg_read (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t *data)
	Read the digital potentiometer input register.
int	dpot_input_reg_write (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t data)
	Write to the digital potentiometer input register.
int	dpot_sw_lrdac_update (struct dpot_dev *desc, enum dpot_chn_type chn)
	Copy input register to RDAC (software LRDAC).
int	dpot_chn_read (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t *data)
	Read the digital potentiometer channel.
int	dpot_chn_write (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t data)
	Write to the digital potentiometer channel.
int	dpot_nvm_read (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t *data)
	Read the NVM (non-volatile) memory data.
int	dpot_nvm_write (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t data)
	Write data to NVM (non-volatile) memory.
int	dpot_copy_rdac_to_nvm (struct dpot_dev *desc, enum dpot_chn_type chn)
	Copy RDAC register to NVM/EEPROM.
int	dpot_copy_nvm_to_rdac (struct dpot_dev *desc, enum dpot_chn_type chn)
	Copy NVM/EEPROM data to RDAC.
int	dpot_rdac_linear_update (struct dpot_dev *desc, enum dpot_chn_type chn, enum dpot_rdac_linear_status status)
	Perform RDAC linear increment/decrement.
int	dpot_enable_top_scale (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t nEnter)
	Perform Enter/exit top scale.
int	dpot_enable_bottom_scale (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t nEnter)
	Perform Enter/exit top scale.
int	dpot_rdac_6db_update (struct dpot_dev *desc, enum dpot_chn_type chn, enum dpot_rdac_6db_status status)
	Perform RDAC 6dB increment/decrement.
int	dpot_send_cmd (struct dpot_dev *desc, struct dpot_command *cmd)
	Send command word to the digital potentiometer.
int	dpot_tolerance_read (struct dpot_dev *desc, enum dpot_chn_type chn, uint8_t *data)
	Send command word to the digital potentiometer.
int	dpot_set_mid_scale (struct dpot_dev *desc, enum dpot_chn_type chn, bool shutdown_enable)
	Shutdown the digital potentiometer channel.

Function Documentation

dpot_chn_read()

int dpot_chn_read	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t *	data
	)

Read the digital potentiometer channel.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
data	- Channel data to be read.

Returns

0 in case of success, negative error code otherwise.

dpot_chn_write()

int dpot_chn_write	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t	data
	)

Write to the digital potentiometer channel.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
data	- Channel data to be written.

Returns

0 in case of success, negative error code otherwise.

dpot_copy_nvm_to_rdac()

int dpot_copy_nvm_to_rdac	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn
	)

Copy NVM/EEPROM data to RDAC.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.

Returns

0 in case of success, negative error code otherwise.

dpot_copy_rdac_to_nvm()

int dpot_copy_rdac_to_nvm	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn
	)

Copy RDAC register to NVM/EEPROM.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.

Returns

0 in case of success, negative error code otherwise.

dpot_enable_bottom_scale()

int dpot_enable_bottom_scale	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t	nEnter
	)

Perform Enter/exit top scale.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
nEnter	- Enter or exit the Bottom scake.

Returns

0 in case of success, negative error code otherwise.

dpot_enable_top_scale()

int dpot_enable_top_scale	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t	nEnter
	)

Perform Enter/exit top scale.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
nEnter	- Enter or exit the TS.

Returns

0 in case of success, negative error code otherwise.

dpot_init()

int dpot_init	(	struct dpot_dev **	desc,
		struct dpot_init_param *	pdpot_init_param
	)

Initialize the digital potentiometer.

Parameters

desc	- digipot descriptor.
pdpot_init_param	- digipot init parameters.

Returns

0 in case of success, negative error code otherwise.

Here is the caller graph for this function:

dpot_input_reg_read()

int dpot_input_reg_read	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t *	data
	)

Read the digital potentiometer input register.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
data	- input register data to be read.

Returns

0 in case of success, negative error code otherwise.

dpot_input_reg_write()

int dpot_input_reg_write	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t	data
	)

Write to the digital potentiometer input register.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
data	- input register data to be written.

Returns

0 in case of success, negative error code otherwise.

dpot_nvm_read()

int dpot_nvm_read	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t *	data
	)

Read the NVM (non-volatile) memory data.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
data	- NVM data to be read.

Returns

0 in case of success, negative error code otherwise.

dpot_nvm_write()

int dpot_nvm_write	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t	data
	)

Write data to NVM (non-volatile) memory.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
data	- NVM data to be written.

Returns

0 in case of success, negative error code otherwise.

dpot_rdac_6db_update()

int dpot_rdac_6db_update	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		enum dpot_rdac_6db_status	status
	)

Perform RDAC 6dB increment/decrement.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
status	- 6dB increment/decrement status.

Returns

0 in case of success, negative error code otherwise.

dpot_rdac_linear_update()

int dpot_rdac_linear_update	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		enum dpot_rdac_linear_status	status
	)

Perform RDAC linear increment/decrement.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
status	- linear increment/decrement status.

Returns

0 in case of success, negative error code otherwise.

dpot_remove()

int dpot_remove

(

struct dpot_dev *

desc

)

Free the memory allocated by dpot_init().

Parameters

desc	- digipot descriptor.

Returns

0 in case of success, negative error code otherwise.

Here is the caller graph for this function:

dpot_reset()

int dpot_reset

(

struct dpot_dev *

desc

)

Reset the digital potentiometer.

Parameters

desc	- digipot descriptor.

Returns

0 in case of success, negative error code otherwise.

dpot_send_cmd()

int dpot_send_cmd	(	struct dpot_dev *	desc,
		struct dpot_command *	cmd
	)

Send command word to the digital potentiometer.

Parameters

desc	- digipot descriptor.
cmd	- digipot command word

Returns

0 in case of success, negative error code otherwise.

Here is the caller graph for this function:

dpot_set_mid_scale()

int dpot_set_mid_scale	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		bool	shutdown_enable
	)

Shutdown the digital potentiometer channel.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
shutdown_enable	- To set bid scaleenable mid scale .

Returns

0 in case of success, negative error code otherwise.

dpot_set_operating_mode()

int dpot_set_operating_mode	(	struct dpot_dev *	desc,
		enum dpot_operating_mode	operating_mode
	)

Set the digital potentiometer operating mode.

Parameters

desc	- digipot descriptor.
operating_mode	- digipot operating mode.

Returns

0 in case of success, negative error code otherwise.

dpot_shutdown()

int dpot_shutdown	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		bool	shutdown_enable
	)

Shutdown the digital potentiometer channel.

Parameters

desc	- digipot descriptor.
chn	- digipot channel.
shutdown_enable	- Shutdown enable status flag.

Returns

0 in case of success, negative error code otherwise.

dpot_sw_lrdac_update()

int dpot_sw_lrdac_update	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn
	)

Copy input register to RDAC (software LRDAC).

Parameters

desc	- digipot descriptor.
chn	- digipot channel.

Returns

0 in case of success, negative error code otherwise.

dpot_tolerance_read()

int dpot_tolerance_read	(	struct dpot_dev *	desc,
		enum dpot_chn_type	chn,
		uint8_t *	data
	)

Send command word to the digital potentiometer.

Parameters

desc	- digipot descriptor.
chn	- Channel type
data	- Pointer to location where tolerance should be written.

Returns

0 in case of success, negative error code otherwise.
