dpot_user_config.h File Reference

User configurations for digipot No-OS drivers. More...

#include <stdint.h>
#include "app_config.h"
#include "ad5141.h"
#include "ad5142.h"
#include "ad5143.h"
#include "ad5144.h"
#include "ad5259.h"
#include "ad5161.h"
#include "ad5246.h"
#include "ad5242.h"
#include "ad5171.h"

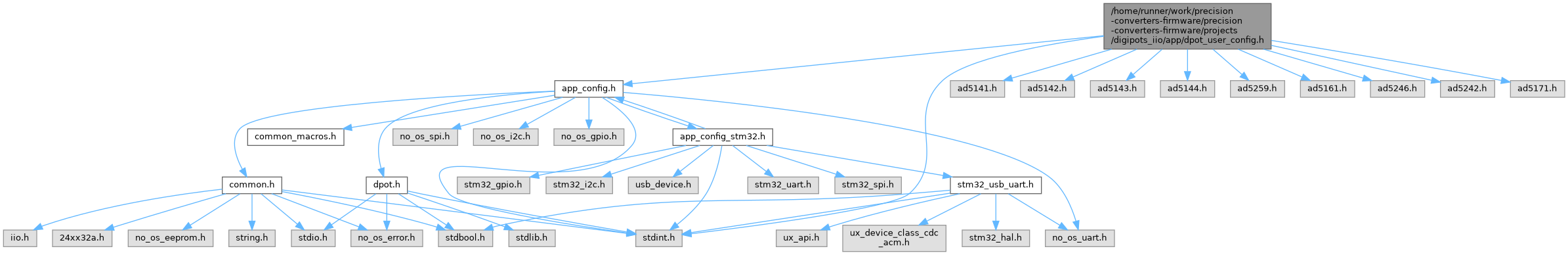

Include dependency graph for dpot_user_config.h:

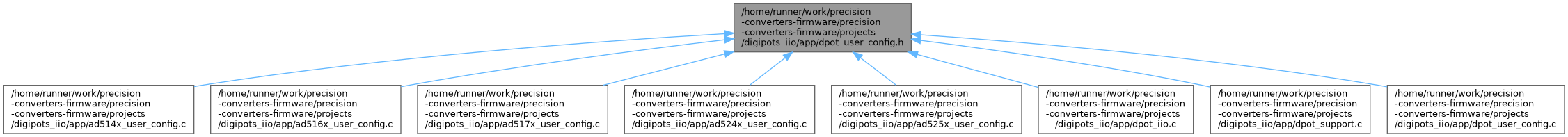

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DPOT_DEFAULT_OPERATING_MODE   DPOT_POTENTIOMETER_MODE
#define	DPOT_RDAC1_DEFAULT_SHUTDOWN   false
#define	DPOT_RDAC2_DEFAULT_SHUTDOWN   false
#define	DPOT_RDAC3_DEFAULT_SHUTDOWN   false
#define	DPOT_RDAC4_DEFAULT_SHUTDOWN   false
#define	DPOT_RAW1_DEFAULT_SHUTDOWN   false
#define	DPOT_RWB1_DEFAULT_SHUTDOWN   false
#define	DPOT_RAW2_DEFAULT_SHUTDOWN   false
#define	DPOT_RWB2_DEFAULT_SHUTDOWN   false
#define	DPOT_RAW3_DEFAULT_SHUTDOWN   false
#define	DPOT_RWB3_DEFAULT_SHUTDOWN   false
#define	DPOT_RAW4_DEFAULT_SHUTDOWN   false
#define	DPOT_RWB4_DEFAULT_SHUTDOWN   false
#define	DEFAULT_DPOT_OPS   ad5144_dpot_ops
#define	DEFAULT_DPOT_EXTRA_PARAMS   ad5144_init_params

Variables
struct dpot_init_param	dpot_init_params
struct no_os_gpio_init_param	reset_gpio_init_params
struct no_os_gpio_init_param	wp_gpio_init_params
struct no_os_gpio_init_param	lrdac_gpio_init_params
struct no_os_gpio_init_param	dis_gpio_init_params
struct no_os_gpio_init_param	indep_gpio_init_params
struct no_os_gpio_init_param	shdn_gpio_init_params
struct no_os_gpio_init_param	down_gpio_init_params
struct no_os_gpio_init_param	up_gpio_init_params
struct ad5143_dpot_init_param	ad5143_init_params
struct ad5141_dpot_init_param	ad5141_init_params
struct ad5144_dpot_init_param	ad5144_init_params
struct ad5242_dpot_init_param	ad5242_init_params

Detailed Description

User configurations for digipot No-OS drivers.

Copyright 2025(c) Analog Devices, Inc.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of Analog Devices, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY ANALOG DEVICES, INC. “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL ANALOG DEVICES, INC. BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

DEFAULT_DPOT_EXTRA_PARAMS

#define DEFAULT_DPOT_EXTRA_PARAMS   ad5144_init_params

DEFAULT_DPOT_OPS

#define DEFAULT_DPOT_OPS   ad5144_dpot_ops

DPOT_DEFAULT_OPERATING_MODE

#define DPOT_DEFAULT_OPERATING_MODE   DPOT_POTENTIOMETER_MODE

DPOT_RAW1_DEFAULT_SHUTDOWN

#define DPOT_RAW1_DEFAULT_SHUTDOWN   false

DPOT_RAW2_DEFAULT_SHUTDOWN

#define DPOT_RAW2_DEFAULT_SHUTDOWN   false

DPOT_RAW3_DEFAULT_SHUTDOWN

#define DPOT_RAW3_DEFAULT_SHUTDOWN   false

DPOT_RAW4_DEFAULT_SHUTDOWN

#define DPOT_RAW4_DEFAULT_SHUTDOWN   false

DPOT_RDAC1_DEFAULT_SHUTDOWN

#define DPOT_RDAC1_DEFAULT_SHUTDOWN   false

DPOT_RDAC2_DEFAULT_SHUTDOWN

#define DPOT_RDAC2_DEFAULT_SHUTDOWN   false

DPOT_RDAC3_DEFAULT_SHUTDOWN

#define DPOT_RDAC3_DEFAULT_SHUTDOWN   false

DPOT_RDAC4_DEFAULT_SHUTDOWN

#define DPOT_RDAC4_DEFAULT_SHUTDOWN   false

DPOT_RWB1_DEFAULT_SHUTDOWN

#define DPOT_RWB1_DEFAULT_SHUTDOWN   false

DPOT_RWB2_DEFAULT_SHUTDOWN

#define DPOT_RWB2_DEFAULT_SHUTDOWN   false

DPOT_RWB3_DEFAULT_SHUTDOWN

#define DPOT_RWB3_DEFAULT_SHUTDOWN   false

DPOT_RWB4_DEFAULT_SHUTDOWN

#define DPOT_RWB4_DEFAULT_SHUTDOWN   false

Variable Documentation

ad5141_init_params

struct ad5141_dpot_init_param ad5141_init_params

extern

ad5143_init_params

struct ad5143_dpot_init_param ad5143_init_params

extern

ad5144_init_params

struct ad5144_dpot_init_param ad5144_init_params

extern

ad5242_init_params

struct ad5242_dpot_init_param ad5242_init_params

extern

dis_gpio_init_params

struct no_os_gpio_init_param dis_gpio_init_params

extern

down_gpio_init_params

struct no_os_gpio_init_param down_gpio_init_params

extern

dpot_init_params

struct dpot_init_param dpot_init_params

extern

indep_gpio_init_params

struct no_os_gpio_init_param indep_gpio_init_params

extern

lrdac_gpio_init_params

struct no_os_gpio_init_param lrdac_gpio_init_params

extern

reset_gpio_init_params

struct no_os_gpio_init_param reset_gpio_init_params

extern

shdn_gpio_init_params

struct no_os_gpio_init_param shdn_gpio_init_params

extern

up_gpio_init_params

struct no_os_gpio_init_param up_gpio_init_params

extern

wp_gpio_init_params

struct no_os_gpio_init_param wp_gpio_init_params

extern
