EVAL-AD6676 Quick Start Guides

The Quick Start Guide provides a simple step by step instruction on how to do an initial system setup for the EVAL-AD6676 board on the ZC706 FPGA development board. It will discuss how to program the bitstream, run a no-OS program or boot a Linux distribution.

• ZC706 Quick start
  • Using Linux as software
    • Necessary files
    • Required software
    • Required hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands for the serial terminal
  • Using no-OS as software
    • Necessary files
    • Required software
    • Required hardware
    • Testing
      • Creating the setup
      • Console output

Supported carrier

The EVAL-AD6676 is, by definition a “FPGA mezzanine card” (FMC), that means it needs a carrier to plug into. The carrier we support is:

Board	EVAL-AD6676
	FMC Connector
ZC706	HPC

Supported Environments

The supported environments are:

Board	HDL	Linux Software	No-OS Software
ZC706	Yes	Yes	Yes

Hardware Setup

The EVAL-AD6676 board connects to the HPC FMC connector on the ZC706. The carrier setup requires power, UART (115200), ethernet (Linux), HDMI (if available) and/or JTAG (no-OS) connections.

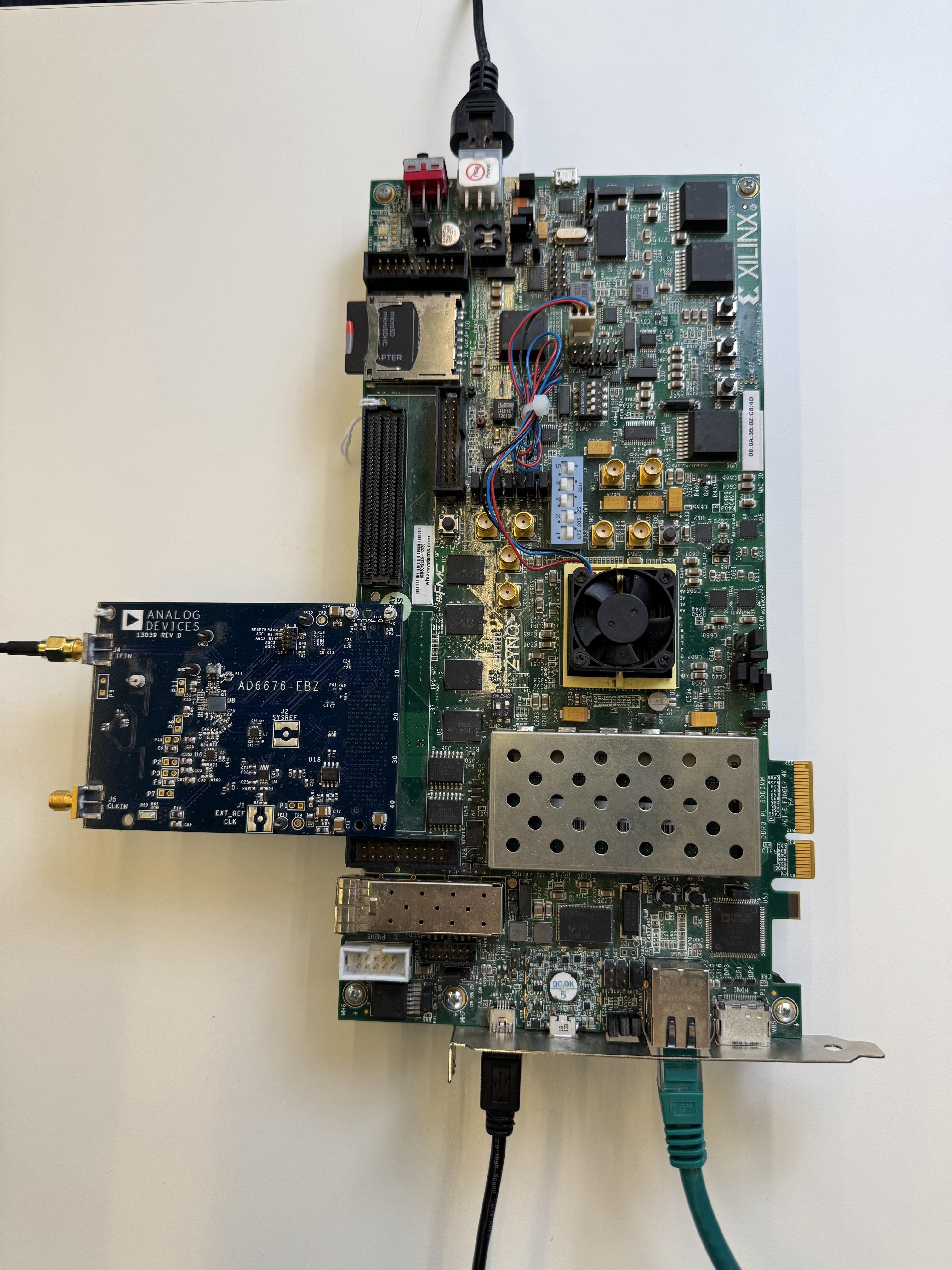

ZC706 + EVAL-AD6676

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.
