Header file for STM32 platform configurations. More...
#include <stdint.h>#include "stm32_i2c.h"#include "stm32_irq.h"#include "stm32_gpio_irq.h"#include "stm32_spi.h"#include "stm32_gpio.h"#include "stm32_uart.h"

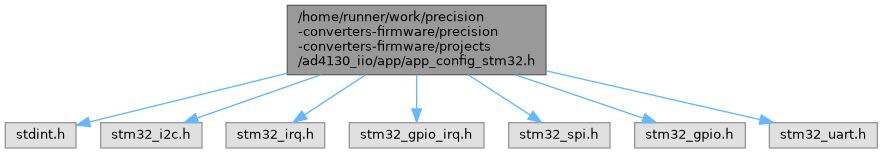

Include dependency graph for app_config_stm32.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | FS_CONFIG_VALUE 1 |
| #define | HW_CARRIER_NAME DISCO-F769NI |
| #define | SPI_DEVICE_ID 2 |
| #define | SPI_CS_PORT_NUM 0 |
| #define | SPI_CSB 11 |
| #define | APP_UART_HANDLE huart6 |
| #define | UART_IRQ USART6_IRQn |
| #define | UART_MODULE 6 |
| #define | CNV_PORT_NUM 9 |
| #define | CNV_PIN_NUM 1 |
| #define | I2C_DEVICE_ID 1 |
| #define | I2C_TIMING 0x40912732 |
| #define | LVGL_TICK_TIME_US 5000 |
| #define | LVGL_TICK_TIME_MS (LVGL_TICK_TIME_US / 1000) |
Functions | |
| void | stm32_system_init (void) |
| Initialize the STM32 system peripherals. | |
Variables | |
| UART_HandleTypeDef | APP_UART_HANDLE |
| struct stm32_usb_uart_init_param | stm32_vcom_extra_init_params |
| struct stm32_gpio_irq_init_param | stm32_trigger_gpio_irq_init_params |
| struct stm32_gpio_init_param | stm32_trigger_gpio_extra_init_params |
| struct stm32_uart_init_param | stm32_uart_extra_init_params |
| struct stm32_spi_init_param | stm32_spi_extra_init_params |
Detailed Description
Header file for STM32 platform configurations.
Copyright (c) 2025 Analog Devices, Inc. All rights reserved.
This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.
Macro Definition Documentation
◆ APP_UART_HANDLE
| #define APP_UART_HANDLE huart6 |
◆ CNV_PIN_NUM
| #define CNV_PIN_NUM 1 |
◆ CNV_PORT_NUM
| #define CNV_PORT_NUM 9 |
◆ FS_CONFIG_VALUE
| #define FS_CONFIG_VALUE 1 |
◆ HW_CARRIER_NAME
| #define HW_CARRIER_NAME DISCO-F769NI |
◆ I2C_DEVICE_ID
| #define I2C_DEVICE_ID 1 |
◆ I2C_TIMING
| #define I2C_TIMING 0x40912732 |
◆ LVGL_TICK_TIME_MS
| #define LVGL_TICK_TIME_MS (LVGL_TICK_TIME_US / 1000) |
◆ LVGL_TICK_TIME_US
| #define LVGL_TICK_TIME_US 5000 |
◆ SPI_CS_PORT_NUM
| #define SPI_CS_PORT_NUM 0 |
◆ SPI_CSB
| #define SPI_CSB 11 |
◆ SPI_DEVICE_ID
| #define SPI_DEVICE_ID 2 |
◆ UART_IRQ
| #define UART_IRQ USART6_IRQn |
◆ UART_MODULE
| #define UART_MODULE 6 |
Function Documentation
◆ stm32_system_init()
| void stm32_system_init | ( | void | ) |
Initialize the STM32 system peripherals.
- Returns
- None
Variable Documentation
◆ APP_UART_HANDLE
|
extern |
◆ stm32_spi_extra_init_params
|
extern |
◆ stm32_trigger_gpio_extra_init_params
|
extern |
◆ stm32_trigger_gpio_irq_init_params
|
extern |
◆ stm32_uart_extra_init_params
|
extern |
◆ stm32_vcom_extra_init_params
|
extern |
