Header file for STM32 platform configurations. More...
#include <stdint.h>#include "stm32_hal.h"#include "stm32_i2c.h"#include "stm32_irq.h"#include "stm32_gpio_irq.h"#include "stm32_spi.h"#include "stm32_gpio.h"#include "stm32_uart.h"#include "stm32_pwm.h"#include "stm32_dma.h"#include "stm32_usb_uart.h"#include "ad4692_iio.h"#include "app_config.h"

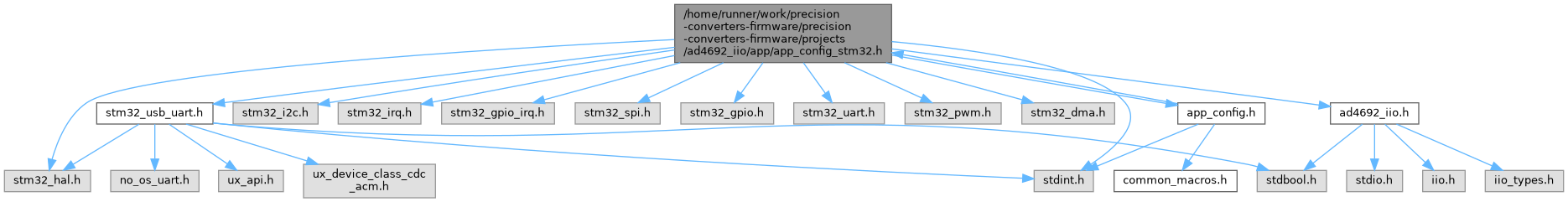

Include dependency graph for app_config_stm32.h:

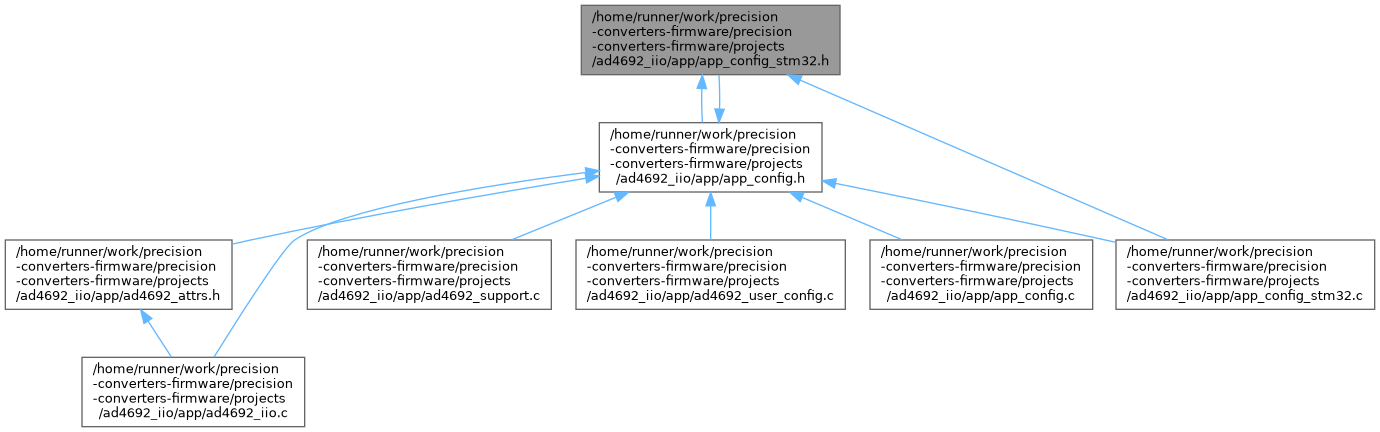

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Functions | |
| void | MX_USB_DEVICE_Init (void) |
| void | stm32_system_init (void) |
| Initialize the STM32 system peripherals. | |
| int | ad4692_config_and_start_pwm (struct ad4692_desc *desc) |
| Configure and start PWM. | |
| void | ad4692_stop_timer (void) |
| Stop timers and DMA transfers. | |
| void | ad4692_spi_dma_rx_cplt_callback (DMA_HandleTypeDef *hdma) |
| Callback function to flag the capture of number of requested samples. | |
| void | ad4692_spi_dma_rx_half_cplt_callback (DMA_HandleTypeDef *hdma) |
| Callback function to flag the capture of number of requested samples. | |
| void | stm32_abort_dma_transfer (void) |
| Abort DMA Transfers. | |
| void | update_buff (uint8_t *local_buf, uint8_t *buf_start_addr) |
| Update buffer index. | |
| void | SystemClock_Config (void) |
| void | tim8_init (void) |
| Initialize Tx trigger advanced PWM parameters. | |
| int32_t | tx_trigger_init (void) |
| Initialize Tx Trigger Timer. | |
| void | stm32_tim4_init (void) |
| Initialize Timer 4. | |
Variables | |
| DMA_HandleTypeDef | hdma_spi1_rx |
| DMA_HandleTypeDef | hdma_tim8_ch1 |
| TIM_HandleTypeDef | htim1 |
| TIM_HandleTypeDef | htim8 |
| TIM_HandleTypeDef | htim4 |
| struct stm32_uart_init_param | stm32_uart_extra_init_params |
| struct stm32_spi_init_param | stm32_spi_extra_init_params |
| struct stm32_gpio_init_param | stm32_gpio_reset_extra_init_params |
| struct stm32_gpio_init_param | stm32_gpio_bsy_extra_init_params |
| struct stm32_gpio_irq_init_param | stm32_gpio_irq_extra_init_params |
| struct stm32_gpio_init_param | stm32_gpio_cnv_extra_init_params |
| struct stm32_pwm_init_param | stm32_pwm_cnv_extra_init_params |
| struct stm32_gpio_init_param | stm32_cnv_pwm_gpio_extra_init_params |
| struct stm32_pwm_init_param | stm32_tx_trigger_extra_init_params |
| struct stm32_gpio_init_param | stm32_csb_gpio_extra_init_params |
| struct stm32_i2c_init_param | stm32_i2c_extra_init_params |
| struct no_os_dma_init_param | ad4692_dma_init_param |
| struct stm32_dma_channel | rxdma_channel |
| struct stm32_dma_channel | txdma_channel |
| struct stm32_pwm_init_param | stm32_pwm_spi_burst_extra_init_params |
| struct stm32_gpio_init_param | stm32_spi_burst_pwm_gpio_extra_init_params |
| struct iio_device_data * | ad4692_iio_dev_data |
| uint8_t | num_of_active_channels |
| volatile struct iio_device_data * | iio_dev_data_g |
| uint32_t | nb_of_samples_g |
| volatile uint32_t * | buff_start_addr |
| uint32_t | data_read |
| uint32_t | rxdma_ndtr |
| volatile bool | ad4692_dma_buff_full |
| uint32_t | dma_cycle_count |
| struct no_os_gpio_desc * | csb_gpio_desc |
| uint32_t | callback_count |
| USBD_HandleTypeDef | hUsbDeviceHS |
| struct stm32_usb_uart_init_param | stm32_vcom_extra_init_params |
| UART_HandleTypeDef | huart5 |
Detailed Description
Header file for STM32 platform configurations.
Copyright (c) 2024 Analog Devices, Inc. All rights reserved.
This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.
Macro Definition Documentation
◆ AD4692_DMA_NUM_CHANNELS
| #define AD4692_DMA_NUM_CHANNELS 2 |
◆ AD4692_RxDMA_CHANNEL_NUM
| #define AD4692_RxDMA_CHANNEL_NUM DMA_CHANNEL_3 |
◆ AD4692_TxDMA_CHANNEL_NUM
| #define AD4692_TxDMA_CHANNEL_NUM DMA_CHANNEL_7 |
◆ bsy_extra_init_params
| #define bsy_extra_init_params stm32_gpio_bsy_extra_init_params |
◆ BSY_PIN_NUM
| #define BSY_PIN_NUM 0 |
◆ BSY_PORT_NUM
| #define BSY_PORT_NUM 0 |
◆ cnv_extra_init_params
| #define cnv_extra_init_params stm32_gpio_cnv_extra_init_params |
◆ CNV_PIN_NUM
| #define CNV_PIN_NUM 10 |
◆ CNV_PORT_BASE
| #define CNV_PORT_BASE GPIOA |
◆ CNV_PORT_NUM
| #define CNV_PORT_NUM 0 |
◆ cnv_pwm_gpio_extra_init_params
| #define cnv_pwm_gpio_extra_init_params stm32_cnv_pwm_gpio_extra_init_params |
◆ CNV_TIMER_HANDLE
| #define CNV_TIMER_HANDLE htim1 |
◆ CNV_TIMER_ID
| #define CNV_TIMER_ID 1 |
◆ CONSOLE_IRQ
| #define CONSOLE_IRQ UART5_IRQn |
◆ csb_gpio_extra_init_params
| #define csb_gpio_extra_init_params stm32_csb_gpio_extra_init_params |
◆ dma_ops
| #define dma_ops stm32_dma_ops |
◆ GPIO_IRQ_PRIORITY
| #define GPIO_IRQ_PRIORITY 1 |
◆ gpio_ops
| #define gpio_ops stm32_gpio_ops |
◆ HW_CARRIER_NAME
| #define HW_CARRIER_NAME SDP_K1 |
◆ I2C_DEV_ID
| #define I2C_DEV_ID 1 |
◆ i2c_extra_init_params
| #define i2c_extra_init_params stm32_i2c_extra_init_params |
◆ i2c_ops
| #define i2c_ops stm32_i2c_ops |
◆ I2C_TIMING
| #define I2C_TIMING 0 |
◆ MAX_SPI_BAUDRATE
| #define MAX_SPI_BAUDRATE 22500000 |
◆ pwm_cnv_extra_init_params
| #define pwm_cnv_extra_init_params stm32_pwm_cnv_extra_init_params |
◆ pwm_ops
| #define pwm_ops stm32_pwm_ops |
◆ pwm_spi_burst_extra_init_params
| #define pwm_spi_burst_extra_init_params stm32_pwm_spi_burst_extra_init_params |
◆ reset_extra_init_params
| #define reset_extra_init_params stm32_gpio_reset_extra_init_params |
◆ RESET_PIN_NUM
| #define RESET_PIN_NUM 9 |
◆ RESET_PORT_NUM
| #define RESET_PORT_NUM 6 |
◆ Rx_DMA_IRQ_ID
| #define Rx_DMA_IRQ_ID DMA2_Stream0_IRQn |
◆ S_RATE_CNV_BURST_ADV_ACC
| #define S_RATE_CNV_BURST_ADV_ACC (4000) |
◆ S_RATE_CNV_BURST_ADV_AVG
| #define S_RATE_CNV_BURST_ADV_AVG (4500) |
◆ S_RATE_CNV_BURST_STD_ACC
| #define S_RATE_CNV_BURST_STD_ACC (5000) |
◆ S_RATE_CNV_BURST_STD_AVG
| #define S_RATE_CNV_BURST_STD_AVG (5750) |
◆ S_RATE_CNV_CLOCK_INTR_ADV_ACC
| #define S_RATE_CNV_CLOCK_INTR_ADV_ACC (5500) |
◆ S_RATE_CNV_CLOCK_INTR_ADV_AVG
| #define S_RATE_CNV_CLOCK_INTR_ADV_AVG (6250) |
◆ S_RATE_CNV_CLOCK_INTR_STD_ACC
| #define S_RATE_CNV_CLOCK_INTR_STD_ACC (5500) |
◆ S_RATE_CNV_CLOCK_INTR_STD_AVG
| #define S_RATE_CNV_CLOCK_INTR_STD_AVG (6250) |
◆ S_RATE_MANUAL_DMA
| #define S_RATE_MANUAL_DMA (800000) |
◆ S_RATE_MANUAL_INTR
| #define S_RATE_MANUAL_INTR (50000) |
◆ S_RATE_SPI_BURST_ADV_ACC
| #define S_RATE_SPI_BURST_ADV_ACC (4000) |
◆ S_RATE_SPI_BURST_ADV_AVG
| #define S_RATE_SPI_BURST_ADV_AVG (4500) |
◆ S_RATE_SPI_BURST_STD_ACC
| #define S_RATE_SPI_BURST_STD_ACC (5000) |
◆ S_RATE_SPI_BURST_STD_AVG
| #define S_RATE_SPI_BURST_STD_AVG (5750) |
◆ spi_burst_extra_init_params
| #define spi_burst_extra_init_params stm32_spi_burst_pwm_gpio_extra_init_params |
◆ SPI_BURST_PWM_ID
| #define SPI_BURST_PWM_ID 12 |
◆ SPI_BURST_PWM_PORT
| #define SPI_BURST_PWM_PORT 3 |
◆ SPI_BURST_TIMER_HANDLE
| #define SPI_BURST_TIMER_HANDLE htim4 |
◆ SPI_BURST_TIMER_ID
| #define SPI_BURST_TIMER_ID 4 |
◆ SPI_CS_PORT_BASE
| #define SPI_CS_PORT_BASE GPIOA |
◆ SPI_CS_PORT_NUM
| #define SPI_CS_PORT_NUM 0 |
◆ SPI_CSB
| #define SPI_CSB 15 |
◆ SPI_DEVICE_ID
| #define SPI_DEVICE_ID 1 |
◆ spi_extra_init_params
| #define spi_extra_init_params stm32_spi_extra_init_params |
◆ spi_ops
| #define spi_ops stm32_spi_ops |
◆ TIMER_1_CLK_DIVIDER
| #define TIMER_1_CLK_DIVIDER 2 |
◆ TIMER_1_PRESCALER
| #define TIMER_1_PRESCALER 1 |
◆ TIMER_4_CLK_DIVIDER
| #define TIMER_4_CLK_DIVIDER 1 |
◆ TIMER_4_PRESCALER
| #define TIMER_4_PRESCALER 1 |
◆ TIMER_8_CLK_DIVIDER
| #define TIMER_8_CLK_DIVIDER 2 |
◆ TIMER_8_PRESCALER
| #define TIMER_8_PRESCALER 0 |
◆ TIMER_CHANNEL_1
| #define TIMER_CHANNEL_1 1 |
◆ TIMER_CHANNEL_3
| #define TIMER_CHANNEL_3 3 |
◆ trigger_gpio_handle
| #define trigger_gpio_handle 0 |
◆ trigger_gpio_irq_extra_params
| #define trigger_gpio_irq_extra_params stm32_gpio_irq_extra_init_params |
◆ trigger_gpio_irq_ops
| #define trigger_gpio_irq_ops stm32_gpio_irq_ops |
◆ TRIGGER_GPIO_PIN
| #define TRIGGER_GPIO_PIN GP0_PIN_NUM |
◆ TRIGGER_GPIO_PORT
| #define TRIGGER_GPIO_PORT 0 |
◆ TRIGGER_INT_ID
| #define TRIGGER_INT_ID BSY_PIN_NUM |
◆ TX_TRIGGER_DUTY_RATIO
| #define TX_TRIGGER_DUTY_RATIO 30 |
◆ tx_trigger_extra_init_params
| #define tx_trigger_extra_init_params stm32_tx_trigger_extra_init_params |
◆ TX_TRIGGER_PERIOD
| #define TX_TRIGGER_PERIOD 400 |
◆ TX_TRIGGER_TIMER_HANDLE
| #define TX_TRIGGER_TIMER_HANDLE htim8 |
◆ TX_TRIGGER_TIMER_ID
| #define TX_TRIGGER_TIMER_ID 8 |
◆ uart_extra_init_params
| #define uart_extra_init_params stm32_uart_extra_init_params |
◆ UART_IRQ
| #define UART_IRQ OTG_HS_IRQn |
◆ UART_MODULE
| #define UART_MODULE 5 |
◆ uart_ops
| #define uart_ops stm32_uart_ops |
◆ vcom_extra_init_params
| #define vcom_extra_init_params stm32_vcom_extra_init_params |
◆ vcom_ops
| #define vcom_ops stm32_usb_uart_ops |
Function Documentation
◆ ad4692_config_and_start_pwm()
| int ad4692_config_and_start_pwm | ( | struct ad4692_desc * | desc | ) |
Configure and start PWM.
- Parameters
-
desc[in] - Device descriptor
- Returns
- 0 in case of success, negative error code otherwise.

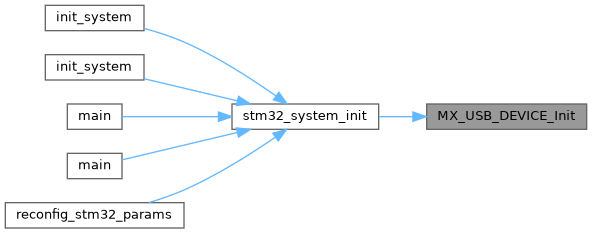

Here is the caller graph for this function:
◆ ad4692_spi_dma_rx_cplt_callback()
| void ad4692_spi_dma_rx_cplt_callback | ( | DMA_HandleTypeDef * | hdma | ) |
Callback function to flag the capture of number of requested samples.
- Parameters
-
hdma - DMA handler (Unused)
- Returns
- None
◆ ad4692_spi_dma_rx_half_cplt_callback()
| void ad4692_spi_dma_rx_half_cplt_callback | ( | DMA_HandleTypeDef * | hdma | ) |
Callback function to flag the capture of number of requested samples.
- Parameters
-
hdma - DMA handler (Unused)
- Returns
- None
◆ ad4692_stop_timer()
| void ad4692_stop_timer | ( | void | ) |
Stop timers and DMA transfers.
- Returns
- None
Here is the caller graph for this function:
◆ MX_USB_DEVICE_Init()
| void MX_USB_DEVICE_Init | ( | void | ) |
Here is the caller graph for this function:
◆ stm32_abort_dma_transfer()
| void stm32_abort_dma_transfer | ( | void | ) |
Abort DMA Transfers.
- Returns
- None
◆ stm32_system_init()
| void stm32_system_init | ( | void | ) |
Initialize the STM32 system peripherals.
- Returns
- None
◆ stm32_tim4_init()
| void stm32_tim4_init | ( | void | ) |
Initialize Timer 4.
- Returns
- None
Here is the caller graph for this function:
◆ SystemClock_Config()
| void SystemClock_Config | ( | void | ) |
◆ tim8_init()
| void tim8_init | ( | void | ) |
Initialize Tx trigger advanced PWM parameters.
- Returns
- None
Here is the caller graph for this function:
◆ tx_trigger_init()
| int32_t tx_trigger_init | ( | void | ) |
Initialize Tx Trigger Timer.
- Returns
- 0 in case of success, negative error code otherwise
Here is the caller graph for this function:
◆ update_buff()
| void update_buff | ( | uint8_t * | local_buf, |
| uint8_t * | buf_start_addr | ||
| ) |
Update buffer index.
- Parameters
-
local_buf[out] - Local Buffer buf_start_addr[out] - Buffer start addr
- Returns
- None
- Parameters
-
local_buf[in] - Local Buffer buf_start_addr[in] - Buffer start addr
- Returns
- None
Variable Documentation
◆ ad4692_dma_buff_full
|
extern |
◆ ad4692_dma_init_param
|
extern |
◆ ad4692_iio_dev_data
|
extern |
◆ buff_start_addr
|
extern |
◆ callback_count
|
extern |
◆ csb_gpio_desc
|
extern |
◆ data_read
|
extern |
◆ dma_cycle_count
|
extern |
◆ hdma_spi1_rx
|
extern |
◆ hdma_tim8_ch1
|
extern |
◆ htim1
|
extern |
◆ htim4
|
extern |
◆ htim8
|
extern |
◆ huart5
|
extern |
◆ hUsbDeviceHS
|
extern |
◆ iio_dev_data_g
|
extern |
◆ nb_of_samples_g
|
extern |
◆ num_of_active_channels
|
extern |
◆ rxdma_channel
|
extern |
◆ rxdma_ndtr
|
extern |
◆ stm32_cnv_pwm_gpio_extra_init_params
|
extern |
◆ stm32_csb_gpio_extra_init_params
|
extern |
◆ stm32_gpio_bsy_extra_init_params
|
extern |
◆ stm32_gpio_cnv_extra_init_params
|
extern |
◆ stm32_gpio_irq_extra_init_params
|
extern |
◆ stm32_gpio_reset_extra_init_params
|
extern |
◆ stm32_i2c_extra_init_params
|
extern |
◆ stm32_pwm_cnv_extra_init_params
|
extern |
◆ stm32_pwm_spi_burst_extra_init_params
|
extern |
◆ stm32_spi_burst_pwm_gpio_extra_init_params
|
extern |
◆ stm32_spi_extra_init_params
|
extern |
◆ stm32_tx_trigger_extra_init_params
|
extern |
◆ stm32_uart_extra_init_params
|
extern |
◆ stm32_vcom_extra_init_params
|
extern |
◆ txdma_channel
|
extern |
