Header file for STM32 platform configurations. More...

#include <stdint.h>
#include "stm32_hal.h"
#include "stm32_i2c.h"
#include "stm32_irq.h"
#include "stm32_gpio_irq.h"
#include "stm32_spi.h"
#include "stm32_gpio.h"
#include "stm32_uart.h"
#include "stm32_pwm.h"
#include "stm32_dma.h"
#include "stm32_usb_uart.h"

Include dependency graph for app_config_stm32.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	TARGET_NAME SDP_K1

#define	I2C_DEV_ID 1

#define	UART_MODULE 5

#define	UART_IRQ UART5_IRQn

#define	SPI_DEVICE_ID 1

#define	SPI_CS_PIN_NUM 15

#define	SPI_CS_PORT_BASE GPIOA

#define	SPI_CS_PORT_NUM 0

#define	CNV_PIN_NUM 10

#define	CNV_PORT_NUM 0

#define	CNV_PORT_BASE GPIOA

#define	GP0_PIN_NUM 15

#define	GP0_PORT_NUM 1

#define	GP1_PIN_NUM 10

#define	GP1_PORT_NUM 6

#define	BSY_PIN_NUM GP0_PIN_NUM

#define	BSY_PORT_NUM GP0_PORT_NUM

#define	RESET_PIN_NUM 9

#define	RESET_PORT_NUM 6

#define	TRIGGER_INT_ID GP0_PIN_NUM

#define	TRIGGER_GPIO_PORT 0

#define	TRIGGER_GPIO_PIN GP0_PIN_NUM

#define	MAX_SPI_SCLK 22500000

#define	gpio_ops stm32_gpio_ops

#define	spi_ops stm32_spi_ops

#define	i2c_ops stm32_i2c_ops

#define	uart_ops stm32_uart_ops

#define	pwm_ops stm32_pwm_ops

#define	trigger_gpio_irq_ops stm32_gpio_irq_ops

#define	dma_ops stm32_dma_ops

#define	vcom_ops stm32_usb_uart_ops

#define	trigger_gpio_handle 0

#define	TIMER_1_PRESCALER 1

#define	TIMER_2_PRESCALER 0

#define	TIMER_1_CLK_DIVIDER 2

#define	TIMER_2_CLK_DIVIDER 2

#define	TIMER_8_PRESCALER 0

#define	TIMER_8_CLK_DIVIDER 2

#define	TIMER_CHANNEL_1 1

#define	TIMER_CHANNEL_2 2

#define	TIMER_CHANNEL_3 3

#define	TIMER1_ID 1

#define	TIMER2_ID 2

#define	TIMER8_ID 8

#define	Rx_DMA_IRQ_ID DMA2_Stream0_IRQn

#define	AD469x_TxDMA_CHANNEL_NUM DMA_CHANNEL_7

#define	AD469x_RxDMA_CHANNEL_NUM DMA_CHANNEL_3

#define	SAMPLING_RATE (50000)

#define	CONV_TRIGGER_DUTY_CYCLE_NSEC(x) (x / 10)

#define	CONV_TRIGGER_PERIOD_NSEC(x) (((float)(1.0 / x) * 1000000) * 1000)

#define	AD469x_DMA_NUM_CHANNELS 2

#define	TX_TRIGGER_PERIOD 406

#define	TX_TRIGGER_DUTY_RATIO 50

#define	CNV_DUTY_RATIO_NS 690

Functions
void	receivecomplete_callback (DMA_HandleTypeDef *hdma)
	Callback function to flag the capture of number of requested samples. More...

void	halfcmplt_callback (DMA_HandleTypeDef *hdma)
	Callback function to flag the capture of half the number of requested samples. More...

void	update_buff (uint32_t local_buf, uint32_t buf_start_addr)
	Update buffer index. More...

void	stm32_cnv_output_gpio_config (bool is_gpio)
	Configures the conversion pin as output mode. More...

void	stm32_cs_output_gpio_config (bool is_gpio)
	Configures the chip select pin as output mode. More...

void	stm32_abort_dma_transfer (void)
	Abort ongoing SPI RX DMA transfer. More...

void	stm32_timer_enable (void)
	Starts the timer signal generation for PWM and OC channels all at once. More...

void	stm32_timer_stop (void)
	Stops generating timer signals. More...

void	stm32_system_init (void)
	Initialize the STM32 system peripherals. More...

void	MX_USB_DEVICE_Init (void)

Variables
I2C_HandleTypeDef	hi2c1

SPI_HandleTypeDef	hspi1

DMA_HandleTypeDef	hdma_spi1_rx

TIM_HandleTypeDef	htim1

TIM_HandleTypeDef	htim2

DMA_HandleTypeDef	hdma_tim1_ch3

DMA_HandleTypeDef	hdma_tim1_ch2

TIM_HandleTypeDef	htim12

UART_HandleTypeDef	huart5

volatile bool	data_ready

struct stm32_uart_init_param	stm32_uart_extra_init_params

struct stm32_spi_init_param	stm32_spi_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_cnv_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_gp0_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_gp1_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_reset_extra_init_params

struct stm32_gpio_irq_init_param	stm32_gpio_irq_extra_init_params

struct stm32_gpio_init_param	stm32_pwm_gpio_extra_init_params

struct stm32_pwm_init_param	stm32_pwm_cnv_extra_init_params

struct stm32_pwm_init_param	stm32_cs_extra_init_params

struct stm32_pwm_init_param	stm32_tx_trigger_extra_init_params

DMA_HandleTypeDef	hdma_tim8_ch1

struct stm32_dma_channel	rxdma_channel

struct stm32_dma_channel	txdma_channel

struct stm32_gpio_init_param	stm32_cs_pwm_gpio_extra_init_params

uint32_t	rxdma_ndtr

uint32_t	dma_cycle_count

USBD_HandleTypeDef	hUsbDeviceHS

struct stm32_usb_uart_init_param	stm32_vcom_extra_init_params

Detailed Description

Header file for STM32 platform configurations.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

◆ AD469x_DMA_NUM_CHANNELS

#define AD469x_DMA_NUM_CHANNELS 2

◆ AD469x_RxDMA_CHANNEL_NUM

#define AD469x_RxDMA_CHANNEL_NUM DMA_CHANNEL_3

◆ AD469x_TxDMA_CHANNEL_NUM

#define AD469x_TxDMA_CHANNEL_NUM DMA_CHANNEL_7

◆ BSY_PIN_NUM

#define BSY_PIN_NUM GP0_PIN_NUM

◆ BSY_PORT_NUM

#define BSY_PORT_NUM GP0_PORT_NUM

◆ CNV_DUTY_RATIO_NS

#define CNV_DUTY_RATIO_NS 690

◆ CNV_PIN_NUM

#define CNV_PIN_NUM 10

◆ CNV_PORT_BASE

#define CNV_PORT_BASE GPIOA

◆ CNV_PORT_NUM

#define CNV_PORT_NUM 0

◆ CONV_TRIGGER_DUTY_CYCLE_NSEC

#define CONV_TRIGGER_DUTY_CYCLE_NSEC ( x ) (x / 10)

◆ CONV_TRIGGER_PERIOD_NSEC

#define CONV_TRIGGER_PERIOD_NSEC ( x ) (((float)(1.0 / x) * 1000000) * 1000)

◆ dma_ops

#define dma_ops stm32_dma_ops

◆ GP0_PIN_NUM

#define GP0_PIN_NUM 15

◆ GP0_PORT_NUM

#define GP0_PORT_NUM 1

◆ GP1_PIN_NUM

#define GP1_PIN_NUM 10

◆ GP1_PORT_NUM

#define GP1_PORT_NUM 6

◆ gpio_ops

#define gpio_ops stm32_gpio_ops

◆ I2C_DEV_ID

#define I2C_DEV_ID 1

◆ i2c_ops

#define i2c_ops stm32_i2c_ops

◆ MAX_SPI_SCLK

#define MAX_SPI_SCLK 22500000

◆ pwm_ops

#define pwm_ops stm32_pwm_ops

◆ RESET_PIN_NUM

#define RESET_PIN_NUM 9

◆ RESET_PORT_NUM

#define RESET_PORT_NUM 6

◆ Rx_DMA_IRQ_ID

#define Rx_DMA_IRQ_ID DMA2_Stream0_IRQn

◆ SAMPLING_RATE

#define SAMPLING_RATE (50000)

◆ SPI_CS_PIN_NUM

#define SPI_CS_PIN_NUM 15

◆ SPI_CS_PORT_BASE

#define SPI_CS_PORT_BASE GPIOA

◆ SPI_CS_PORT_NUM

#define SPI_CS_PORT_NUM 0

◆ SPI_DEVICE_ID

#define SPI_DEVICE_ID 1

◆ spi_ops

#define spi_ops stm32_spi_ops

◆ TARGET_NAME

#define TARGET_NAME SDP_K1

◆ TIMER1_ID

#define TIMER1_ID 1

◆ TIMER2_ID

#define TIMER2_ID 2

◆ TIMER8_ID

#define TIMER8_ID 8

◆ TIMER_1_CLK_DIVIDER

#define TIMER_1_CLK_DIVIDER 2

◆ TIMER_1_PRESCALER

#define TIMER_1_PRESCALER 1

◆ TIMER_2_CLK_DIVIDER

#define TIMER_2_CLK_DIVIDER 2

◆ TIMER_2_PRESCALER

#define TIMER_2_PRESCALER 0

◆ TIMER_8_CLK_DIVIDER

#define TIMER_8_CLK_DIVIDER 2

◆ TIMER_8_PRESCALER

#define TIMER_8_PRESCALER 0

◆ TIMER_CHANNEL_1

#define TIMER_CHANNEL_1 1

◆ TIMER_CHANNEL_2

#define TIMER_CHANNEL_2 2

◆ TIMER_CHANNEL_3

#define TIMER_CHANNEL_3 3

◆ trigger_gpio_handle

#define trigger_gpio_handle 0

◆ trigger_gpio_irq_ops

#define trigger_gpio_irq_ops stm32_gpio_irq_ops

◆ TRIGGER_GPIO_PIN

#define TRIGGER_GPIO_PIN GP0_PIN_NUM

◆ TRIGGER_GPIO_PORT

#define TRIGGER_GPIO_PORT 0

◆ TRIGGER_INT_ID

#define TRIGGER_INT_ID GP0_PIN_NUM

◆ TX_TRIGGER_DUTY_RATIO

#define TX_TRIGGER_DUTY_RATIO 50

◆ TX_TRIGGER_PERIOD

#define TX_TRIGGER_PERIOD 406

◆ UART_IRQ

#define UART_IRQ UART5_IRQn

◆ UART_MODULE

#define UART_MODULE 5

◆ uart_ops

#define uart_ops stm32_uart_ops

◆ vcom_ops

#define vcom_ops stm32_usb_uart_ops

Function Documentation

◆ halfcmplt_callback()

void halfcmplt_callback ( DMA_HandleTypeDef * hdma )

Callback function to flag the capture of half the number of requested samples.

Parameters

hdma	- DMA Handler (Unused)

Returns: None

Callback function to flag the capture of half the number of requested samples.

Parameters

hdma	- DMA Handler (Unused)

Returns: None

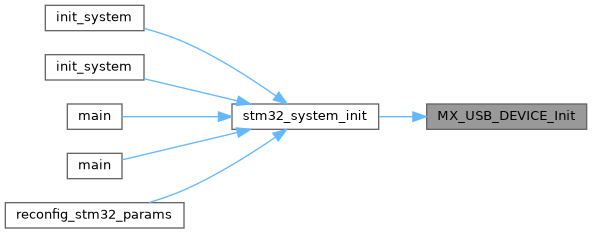

◆ MX_USB_DEVICE_Init()

void MX_USB_DEVICE_Init ( void )

◆ receivecomplete_callback()

void receivecomplete_callback ( DMA_HandleTypeDef * hdma )

Callback function to flag the capture of number of requested samples.

Parameters

hdma	- DMA handler (Unused)

Returns: None

Parameters

hdma	- DMA Handler (Unused)

Returns: None

◆ stm32_abort_dma_transfer()

void stm32_abort_dma_transfer ( void )

Abort ongoing SPI RX DMA transfer.

Returns: None

Abort ongoing SPI RX DMA transfer.

Returns: None

◆ stm32_cnv_output_gpio_config()

void stm32_cnv_output_gpio_config ( bool is_gpio )

Configures the conversion pin as output mode.

Parameters

is_gpio[in] Mode of the Pin

Returns: None

◆ stm32_cs_output_gpio_config()

void stm32_cs_output_gpio_config ( bool is_gpio )

Configures the chip select pin as output mode.

Parameters

is_gpio[in] - Mode of the Pin

Returns: None

Parameters

is_gpio[in] Mode of the Pin

Returns: None

◆ stm32_system_init()

void stm32_system_init ( void )

Initialize the STM32 system peripherals.

Returns: None

◆ stm32_timer_enable()

void stm32_timer_enable ( void )

Starts the timer signal generation for PWM and OC channels all at once.

Returns: None

◆ stm32_timer_stop()

void stm32_timer_stop ( void )

Stops generating timer signals.

Returns: None

Stops generating timer signals.

Returns: None

◆ update_buff()

void update_buff	(	uint32_t *	local_buf,
		uint32_t *	buf_start_addr
	)

Update buffer index.

Parameters

local_buf[out]	- Local Buffer
buf_start_addr[out]	- Buffer start addr

Returns: None

Variable Documentation

◆ data_ready

volatile bool data_ready

extern

◆ dma_cycle_count

uint32_t dma_cycle_count

extern

◆ hdma_spi1_rx

DMA_HandleTypeDef hdma_spi1_rx

extern

◆ hdma_tim1_ch2

DMA_HandleTypeDef hdma_tim1_ch2

extern

◆ hdma_tim1_ch3

DMA_HandleTypeDef hdma_tim1_ch3

extern

◆ hdma_tim8_ch1

DMA_HandleTypeDef hdma_tim8_ch1

extern

◆ hi2c1

I2C_HandleTypeDef hi2c1

extern

◆ hspi1

SPI_HandleTypeDef hspi1

extern

◆ htim1

TIM_HandleTypeDef htim1

extern

◆ htim12

TIM_HandleTypeDef htim12

extern

◆ htim2

TIM_HandleTypeDef htim2

extern

◆ huart5

UART_HandleTypeDef huart5

extern

◆ hUsbDeviceHS

USBD_HandleTypeDef hUsbDeviceHS

extern

◆ rxdma_channel

struct stm32_dma_channel rxdma_channel

extern

◆ rxdma_ndtr

uint32_t rxdma_ndtr

extern

◆ stm32_cs_extra_init_params

struct stm32_pwm_init_param stm32_cs_extra_init_params

extern

◆ stm32_cs_pwm_gpio_extra_init_params

struct stm32_gpio_init_param stm32_cs_pwm_gpio_extra_init_params

extern

◆ stm32_gpio_cnv_extra_init_params

struct stm32_gpio_init_param stm32_gpio_cnv_extra_init_params

extern

◆ stm32_gpio_gp0_extra_init_params

struct stm32_gpio_init_param stm32_gpio_gp0_extra_init_params

extern

◆ stm32_gpio_gp1_extra_init_params

struct stm32_gpio_init_param stm32_gpio_gp1_extra_init_params

extern

◆ stm32_gpio_irq_extra_init_params

struct stm32_gpio_irq_init_param stm32_gpio_irq_extra_init_params

extern

◆ stm32_gpio_reset_extra_init_params

struct stm32_gpio_init_param stm32_gpio_reset_extra_init_params

extern

◆ stm32_pwm_cnv_extra_init_params

struct stm32_pwm_init_param stm32_pwm_cnv_extra_init_params

extern

◆ stm32_pwm_gpio_extra_init_params

struct stm32_gpio_init_param stm32_pwm_gpio_extra_init_params

extern

◆ stm32_spi_extra_init_params

struct stm32_spi_init_param stm32_spi_extra_init_params

extern

◆ stm32_tx_trigger_extra_init_params

struct stm32_pwm_init_param stm32_tx_trigger_extra_init_params

extern

◆ stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

extern

◆ stm32_vcom_extra_init_params

struct stm32_usb_uart_init_param stm32_vcom_extra_init_params

extern

◆ txdma_channel

struct stm32_dma_channel txdma_channel

extern

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ AD469x_DMA_NUM_CHANNELS

◆ AD469x_RxDMA_CHANNEL_NUM

◆ AD469x_TxDMA_CHANNEL_NUM

◆ BSY_PIN_NUM

◆ BSY_PORT_NUM

◆ CNV_DUTY_RATIO_NS

◆ CNV_PIN_NUM

◆ CNV_PORT_BASE

◆ CNV_PORT_NUM

◆ CONV_TRIGGER_DUTY_CYCLE_NSEC

◆ CONV_TRIGGER_PERIOD_NSEC

◆ dma_ops

◆ GP0_PIN_NUM

◆ GP0_PORT_NUM

◆ GP1_PIN_NUM

◆ GP1_PORT_NUM

◆ gpio_ops

◆ I2C_DEV_ID

◆ i2c_ops

◆ MAX_SPI_SCLK

◆ pwm_ops

◆ RESET_PIN_NUM

◆ RESET_PORT_NUM

◆ Rx_DMA_IRQ_ID

◆ SAMPLING_RATE

◆ SPI_CS_PIN_NUM

◆ SPI_CS_PORT_BASE

◆ SPI_CS_PORT_NUM

◆ SPI_DEVICE_ID

◆ spi_ops

◆ TARGET_NAME

◆ TIMER1_ID

◆ TIMER2_ID

◆ TIMER8_ID

◆ TIMER_1_CLK_DIVIDER

◆ TIMER_1_PRESCALER

◆ TIMER_2_CLK_DIVIDER

◆ TIMER_2_PRESCALER

◆ TIMER_8_CLK_DIVIDER

◆ TIMER_8_PRESCALER

◆ TIMER_CHANNEL_1

◆ TIMER_CHANNEL_2

◆ TIMER_CHANNEL_3

◆ trigger_gpio_handle

◆ trigger_gpio_irq_ops

◆ TRIGGER_GPIO_PIN

◆ TRIGGER_GPIO_PORT

◆ TRIGGER_INT_ID

◆ TX_TRIGGER_DUTY_RATIO

◆ TX_TRIGGER_PERIOD

◆ UART_IRQ

◆ UART_MODULE

◆ uart_ops

◆ vcom_ops

Function Documentation

◆ halfcmplt_callback()

◆ MX_USB_DEVICE_Init()

◆ receivecomplete_callback()

◆ stm32_abort_dma_transfer()

◆ stm32_cnv_output_gpio_config()

◆ stm32_cs_output_gpio_config()

◆ stm32_system_init()

◆ stm32_timer_enable()

◆ stm32_timer_stop()

◆ update_buff()

Variable Documentation

◆ data_ready

◆ dma_cycle_count

◆ hdma_spi1_rx

◆ hdma_tim1_ch2

◆ hdma_tim1_ch3

◆ hdma_tim8_ch1

◆ hi2c1

◆ hspi1

◆ htim1
