Implementation of AD4692 IIO application interfaces. More...

#include <string.h>
#include "ad4692_user_config.h"
#include "ad4692_support.h"
#include "ad4692_iio.h"
#include "iio_trigger.h"
#include "no_os_error.h"
#include "no_os_delay.h"
#include "no_os_util.h"
#include "no_os_alloc.h"
#include "app_config.h"
#include "common.h"
#include "ad4692.h"
#include "version.h"
#include "ad4692_attrs.h"

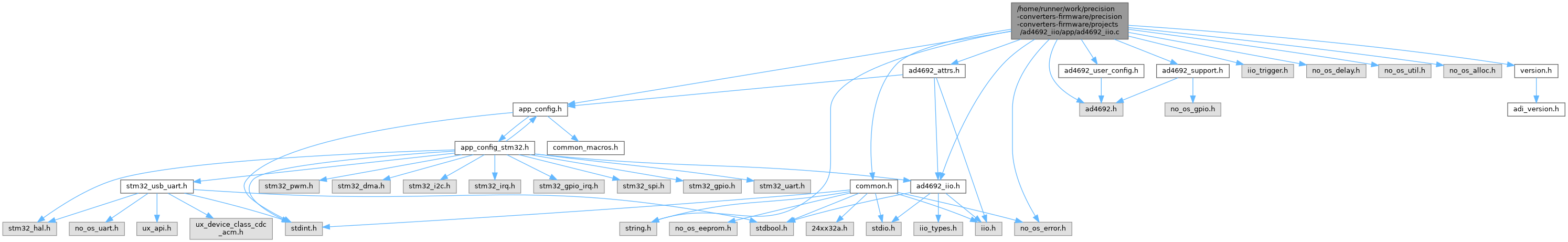

Include dependency graph for ad4692_iio.c:

Macros
#define	AD4692_IIO_TRIGGER_NAME "ad4692_iio_trigger"

#define	adc_data_buffer SDRAM_START_ADDRESS + (N_CYCLE_OFFSET * BYTES_PER_SAMPLE)

#define	DATA_BUFFER_SIZE SDRAM_SIZE_BYTES

#define	DATA_BUFFER_SIZE_CONT (32768)

#define	AD4692_DEFAULT_CHN_SCAN

#define	AD4692_IIO_CH(_name, _dev, _idx)

#define	BUF_READ_TIMEOUT 0xffffffff

#define	CS_CHANGE 1

#define	AD4692_N_CNV_TOGGLES 2

#define	AD4692_EXIT_MANUAL_MODE 0x0

#define	ACC_COUNT_MIN_VAL 0

#define	ACC_COUNT_MAX_VAL 64

#define	AD4692_ADC_MODE_STOP_STATE_MASK NO_OS_BIT(5)

#define	AD4692_STOP_STATE_DATA_READYb 0x1

#define	ADC_MAX_COUNT_UNIPOLAR (uint32_t) ((1 << ADC_RESOLUTION) - 1)

#define	AD4692_SCALE (((float) (AD4692_VREF) / 1000000.0f) / (float)(ADC_MAX_COUNT_UNIPOLAR) * 1000.0f)

#define	AD4692_OFFSET 0

#define	PWM_PERIOD_TO_FREQUENCY(x) (1000000000.0 / x)

#define	AD4692_MAX_PRIORITIES 2

#define	AD4692_RES_16 16

#define	AD4692_RES_24 24

#define	AD4692_N_BYTES_CNV_CLOCK_24BIT 5

#define	AD4692_N_BYTES_CNV_CLOCK_16BIT 4

#define	MAX_LOCAL_BUF_SIZE 65536

#define	MAX_DMA_NDTR (no_os_min(65532, (MAX_LOCAL_BUF_SIZE)))

Enumerations
enum	ad4692_board_attribute_ids { PRIORITY , PRIORITY_AVAILABLE }

enum	ad4692_readback_options { AVERAGED_DATA , ACCUMULATOR_DATA }

Functions
int	ad4692_update_sampling_frequency (uint32_t *sampling_rate)
	Set the sampling rate and get the updated value supported by MCU platform.

int	ad4692_iio_attr_get (void device, char buf, uint32_t len, const struct iio_ch_info *channel, intptr_t priv)
	Getter/Setter for the raw, offset and scale attribute value.

int	ad4692_iio_attr_set (void device, char buf, uint32_t len, const struct iio_ch_info *channel, intptr_t priv)
	Setter function for AD4692 attributes.

int	ad4692_iio_attr_available_get (void device, char buf, uint32_t len, const struct iio_ch_info *channel, intptr_t priv)
	Attribute available getter function for AD4692 attributes.

int	ad4692_iio_attr_available_set (void device, char buf, uint32_t len, const struct iio_ch_info *channel, intptr_t priv)
	Attribute available setter function for AD4692 attributes.

int32_t	ad4692_trigger_handler (struct iio_device_data *iio_dev_data)
	Push data into IIO buffer when trigger handler IRQ is invoked.

void	ad4692_data_capture_callback (void *ctx)
	Interrupt Service Routine to monitor end of conversion event.

int32_t	ad4692_configure_sampling_rate (void)

int32_t	iio_app_initialize (void)
	Initialize the AD4692 IIO Application.

void	iio_params_deinit (void)
	DeInitialize the IIO parameters.

void	iio_app_event_handler (void)
	Run the ad4692 IIO event handler.

Variables
struct scan_type	ad4692_iio_scan_type [NUM_OF_IIO_DEVICES][NO_OF_CHANNELS]

struct ad4692_desc *	ad4692_dev = NULL

volatile uint8_t	chan_id = 0

uint8_t	num_of_active_channels = 0

uint8_t	data_buff [BYTES_PER_SAMPLE] = { 0x0 }

struct no_os_spi_msg	ad4692_spi_msg_manual_mode

uint16_t	channel_mask = 0x1

uint8_t	ad4692_acc_count [NO_OF_CHANNELS] = { 0x0 }

enum ad4692_interface_modes	ad4692_interface_mode = SPI_DMA

enum ad4692_data_capture_modes	ad4692_data_capture_mode = BURST

enum ad4692_readback_options	ad4692_readback_option = AVERAGED_DATA

uint32_t	ad4692_sampling_frequency

uint32_t	ad4692_sampling_frequency_max

uint8_t	channel_priorities [NO_OF_CHANNELS] = { 0x0 }

uint8_t	channel_sequence [AD4692_MAX_SLOTS_AS] = { 0x0 }

uint8_t	num_of_as_slots = 0

uint8_t	n_data_bytes

struct stm32_spi_init_param *	spi_init_param

volatile struct iio_device_data *	iio_dev_data_g

uint32_t	nb_of_samples_g

uint32_t	data_read

volatile bool	dma_config_updated = false

volatile bool	ad4692_dma_buff_full = false

volatile uint32_t *	buff_start_addr

uint8_t	local_buf [MAX_LOCAL_BUF_SIZE+(NO_OF_CHANNELS *N_CYCLE_OFFSET)]

uint32_t	callback_count = 0

struct iio_init_param	iio_init_params

Detailed Description

Implementation of AD4692 IIO application interfaces.

This module acts as an interface for AD4692 IIO application

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

◆ ACC_COUNT_MAX_VAL

#define ACC_COUNT_MAX_VAL 64

◆ ACC_COUNT_MIN_VAL

#define ACC_COUNT_MIN_VAL 0

◆ AD4692_ADC_MODE_STOP_STATE_MASK

#define AD4692_ADC_MODE_STOP_STATE_MASK NO_OS_BIT(5)

◆ AD4692_DEFAULT_CHN_SCAN

#define AD4692_DEFAULT_CHN_SCAN

Value:

    {\
    .sign = 'u',\
    .realbits = ADC_RESOLUTION,\
    .storagebits = CHN_STORAGE_BITS,\
    .shift = 0,\
    .is_big_endian = true\
}

◆ AD4692_EXIT_MANUAL_MODE

#define AD4692_EXIT_MANUAL_MODE 0x0

◆ AD4692_IIO_CH

#define AD4692_IIO_CH	(	_name,
		_dev,
		_idx
	)

Value:

    {\
    .name = _name,\
    .ch_type = IIO_VOLTAGE,\
    .ch_out = false,\
    .indexed = true,\
    .channel = _idx,\
    .scan_index = _idx,\
    .scan_type = ad4692_iio_scan_type[_dev],\
    .attributes = ad4692_iio_ch_attributes[_dev]\
}

◆ AD4692_IIO_TRIGGER_NAME

#define AD4692_IIO_TRIGGER_NAME "ad4692_iio_trigger"

◆ AD4692_MAX_PRIORITIES

#define AD4692_MAX_PRIORITIES 2

◆ AD4692_N_BYTES_CNV_CLOCK_16BIT

#define AD4692_N_BYTES_CNV_CLOCK_16BIT 4

◆ AD4692_N_BYTES_CNV_CLOCK_24BIT

#define AD4692_N_BYTES_CNV_CLOCK_24BIT 5

◆ AD4692_N_CNV_TOGGLES

#define AD4692_N_CNV_TOGGLES 2

◆ AD4692_OFFSET

#define AD4692_OFFSET 0

◆ AD4692_RES_16

#define AD4692_RES_16 16

◆ AD4692_RES_24

#define AD4692_RES_24 24

◆ AD4692_SCALE

#define AD4692_SCALE (((float) (AD4692_VREF) / 1000000.0f) / (float)(ADC_MAX_COUNT_UNIPOLAR) * 1000.0f)

◆ AD4692_STOP_STATE_DATA_READYb

#define AD4692_STOP_STATE_DATA_READYb 0x1

◆ adc_data_buffer

#define adc_data_buffer SDRAM_START_ADDRESS + (N_CYCLE_OFFSET * BYTES_PER_SAMPLE)

◆ ADC_MAX_COUNT_UNIPOLAR

#define ADC_MAX_COUNT_UNIPOLAR (uint32_t) ((1 << ADC_RESOLUTION) - 1)

◆ BUF_READ_TIMEOUT

#define BUF_READ_TIMEOUT 0xffffffff

◆ CS_CHANGE

#define CS_CHANGE 1

◆ DATA_BUFFER_SIZE

#define DATA_BUFFER_SIZE SDRAM_SIZE_BYTES

◆ DATA_BUFFER_SIZE_CONT

#define DATA_BUFFER_SIZE_CONT (32768)

◆ MAX_DMA_NDTR

#define MAX_DMA_NDTR (no_os_min(65532, (MAX_LOCAL_BUF_SIZE)))

◆ MAX_LOCAL_BUF_SIZE

#define MAX_LOCAL_BUF_SIZE 65536

◆ PWM_PERIOD_TO_FREQUENCY

#define PWM_PERIOD_TO_FREQUENCY ( x ) (1000000000.0 / x)

Enumeration Type Documentation

◆ ad4692_board_attribute_ids

enum ad4692_board_attribute_ids

Enumerator
PRIORITY
PRIORITY_AVAILABLE

◆ ad4692_readback_options

enum ad4692_readback_options

Enumerator
AVERAGED_DATA
ACCUMULATOR_DATA

Function Documentation

◆ ad4692_configure_sampling_rate()

int32_t ad4692_configure_sampling_rate ( void )

Here is the caller graph for this function:

◆ ad4692_data_capture_callback()

void ad4692_data_capture_callback ( void * ctx )

Interrupt Service Routine to monitor end of conversion event.

Parameters

ctx[in] - Callback context (unused)

Returns: none

Note: Callback registered for the the DRDY interrupt to indicate end of conversion in case of burst data capturing with SPI operation.

◆ ad4692_iio_attr_available_get()

int ad4692_iio_attr_available_get	(	void *	device,
		char *	buf,
		uint32_t	len,
		const struct iio_ch_info *	channel,
		intptr_t	priv
	)

Attribute available getter function for AD4692 attributes.

Parameters

device[in,out]-	Pointer to IIO device instance
buf[in]-	IIO input data buffer
len[in]-	Number of input bytes
channel[in]	- input channel
priv[in]	- Attribute private ID

Returns: len in case of SUCCESS, negative error code otherwise

◆ ad4692_iio_attr_available_set()

int ad4692_iio_attr_available_set	(	void *	device,
		char *	buf,
		uint32_t	len,
		const struct iio_ch_info *	channel,
		intptr_t	priv
	)

Attribute available setter function for AD4692 attributes.

Parameters

device[in,out]-	Pointer to IIO device instance
buf[in]-	IIO input data buffer
len[in]-	Number of input bytes
channel[in]	- input channel
priv[in]	- Attribute private ID

Returns: len in case of success, negative error code otherwise

◆ ad4692_iio_attr_get()

int ad4692_iio_attr_get	(	void *	device,
		char *	buf,
		uint32_t	len,
		const struct iio_ch_info *	channel,
		intptr_t	priv
	)

Getter/Setter for the raw, offset and scale attribute value.

Parameters

device[in,out]-	Pointer to IIO device instance
buf[in]-	IIO input data buffer
len[in]-	Number of input bytes
channel[in]	- input channel
priv[in]	- Attribute private ID

Returns: Number of characters read/written, negative error code otherwise

◆ ad4692_iio_attr_set()

int ad4692_iio_attr_set	(	void *	device,
		char *	buf,
		uint32_t	len,
		const struct iio_ch_info *	channel,
		intptr_t	priv
	)

Setter function for AD4692 attributes.

Parameters

device[in,out]-	Pointer to IIO device instance
buf[in]-	IIO input data buffer
len[in]-	Number of expected bytes
channel[in]	- input channel
priv[in]	- Attribute private ID

Returns: len in case of success, negative error code otherwise

◆ ad4692_trigger_handler()

int32_t ad4692_trigger_handler ( struct iio_device_data * iio_dev_data )

Push data into IIO buffer when trigger handler IRQ is invoked.

Parameters

iio_dev_data[in] - IIO device data instance

Returns: 0 in case of success or negative value otherwise

◆ ad4692_update_sampling_frequency()

int ad4692_update_sampling_frequency ( uint32_t * sampling_rate )

Set the sampling rate and get the updated value supported by MCU platform.

Returns: 0 in case of success, negative error code otherwise

Here is the caller graph for this function:

◆ iio_app_event_handler()

void iio_app_event_handler ( void )

Run the ad4692 IIO event handler.

Run the AD405X IIO event handler.

Returns: None

◆ iio_app_initialize()

int32_t iio_app_initialize ( void )

Initialize the AD4692 IIO Application.

Initialize the IIO interface for AD405X IIO device.

Returns: 0 in case of success, negative value otherwise

Here is the caller graph for this function:

◆ iio_params_deinit()

void iio_params_deinit ( void )

DeInitialize the IIO parameters.

Here is the caller graph for this function:

Variable Documentation

◆ ad4692_acc_count

uint8_t ad4692_acc_count[NO_OF_CHANNELS] = { 0x0 }

◆ ad4692_data_capture_mode

enum ad4692_data_capture_modes ad4692_data_capture_mode = BURST

◆ ad4692_dev

struct ad4692_desc* ad4692_dev = NULL

◆ ad4692_dma_buff_full

volatile bool ad4692_dma_buff_full = false

◆ ad4692_iio_scan_type

struct scan_type ad4692_iio_scan_type[NUM_OF_IIO_DEVICES][NO_OF_CHANNELS]

◆ ad4692_interface_mode

enum ad4692_interface_modes ad4692_interface_mode = SPI_DMA

◆ ad4692_readback_option

enum ad4692_readback_options ad4692_readback_option = AVERAGED_DATA

◆ ad4692_sampling_frequency

uint32_t ad4692_sampling_frequency

◆ ad4692_sampling_frequency_max

uint32_t ad4692_sampling_frequency_max

◆ ad4692_spi_msg_manual_mode

struct no_os_spi_msg ad4692_spi_msg_manual_mode

Initial value:

= {
    .cs_change = CS_CHANGE,
    .tx_buff = data_buff,
    .rx_buff = data_buff,
    .bytes_number = BYTES_PER_SAMPLE
}

◆ buff_start_addr

volatile uint32_t* buff_start_addr

◆ callback_count

uint32_t callback_count = 0

◆ chan_id

volatile uint8_t chan_id = 0

◆ channel_mask

uint16_t channel_mask = 0x1

◆ channel_priorities

uint8_t channel_priorities[NO_OF_CHANNELS] = { 0x0 }

◆ channel_sequence

uint8_t channel_sequence[AD4692_MAX_SLOTS_AS] = { 0x0 }

◆ data_buff

uint8_t data_buff[BYTES_PER_SAMPLE] = { 0x0 }

◆ data_read

uint32_t data_read

◆ dma_config_updated

volatile bool dma_config_updated = false

◆ iio_dev_data_g

volatile struct iio_device_data* iio_dev_data_g

◆ iio_init_params

struct iio_init_param iio_init_params

Initial value:

= {
    .phy_type = USE_UART,
}

◆ local_buf

uint8_t local_buf[MAX_LOCAL_BUF_SIZE+(NO_OF_CHANNELS *N_CYCLE_OFFSET)]

◆ n_data_bytes

uint8_t n_data_bytes

◆ nb_of_samples_g

uint32_t nb_of_samples_g

◆ num_of_active_channels

uint8_t num_of_active_channels = 0

◆ num_of_as_slots

uint8_t num_of_as_slots = 0

◆ spi_init_param

struct stm32_spi_init_param* spi_init_param

Macros

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ ACC_COUNT_MAX_VAL

◆ ACC_COUNT_MIN_VAL

◆ AD4692_ADC_MODE_STOP_STATE_MASK

◆ AD4692_DEFAULT_CHN_SCAN

◆ AD4692_EXIT_MANUAL_MODE

◆ AD4692_IIO_CH

◆ AD4692_IIO_TRIGGER_NAME

◆ AD4692_MAX_PRIORITIES

◆ AD4692_N_BYTES_CNV_CLOCK_16BIT

◆ AD4692_N_BYTES_CNV_CLOCK_24BIT

◆ AD4692_N_CNV_TOGGLES

◆ AD4692_OFFSET

◆ AD4692_RES_16

◆ AD4692_RES_24

◆ AD4692_SCALE

◆ AD4692_STOP_STATE_DATA_READYb

◆ adc_data_buffer

◆ ADC_MAX_COUNT_UNIPOLAR

◆ BUF_READ_TIMEOUT

◆ CS_CHANGE

◆ DATA_BUFFER_SIZE

◆ DATA_BUFFER_SIZE_CONT

◆ MAX_DMA_NDTR

◆ MAX_LOCAL_BUF_SIZE

◆ PWM_PERIOD_TO_FREQUENCY

Enumeration Type Documentation

◆ ad4692_board_attribute_ids

◆ ad4692_readback_options

Function Documentation

◆ ad4692_configure_sampling_rate()

◆ ad4692_data_capture_callback()

◆ ad4692_iio_attr_available_get()

◆ ad4692_iio_attr_available_set()

◆ ad4692_iio_attr_get()

◆ ad4692_iio_attr_set()

◆ ad4692_trigger_handler()

◆ ad4692_update_sampling_frequency()

◆ iio_app_event_handler()

◆ iio_app_initialize()

◆ iio_params_deinit()

Variable Documentation

◆ ad4692_acc_count

◆ ad4692_data_capture_mode

◆ ad4692_dev

◆ ad4692_dma_buff_full

◆ ad4692_iio_scan_type

◆ ad4692_interface_mode

◆ ad4692_readback_option

◆ ad4692_sampling_frequency

◆ ad4692_sampling_frequency_max

◆ ad4692_spi_msg_manual_mode

◆ buff_start_addr

◆ callback_count

◆ chan_id

◆ channel_mask

◆ channel_priorities

◆ channel_sequence

◆ data_buff

◆ data_read

◆ dma_config_updated

◆ iio_dev_data_g

◆ iio_init_params

◆ local_buf

◆ n_data_bytes

◆ nb_of_samples_g

◆ num_of_active_channels

◆ num_of_as_slots

◆ spi_init_param
