Support header file for AD4692. More...

#include "no_os_gpio.h"
#include "iio.h"
#include "iio_trigger.h"
#include "ad4692.h"

Include dependency graph for ad4692_support.h:

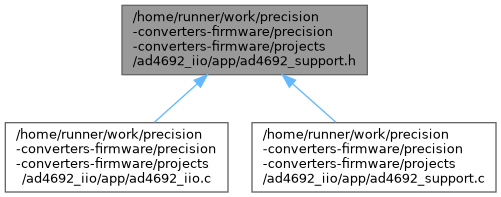

This graph shows which files directly or indirectly include this file:

Classes
struct	ad4692_data_transfer_system
	AD4692 Data transfer system function pointers (per ADC mode) More...

Macros
#define	AD4692_MAX_SLOTS_AS 128

#define	CS_CHANGE 1

#define	AD4692_N_BYTES_TXN_24BIT 5

#define	AD4692_N_BYTES_TXN_16BIT 4

#define	AD4692_N_BYTES_TXN_OFFSET 2

#define	AD4692_N_CNV_TOGGLES 2

#define	AD4692_EXIT_MANUAL_MODE 0x0

#define	PWM_PERIOD_TO_FREQUENCY(x) (1E9 / x)

Enumerations
enum	ad4692_sequencer_modes { STANDARD_SEQUENCER , ADVANCED_SEQUENCER }
	AD4692 sequencer modes. More...

enum	ad4692_readback_options { AVERAGED_DATA , ACCUMULATOR_DATA }
	AD4692 readback options. More...

Functions
int	ad4692_configure_channel (struct ad4692_desc *desc)
	Configure the per channel accumulator count limit and enable the desired channels in the AD4692 device.

int	ad4692_configure_channel_priorities (uint8_t chn_priorities, uint8_t channel_sequence, uint8_t num_as_slots, uint8_t acc_count)
	Configure the advanced sequencer slots.

int	ad4692_configure_acc_mask (uint16_t channel_mask, enum ad4692_sequencer_modes sequencer, uint8_t *chn_priorities)
	Configure the accumulator mask.

int	ad4692_exit_manual_mode (struct ad4692_desc *desc)
	Exit manual mode and switch to CNV clock mode.

int	ad4692_configure_pwm_rate (struct no_os_pwm_desc *desc, uint32_t sampling_rate)
	Configure PWM with optimal prescaler for given sampling rate.

void	ad4692_get_tx_command (uint8_t *local_tx_data)
	Get the Tx buffer respective to the enabled channels.

void	ad4692_update_active_channels (uint32_t ch_mask)
	Update active channels based on sequencer mode and channel mask.

int32_t	ad4692_data_transfer_init (struct ad4692_desc *desc, enum ad4692_spi_mode mode)
	Initialize the data transfer system for a given ADC mode.

int32_t	ad4692_data_transfer_prepare (void *dev, uint32_t ch_mask)
	Delegation: prepare transfer for active mode.

int32_t	ad4692_data_transfer_submit (struct iio_device_data *iio_dev_data)
	Delegation: submit samples for active mode.

int32_t	ad4692_data_transfer_trigger_handler (struct iio_device_data *iio_dev_data)
	Delegation: trigger handler for active mode.

int32_t	ad4692_data_transfer_end (void *dev)
	Delegation: end transfer for active mode.

int32_t	ad4692_data_transfer_remove (struct ad4692_desc *desc)
	Delegation: remove active mode resources.

int32_t	ad4692_data_transfer_read_converted_data (struct ad4692_desc desc, uint8_t chn, uint32_t adc_data)
	Delegation: read converted data from active mode.

int32_t	ad4692_data_transfer_update_freq (uint32_t *sampling_rate)
	Delegation: update sampling frequency for active mode.

uint32_t	ad4692_get_max_sampling_rate (enum ad4692_spi_mode mode)
	Get maximum sampling rate for a given ADC mode.

Variables
struct ad4692_data_transfer_system	ad4692_data_transfer_manual_mode

struct ad4692_data_transfer_system	ad4692_data_transfer_cnv_clock_mode

struct ad4692_data_transfer_system	ad4692_data_transfer_cnv_burst_mode

struct ad4692_data_transfer_system	ad4692_data_transfer_spi_burst_mode

uint8_t	ad4692_active_channels []

uint8_t	num_of_active_channels

uint16_t	channel_mask

uint8_t	ad4692_acc_count []

uint8_t	channel_priorities []

uint8_t	n_data_bytes

uint8_t	n_bytes_per_transaction

volatile bool	ad4692_conversion_flag

volatile bool	buf_size_updated

enum ad4692_sequencer_modes	ad4692_sequencer_mode

enum ad4692_readback_options	ad4692_readback_option

enum ad4692_int_osc_sel	ad4692_osc_freq_id

struct iio_hw_trig *	ad4692_hw_trig_desc

Detailed Description

Support header file for AD4692.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

◆ AD4692_EXIT_MANUAL_MODE

#define AD4692_EXIT_MANUAL_MODE 0x0

◆ AD4692_MAX_SLOTS_AS

#define AD4692_MAX_SLOTS_AS 128

◆ AD4692_N_BYTES_TXN_16BIT

#define AD4692_N_BYTES_TXN_16BIT 4

◆ AD4692_N_BYTES_TXN_24BIT

#define AD4692_N_BYTES_TXN_24BIT 5

◆ AD4692_N_BYTES_TXN_OFFSET

#define AD4692_N_BYTES_TXN_OFFSET 2

◆ AD4692_N_CNV_TOGGLES

#define AD4692_N_CNV_TOGGLES 2

◆ CS_CHANGE

#define CS_CHANGE 1

◆ PWM_PERIOD_TO_FREQUENCY

#define PWM_PERIOD_TO_FREQUENCY ( x ) (1E9 / x)

Enumeration Type Documentation

◆ ad4692_readback_options

enum ad4692_readback_options

AD4692 readback options.

Enumerator
AVERAGED_DATA
ACCUMULATOR_DATA

◆ ad4692_sequencer_modes

enum ad4692_sequencer_modes

AD4692 sequencer modes.

Enumerator
STANDARD_SEQUENCER
ADVANCED_SEQUENCER

Function Documentation

◆ ad4692_configure_acc_mask()

int ad4692_configure_acc_mask	(	uint16_t	channel_mask,
		enum ad4692_sequencer_modes	sequencer,
		uint8_t *	chn_priorities
	)

Configure the accumulator mask.

Parameters

channel_mask[in]	- Channel mask (Applicable in case of standard sequencer)
sequencer[in]	- Sequencer mode
chn_priorities[in]	- Channel priority (Applicable in case of advanced sequencer)

Returns: 0 in case of success, negative error code otherwise.

Here is the caller graph for this function:

◆ ad4692_configure_channel()

int ad4692_configure_channel ( struct ad4692_desc * desc )

Configure the per channel accumulator count limit and enable the desired channels in the AD4692 device.

Parameters

desc[in] - AD4692 device descriptor

Returns: 0 in case of success, negative error code otherwise

◆ ad4692_configure_channel_priorities()

int ad4692_configure_channel_priorities	(	uint8_t *	chn_priorities,
		uint8_t *	channel_sequence,
		uint8_t *	num_of_as_slots,
		uint8_t *	acc_count
	)

Configure the advanced sequencer slots.

Parameters

chn_priorities[in]	- channel priorities to be configured
channel_sequence[out]	- Channel sequence as configured in the AS Slots
num_of_as_slots[out]	- Number of slots in the advanced sequencer
acc_count[in]	- Accumulator count limit

Returns: 0 in case of success, negative error code otherwise.

This function configures the advanced sequencer slots based on the priorities assigned to each channel(max 2 priorities are allowed in the application). Example: If the user configures the following channels as P1 (highest priority): Ch0,Ch1,Ch2 and the following as P2 (Least priority): Ch3,Ch4 Then the advanced sequencer configurations would look like: Ch0-Ch1-Ch2-Ch3-Ch0-Ch1-Ch2-Ch4

Here is the caller graph for this function:

◆ ad4692_configure_pwm_rate()

int ad4692_configure_pwm_rate	(	struct no_os_pwm_desc *	desc,
		uint32_t	sampling_rate
	)

Configure PWM with optimal prescaler for given sampling rate.

Parameters

desc[in]	- PWM descriptor to configure
sampling_rate[in]	- Desired sampling rate in samples per second

Returns: 0 in case of success, negative error code otherwise

◆ ad4692_data_transfer_end()

int32_t ad4692_data_transfer_end ( void * dev )

Delegation: end transfer for active mode.

Parameters

dev[in] - IIO device instance

Returns: 0 in case of success, -EINVAL if no active mode, 0 if function not implemented

◆ ad4692_data_transfer_init()

int32_t ad4692_data_transfer_init	(	struct ad4692_desc *	desc,
		enum ad4692_spi_mode	mode
	)

Initialize the data transfer system for a given ADC mode.

Parameters

desc[in]	- AD4692 device descriptor
mode[in]	- ADC mode to initialize

Returns: 0 in case of success, negative error code otherwise

Here is the caller graph for this function:

◆ ad4692_data_transfer_prepare()

int32_t ad4692_data_transfer_prepare	(	void *	dev,
		uint32_t	ch_mask
	)

Delegation: prepare transfer for active mode.

Parameters

dev[in]	- IIO device instance
ch_mask[in]	- Channel mask indicating which channels to enable

Returns: 0 in case of success, -EINVAL if no active mode, 0 if function not implemented

◆ ad4692_data_transfer_read_converted_data()

int32_t ad4692_data_transfer_read_converted_data	(	struct ad4692_desc *	desc,
		uint8_t	chn,
		uint32_t *	adc_data
	)

Delegation: read converted data from active mode.

Parameters

desc[in]	- AD4692 device descriptor
chn[in]	- Channel number to read
adc_data[out]	- Pointer to store the converted data

Returns: 0 in case of success, negative error code otherwise

Here is the caller graph for this function:

◆ ad4692_data_transfer_remove()

int32_t ad4692_data_transfer_remove ( struct ad4692_desc * desc )

Delegation: remove active mode resources.

Parameters

desc[in] - AD4692 device descriptor

Returns: 0 in case of success, -EINVAL if no active mode, 0 if function not implemented

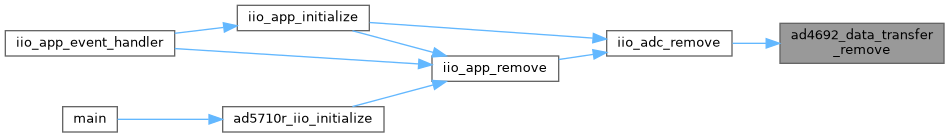

Here is the caller graph for this function:

◆ ad4692_data_transfer_submit()

int32_t ad4692_data_transfer_submit ( struct iio_device_data * iio_dev_data )

Delegation: submit samples for active mode.

Parameters

iio_dev_data[in] - IIO device data instance

Returns: 0 in case of success, -EINVAL if no active mode, 0 if function not implemented

◆ ad4692_data_transfer_trigger_handler()

int32_t ad4692_data_transfer_trigger_handler ( struct iio_device_data * iio_dev_data )

Delegation: trigger handler for active mode.

Parameters

iio_dev_data[in] - IIO device data instance

Returns: 0 in case of success, -EINVAL if no active mode, 0 if function not implemented

◆ ad4692_data_transfer_update_freq()

int32_t ad4692_data_transfer_update_freq ( uint32_t * sampling_rate )

Delegation: update sampling frequency for active mode.

Parameters

sampling_rate[in,out] - Pointer to requested/actual sampling rate

Returns: 0 in case of success, -EINVAL if no active mode, 0 if function not implemented

Here is the caller graph for this function:

◆ ad4692_exit_manual_mode()

int ad4692_exit_manual_mode ( struct ad4692_desc * desc )

Exit manual mode and switch to CNV clock mode.

Parameters

desc[in] - AD4692 device descriptor

Returns: 0 in case of success, negative error code otherwise.

Here is the caller graph for this function:

◆ ad4692_get_max_sampling_rate()

uint32_t ad4692_get_max_sampling_rate ( enum ad4692_spi_mode mode )

Get maximum sampling rate for a given ADC mode.

Parameters

mode[in] - ADC mode

Returns: Maximum sampling rate in samples per second

Here is the caller graph for this function:

◆ ad4692_get_tx_command()

void ad4692_get_tx_command ( uint8_t * local_tx_data )

Get the Tx buffer respective to the enabled channels.

Parameters

local_tx_data[out] - Tx buffer to populate with channel commands

Returns: None

◆ ad4692_update_active_channels()

void ad4692_update_active_channels ( uint32_t ch_mask )

Update active channels based on sequencer mode and channel mask.

Parameters

ch_mask[in] - Channel mask (used in standard sequencer mode)

Variable Documentation

◆ ad4692_acc_count

uint8_t ad4692_acc_count[]

extern

◆ ad4692_active_channels

uint8_t ad4692_active_channels[]

extern

◆ ad4692_conversion_flag

volatile bool ad4692_conversion_flag

extern

◆ ad4692_data_transfer_cnv_burst_mode

struct ad4692_data_transfer_system ad4692_data_transfer_cnv_burst_mode

extern

◆ ad4692_data_transfer_cnv_clock_mode

struct ad4692_data_transfer_system ad4692_data_transfer_cnv_clock_mode

extern

◆ ad4692_data_transfer_manual_mode

struct ad4692_data_transfer_system ad4692_data_transfer_manual_mode

extern

◆ ad4692_data_transfer_spi_burst_mode

struct ad4692_data_transfer_system ad4692_data_transfer_spi_burst_mode

extern

◆ ad4692_hw_trig_desc

struct iio_hw_trig* ad4692_hw_trig_desc

extern

◆ ad4692_osc_freq_id

enum ad4692_int_osc_sel ad4692_osc_freq_id

extern

◆ ad4692_readback_option

enum ad4692_readback_options ad4692_readback_option

extern

◆ ad4692_sequencer_mode

enum ad4692_sequencer_modes ad4692_sequencer_mode

extern

◆ buf_size_updated

volatile bool buf_size_updated

extern

◆ channel_mask

uint16_t channel_mask

extern

◆ channel_priorities

uint8_t channel_priorities[]

extern

◆ n_bytes_per_transaction

uint8_t n_bytes_per_transaction

extern

◆ n_data_bytes

uint8_t n_data_bytes

extern

◆ num_of_active_channels

uint8_t num_of_active_channels

extern

Classes

Macros

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ AD4692_EXIT_MANUAL_MODE

◆ AD4692_MAX_SLOTS_AS

◆ AD4692_N_BYTES_TXN_16BIT

◆ AD4692_N_BYTES_TXN_24BIT

◆ AD4692_N_BYTES_TXN_OFFSET

◆ AD4692_N_CNV_TOGGLES

◆ CS_CHANGE

◆ PWM_PERIOD_TO_FREQUENCY

Enumeration Type Documentation

◆ ad4692_readback_options

◆ ad4692_sequencer_modes

Function Documentation

◆ ad4692_configure_acc_mask()

◆ ad4692_configure_channel()

◆ ad4692_configure_channel_priorities()

◆ ad4692_configure_pwm_rate()

◆ ad4692_data_transfer_end()

◆ ad4692_data_transfer_init()

◆ ad4692_data_transfer_prepare()

◆ ad4692_data_transfer_read_converted_data()

◆ ad4692_data_transfer_remove()

◆ ad4692_data_transfer_submit()

◆ ad4692_data_transfer_trigger_handler()

◆ ad4692_data_transfer_update_freq()

◆ ad4692_exit_manual_mode()

◆ ad4692_get_max_sampling_rate()

◆ ad4692_get_tx_command()

◆ ad4692_update_active_channels()

Variable Documentation

◆ ad4692_acc_count

◆ ad4692_active_channels

◆ ad4692_conversion_flag

◆ ad4692_data_transfer_cnv_burst_mode

◆ ad4692_data_transfer_cnv_clock_mode

◆ ad4692_data_transfer_manual_mode

◆ ad4692_data_transfer_spi_burst_mode

◆ ad4692_hw_trig_desc

◆ ad4692_osc_freq_id

◆ ad4692_readback_option

◆ ad4692_sequencer_mode

◆ buf_size_updated

◆ channel_mask

◆ channel_priorities

◆ n_bytes_per_transaction

◆ n_data_bytes

◆ num_of_active_channels
