ad4692_user_config.c File Reference

User configuration file for AD4692 device. More...

#include "ad4692_user_config.h"
#include "app_config.h"
#include "ad4692.h"
#include "no_os_pwm.h"

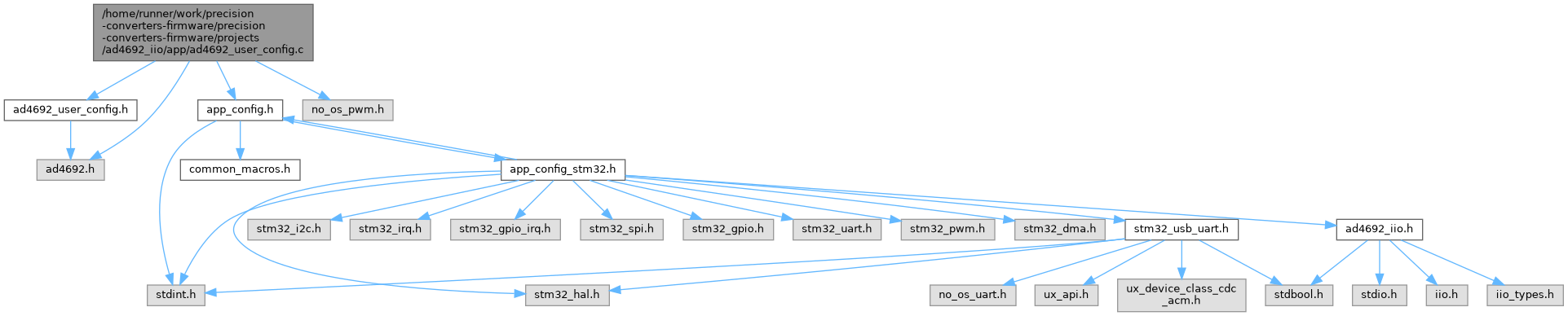

Include dependency graph for ad4692_user_config.c:

Variables
struct no_os_spi_init_param	ad4692_spi_init
struct no_os_gpio_init_param	cnv_pwm_gpio_params
struct no_os_pwm_init_param	pwm_init_convst
struct no_os_gpio_init_param	gpio_init_busy
struct no_os_gpio_init_param	gpio_init_reset
struct ad4692_init_param	ad4692_init_params

Detailed Description

User configuration file for AD4692 device.

Copyright (c) 2024 Analog Devices, Inc.

All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Variable Documentation

ad4692_init_params

struct ad4692_init_param ad4692_init_params

Initial value:

= {
    .comm_param = &ad4692_spi_init,
    .conv_param = &pwm_init_convst,
    .gpio0_param = &gpio_init_busy,
    .reset_param = &gpio_init_reset,
    .id = ID_AD4692,
    .mode = AD4692_MANUAL_MODE,
    .vref = AD4692_VREF
}

ad4692_spi_init

struct no_os_spi_init_param ad4692_spi_init

Initial value:

= {
    .device_id = SPI_DEVICE_ID,
    .max_speed_hz = MAX_SPI_BAUDRATE,
    .platform_ops = &spi_ops,
    .chip_select = SPI_CSB,
    .mode = NO_OS_SPI_MODE_3,
    .extra = &spi_extra_init_params,
}

cnv_pwm_gpio_params

struct no_os_gpio_init_param cnv_pwm_gpio_params

Initial value:

= {
    .port = CNV_PORT_NUM,
    .number = CNV_PIN_NUM,
    .platform_ops = &gpio_ops,
    .extra = &cnv_pwm_gpio_extra_init_params
}

gpio_init_busy

struct no_os_gpio_init_param gpio_init_busy

Initial value:

= {
    .port = BSY_PORT_NUM,
    .number = BSY_PIN_NUM,
    .platform_ops = &gpio_ops,
    .extra = &bsy_extra_init_params
}

gpio_init_reset

struct no_os_gpio_init_param gpio_init_reset

Initial value:

= {
    .port = RESET_PORT_NUM,
    .number = RESET_PIN_NUM,
    .platform_ops = &gpio_ops,
    .extra = &reset_extra_init_params
}

pwm_init_convst

struct no_os_pwm_init_param pwm_init_convst

Initial value:

= {
    .id = CNV_TIMER_ID,
    .platform_ops = &pwm_ops,
    .pwm_gpio = &cnv_pwm_gpio_params,
    .extra = &pwm_cnv_extra_init_params
}
