app_config_stm32.c File Reference

STM32 Specific configuration files for AD559xr IIO Application. More...

#include "no_os_error.h"
#include "app_config_stm32.h"

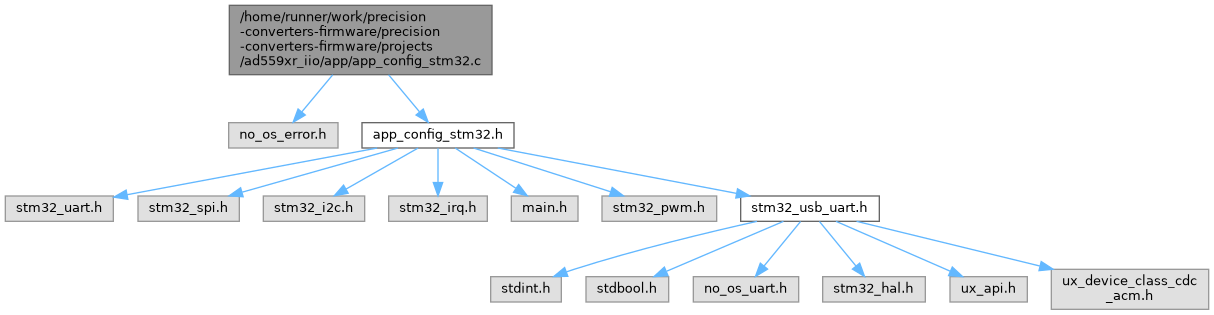

Include dependency graph for app_config_stm32.c:

Functions
void	stm32_system_init (void)
	Initialize the STM32 system peripherals.

Variables
struct stm32_uart_init_param	stm32_uart_extra_init_params
struct stm32_spi_init_param	stm32_spi_extra_init_params
struct stm32_usb_uart_init_param	stm32_vcom_extra_init_params
struct stm32_pwm_init_param	stm32_pwm_extra_init_params
struct stm32_pwm_desc *	pwm_extra_params

Detailed Description

STM32 Specific configuration files for AD559xr IIO Application.

This module contains the STM32 platform specific configurations

Copyright (c) 2026 Analog Devices, Inc. All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Function Documentation

stm32_system_init()

void stm32_system_init

(

void

)

Initialize the STM32 system peripherals.

Returns

None

Variable Documentation

pwm_extra_params

struct stm32_pwm_desc* pwm_extra_params

stm32_pwm_extra_init_params

struct stm32_pwm_init_param stm32_pwm_extra_init_params

Initial value:

= {
    .htimer = APP_TIM_HANDLE,
    .prescaler = TIMER_1_PRESCALER,
    .timer_autoreload = true,
    .mode = TIM_OC_PWM2,
    .timer_chn = TIMER_CHANNEL_3,
    .get_timer_clock = HAL_RCC_GetPCLK1Freq,
    .clock_divider = TIMER_1_CLK_DIVIDER
}

stm32_spi_extra_init_params

struct stm32_spi_init_param stm32_spi_extra_init_params

Initial value:

= {
    .chip_select_port = SPI_CS_PORT,
    .get_input_clock = HAL_RCC_GetPCLK2Freq
}

stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

Initial value:

= {
    .huart = APP_UART_HANDLE
}

stm32_vcom_extra_init_params

struct stm32_usb_uart_init_param stm32_vcom_extra_init_params

Initial value:

= {
    .husbdevice = &APP_UART_USB_HANDLE
}
