ad559xr_user_config.c File Reference

User configuration file for ad559xr device. More...

#include "app_config.h"
#include "ad559xr_user_config.h"

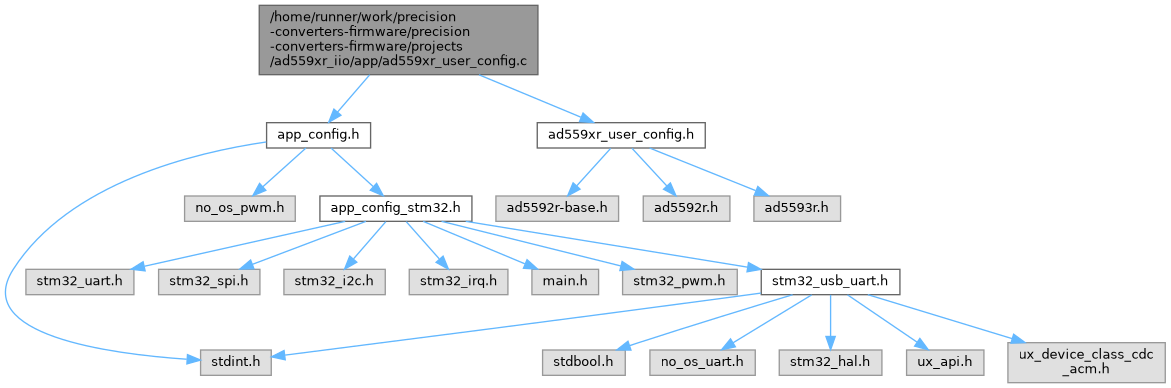

Include dependency graph for ad559xr_user_config.c:

Variables
struct no_os_spi_init_param	spi_init_params
struct no_os_i2c_init_param	i2c_user_params
struct ad5592r_init_param	ad5592r_init_params

Detailed Description

User configuration file for ad559xr device.

Copyright (c) 2026 Analog Devices, Inc.

All rights reserved.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Variable Documentation

ad5592r_init_params

struct ad5592r_init_param ad5592r_init_params

Initial value:

= {
    .spi_init = &spi_init_params,
    .i2c_init = &i2c_user_params,
    .int_ref = true,
    .adc_range = ZERO_TO_VREF,
    .dac_range = ZERO_TO_VREF,
    .channel_modes = {
        CH_MODE_UNUSED,
        CH_MODE_UNUSED,
        CH_MODE_UNUSED,
        CH_MODE_UNUSED,
        CH_MODE_UNUSED,
        CH_MODE_UNUSED,
        CH_MODE_UNUSED,
        CH_MODE_UNUSED
    },
    .adc_buf = true,
}

i2c_user_params

struct no_os_i2c_init_param i2c_user_params

Initial value:

= {
    .max_speed_hz = I2C_BAUDRATE,
    .slave_address = AD5593R_I2C(AD5593R_A0_STATE),
    .platform_ops = &i2c_ops,
    .device_id = I2C_DEVICE_ID
}

spi_init_params

struct no_os_spi_init_param spi_init_params

Initial value:

= {
    .max_speed_hz = MAX_SPI_BAUDRATE,
    .chip_select = SPI_CSB,
    .device_id = SPI_DEVICE_ID,
    .mode = NO_OS_SPI_MODE_2,
    .platform_ops = &spi_ops,
    .extra = &spi_extra_init_params
}
