Tesollo hand demo

Watch the object contact fingers 2–5 in turn. The active tactile frame follows the loaded finger while the remaining fingers stay unloaded.

A captured 5-second hand sequence at simulation-time playback, with synchronized per-finger load and firmware frames.
The gear starts above finger 2 with unloaded tactile frames
Start on finger 2The gear begins above the fingertip.

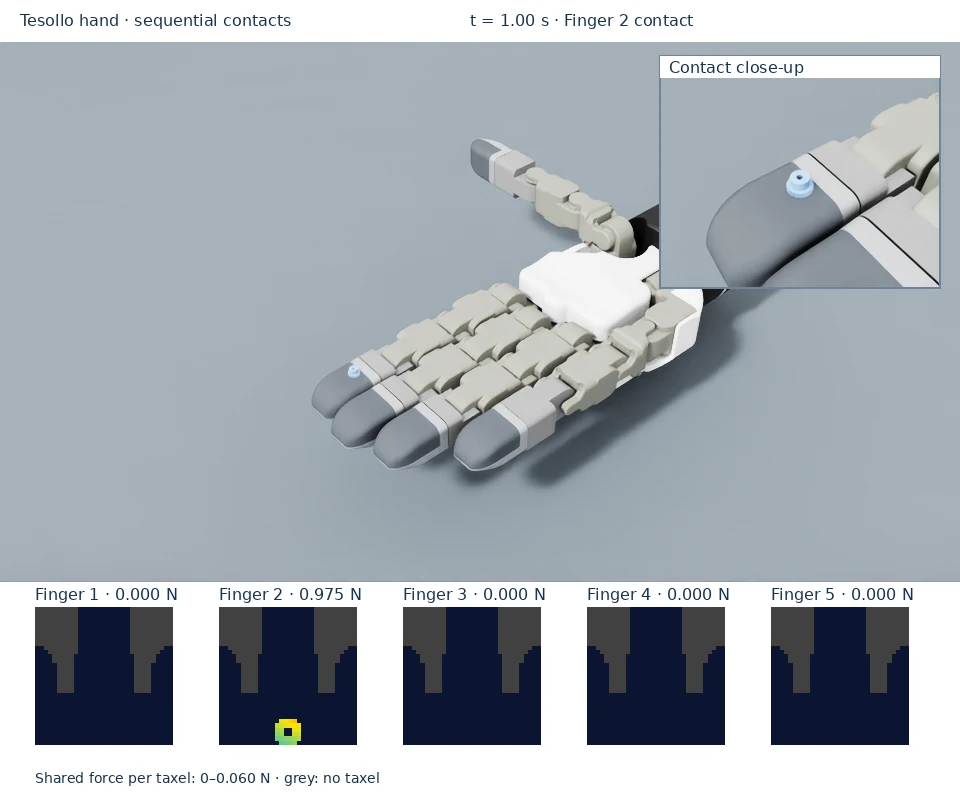

Finger 2 supports the gear and its force frame is active
Read the loaded frameThe close-up shows the small contact object.

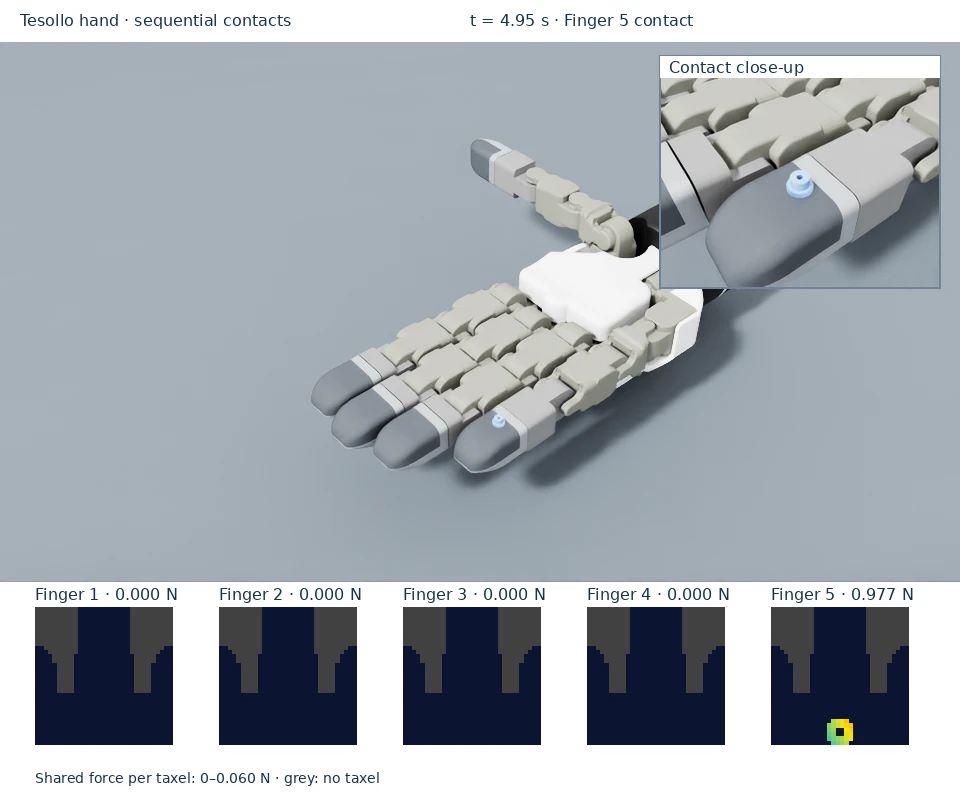

The gear is now supported by finger 5 and its frame is active
Advance to finger 5The active frame follows the loaded finger.

Read the sequence

  1. The gear is placed above finger 2 and drops into contact.

  2. The contact frame shows the sampled footprint, with its total force in newtons.

  3. The demo resets the gear over each following finger; the active frame moves across fingers 3, 4, and 5. Finger 1 is checked separately by the thumb probe.

The native camera inset follows the gear at its physical size (about 6.29 mm wide). Match that contact to the active patch in the corresponding finger’s unwrapped frame; the heatmap shows force per taxel, not an optical image.

Run the example

Prerequisites: installed environment, a supported NVIDIA GPU, and fetched Git LFS assets.

For a local desktop:

python scripts/dex01_on_tesollo_dg5f.py

A gear contacts fingers 2–5 in turn. The Isaac Sim viewport includes live firmware heatmaps and each finger’s measured normal load in newtons, so they appear in the WebRTC GUI. Blue is zero load; cyan, yellow and red show increasing force per taxel, with a shared adaptive scale printed below the images. Grey cells have no sensor taxel. Firmware row/column positions are preserved, with no smoothing: the contact footprint (including gear teeth when resolved by the sampling) is visible rather than just an aggregate force. These frames unwrap the curved fingertip; they are not an optical picture of the object.

Inspect a known contact

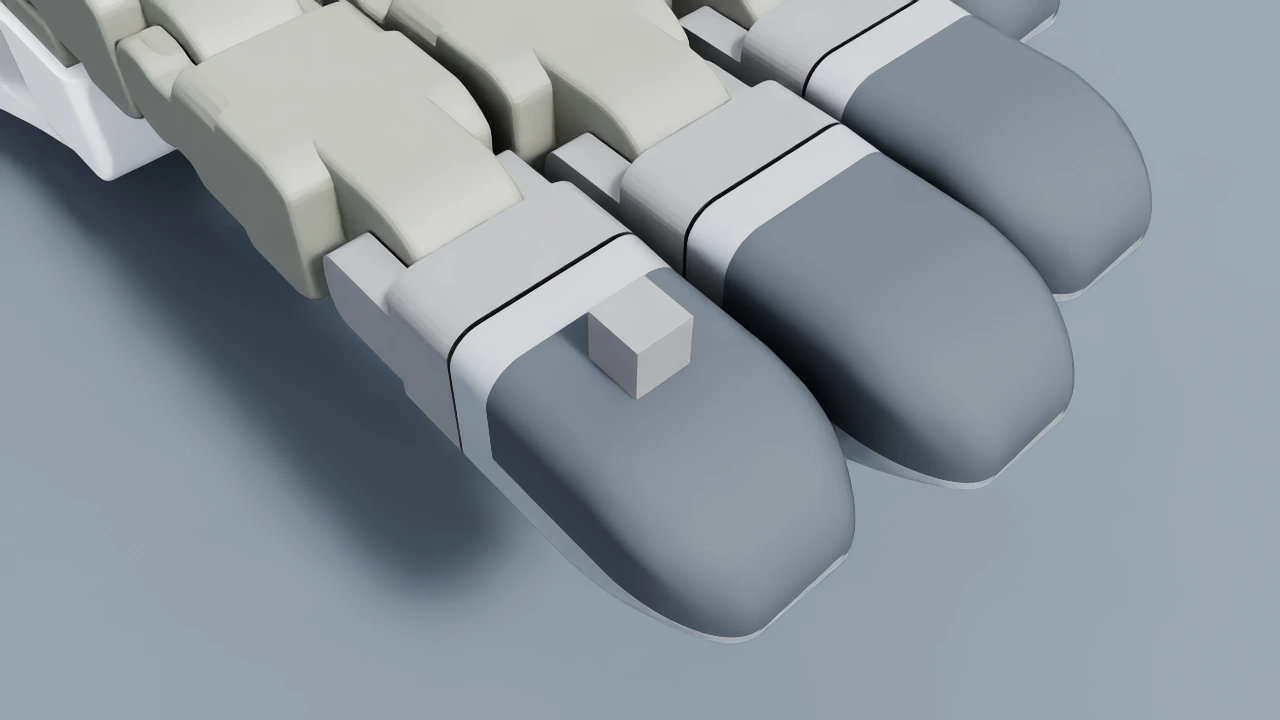

A 0.1 kilogram cube resting on the DEX-01 pad of finger 2, with the mounting frame and adjacent fingertips visible.

The local flat-load fixture on finger 2. The corresponding tactile frame is active only on the loaded finger; the total load is near 0.981 N after settling.

Use a flat indenter for quantitative known-load validation. The gear can rock and is not a calibration fixture.
