Header file for STM32 platform configurations. More...

#include "main.h"
#include "stm32_spi.h"
#include "stm32_i2c.h"
#include "stm32_gpio.h"
#include "stm32_uart.h"
#include "stm32_pwm.h"
#include "stm32_irq.h"
#include "stm32_dma.h"
#include "stm32_usb_uart.h"
#include "usb_device.h"

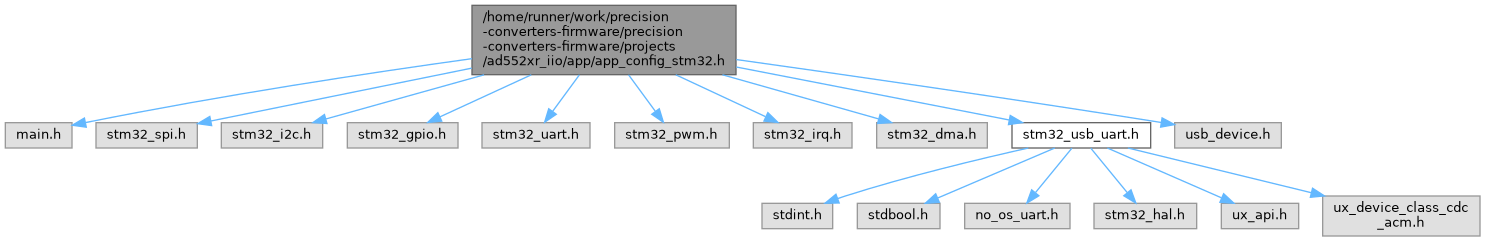

Include dependency graph for app_config_stm32.h:

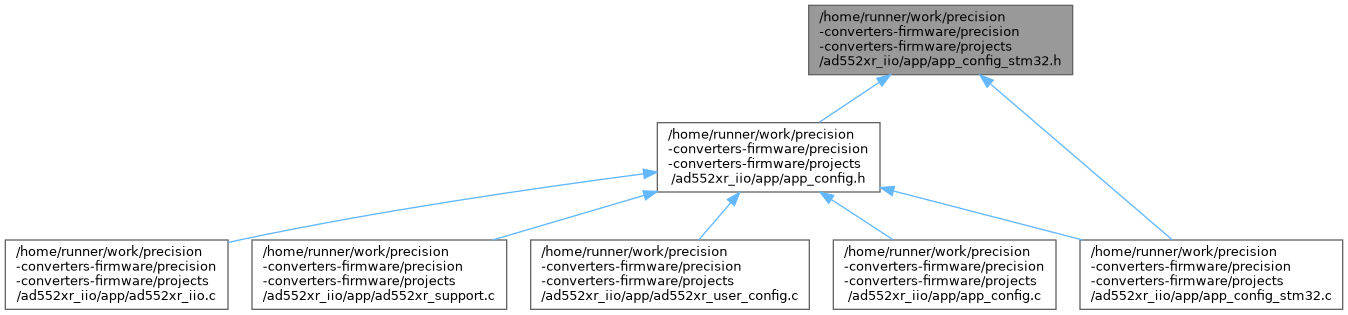

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SPI_DEVICE_ID 1

#define	SPI_CSB_PORT 0

#define	SPI_CSB 15

#define	SPI_SPEED (22500000)

#define	I2C_DEVICE_ID 1

#define	I2C_TIMING 0

#define	GPIO_CLEAR_N_PORT 6

#define	GPIO_CLEAR_N 10

#define	GPIO_RESET_N_PORT 6

#define	GPIO_RESET_N 11

#define	GPIO_ALARM_N_PORT 3

#define	GPIO_ALARM_N 4

#define	GPIO_MD_ADDR0_PORT 0

#define	GPIO_MD_ADDR0 2

#define	GPIO_MD_ADDR1_PORT 0

#define	GPIO_MD_ADDR1 4

#define	NUM_TGPx 4

#define	GPIO_LDAC_TOGGLE0_PORT 1

#define	GPIO_LDAC_TOGGLE0 15

#define	GPIO_LDAC_TOGGLE1_PORT 0

#define	GPIO_LDAC_TOGGLE1 10

#define	GPIO_LDAC_TOGGLE2_PORT 0

#define	GPIO_LDAC_TOGGLE2 11

#define	GPIO_LDAC_TOGGLE3_PORT 3

#define	GPIO_LDAC_TOGGLE3 12

#define	APP_UART_USB_HANDLE hUsbDeviceHS

#define	UART_DEVICE_ID 5

#define	UART_HANDLE huart5

#define	UART_IRQ_ID UART5_IRQn

#define	TIM_TGP_INSTANCE_ID 1

#define	TIM_TGP_CH_ID 3

#define	TIM_TGP_PRESCALER 0

#define	TIM_TGP_CLK_DIVIDER 2

#define	TIM_TGP_HANDLE htim1

#define	TIM_DAC_UPDATE_INSTANCE_ID 2

#define	TIM_DAC_UPDATE_CH_ID 1

#define	TIM_DAC_UPDATE_PRESCALER 0

#define	TIM_DAC_UPDATE_CLK_DIVIDER 2

#define	TIM_DAC_UPDATE_HANDLE htim2

#define	TIM_DAC_UPDATE_IRQ_ID TIM2_IRQn

#define	TIM_DMA_TRIGGER_INSTANCE_ID 8

#define	TIM_DMA_TRIGGER_CH_ID 3

#define	TIM_DMA_TRIGGER_PRESCALER 0

#define	TIM_DMA_TRIGGER_CLK_DIVIDER 2

#define	TIM_DMA_TRIGGER_HANDLE htim8

#define	DMA_NUM_CHANNELS 2

#define	TX_DMA_CH_ID DMA_CHANNEL_7

#define	RX_DMA_CH_ID DMA_CHANNEL_3

#define	TX_DMA_CH_HANDLE hdma_tim8_ch3

#define	RX_DMA_CH_HANDLE hdma_spi1_rx

#define	Rx_DMA_IRQ_ID DMA2_Stream0_IRQn

#define	IRQ_IIO_TRIGGER_ID TIM_DAC_UPDATE_IRQ_ID

Functions
int32_t	stm32_init_system (void)
	Initialize the STM32 system peripherals.

Variables
USBD_HandleTypeDef	APP_UART_USB_HANDLE

UART_HandleTypeDef	UART_HANDLE

TIM_HandleTypeDef	TIM_TGP_HANDLE

TIM_HandleTypeDef	TIM_DAC_UPDATE_HANDLE

TIM_HandleTypeDef	TIM_DMA_TRIGGER_HANDLE

DMA_HandleTypeDef	TX_DMA_CH_HANDLE

DMA_HandleTypeDef	RX_DMA_CH_HANDLE

struct stm32_spi_init_param	stm32_spi_extra_init_params

struct stm32_i2c_init_param	stm32_i2c_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_output_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_input_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_ldac_tgp_pwm_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_cs_pwm_extra_init_params

struct stm32_usb_uart_init_param	stm32_vcom_extra_init_params

struct stm32_uart_init_param	stm32_uart_extra_init_params

struct stm32_pwm_init_param	stm32_pwm_tgp_extra_init_params

struct stm32_pwm_init_param	stm32_pwm_tgp_trigger_mode_extra_init_params

struct stm32_pwm_init_param	stm32_pwm_dac_update_extra_init_params

struct stm32_pwm_init_param	stm32_pwm_dma_trigger_extra_init_params

Detailed Description

Header file for STM32 platform configurations.

This software is proprietary to Analog Devices, Inc. and its licensors. By using this software you agree to the terms of the associated Analog Devices Software License Agreement.

Macro Definition Documentation

◆ APP_UART_USB_HANDLE

#define APP_UART_USB_HANDLE hUsbDeviceHS

◆ DMA_NUM_CHANNELS

#define DMA_NUM_CHANNELS 2

◆ GPIO_ALARM_N

#define GPIO_ALARM_N 4

◆ GPIO_ALARM_N_PORT

#define GPIO_ALARM_N_PORT 3

◆ GPIO_CLEAR_N

#define GPIO_CLEAR_N 10

◆ GPIO_CLEAR_N_PORT

#define GPIO_CLEAR_N_PORT 6

◆ GPIO_LDAC_TOGGLE0

#define GPIO_LDAC_TOGGLE0 15

◆ GPIO_LDAC_TOGGLE0_PORT

#define GPIO_LDAC_TOGGLE0_PORT 1

◆ GPIO_LDAC_TOGGLE1

#define GPIO_LDAC_TOGGLE1 10

◆ GPIO_LDAC_TOGGLE1_PORT

#define GPIO_LDAC_TOGGLE1_PORT 0

◆ GPIO_LDAC_TOGGLE2

#define GPIO_LDAC_TOGGLE2 11

◆ GPIO_LDAC_TOGGLE2_PORT

#define GPIO_LDAC_TOGGLE2_PORT 0

◆ GPIO_LDAC_TOGGLE3

#define GPIO_LDAC_TOGGLE3 12

◆ GPIO_LDAC_TOGGLE3_PORT

#define GPIO_LDAC_TOGGLE3_PORT 3

◆ GPIO_MD_ADDR0

#define GPIO_MD_ADDR0 2

◆ GPIO_MD_ADDR0_PORT

#define GPIO_MD_ADDR0_PORT 0

◆ GPIO_MD_ADDR1

#define GPIO_MD_ADDR1 4

◆ GPIO_MD_ADDR1_PORT

#define GPIO_MD_ADDR1_PORT 0

◆ GPIO_RESET_N

#define GPIO_RESET_N 11

◆ GPIO_RESET_N_PORT

#define GPIO_RESET_N_PORT 6

◆ I2C_DEVICE_ID

#define I2C_DEVICE_ID 1

◆ I2C_TIMING

#define I2C_TIMING 0

◆ IRQ_IIO_TRIGGER_ID

#define IRQ_IIO_TRIGGER_ID TIM_DAC_UPDATE_IRQ_ID

◆ NUM_TGPx

#define NUM_TGPx 4

◆ RX_DMA_CH_HANDLE

#define RX_DMA_CH_HANDLE hdma_spi1_rx

◆ RX_DMA_CH_ID

#define RX_DMA_CH_ID DMA_CHANNEL_3

◆ Rx_DMA_IRQ_ID

#define Rx_DMA_IRQ_ID DMA2_Stream0_IRQn

◆ SPI_CSB

#define SPI_CSB 15

◆ SPI_CSB_PORT

#define SPI_CSB_PORT 0

◆ SPI_DEVICE_ID

#define SPI_DEVICE_ID 1

◆ SPI_SPEED

#define SPI_SPEED (22500000)

◆ TIM_DAC_UPDATE_CH_ID

#define TIM_DAC_UPDATE_CH_ID 1

◆ TIM_DAC_UPDATE_CLK_DIVIDER

#define TIM_DAC_UPDATE_CLK_DIVIDER 2

◆ TIM_DAC_UPDATE_HANDLE

#define TIM_DAC_UPDATE_HANDLE htim2

◆ TIM_DAC_UPDATE_INSTANCE_ID

#define TIM_DAC_UPDATE_INSTANCE_ID 2

◆ TIM_DAC_UPDATE_IRQ_ID

#define TIM_DAC_UPDATE_IRQ_ID TIM2_IRQn

◆ TIM_DAC_UPDATE_PRESCALER

#define TIM_DAC_UPDATE_PRESCALER 0

◆ TIM_DMA_TRIGGER_CH_ID

#define TIM_DMA_TRIGGER_CH_ID 3

◆ TIM_DMA_TRIGGER_CLK_DIVIDER

#define TIM_DMA_TRIGGER_CLK_DIVIDER 2

◆ TIM_DMA_TRIGGER_HANDLE

#define TIM_DMA_TRIGGER_HANDLE htim8

◆ TIM_DMA_TRIGGER_INSTANCE_ID

#define TIM_DMA_TRIGGER_INSTANCE_ID 8

◆ TIM_DMA_TRIGGER_PRESCALER

#define TIM_DMA_TRIGGER_PRESCALER 0

◆ TIM_TGP_CH_ID

#define TIM_TGP_CH_ID 3

◆ TIM_TGP_CLK_DIVIDER

#define TIM_TGP_CLK_DIVIDER 2

◆ TIM_TGP_HANDLE

#define TIM_TGP_HANDLE htim1

◆ TIM_TGP_INSTANCE_ID

#define TIM_TGP_INSTANCE_ID 1

◆ TIM_TGP_PRESCALER

#define TIM_TGP_PRESCALER 0

◆ TX_DMA_CH_HANDLE

#define TX_DMA_CH_HANDLE hdma_tim8_ch3

◆ TX_DMA_CH_ID

#define TX_DMA_CH_ID DMA_CHANNEL_7

◆ UART_DEVICE_ID

#define UART_DEVICE_ID 5

◆ UART_HANDLE

#define UART_HANDLE huart5

◆ UART_IRQ_ID

#define UART_IRQ_ID UART5_IRQn

Function Documentation

◆ stm32_init_system()

int32_t stm32_init_system ( void )

Initialize the STM32 system peripherals.

Returns: None

Here is the caller graph for this function:

Variable Documentation

◆ APP_UART_USB_HANDLE

USBD_HandleTypeDef APP_UART_USB_HANDLE

extern

◆ RX_DMA_CH_HANDLE

DMA_HandleTypeDef RX_DMA_CH_HANDLE

extern

◆ stm32_gpio_cs_pwm_extra_init_params

struct stm32_gpio_init_param stm32_gpio_cs_pwm_extra_init_params

extern

◆ stm32_gpio_input_extra_init_params

struct stm32_gpio_init_param stm32_gpio_input_extra_init_params

extern

◆ stm32_gpio_ldac_tgp_pwm_extra_init_params

struct stm32_gpio_init_param stm32_gpio_ldac_tgp_pwm_extra_init_params

extern

◆ stm32_gpio_output_extra_init_params

struct stm32_gpio_init_param stm32_gpio_output_extra_init_params

extern

◆ stm32_i2c_extra_init_params

struct stm32_i2c_init_param stm32_i2c_extra_init_params

extern

◆ stm32_pwm_dac_update_extra_init_params

struct stm32_pwm_init_param stm32_pwm_dac_update_extra_init_params

extern

◆ stm32_pwm_dma_trigger_extra_init_params

struct stm32_pwm_init_param stm32_pwm_dma_trigger_extra_init_params

extern

◆ stm32_pwm_tgp_extra_init_params

struct stm32_pwm_init_param stm32_pwm_tgp_extra_init_params

extern

◆ stm32_pwm_tgp_trigger_mode_extra_init_params

struct stm32_pwm_init_param stm32_pwm_tgp_trigger_mode_extra_init_params

extern

◆ stm32_spi_extra_init_params

struct stm32_spi_init_param stm32_spi_extra_init_params

extern

◆ stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

extern

◆ stm32_vcom_extra_init_params

struct stm32_usb_uart_init_param stm32_vcom_extra_init_params

extern

◆ TIM_DAC_UPDATE_HANDLE

TIM_HandleTypeDef TIM_DAC_UPDATE_HANDLE

extern

◆ TIM_DMA_TRIGGER_HANDLE

TIM_HandleTypeDef TIM_DMA_TRIGGER_HANDLE

extern

◆ TIM_TGP_HANDLE

TIM_HandleTypeDef TIM_TGP_HANDLE

extern

◆ TX_DMA_CH_HANDLE

DMA_HandleTypeDef TX_DMA_CH_HANDLE

extern

◆ UART_HANDLE

UART_HandleTypeDef UART_HANDLE

extern
