#include "app_config.h"
#include "stm32_uart.h"
#include "stm32_spi.h"
#include "stm32_tdm.h"
#include "stm32_gpio.h"
#include "stm32_i2c.h"
#include "stm32_gpio_irq.h"
#include "stm32_pwm.h"

Include dependency graph for app_config_stm32.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	STM32_SPI_ID 1

#define	STM32_SPI_CS_PORT 3

#define	SPI_CSB 14

#define	GPIO_RESET_PIN 14

#define	GPIO_MODE0_PIN 0

#define	GPIO_MODE1_PIN 0

#define	GPIO_MODE2_PIN 0

#define	GPIO_MODE3_PIN 0

#define	GPIO_DCLK0_PIN 0

#define	GPIO_DCLK1_PIN 0

#define	GPIO_DCLK2_PIN 0

#define	GPIO_SYNC_IN_PIN 7

#define	GPIO_CONVST_SAR_PIN 6

#define	GPIO_DRDY_PIN 3

#define	GPIO_ERROR_LED LED3_RED_Pin

#define	GPIO_RESET_PORT 6

#define	GPIO_MODE0_PORT 0

#define	GPIO_MODE1_PORT 0

#define	GPIO_MODE2_PORT 0

#define	GPIO_MODE3_PORT 0

#define	GPIO_DCLK0_PORT 0

#define	GPIO_DCLK1_PORT 0

#define	GPIO_DCLK2_PORT 0

#define	GPIO_SYNC_PORT 1

#define	GPIO_CONVST_PORT 3

#define	GPIO_DRDY_PORT 5

#define	GPIO_ERROR_LED_PORT 0

#define	GPIO_TRIGGER_INT_PORT EXTI_GPIOF

#define	APP_UART_HANDLE &huart3

#define	SAI_BASE SAI1_Block_A

#define	IRQ_INT_ID GPIO_DRDY_PIN

#define	UART_IRQ_ID USART3_IRQn

#define	DMA_IRQ_ID GPDMA1_Channel7_IRQn

#define	DRDY_IRQ_CTRL_ID GPIO_DRDY_PIN

#define	UART_DEVICE_ID 0

#define	SPI_DEVICE_ID STM32_SPI_ID

#define	I2C_DEVICE_ID 1

#define	MCLK_PWM_ID 1

#define	TIMER1_ID 1

#define	MCLK_PWM_PRESCALER 1

#define	MCLK_PWM_CHANNEL 3

#define	MCLK_PWM_CLK_DIVIDER 2

#define	MCLK_PWM_HANDLE htim1

#define	I2C_TIMING 0x00000E14

#define	PERIPH_INTR_PRE_EMPT_PRIORITY 7

#define	PERIPH_INTR_SUB_PRI_PRIORITY 3

#define	UART_PRE_EMPT_PRIORITY 2

#define	UART_SUB_PRI_PRIORITY 0

#define	TDM_DATA_SIZE 32

#define	TDM_SLOTS_PER_FRAME 8

#define	TDM_FS_ACTIVE_LENGTH 1

#define	TDM_N_SAMPLES_DMA_READ 800

#define	TDM_DMA_READ_SIZE TDM_N_SAMPLES_DMA_READ * TDM_SLOTS_PER_FRAME/2

#define	AD777x_SAMPLING_FREQUENCY 32000

Functions
void	SystemClock_Config (void)

HAL_StatusTypeDef	HAL_Init (void)

void	MX_LPUART1_UART_Init (void)

void	MX_SPI1_Init (void)

void	MX_ICACHE_Init (void)

void	MX_GPIO_Init (void)

void	ad777x_configure_intr_priority (void)
	Configure the interrupt priorities.

void	ad777x_dma_rx_cplt (SAI_HandleTypeDef *hsai)
	SAI DMA Receive Complete Callback function.

void	ad777x_dma_rx_half_cplt (SAI_HandleTypeDef *hsai)
	SAI DMA Receive Half Complete Callback function.

Variables
struct stm32_uart_init_param	stm32_uart_extra_init_params

struct stm32_spi_init_param	stm32_spi_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_reset_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_mode0_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_mode1_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_mode2_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_mode3_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_dclk0_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_dclk1_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_dclk2_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_sync_in_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_convst_sar_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_drdy_extra_init_params

struct stm32_gpio_init_param	stm32_gpio_error_extra_init_params

struct stm32_gpio_irq_init_param	stm32_trigger_gpio_irq_init_params

struct stm32_tdm_init_param	stm32_tdm_extra_init_params

struct stm32_pwm_init_param	stm32_pwm_extra_init_params

struct stm32_i2c_init_param	stm32_i2c_extra_init_params

UART_HandleTypeDef	huart3

TIM_HandleTypeDef	htim1

bool	data_capture_operation

struct iio_device_data *	ad777x_iio_dev_data

Macro Definition Documentation

◆ AD777x_SAMPLING_FREQUENCY

#define AD777x_SAMPLING_FREQUENCY 32000

◆ APP_UART_HANDLE

#define APP_UART_HANDLE &huart3

◆ DMA_IRQ_ID

#define DMA_IRQ_ID GPDMA1_Channel7_IRQn

◆ DRDY_IRQ_CTRL_ID

#define DRDY_IRQ_CTRL_ID GPIO_DRDY_PIN

◆ GPIO_CONVST_PORT

#define GPIO_CONVST_PORT 3

◆ GPIO_CONVST_SAR_PIN

#define GPIO_CONVST_SAR_PIN 6

◆ GPIO_DCLK0_PIN

#define GPIO_DCLK0_PIN 0

◆ GPIO_DCLK0_PORT

#define GPIO_DCLK0_PORT 0

◆ GPIO_DCLK1_PIN

#define GPIO_DCLK1_PIN 0

◆ GPIO_DCLK1_PORT

#define GPIO_DCLK1_PORT 0

◆ GPIO_DCLK2_PIN

#define GPIO_DCLK2_PIN 0

◆ GPIO_DCLK2_PORT

#define GPIO_DCLK2_PORT 0

◆ GPIO_DRDY_PIN

#define GPIO_DRDY_PIN 3

◆ GPIO_DRDY_PORT

#define GPIO_DRDY_PORT 5

◆ GPIO_ERROR_LED

#define GPIO_ERROR_LED LED3_RED_Pin

◆ GPIO_ERROR_LED_PORT

#define GPIO_ERROR_LED_PORT 0

◆ GPIO_MODE0_PIN

#define GPIO_MODE0_PIN 0

◆ GPIO_MODE0_PORT

#define GPIO_MODE0_PORT 0

◆ GPIO_MODE1_PIN

#define GPIO_MODE1_PIN 0

◆ GPIO_MODE1_PORT

#define GPIO_MODE1_PORT 0

◆ GPIO_MODE2_PIN

#define GPIO_MODE2_PIN 0

◆ GPIO_MODE2_PORT

#define GPIO_MODE2_PORT 0

◆ GPIO_MODE3_PIN

#define GPIO_MODE3_PIN 0

◆ GPIO_MODE3_PORT

#define GPIO_MODE3_PORT 0

◆ GPIO_RESET_PIN

#define GPIO_RESET_PIN 14

◆ GPIO_RESET_PORT

#define GPIO_RESET_PORT 6

◆ GPIO_SYNC_IN_PIN

#define GPIO_SYNC_IN_PIN 7

◆ GPIO_SYNC_PORT

#define GPIO_SYNC_PORT 1

◆ GPIO_TRIGGER_INT_PORT

#define GPIO_TRIGGER_INT_PORT EXTI_GPIOF

◆ I2C_DEVICE_ID

#define I2C_DEVICE_ID 1

◆ I2C_TIMING

#define I2C_TIMING 0x00000E14

◆ IRQ_INT_ID

#define IRQ_INT_ID GPIO_DRDY_PIN

◆ MCLK_PWM_CHANNEL

#define MCLK_PWM_CHANNEL 3

◆ MCLK_PWM_CLK_DIVIDER

#define MCLK_PWM_CLK_DIVIDER 2

◆ MCLK_PWM_HANDLE

#define MCLK_PWM_HANDLE htim1

◆ MCLK_PWM_ID

#define MCLK_PWM_ID 1

◆ MCLK_PWM_PRESCALER

#define MCLK_PWM_PRESCALER 1

◆ PERIPH_INTR_PRE_EMPT_PRIORITY

#define PERIPH_INTR_PRE_EMPT_PRIORITY 7

◆ PERIPH_INTR_SUB_PRI_PRIORITY

#define PERIPH_INTR_SUB_PRI_PRIORITY 3

◆ SAI_BASE

#define SAI_BASE SAI1_Block_A

◆ SPI_CSB

#define SPI_CSB 14

◆ SPI_DEVICE_ID

#define SPI_DEVICE_ID STM32_SPI_ID

◆ STM32_SPI_CS_PORT

#define STM32_SPI_CS_PORT 3

◆ STM32_SPI_ID

#define STM32_SPI_ID 1

◆ TDM_DATA_SIZE

#define TDM_DATA_SIZE 32

◆ TDM_DMA_READ_SIZE

#define TDM_DMA_READ_SIZE TDM_N_SAMPLES_DMA_READ * TDM_SLOTS_PER_FRAME/2

◆ TDM_FS_ACTIVE_LENGTH

#define TDM_FS_ACTIVE_LENGTH 1

◆ TDM_N_SAMPLES_DMA_READ

#define TDM_N_SAMPLES_DMA_READ 800

◆ TDM_SLOTS_PER_FRAME

#define TDM_SLOTS_PER_FRAME 8

◆ TIMER1_ID

#define TIMER1_ID 1

◆ UART_DEVICE_ID

#define UART_DEVICE_ID 0

◆ UART_IRQ_ID

#define UART_IRQ_ID USART3_IRQn

◆ UART_PRE_EMPT_PRIORITY

#define UART_PRE_EMPT_PRIORITY 2

◆ UART_SUB_PRI_PRIORITY

#define UART_SUB_PRI_PRIORITY 0

Function Documentation

◆ ad777x_configure_intr_priority()

void ad777x_configure_intr_priority ( void )

Configure the interrupt priorities.

Returns: None

Configure the interrupt priorities.

Returns: None

◆ ad777x_dma_rx_cplt()

void ad777x_dma_rx_cplt ( SAI_HandleTypeDef * hsai )

SAI DMA Receive Complete Callback function.

Parameters

hsai	- pointer to a SAI_HandleTypeDef structure

Returns: None

◆ ad777x_dma_rx_half_cplt()

void ad777x_dma_rx_half_cplt ( SAI_HandleTypeDef * hsai )

SAI DMA Receive Half Complete Callback function.

Parameters

hsai	- pointer to a SAI_HandleTypeDef structure

Returns: None

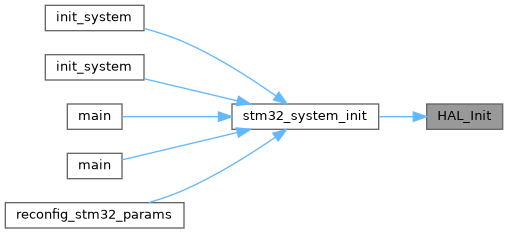

◆ HAL_Init()

HAL_StatusTypeDef HAL_Init ( void )

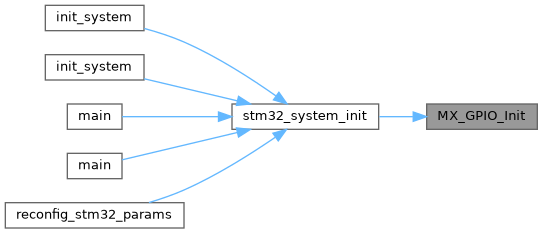

◆ MX_GPIO_Init()

void MX_GPIO_Init ( void )

◆ MX_ICACHE_Init()

void MX_ICACHE_Init ( void )

◆ MX_LPUART1_UART_Init()

void MX_LPUART1_UART_Init ( void )

◆ MX_SPI1_Init()

void MX_SPI1_Init ( void )

◆ SystemClock_Config()

void SystemClock_Config ( void )

Variable Documentation

◆ ad777x_iio_dev_data

struct iio_device_data* ad777x_iio_dev_data

extern

◆ data_capture_operation

bool data_capture_operation

extern

◆ htim1

TIM_HandleTypeDef htim1

extern

◆ huart3

UART_HandleTypeDef huart3

extern

◆ stm32_gpio_convst_sar_extra_init_params

struct stm32_gpio_init_param stm32_gpio_convst_sar_extra_init_params

extern

◆ stm32_gpio_dclk0_extra_init_params

struct stm32_gpio_init_param stm32_gpio_dclk0_extra_init_params

extern

◆ stm32_gpio_dclk1_extra_init_params

struct stm32_gpio_init_param stm32_gpio_dclk1_extra_init_params

extern

◆ stm32_gpio_dclk2_extra_init_params

struct stm32_gpio_init_param stm32_gpio_dclk2_extra_init_params

extern

◆ stm32_gpio_drdy_extra_init_params

struct stm32_gpio_init_param stm32_gpio_drdy_extra_init_params

extern

◆ stm32_gpio_error_extra_init_params

struct stm32_gpio_init_param stm32_gpio_error_extra_init_params

extern

◆ stm32_gpio_mode0_extra_init_params

struct stm32_gpio_init_param stm32_gpio_mode0_extra_init_params

extern

◆ stm32_gpio_mode1_extra_init_params

struct stm32_gpio_init_param stm32_gpio_mode1_extra_init_params

extern

◆ stm32_gpio_mode2_extra_init_params

struct stm32_gpio_init_param stm32_gpio_mode2_extra_init_params

extern

◆ stm32_gpio_mode3_extra_init_params

struct stm32_gpio_init_param stm32_gpio_mode3_extra_init_params

extern

◆ stm32_gpio_reset_extra_init_params

struct stm32_gpio_init_param stm32_gpio_reset_extra_init_params

extern

◆ stm32_gpio_sync_in_extra_init_params

struct stm32_gpio_init_param stm32_gpio_sync_in_extra_init_params

extern

◆ stm32_i2c_extra_init_params

struct stm32_i2c_init_param stm32_i2c_extra_init_params

extern

◆ stm32_pwm_extra_init_params

struct stm32_pwm_init_param stm32_pwm_extra_init_params

extern

◆ stm32_spi_extra_init_params

struct stm32_spi_init_param stm32_spi_extra_init_params

extern

◆ stm32_tdm_extra_init_params

struct stm32_tdm_init_param stm32_tdm_extra_init_params

extern

◆ stm32_trigger_gpio_irq_init_params

struct stm32_gpio_irq_init_param stm32_trigger_gpio_irq_init_params

extern

◆ stm32_uart_extra_init_params

struct stm32_uart_init_param stm32_uart_extra_init_params

extern

Macros

Functions

Variables

Macro Definition Documentation

◆ AD777x_SAMPLING_FREQUENCY

◆ APP_UART_HANDLE

◆ DMA_IRQ_ID

◆ DRDY_IRQ_CTRL_ID

◆ GPIO_CONVST_PORT

◆ GPIO_CONVST_SAR_PIN

◆ GPIO_DCLK0_PIN

◆ GPIO_DCLK0_PORT

◆ GPIO_DCLK1_PIN

◆ GPIO_DCLK1_PORT

◆ GPIO_DCLK2_PIN

◆ GPIO_DCLK2_PORT

◆ GPIO_DRDY_PIN

◆ GPIO_DRDY_PORT

◆ GPIO_ERROR_LED

◆ GPIO_ERROR_LED_PORT

◆ GPIO_MODE0_PIN

◆ GPIO_MODE0_PORT

◆ GPIO_MODE1_PIN

◆ GPIO_MODE1_PORT

◆ GPIO_MODE2_PIN

◆ GPIO_MODE2_PORT

◆ GPIO_MODE3_PIN

◆ GPIO_MODE3_PORT

◆ GPIO_RESET_PIN

◆ GPIO_RESET_PORT

◆ GPIO_SYNC_IN_PIN

◆ GPIO_SYNC_PORT

◆ GPIO_TRIGGER_INT_PORT

◆ I2C_DEVICE_ID

◆ I2C_TIMING

◆ IRQ_INT_ID

◆ MCLK_PWM_CHANNEL

◆ MCLK_PWM_CLK_DIVIDER

◆ MCLK_PWM_HANDLE

◆ MCLK_PWM_ID

◆ MCLK_PWM_PRESCALER

◆ PERIPH_INTR_PRE_EMPT_PRIORITY

◆ PERIPH_INTR_SUB_PRI_PRIORITY

◆ SAI_BASE

◆ SPI_CSB

◆ SPI_DEVICE_ID

◆ STM32_SPI_CS_PORT

◆ STM32_SPI_ID

◆ TDM_DATA_SIZE

◆ TDM_DMA_READ_SIZE

◆ TDM_FS_ACTIVE_LENGTH

◆ TDM_N_SAMPLES_DMA_READ

◆ TDM_SLOTS_PER_FRAME

◆ TIMER1_ID

◆ UART_DEVICE_ID

◆ UART_IRQ_ID

◆ UART_PRE_EMPT_PRIORITY

◆ UART_SUB_PRI_PRIORITY

Function Documentation

◆ ad777x_configure_intr_priority()

◆ ad777x_dma_rx_cplt()

◆ ad777x_dma_rx_half_cplt()

◆ HAL_Init()

◆ MX_GPIO_Init()

◆ MX_ICACHE_Init()

◆ MX_LPUART1_UART_Init()

◆ MX_SPI1_Init()

◆ SystemClock_Config()

Variable Documentation

◆ ad777x_iio_dev_data

◆ data_capture_operation

◆ htim1

◆ huart3

◆ stm32_gpio_convst_sar_extra_init_params

◆ stm32_gpio_dclk0_extra_init_params

◆ stm32_gpio_dclk1_extra_init_params

◆ stm32_gpio_dclk2_extra_init_params

◆ stm32_gpio_drdy_extra_init_params

◆ stm32_gpio_error_extra_init_params

◆ stm32_gpio_mode0_extra_init_params
