Creating Safety Bubble Detector with 4 devices:

Please go through Setting up Safety Bubble Detector for a Single sensor to setup single device then we can add multiple devices together.

We can create safety bubble around the robot with multiple cameras. All the sensors are positioned with respect to map which is assumed to be the center of the circular plate in the below gif.

Top view of camera setup

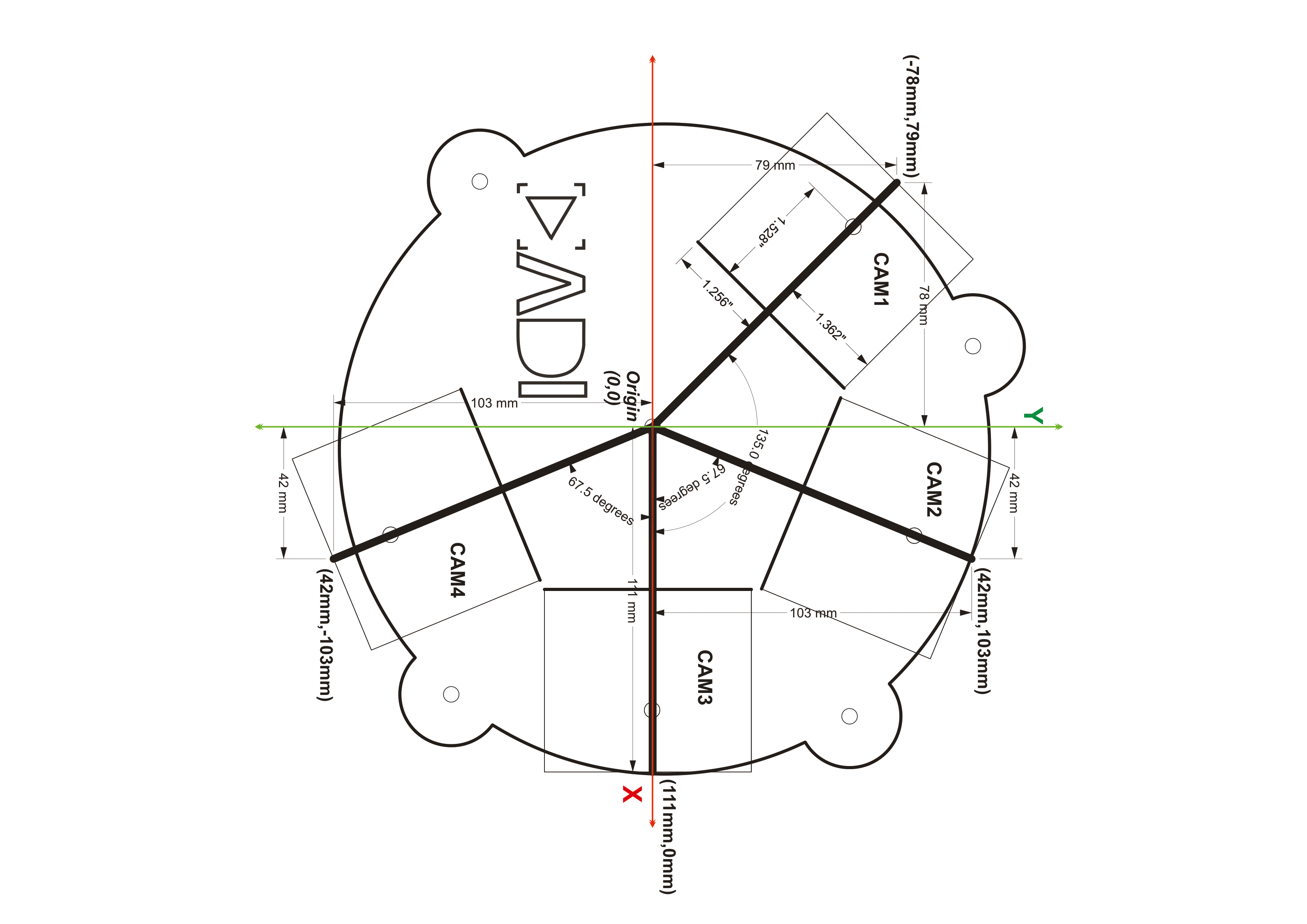

Below image has the information about camera positions and measurements of the base plate.

base plate design

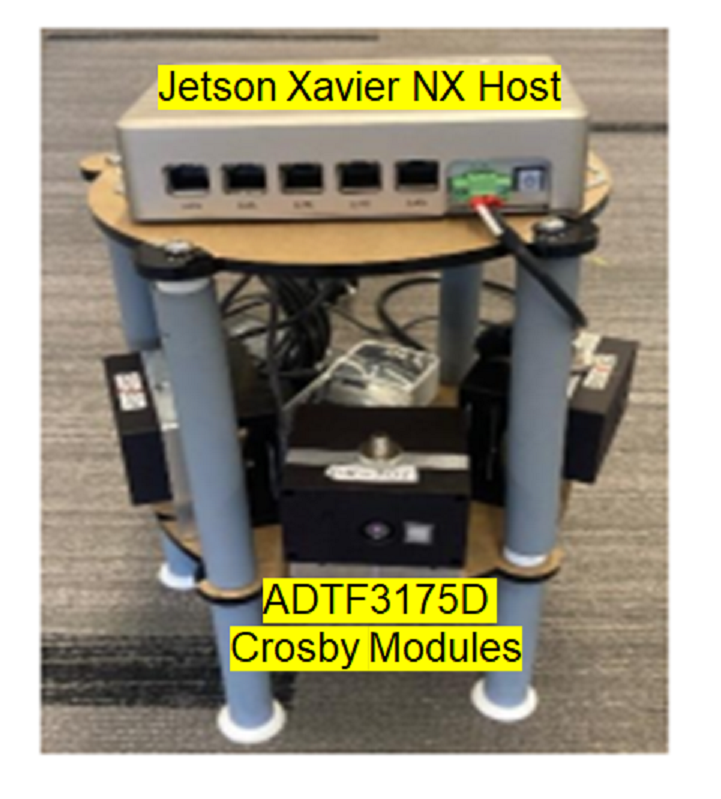

The image below shows the actual setup used (for reference):

Adi safety bubble detector Actual Setup

Physical setup

The Roll, Pitch, Yaw, and Translation values are given in the launch files below. Please arrange the modules to match this configuration. The corresponding launch files can be found in the launch/ folder.

cam_id

launch_file

cam1

adi_3dtof_safety_bubble_detector_single_cam1_135_deg_yaw_launch.py

cam2

adi_3dtof_safety_bubble_detector_single_cam2_67_5_deg_yaw_launch.py

cam3

adi_3dtof_safety_bubble_detector_single_cam3_0_deg_yaw_launch.py

cam4

adi_3dtof_safety_bubble_detector_single_cam4_minus_67_5_deg_yaw_launch.py

[!note]

  • Make sure the values of cam_pos_x,cam_pos_y,cam_pos_z,cam_roll,cam_pitch,cam_yaw are matching with the actual setup.

  • The Translation values are with respect to the center of the base(which is considered as map)

Now With respect to map(center of circular plate) place the cam1 sensor.

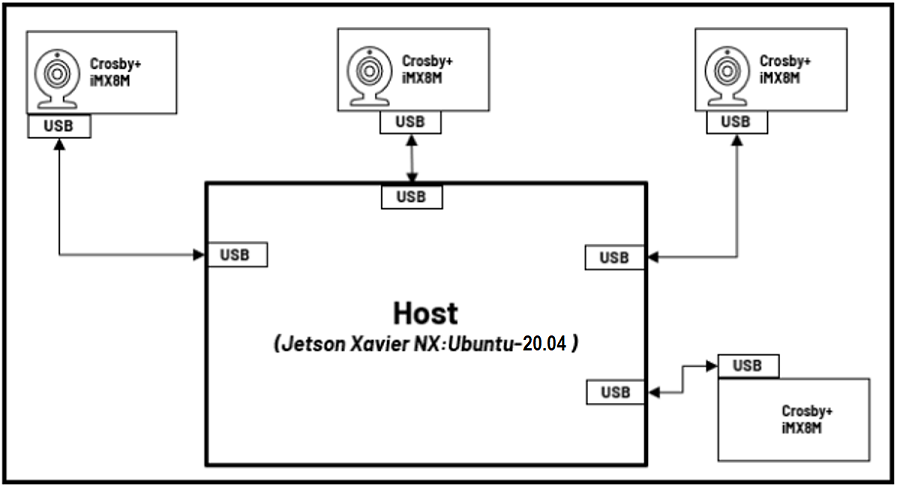

Connecting 4 Devices to Linux host

It is possible to connect several devices to a Linux Host. Four devices are connected to the host PC in our arrangement.

arch_diagram

[!note] If you are using WSL as the Host machine, then you won’t be able to list and subscribe to the topics published by the device. Please use a Linux system to help visualize the topics.

To distinguish the devices connected to Linux Host machine we have to assign distinct IP address to them.

For example: Assume there are four modules present: cam1, cam2, cam3, and cam4. Each of them should have a unique IP address.

Module name

ip_address

cam1

10.41.0.1

cam2

10.42.0.1

cam3

10.43.0.1

cam4

10.44.0.1

Steps to change the ip address:

On the EVAL-ADTF3175D-NXZ device:

  1. Update the “Address” field in /etc/systemd/network/20-wired-usb0.network file.

  2. Update the server address in /etc/ntp.conf (server 10.4x.0.100 iburst) (pool   10.4x.0.100 iburst)

  3. Reboot the device and login with the new ip

Follow the instructions in the Setting up Safety Bubble Detector for a Single sensor file to build adi_3dtof_safety_bubble_detector node on all the devices.

To run the Safety Bubble Detector on 4 devices follow below steps.

On cam1 run below command

$ ros2 launch adi_3dtof_safety_bubble_detector adi_3dtof_safety_bubble_detector_single_cam1_135_deg_yaw_launch.py

At this stage, the adi_3dtof_safety_bubble_detector will be launched and start publishing the topics from cam1

/cam1/object_detected,
/cam1/compressed_out_image,
/cam1/depth_image,
/cam1/ab_image
/cam1/camera_info

On cam2 run below command

$ ros2 launch adi_3dtof_safety_bubble_detector adi_3dtof_safety_bubble_detector_single_cam2_67_5_deg_yaw_launch.py

At this stage, the adi_3dtof_safety_bubble_detector will be launched and start publishing the topics from cam2

/cam2/object_detected,
/cam2/compressed_out_image,
/cam2/depth_image,
/cam2/ab_image
/cam2/camera_info

On cam3 run below command

$ ros2 launch adi_3dtof_safety_bubble_detector adi_3dtof_safety_bubble_detector_single_cam3_0_deg_yaw_launch.py

At this stage, the adi_3dtof_safety_bubble_detector will be launched and start publishing the topics from cam3

/cam3/object_detected,
/cam3/compressed_out_image,
/cam3/depth_image,
/cam3/ab_image
/cam3/camera_info

On cam4 run below command

$ ros2 launch adi_3dtof_safety_bubble_detector adi_3dtof_safety_bubble_detector_single_cam4_minus_67_5_deg_yaw_launch.py

At this stage, the adi_3dtof_safety_bubble_detector will be launched and start publishing the topics from cam4

/cam4/object_detected,
/cam4/compressed_out_image,
/cam4/depth_image,
/cam4/ab_image
/cam4/camera_info

By now all the devices are running Safety Bubble Detector algorithm individually, Now we can stitch the ouputs of individual modules on host.

adi_3dtof_safety_bubble_detector_stitch_host_node

The adi_3dtof_safety_bubble_detector_stitch_host_node subscribes to bird’s-eye view out_image from all cameras and merges them into a single bird’s-eye view output.

Building the package on host

  1. Clone the repo and checkout the correct release branch or tag into ros2 workspace directory

    $ cd ~/ros2_ws/src
$ git clone https://github.com/analogdevicesinc/adi_3dtof_safety_bubble_detector.git -b v2.1.0

  2. Install dependencies:

    $ cd ~/ros2_ws/
$ rosdep install --from-paths src -y --ignore-src

  3. Build the package

    $ cd ~/ros2_ws/
$ colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release -DBUILD_SBD_STITCH_HOST_NODE=TRUE
$ source install/setup.bash

  4. Run adi_3dtof_safety_bubble_detector_stitch_host_node

    $ ros2 launch adi_3dtof_safety_bubble_detector adi_3dtof_safety_bubble_detector_four_camera_host_launch.py

Published topics

Topic Name

Description

/combo_safety_bubble_out_image

8-bit output image

/combo_safety_bubble_object_detected

Boolean topic indicates object detection

Subscribed topics

Topic Name

Description

/object_detected

Boolean topic indicates object detection

/out_image/compressed

Subscribes to compressed output image from adi_3dtof_safety_bubble_detector node

/out_image

Subscribes to output image from adi_3dtof_safety_bubble_detector node

Parameters

parameter

Type

Default

Description

param_camera_prefixes

String array

None

In multi camera setup, camera prefix names of those cameras ex: [cam1, cam2, cam3]

[!note]

  • Make sure that the ADI 3DToF Safety Bubble Detector node is already running on all the devices before running this node.

  • Make sure that the Date/Time is correctly set for all the devices, this application makes use of the topic Timestamp for synchronization. Hence, if the time is not set properly the application will not run.

  • Ensure rmw settings are updated in all the Devices and the Host to support muti-sensor usecases

#Update the default rmw xml profile file to the settings file present inside "rmw_config" foler
$ export FASTRTPS_DEFAULT_PROFILES_FILE= ~/ros2_ws/src/adi_3dtof_safety_bubble_detector/rmw_config/rmw_settings.xml
#Next restart ROS daemon for the profile changes to take effect
$ ros2 daemon stop

  • The above mentioned steps for rmw settings setup can also be completed by running the “setup_rmw_settings.sh” script present inside the “rmw_config” folder.

$ cd ~/ros2_ws/src/adi_3dtof_safety_bubble_detector/rmw_config
$ chmod +x setup_rmw_settings.sh
$ source setup_rmw_settings.sh
