ADRV9009-ZU11EG RF System-on-Module

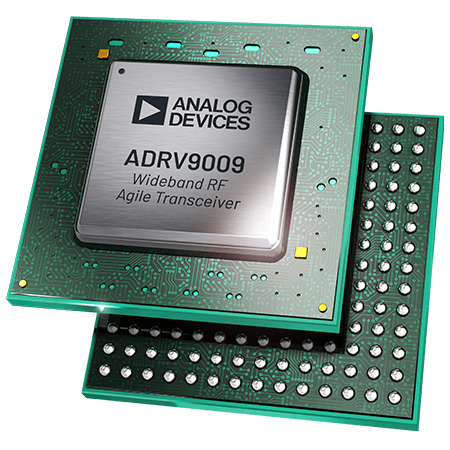

RF System on Module using the ADRV9009 Wideband Transceiver

https://media.githubusercontent.com/media/analogdevicesinc/documentation/wiki_migration/adrv9009zu11eg_landing/docs/solutions/reference-designs/adrv9009-zu11eg/images/adrv9009.png

Overview

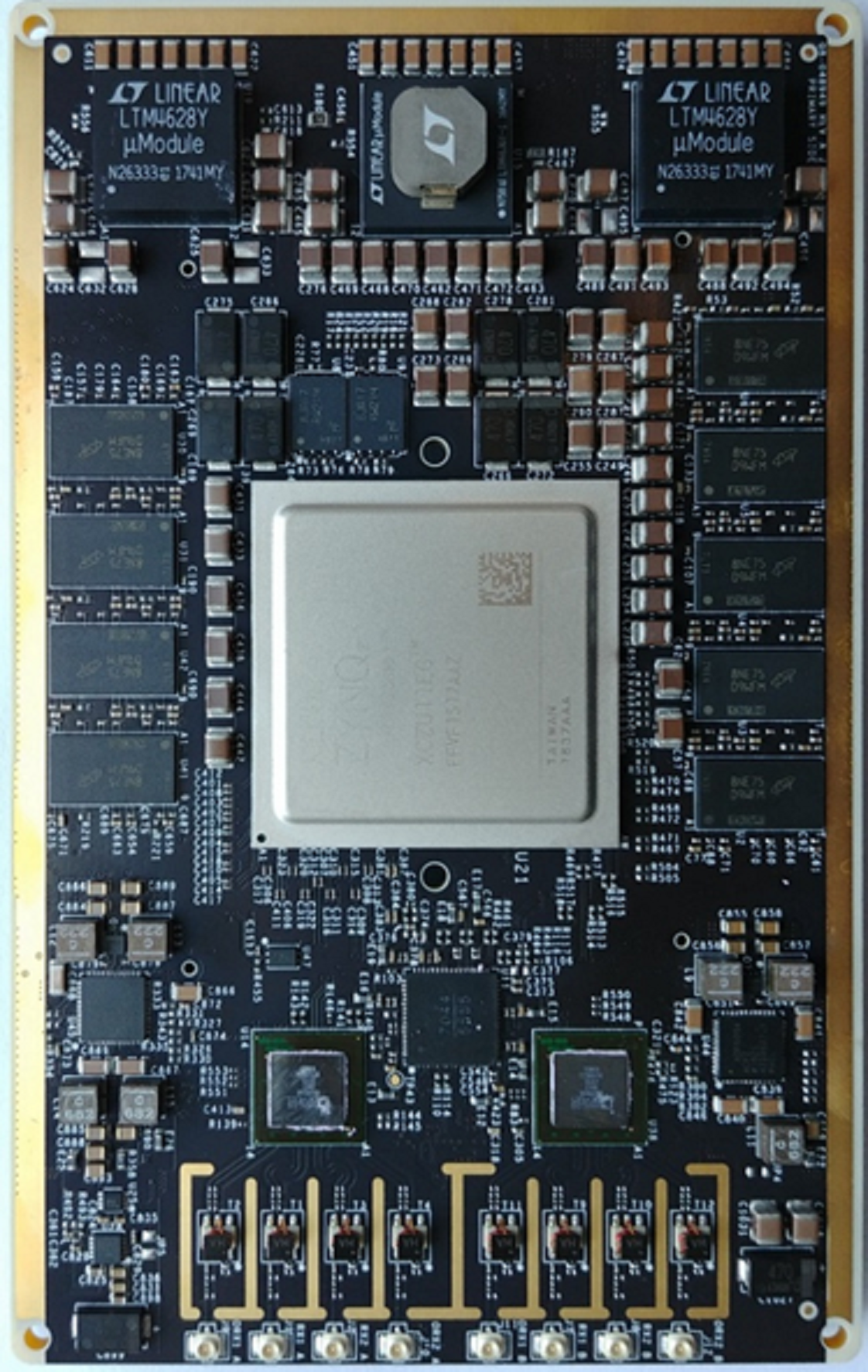

The ADRV9009-ZU11EG Export Info is a highly integrated RF System-On-Module (RF-SOM) based on the Analog Devices ADRV9009 and Xilinx Zynq UltraScale+ MPSoC. The RF-SOM is a platform for evaluation and prototyping. To use the RF-SOM a carrier board is required. The Analog Devices ADRV2CRR-FMC Carrier board is designed for this purpose. An additional RF Transceiver board can also be fitted to the carrier to further expand the system up to 8 Tx and Rx radio channels.

The RF-SOM box includes:

  • ADRV9009-ZU11EG RF-SOM

  • Heat spreader plate (fitted to the RF-SOM during manufacturing)

The Carrier box includes:

  • ADRV2CRR-FMC carrier board, SD-Card, Fan Heatsink and other accessories

  • Full details found in the Carrier section

Features:

  • Quad transmitters

  • Quad receivers

  • Quad input Observation Receiver for DPD

  • Max Rx BW: 200 MHz

  • Max Tunable Tx synthesis BW: 450 MHz

  • Max Observation Rx BW: 450MHz

  • Fully integrated fractional-N RF synthesizers

  • Multi-chip phase synchronization for all RF LO and baseband clocks

  • Tuning range: 75 MHz to 6000 MHz

Applications:

  • 3G, 4G, and 5G TDD macrocell base stations

  • TDD active antenna systems

  • Massive multiple input, multiple output (MIMO)

  • Phased array radar

  • Electronic warfare

  • Military communications

  • Portable test equipment

https://media.githubusercontent.com/media/analogdevicesinc/documentation/wiki_migration/adrv9009zu11eg_landing/docs/solutions/reference-designs/adrv9009-zu11eg/images/adrv9009-zu11eg.png

Recommendations

People who follow the flow that is outlined, have a much better experience with things. However, like many things, documentation is never as complete as it should be. If you have any questions, feel free to ask on our EngineerZone forums, but before that, please make sure you read our documentation thoroughly.

Table of Contents

  1. Getting started with the ADRV9009-ZU11EG

    1. ADRV9009-ZU11EG User Guide

    2. What you need to get started

    3. ADRV9009-ZU11EG Quick Start Guide

      1. Configure a pre-existing SD-Card

      2. Update the old card you received with your hardware

    4. Performance Characteristics

    5. Linux Applications

      1. IIO Oscilloscope

        1. ADRV9009/ADRV9008 IIO Scope View

        2. ADRV9009/ADRV9008 Control IIO Scope Plugin

        3. Advanced ADRV9009/ADRV9008 Control IIO Scope Plugin

    6. FRU EEPROM Utility

    7. Push custom data into/out of the ADRV9009

      1. Basic Data files and formats

      2. Stream data into/out of MATLAB

    8. Design with the ADRV9009

      1. Understanding the ADRV9009

        1. ADRV9009 Product page

        2. Full Datasheet and chip design package

        3. MATLAB Filter Wizard / Profile Generator for ADRV9009

      2. Hardware in the Loop / How to design your own custom BaseBand

        1. GNU Radio

        2. Board Support Package for MathWorks Tools

      3. Design with the ADRV9009-ZU11EG based platform

        1. Linux software

          1. ADRV9009/ADRV9008 Linux Device Driver

            1. ADRV9009/ADRV9008 Device Driver Customization

            2. Customizing the devicetree on the target

          2. JESD204 (FSM) Interface Linux Kernel Framework

          3. HMC7044 Clock Jitter Attenuator with JESD204B Linux Driver

          4. AXI-DMAC DMA Controller Linux Driver

          5. JESD204B Transmit Linux Driver

            1. JESD204B Status Utility

          6. JESD204B Receive Linux Driver

            1. JESD204B Status Utility

          7. JESD204B/C AXI_ADXCVR Highspeed Transceivers Linux Driver

            1. JESD204 Eye Scan

          8. AXI ADC HDL Linux Driver

          9. AXI DAC HDL Linux Driver

        2. ADRV9009/ADRV9008 No-OS System Level Design Setup

        3. HDL Reference Design

        4. ADRV9009-ZU11EG Multi-SOM Synchronization

        5. ADRV9009-ZU11EG Phase Synchronization

Reference Material

https://media.githubusercontent.com/media/analogdevicesinc/documentation/wiki_migration/adrv9009zu11eg_landing/docs/solutions/reference-designs/adrv9009-zu11eg/images/sdr_book.png

Software Defined Radio for Engineers

Additional Documentation about SDR Signal Chains - The math behind the RF

Functional Test

Details on how the ADRV9009-ZU11EG is functionally tested can be found here.

Pre-requisites and quickstart

Getting Started

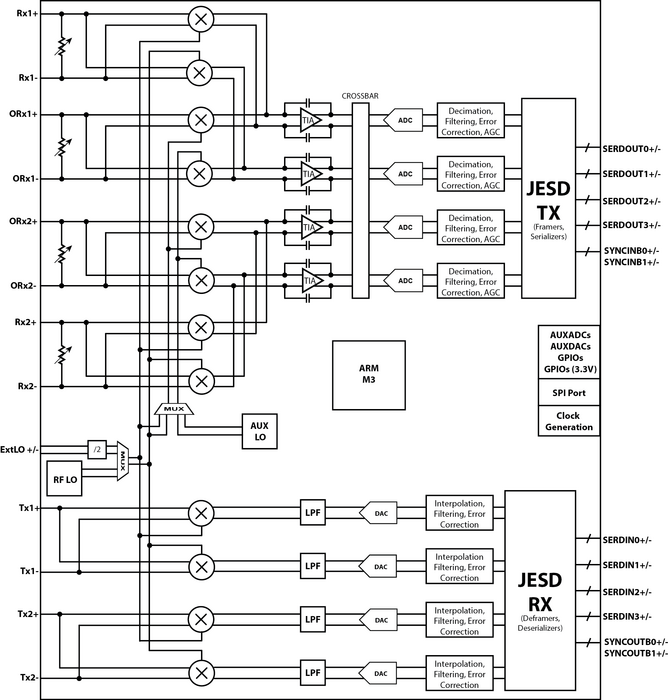

Functional Block Diagram

https://media.githubusercontent.com/media/analogdevicesinc/documentation/wiki_migration/adrv9009zu11eg_landing/docs/solutions/reference-designs/adrv9009-zu11eg/images/adrv9009_blockdiagram.png

Help and Support

For questions and more information please contact us on the Analog Devices Engineer Zone.

Hint

EngineerZone

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.
