AD-R1M Software Guide

This guide covers software installation, configuration, and operation for the AD-R1M Open Mobile Robot Platform.

Overview

The AD-R1M software stack is built on ROS 2 Humble running on ADI Kuiper2 Linux. The architecture includes:

  • ROS 2 Nodes for motor control, sensor integration, localization, and navigation

  • ros2_control framework for hardware abstraction

  • Nav2 navigation stack for autonomous operation

  • Docker containers for isolated, reproducible deployments

Software Downloads

AD-R1M Software Package

The AD-R1M ROS 2 packages are available on GitHub:

Prerequisites

On the Robot (Raspberry Pi 5):

  • ADI Kuiper2 Linux (pre-installed on SD card)

  • ROS 2 Humble (pre-installed)

  • Docker and Docker Compose (pre-installed)

On the Host PC (for development/visualization):

  • Ubuntu 22.04 LTS

  • ROS 2 Humble Desktop

  • RViz2 for visualization

For host PC setup instructions, see Host PC ROS 2 Installation.

Installation

SD Card Setup

For instructions on setting up the SD card and installing the AD-R1M system software, see How to set up the AD-R1M internal computer.

First Boot Configuration

The AD-R1M includes an interactive setup script to configure the robot on first boot.

  1. Connect a monitor and keyboard to the Raspberry Pi (or use serial console)

  2. Login with default credentials:

    • Username: analog

    • Password: analog

  3. Run the interactive setup script:

    ~/setup.sh

    The script provides a menu-driven interface:

    ╔════════════════════════════════════════════════════════════════╗
║              AD-R1M First Boot Setup Menu                      ║
╠════════════════════════════════════════════════════════════════╣
║  1) Change hostname                                            ║
║     Set a unique hostname for the robot                        ║
║     (recommended for multi-robot setups)                       ║
║                                                                ║
║  2) Connect to WiFi                                            ║
║     Opens nmtui for network configuration                      ║
║                                                                ║
║  3) Download latest docker image                               ║
║     Pulls the latest AD-R1M container from Cloudsmith          ║
║                                                                ║
║  4) Write CAN adapter firmware                                 ║
║     Uploads firmware to the ADRD4161 CAN adapter board         ║
║                                                                ║
║  5) Write default motor tuning                                 ║
║     Writes PID parameters to motor controllers (ADRD3161)      ║
║                                                                ║
║  6) Bind radio receiver                                        ║
║     Puts the ELRS receiver into bind mode                      ║
║                                                                ║
║  0) Exit                                                       ║
╚════════════════════════════════════════════════════════════════╝

  4. Complete the recommended setup steps in order:

    • a) Change hostname (e.g., ad-r1m-0, ad-r1m-1)

    • b) Connect to WiFi and note the IP address shown after connection

    • c) Download latest docker image (requires Cloudsmith login)

    • d) Write CAN adapter firmware (required for motor control)

    • e) Write default motor tuning (required for proper motor operation)

    • f) Bind radio receiver (optional, only if using RC control)

  5. Verify SSH access from your host PC:

    ssh analog@<robot-ip-address>

Docker Setup

The AD-R1M software runs in Docker containers for isolation and reproducibility.

Verify Docker is running:

sudo systemctl status docker
docker ps

Pull the latest AD-R1M container:

# Option 1: Use the recreate script (recommended)
~/recreate_container.sh

# Option 2: Manual pull and tag
IMAGE=docker.cloudsmith.io/adi/adrd-common/ad-r1m:rpi5-ftc2025
docker pull $IMAGE
docker tag $IMAGE working

Software Operation

For basic operation (power on, SSH, bringup), see the quick-start-guide.

Bringup Configuration

The bringup.sh script accepts environment variables to configure the robot stack:

Variable

Default

Options

RMW_IMPLEMENTATION

rmw_zenoh_cpp

rmw_zenoh_cpp (recommended), rmw_fastdds_cpp

TELEOP

radio

radio, keyboard, autonomous

LOCALIZATION

blind

blind (dead reckoning), amcl (map-based)

NAVIGATION

(none)

(empty) or nav2

ROBOT_NAMESPACE

hostname-based

e.g., ad_r1m_0, ad_r1m_1

Example configurations:

# Manual radio control (default)
~/bringup_radio.sh
# Equivalent to: TELEOP=radio LOCALIZATION=blind ~/bringup.sh

# Autonomous navigation with AMCL
~/bringup_amcl.sh
# Equivalent to: TELEOP=radio LOCALIZATION=amcl NAVIGATION=nav2 ~/bringup.sh

# Custom configuration
TELEOP=keyboard LOCALIZATION=amcl NAVIGATION=nav2 ~/bringup.sh

For the complete list of bringup scripts, see Alternative Bringup Scripts in the Quick Start Guide.

Starting Services Manually

Start specific Docker Compose profiles:

cd ~/ros2_ws

# Basic robot with radio control
docker compose --profile rmw_zenoh --profile teleop_radio --profile localization_blind up

# With navigation
docker compose --profile rmw_zenoh --profile teleop_radio --profile localization_amcl --profile navigation_nav2 up

# Mapping mode
docker compose --profile rmw_zenoh --profile teleop_radio --profile mapping up

Start individual services:

docker compose up motors        # Just motors
docker compose up motors imu    # Motors and IMU

Verifying Operation

Check running containers:

docker ps

Access a running container:

docker exec -it ad-r1m-motors-1 bash
source /opt/ros/humble/setup.bash
source /ros2_ws/install/setup.bash

Verify ROS 2 nodes:

ros2 node list

Expected nodes include:

  • /<namespace>/controller_manager

  • /<namespace>/diff_drive_controller

  • /<namespace>/imu_node

  • /<namespace>/tof_camera_node

RViz Visualization

For RViz setup on your host PC, see RViz Visualization.

Docker Compose Architecture

The system uses Docker Compose with profiles for modular service management.

Always-On Services

These services start with every bringup configuration:

Service

Function

Key Details

motors

Motor control via CANopen

Requires NET_ADMIN capability

imu

ADIS16470 IMU sensor

Requires privileged: true

tof

ADTF3175D ToF camera

Depth image publisher

tof_republish

Topic relay

Republishes to namespaced topics

Profile-Based Services

Service

Profile

Function

rmw_zenoh_router

rmw_zenoh

Zenoh middleware router

rmw_fastdds_ds

rmw_fastdds

Fast-DDS discovery server

teleop_radio

teleop_radio

CRSF/ELRS radio control

teleop_autonomous

teleop_autonomous

Keyboard teleop

mapping

mapping

SLAM Toolbox

loc_blind

localization_blind

Dead reckoning (static TF)

loc_amcl

localization_amcl

AMCL localization

map_server

map_server

Serves static maps

nav2

navigation_nav2

Nav2 navigation stack

Volume Mounts

Configuration and map data stored on host:

  • /home/analog/ros_data:/ros_data

  • Maps: /ros_data/maps/

  • Parameters: /ros_data/navigation_params.yaml, /ros_data/mapping_params.yaml

ROS 2 Components

For detailed ROS 2 architecture documentation, see software-guide/ros2-architecture.

IMU (ADIS16470)

  • Topics: /${NAMESPACE}/imu (sensor_msgs/Imu)

  • Interface: IIO (Industrial I/O)

  • Frequency: 200 Hz (default), configurable up to 2000 Hz

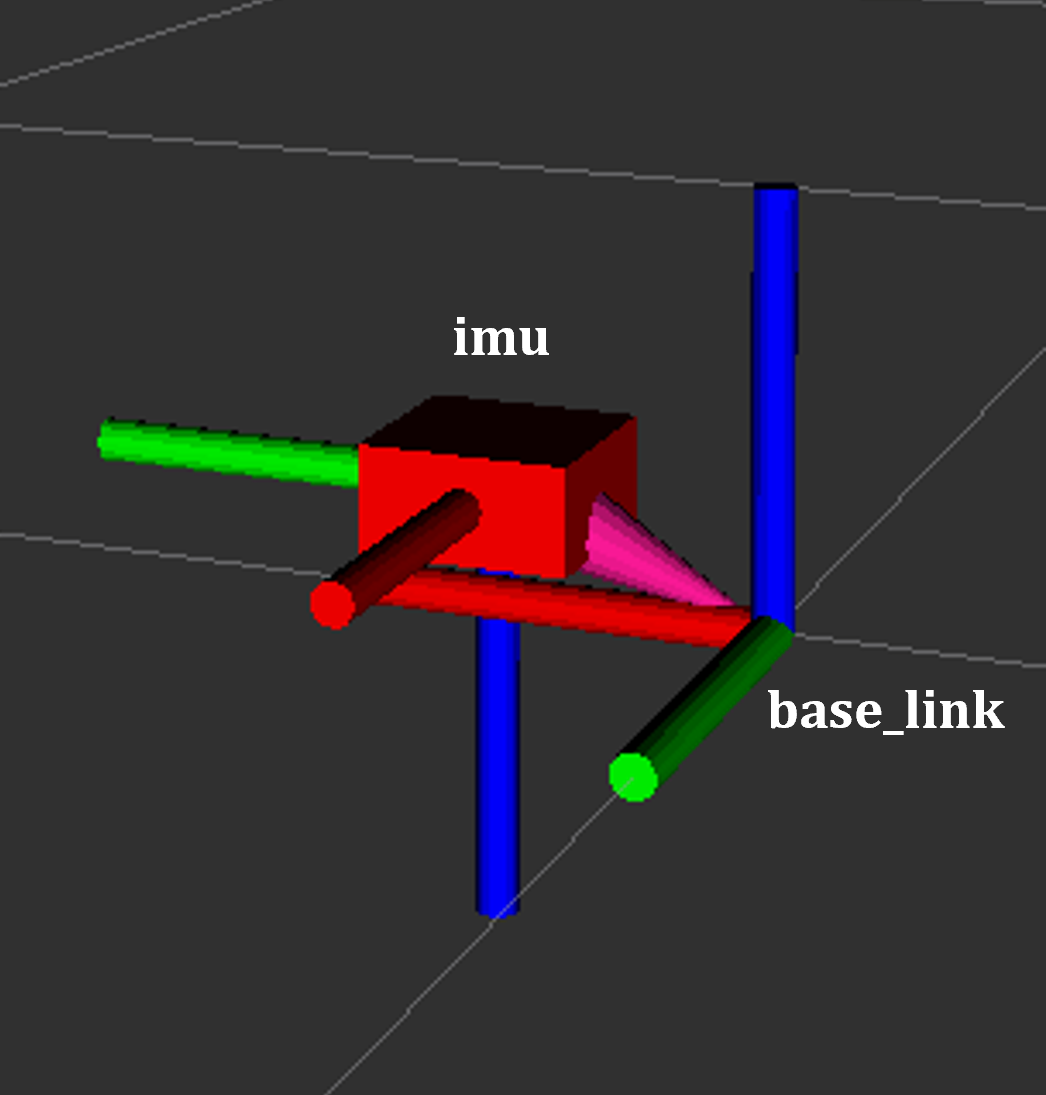

IMU Link Position

IMU coordinate frame on the robot

ToF Camera (ADTF3175D)

  • Topics: /cam1/depth_image (16UC1), /${NAMESPACE}/cam1/scan (LaserScan)

  • Interface: USB via ADI ToF SDK

  • Function: Depth images converted to 2D LaserScan for navigation

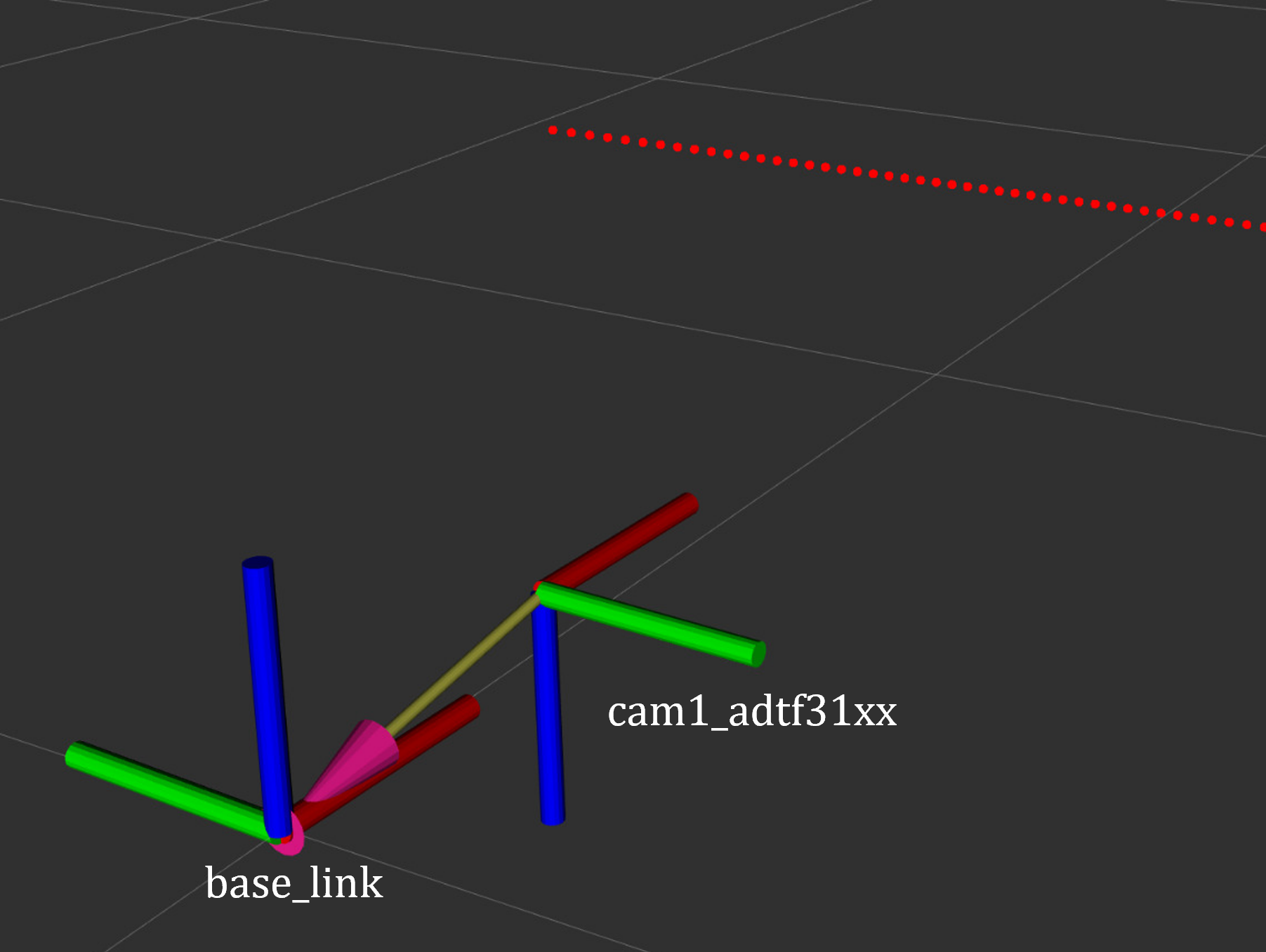

ToF Camera Transform

ToF camera coordinate frame

Motor Control (CANopen)

  • Topics: Subscribes to cmd_vel, publishes odom

  • Interface: CANopen via slcan0

  • Framework: ros2_control with differential drive controller

CRSF Remote Control

  • Topics: /${NAMESPACE}/cmd_vel_joy, /${NAMESPACE}/killswitch

  • Device: /dev/ttyCRSF

  • Channels: Right stick for motion, SA switch for killswitch

Development and Debugging

Viewing Logs

# All services
docker compose logs -f

# Specific service
docker compose logs -f motors

# With timestamps
docker compose logs -f --timestamps motors

Restart Services

docker compose restart motors
docker compose restart imu tof

Interactive Container

# Start interactive session
docker compose run --rm motors bash

# Access running container
docker exec -it ad-r1m-motors-1 bash

For troubleshooting common issues, see AD-R1M Troubleshooting.
