pyadi-jif: Python interface for the ADI JESD Interface Framework

pyadi-jif is a Python modeling and configuration tool that simplifies JESD204 interface setup for Analog Devices converters, clock chips, and FPGAs. It can automatically solve for valid clock divider settings and JESD204 link parameters at both the individual component level and across a complete system.

PyADI-IIO Logo PyADI-IIO Logo
Python versions Build Status codecov
Documentation pypi

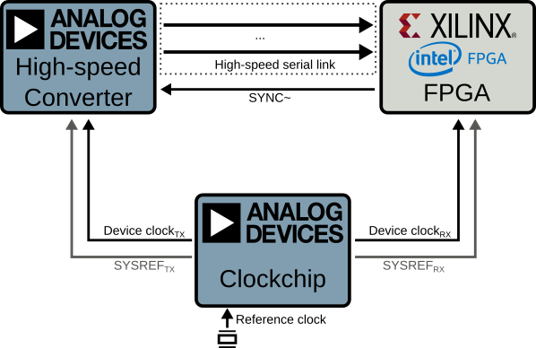

JESD204 system overview JESD204 system overview

What is pyadi-jif?

JESD204 is a high-speed serial interface standard used to connect data converters (ADCs and DACs) to FPGAs. Configuring a JESD204 system requires coordinating clock frequencies, lane rates, and link parameters across multiple chips simultaneously — a process that is error-prone when done manually.

pyadi-jif models the constraints of each component (converter, clock chip, FPGA transceiver) and uses a constraint solver to automatically find valid configurations. It supports both:

  • Component-level use: configure a single clock chip or verify an existing setup in isolation.

  • System-level use: solve for a complete, consistent configuration across converter + clock + FPGA together.

Key Features

  • Automatic constraint solving for JESD204B/C clock and link parameters

  • Models for ADI converters (ADCs, DACs, MxFEs), clock chips (HMC7044, AD9523-1, AD9545), and FPGA transceivers (Xilinx, Intel)

  • Interactive web-based JIF Tools Explorer (jiftools) for graphical configuration and exploration

  • MCP server for AI assistant integration

  • Clock tree and system block diagram generation

Quick Start

Install with pip and launch the interactive tools:

pip install 'pyadi-jif[cplex,tools,draw]'
jiftools

Or use the Python API directly:

import adijif

# System-level: solve converter + clock + FPGA together
sys = adijif.system("ad9680", "ad9523_1", "xilinx", vcxo=125e6)
sys.converter.sample_clock = 1e9
sys.converter.decimation = 1
sys.converter.L = 4
sys.converter.M = 2
sys.converter.N = 14
sys.converter.Np = 16
sys.converter.K = 32
sys.converter.F = 1
sys.fpga.setup_by_dev_kit_name("zc706")
config = sys.solve()

See Installation for full setup instructions, and Usage Flows for detailed examples.

Interactive Tools

The JIF Tools Explorer (jiftools) is a Streamlit web application with three tools:

  • JESD204 Mode Selector — browse and filter valid JESD204 modes for a given converter and sample rate

  • Clock Configurator — configure ADI clock chips to generate required output clocks

  • System Configurator — end-to-end configuration of converter + clock chip + FPGA

See the Quick Start Guide and full tools documentation.
