AD-GMSLCAMRPI-ADP#

GMSL EV Kit Adapter Board

Seamlessly insert GMSL into the signal chain and create a full GMSL Camera System with off-the-shelf parts.

../../../_images/signal_chain.png

Figure 1 GMSL Signal Chain

Overview

The AD-GMSLCAMRPI-ADP# enables connecting GMSL serializer and deserialier Evaluation Kits (EVK) to a wide range of cameras and processing platforms supporting industry standard ribbon cable connectors. The adapter consists of three sections that can be broken apart from each other, with the following functionalities:

  • A Ribbon Cable Adapter having two pairs of 15-pin and 22-pin connectors routed to each other. The 15-pin connectors support 2 MIPI lanes, while the 22-pin connectors support 4 MIPI lanes.

  • A GMSL Serializer EVK Adapter with two 22-pin ribbon cable connectors, for connecting cameras to the GMSL serializers. A USB Type-A connector is available to supply 5V at 4A to another system.

  • A GMSL Deserializer EVK Adapter with two 22-pin ribbon cable connectors, for connecting to Raspberry Pi, Nvidia or Xilinx development platforms, or any other processing platform supporting the 15-pin or 22-pin ribbon cable connectors.

../../../_images/block_diagram.png

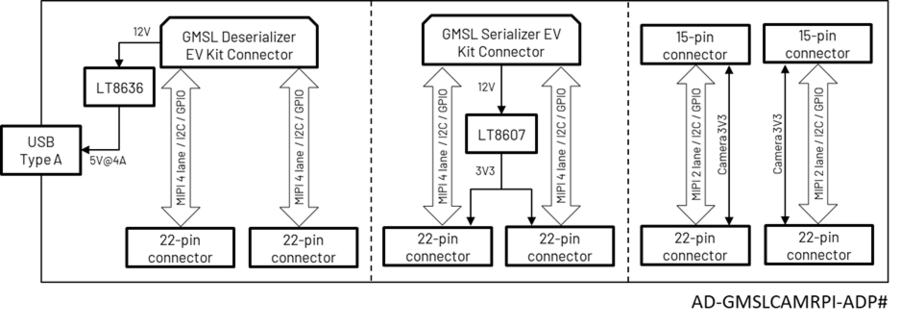

Figure 2 AD-GMSLCAMRPI-ADP# Simplified Block Diagram

../../../_images/wikigmsladptop.png

Figure 3 AD-GMSLCAMRPI-ADP# GMSL Boards

Specifications

Ribbon Cable Adapter

Connectors

2 x 15 Pin Type A (same side) Flexible Ribbon Cable (2 x MIPI lanes, P/N: 1-84953-5)

2 x 22 Pin Type B (opposite side) Flexible Ribbon Cable (P/N: 687122149022)

Power

Routing 3.3V external power between pairs of 15-pin and 22-pin connectors

GMSL Serializer EVK Adapter

Connectors

1 x GMSL Serializer EV kit (P/N: QSH-030-01-L-D-A)

2 x 22-pin (4 x MIPI lanes, P/N: 687122149022)

Power

Input: 12V from GMSL Serializer EV kit

Output: 3.3V at 0.5A on the 22-pin connectors

GMSL Deserializer EVK Adapter

Connectors

1 x GMSL Deserializer EV kit (P/N: QTH-030-01-L-D-A)

2 x 22-pin (4 x MIPI lanes, P/N: 687122149022)

Power

Input: 12V from GMSL Deserializer EV kit

Output: 5V at 4A on the USB Type A connector to power external devices

Warning

Do not use the 15-pin ribbon cable included with the Raspberry Pi camera since that is an opposite sided cable.

Hardware Design Files

GMSL EV Kit Compatibility

The MIPI-CSI2 signals, I2C communication, and power pins align on the EV kits but the MFP connections can vary.

Refer to the Serializer and Deserializer EV Kit Compatibility Guide to see the connections across EV kits.

Camera Connections

Connect RPi 15-pin cameras to GMSL Serializer EV Kit’s with the 15-pin to 22-pin adapter. Or use a 15-pin to 22-Pin Adapter Cable.

../../../_images/wikigmslcamadpser.png

Figure 4 Connecting RPi Camera directly via Adapter

../../../_images/wikigmsl15adp22ser.png

Figure 5 Connecting RPi Camera using Adapter Cables

SoC Connections

The same configuration is used for the SoC side where the 22-pin adapter can be directly connect to a Jetson Orin Development kit or use the 22-15 pin adapter to connect to an Raspberry Pi.

../../../_images/wikigmsladpdesjeto.png

Figure 6 SoC Connection to Jetson Orin Development Kit

../../../_images/wikigmsladpdesrpi4.png

Figure 7 SoC Connection to Raspberry Pi

Example Configurations

The adapter can be used to connect the GMSL Deserializer EV kits to a number of processing platforms for GMSL evaluation and application development. The user guides below provide instructions on how to get the systems up and running by configuring the hardware and running the associated software.

Software Development

The GMSL Linux kernel drivers, the complete Linux distributions for the supported processing platforms, and software user guides can be found on the ADI gmsl repository.

User Guides

Support

For questions and more information, please contact us on the Analog Devices Engineer Zone.
