AD-FMCXMWBR1-EBZ
Overview

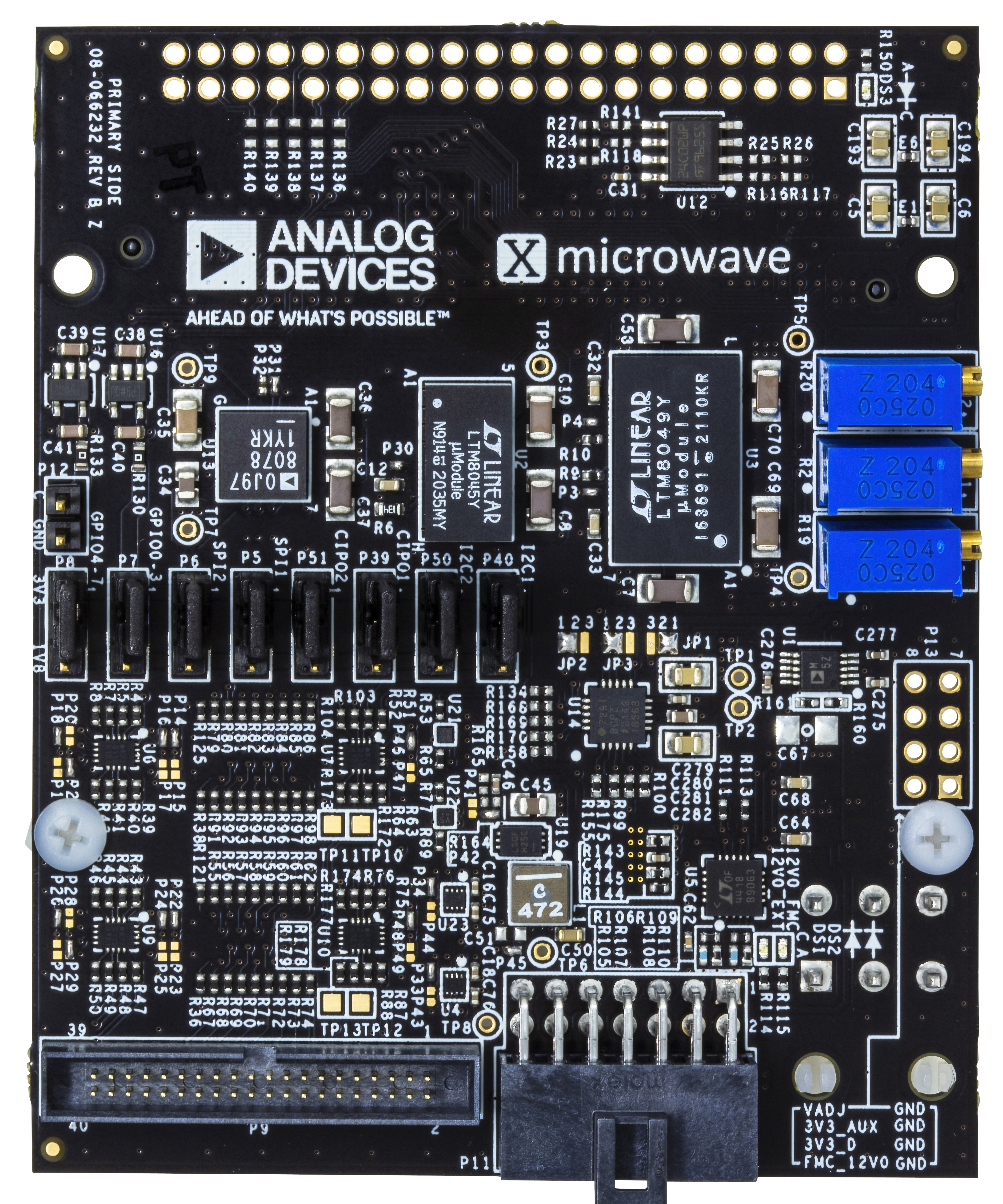

The AD-FMCXMWBR1-EBZ is a FMC-compatible level translator and power supply board. It provides a direct connection between a compatible controller/FPGA device and X-Microwave blocks. It is powered from the FMC connector but has the option to add an external supply for applications that require higher load currents. This increases flexibility and allows for multiple supply voltages with high current capability. These can be used to bias the X-MW blocks or other ICs in a prototype design, allowing multiple level translated digital communications paths between the controller board and the front-end.
Features:
FMC-compatible form factor
Powered from FMC connector with external supply possibility
Provides level translation and various supply values
Compatible with RaspberryPi X-MW controller
Applications:
RF and Microwave designs
Voltage level translation
General-purpose software radios
Radar systems
Point to point communication systems
Multiple input/multiple output (MIMO) radios
Automated test equipment
