KCU105 Quick Start Guide

This guide provides some quick instructions on how to setup the ADRV9009-W/PCBZ on:

KCU105 on FMC HPC

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/images/kcu105.png

Using Linux as software

Necessary files

Note

This carrier only has programming logic (PL) and, thus, a MicroBlaze soft core is necessary to run Linux. As such, the files required for running Linux need to be manually built.

The following files are needed for the system to boot:

HDL bitstream file: system_top.bit
Linux Kernel image: simpleImage.strip

Instructions on how to manually build the boot files from source can be found here:

Build MicroBlaze Linux kernel

ADRV9009 HDL reference design build documentation. More HDL build details at Build an HDL project

Important

Some projects provide multiple devicetree files. Make sure you select the devicetree that matches your specific use case when building the simpleImage.

Required Software

AMD Xilinx Vivado and Vitis (downloading Vitis from here will include Vivado as well)
A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

Required Hardware

KCU105 FPGA board and its power supply
ADRV9009-W/PCBZ FMC evaluation board
(Optional) 2x SMA cable for analog signal loopback
(Optional) External clock generator
2x Micro-USB cable (UART and JTAG)
(Optional) Ethernet cable

More details as to why you need these, can be found at Prerequisites.

Testing

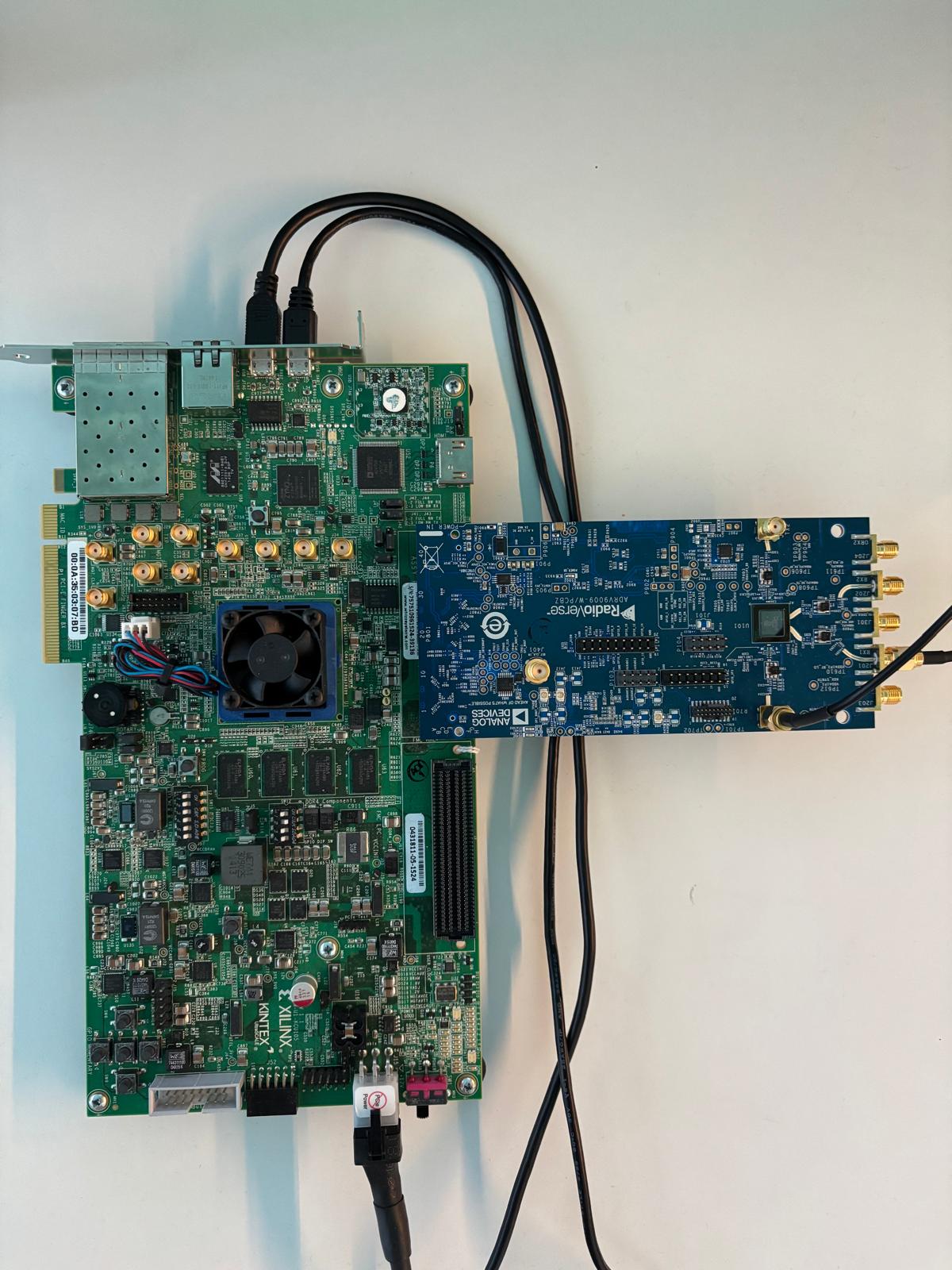

Creating the setup

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/eval-adrv9009/images/adrv9009_kcu105_setup.jpeg

Caution

This project was tested with VADJ = 1.8 V

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.

Follow the steps in this order, to avoid damaging the components:

Connect the ADRV9009-W/PCBZ FMC board to the KCU105 FMC HPC socket
Connect USB UART J4 (Micro-USB) to your host PC
Connect USB JTAG J87 (Micro-USB) to your host PC
(Optional) Connect the external clock generator and/or loopback cables
(Optional) Plug-in an Ethernet cable from your router/switch to the Ethernet port on the FPGA board
Plug in the power supply and turn on the power switch on the FPGA board
Program the FPGA using the steps shown here.
Observe console output messages on your terminal (use the first ttyUSB or COM port registered)

Booting the System

After turning on the power switch, the following messages should appear on the serial console:

Complete kernel boot log (Click to expand)

Ramdisk addr 0x00000000,
Compiled-in FDT at 0x8084a4b8
earlycon: uartlite_a0 at MMIO 0x40600000 (options '115200n8')
printk: legacy bootconsole [uartlite_a0] enabled
cma: Reserved 512 MiB at 0x8fc00000 on node -1
Linux version 6.12.0-gb804734d467b (vsts@runnervmybi1p) (microblazeel-xilinx-elf-gcc (crosstool-NG 1.26.0) 13.2.0, GNU ld (crosstool-NG 1.26.0) 2.40) #8 Thu May 28 11:48:29 UTC 2026
setup_memory: max_mapnr: 0x7ffff
setup_memory: min_low_pfn: 0x80000
setup_memory: max_low_pfn: 0xb0000
setup_memory: max_pfn: 0xfffff
Zone ranges:
  DMA      [mem 0x0000000080000000-0x00000000afffffff]
  Normal   empty
  HighMem  [mem 0x00000000b0000000-0x00000000ffffefff]
Movable zone start for each node
Early memory node ranges
  node   0: [mem 0x0000000080000000-0x00000000ffffefff]
Initmem setup node 0 [mem 0x0000000080000000-0x00000000ffffefff]
setup_cpuinfo: initialising
setup_cpuinfo: Using full CPU PVR support
wt_msr_noirq
pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
pcpu-alloc: [0] 0
Kernel command line: earlycon
Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
Built 1 zonelists, mobility grouping on.  Total pages: 524287
mem auto-init: stack:all(zero), heap alloc:off, heap free:off
SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
irq-xilinx: mismatch in kind-of-intr param
irq-xilinx: /amba_pl/interrupt-controller@41200000: num_irq=16, edge=0xffff0470
/amba_pl/timer@41c00000: irq=1
clocksource: xilinx_clocksource: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604467 ns
xilinx_timer_shutdown
xilinx_timer_set_periodic
sched_clock: 32 bits at 100MHz, resolution 10ns, wraps every 21474836475ns
Console: colour dummy device 80x25
printk: legacy console [tty0] enabled
printk: legacy bootconsole [uartlite_a0] disabled
Ramdisk addr 0x00000000,
Compiled-in FDT at 0x8084a4b8
earlycon: uartlite_a0 at MMIO 0x40600000 (options '115200n8')
printk: legacy bootconsole [uartlite_a0] enabled
cma: Reserved 512 MiB at 0x8fc00000 on node -1
Linux version 6.12.0-gb804734d467b (vsts@runnervmybi1p) (microblazeel-xilinx-elf-gcc (crosstool-NG 1.26.0) 13.2.0, GNU ld (crosstool-NG 1.26.0) 2.40) #8 Thu May 28 11:48:29 UTC 2026
setup_memory: max_mapnr: 0x7ffff
setup_memory: min_low_pfn: 0x80000
setup_memory: max_low_pfn: 0xb0000
setup_memory: max_pfn: 0xfffff
Zone ranges:
  DMA      [mem 0x0000000080000000-0x00000000afffffff]
  Normal   empty
  HighMem  [mem 0x00000000b0000000-0x00000000ffffefff]
Movable zone start for each node
Early memory node ranges
  node   0: [mem 0x0000000080000000-0x00000000ffffefff]
Initmem setup node 0 [mem 0x0000000080000000-0x00000000ffffefff]
setup_cpuinfo: initialising
setup_cpuinfo: Using full CPU PVR support
wt_msr_noirq
pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
pcpu-alloc: [0] 0
Kernel command line: earlycon
Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
Built 1 zonelists, mobility grouping on.  Total pages: 524287
mem auto-init: stack:all(zero), heap alloc:off, heap free:off
SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
irq-xilinx: mismatch in kind-of-intr param
irq-xilinx: /amba_pl/interrupt-controller@41200000: num_irq=16, edge=0xffff0470
/amba_pl/timer@41c00000: irq=1
clocksource: xilinx_clocksource: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604467 ns
xilinx_timer_shutdown
xilinx_timer_set_periodic
sched_clock: 32 bits at 100MHz, resolution 10ns, wraps every 21474836475ns
Console: colour dummy device 80x25
printk: legacy console [tty0] enabled
printk: legacy bootconsole [uartlite_a0] disabled
Calibrating delay loop... 49.35 BogoMIPS (lpj=246784)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
Memory: 1533112K/2097148K available (8489K kernel code, 694K rwdata, 7156K rodata, 208K init, 193K bss, 39272K reserved, 524288K cma-reserved, 1310716K highmem)
devtmpfs: initialized
clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
futex hash table entries: 256 (order: -1, 3072 bytes, linear)
NET: Registered PF_NETLINK/PF_ROUTE protocol family
DMA: preallocated 256 KiB GFP_KERNEL pool for atomic allocations
DMA: preallocated 256 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
pps_core: LinuxPPS API ver. 1 registered
pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
PTP clock support registered
jesd204: created con: id=0, topo=0, link=0, /amba_pl/axi-adxcvr-tx@44a80000 <-> /amba_pl/axi-jesd204-tx@44a90000
jesd204: created con: id=1, topo=0, link=2, /amba_pl/axi-adxcvr-rx-os@44a50000 <-> /amba_pl/axi-jesd204-rx@44ab0000
jesd204: created con: id=2, topo=0, link=1, /amba_pl/axi-adxcvr-rx@44a60000 <-> /amba_pl/axi-jesd204-rx@44aa0000
jesd204: created con: id=3, topo=0, link=0, /amba_pl/spi@44a70000/ad9528-1@0 <-> /amba_pl/axi-adxcvr-tx@44a80000
jesd204: created con: id=4, topo=0, link=2, /amba_pl/spi@44a70000/ad9528-1@0 <-> /amba_pl/axi-adxcvr-rx-os@44a50000
jesd204: created con: id=5, topo=0, link=1, /amba_pl/spi@44a70000/ad9528-1@0 <-> /amba_pl/axi-adxcvr-rx@44a60000
jesd204: created con: id=6, topo=0, link=0, /amba_pl/axi-jesd204-tx@44a90000 <-> /amba_pl/axi-adrv9009-tx-hpc@44a04000
jesd204: created con: id=7, topo=0, link=1, /amba_pl/axi-jesd204-rx@44aa0000 <-> /amba_pl/spi@44a70000/adrv9009-phy@1
jesd204: created con: id=8, topo=0, link=2, /amba_pl/axi-jesd204-rx@44ab0000 <-> /amba_pl/spi@44a70000/adrv9009-phy@1
jesd204: created con: id=9, topo=0, link=0, /amba_pl/axi-adrv9009-tx-hpc@44a04000 <-> /amba_pl/spi@44a70000/adrv9009-phy@1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1: JESD204[0:0] transition uninitialized -> initialized
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1: JESD204[0:1] transition uninitialized -> initialized
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1: JESD204[0:2] transition uninitialized -> initialized
jesd204: found 9 devices and 1 topologies
vgaarb: loaded
clocksource: Switched to clocksource xilinx_clocksource
NET: Registered PF_INET protocol family
IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
tcp_listen_portaddr_hash hash table entries: 1024 (order: 0, 4096 bytes, linear)
Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear)
TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear)
TCP: Hash tables configured (established 2048 bind 2048)
UDP hash table entries: 256 (order: 0, 4096 bytes, linear)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear)
NET: Registered PF_UNIX/PF_LOCAL protocol family
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp-with-tls transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
PCI: CLS 0 bytes, default 32
workingset: timestamp_bits=30 max_order=19 bucket_order=0
Key type cifs.idmap registered
jffs2: version 2.2. (NAND) (SUMMARY)  � 2001-2006 Red Hat, Inc.
romfs: ROMFS MTD (C) 2007 Red Hat, Inc.
bounce: pool size: 64 pages
io scheduler mq-deadline registered
io scheduler kyber registered
Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
40600000.serial: ttyUL0 at MMIO 0x40600000 (irq = 4, base_baud = 0) is a uartlite
printk: legacy console [ttyUL0] enabled
uartlite 41400000.serial: error -EINVAL: could not read current-speed
uartlite 41400000.serial: probe with driver uartlite failed with error -22
brd: module loaded
xilinx_axienet 40e00000.ethernet: missing/invalid xlnx,addrwidth property, using default
i2c_dev: i2c /dev entries driver
pca954x 0-0075: supply vdd not found, using dummy regulator
i2c i2c-0: Added multiplexed i2c bus 1
at24 2-0050: supply vcc not found, using dummy regulator
at24 2-0050: 256 byte 24c02 EEPROM, writable, 1 bytes/write
i2c i2c-0: Added multiplexed i2c bus 2
i2c i2c-0: Added multiplexed i2c bus 3
i2c i2c-0: Added multiplexed i2c bus 4
pca954x 0-0075: registered 4 multiplexed busses for I2C mux pca9544
ad9528 spi0.0: supply vcc not found, using dummy regulator
jesd204: /amba_pl/spi@44a70000/ad9528-1@0,jesd204:0,parent=spi0.0: Using as SYSREF provider
axi_sysid 45000000.axi-sysid-0: AXI System ID core version (1.01.a) found
axi_sysid 45000000.axi-sysid-0: [adrv9009] [RX:M=4 L=2 S=1 TX:M=4 L=4 S=1 RX_OS:M=2 L=2 S=1 DAC_OFFLOAD:TYPE=0 SIZE=1048576] on [kcu105] git branch <main> git <e57851ffcea3d92d821a38c908c909d61db4a492> clean [2026-08-12 13:07:47] UTC
Initializing XFRM netlink socket
NET: Registered PF_INET6 protocol family
Segment Routing with IPv6
In-situ OAM (IOAM) with IPv6
sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
NET: Registered PF_PACKET protocol family
NET: Registered PF_KEY protocol family
Key type dns_resolver registered
Key type encrypted registered
axi_adxcvr_drv 44a60000.axi-adxcvr-rx: AXI-ADXCVR-RX (17.05.a) using CPLL on GTH3. Number of lanes: 2.
axi_adxcvr_drv 44a50000.axi-adxcvr-rx-os: AXI-ADXCVR-RX (17.05.a) using CPLL on GTH3. Number of lanes: 2.
axi_adxcvr_drv 44a80000.axi-adxcvr-tx: AXI-ADXCVR-TX (17.05.a) using QPLL on GTH3. Number of lanes: 4.
axi-jesd204-rx 44aa0000.axi-jesd204-rx: AXI-JESD204-RX (1.07.a). Encoder 8b10b, width 4/4, lanes 2, jesd204-fsm.
axi-jesd204-rx 44ab0000.axi-jesd204-rx: AXI-JESD204-RX (1.07.a). Encoder 8b10b, width 4/4, lanes 2, jesd204-fsm.
axi-jesd204-tx 44a90000.axi-jesd204-tx: AXI-JESD204-TX (1.06.a). Encoder 8b10b, width 4/4, lanes 4, jesd204-fsm.
adrv9009 spi0.1: adrv9009_probe : enter
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition probed -> initialized
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition probed -> initialized
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition probed -> initialized
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition initialized -> probed
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition probed -> idle
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition probed -> idle
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition probed -> idle
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition idle -> device_init
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition idle -> device_init
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition idle -> device_init
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition device_init -> link_init
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition device_init -> link_init
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition device_init -> link_init
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition link_init -> link_supported
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition link_init -> link_supported
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition link_init -> link_supported
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition link_supported -> link_pre_setup
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition link_supported -> link_pre_setup
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition link_supported -> link_pre_setup
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition link_pre_setup -> clk_sync_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition link_pre_setup -> clk_sync_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition link_pre_setup -> clk_sync_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition clk_sync_stage1 -> clk_sync_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition clk_sync_stage1 -> clk_sync_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition clk_sync_stage1 -> clk_sync_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition clk_sync_stage2 -> clk_sync_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition clk_sync_stage2 -> clk_sync_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition clk_sync_stage2 -> clk_sync_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition clk_sync_stage3 -> clk_sync_stage4
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition clk_sync_stage3 -> clk_sync_stage4
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition clk_sync_stage3 -> clk_sync_stage4
adrv9009 spi0.1: ADIHAL_resetHw
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition clk_sync_stage4 -> link_setup
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition clk_sync_stage4 -> link_setup
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition clk_sync_stage4 -> link_setup
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition link_setup -> opt_setup_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition link_setup -> opt_setup_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition link_setup -> opt_setup_stage1
random: crng init done
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_setup_stage1 -> opt_setup_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_setup_stage1 -> opt_setup_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_setup_stage1 -> opt_setup_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_setup_stage2 -> opt_setup_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_setup_stage2 -> opt_setup_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_setup_stage2 -> opt_setup_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_setup_stage3 -> opt_setup_stage4
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_setup_stage3 -> opt_setup_stage4
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_setup_stage3 -> opt_setup_stage4
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_setup_stage4 -> opt_setup_stage5
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_setup_stage4 -> opt_setup_stage5
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_setup_stage4 -> opt_setup_stage5
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_setup_stage5 -> clocks_enable
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_setup_stage5 -> clocks_enable
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_setup_stage5 -> clocks_enable
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition clocks_enable -> link_enable
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition clocks_enable -> link_enable
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition clocks_enable -> link_enable
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition link_enable -> link_running
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition link_enable -> link_running
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition link_enable -> link_running
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition link_running -> opt_post_setup_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition link_running -> opt_post_setup_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition link_running -> opt_post_setup_stage1
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_post_setup_stage1 -> opt_post_setup_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_post_setup_stage1 -> opt_post_setup_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_post_setup_stage1 -> opt_post_setup_stage2
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_post_setup_stage2 -> opt_post_setup_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_post_setup_stage2 -> opt_post_setup_stage3
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_post_setup_stage2 -> opt_post_setup_stage3
adrv9009 spi0.1: adrv9009_info: adrv9009 Rev 192, Firmware 6.2.1 API version: 3.6.2.1 successfully initialized via jesd204-fsm
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:0] transition opt_post_setup_stage3 -> opt_post_running_stage
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:1] transition opt_post_setup_stage3 -> opt_post_running_stage
jesd204: /amba_pl/spi@44a70000/adrv9009-phy@1,jesd204:1,parent=spi0.1: JESD204[0:2] transition opt_post_setup_stage3 -> opt_post_running_stage
cf_axi_dds 44a04000.axi-adrv9009-tx-hpc: Analog Devices CF_AXI_DDS_DDS MASTER (9.02.b) at 0x44A04000 mapped to 0x5a0fce27, probed DDS AD9371
cf_axi_adc 44a00000.axi-adrv9009-rx-hpc: ADI AIM (10.03.) probed ADC ADRV9009 as MASTER
clk: Disabling unused clocks
Freeing unused kernel image (initmem) memory: 208K
This architecture does not have kernel memory protection.
Run /init as init process
  with arguments:
    /init
  with environment:
    HOME=/
    TERM=linux
Starting syslogd: OK
Starting klogd: OK
Running sysctl: OK
Saving 256 bits of creditable seed for next boot
Starting network: udhcpc: started, v1.36.1
xilinx_axienet 40e00000.ethernet eth0: PHY [axienet-40e00000:07] driver [Marvell 88E1111] (irq=POLL)
xilinx_axienet 40e00000.ethernet eth0: configuring for phy/sgmii link mode
udhcpc: broadcasting discover
udhcpc: broadcasting discover
xilinx_axienet 40e00000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off
udhcpc: broadcasting discover
udhcpc: broadcasting select for 10.48.65.185, server 10.48.65.20
udhcpc: lease of 10.48.65.185 obtained from 10.48.65.20, lease time 21600
deleting routers
adding dns 10.32.51.110
adding dns 10.64.53.110
Starting dropbear sshd: OK
Starting IIO Server Daemon

Welcome to Buildroot
buildroot login:

Note

When prompted for login, use the following credentials:

username: root

password: analog

Useful commands for the serial terminal

The below commands are to be run in the serial terminal connected to the FPGA.

To find out the IP of the FPGA board, run the following command and take the IP specified at “eth0 inet”:

~$

ifconfig

To see the IIO devices detected, run:

# iio_info | grep :device

iio:device0: ad7291
iio:device1: ad9528-1
iio:device2: adrv9009-phy
iio:device3: axi-adrv9009-rx-obs-hpc (buffer capable)
iio:device4: axi-adrv9009-tx-hpc (buffer capable)
iio:device5: axi-adrv9009-rx-hpc (buffer capable)

To use the JESD204 status utility, run:

~$

jesd_status

To power off the system, run the following command, and wait for the final message to be printed, then power off the FPGA board from the switch as well.

~$

poweroff
