Quick Start

The Quick Start Guides provide a simple step by step instruction on how to do an initial system setup for the ADRV9009-W/PCBZ, ADRV9008-1W/PCBZ and ADRV9008-2W/PCBZ boards on various FPGA development boards. They will discuss how to program the bitstream, run a no-OS program or boot a Linux distribution.

• On ZCU102
• On ZC706
• On KCU105
• On Arria 10 GX
• On Arria 10 SoC

Supported Carriers

The ADRV9009-W/PCBZ, ADRV9008-1W/PCBZ and ADRV9008-2W/PCBZ are, by definition, “FPGA mezzanine cards” (FMC), which means it needs a carrier to plug into. The carriers we support are:

Board	ADRV9009-W/PCBZ	ADRV9008-1W/PCBZ	ADRV9008-2W/PCBZ
ZCU102	FMC HPC1	FMC HPC1	FMC HPC1
ZC706	FMC HPC	FMC HPC	FMC HPC
KCU105	FMC HPC	—	—
Arria 10 SoC	FMCA	FMCA	FMCA
Arria 10 GX	FMCA	FMCA	FMCA

Supported Environments

The supported environments are:

FPGA board	HDL	Linux software	no-OS software
ZCU102	Yes	Yes	Yes
ZC706	Yes	Yes	Yes
KCU105	Yes	Yes	—
Arria 10 SoC	Yes	Yes	—
Arria 10 GX	Yes	Yes	—
Intel Stratix 10 SX SoC Development Kit	Yes	—	—

Hardware Setup

In most carriers, the ADRV9009-W/PCBZ, ADRV9008-1W/PCBZ and ADRV9008-2W/PCBZ boards connect to the HPC connector (unless otherwise noted). The carrier setup requires power, UART (115200), ethernet (Linux), HDMI (if available) and/or JTAG (no-OS) connections. A few typical setups are shown below.

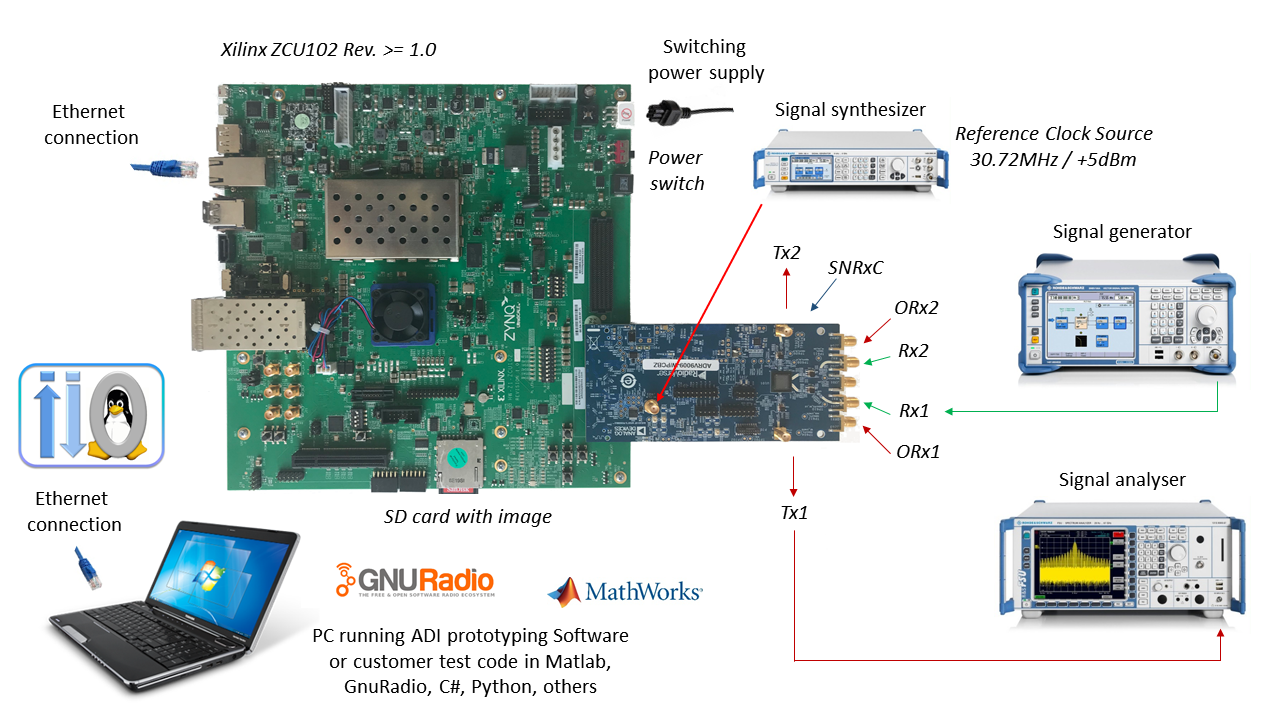

ZCU102 + ADRV9009/PCBZ

ZC706 + ADRV9009/PCBZ

KCU105 + ADRV9009/PCBZ

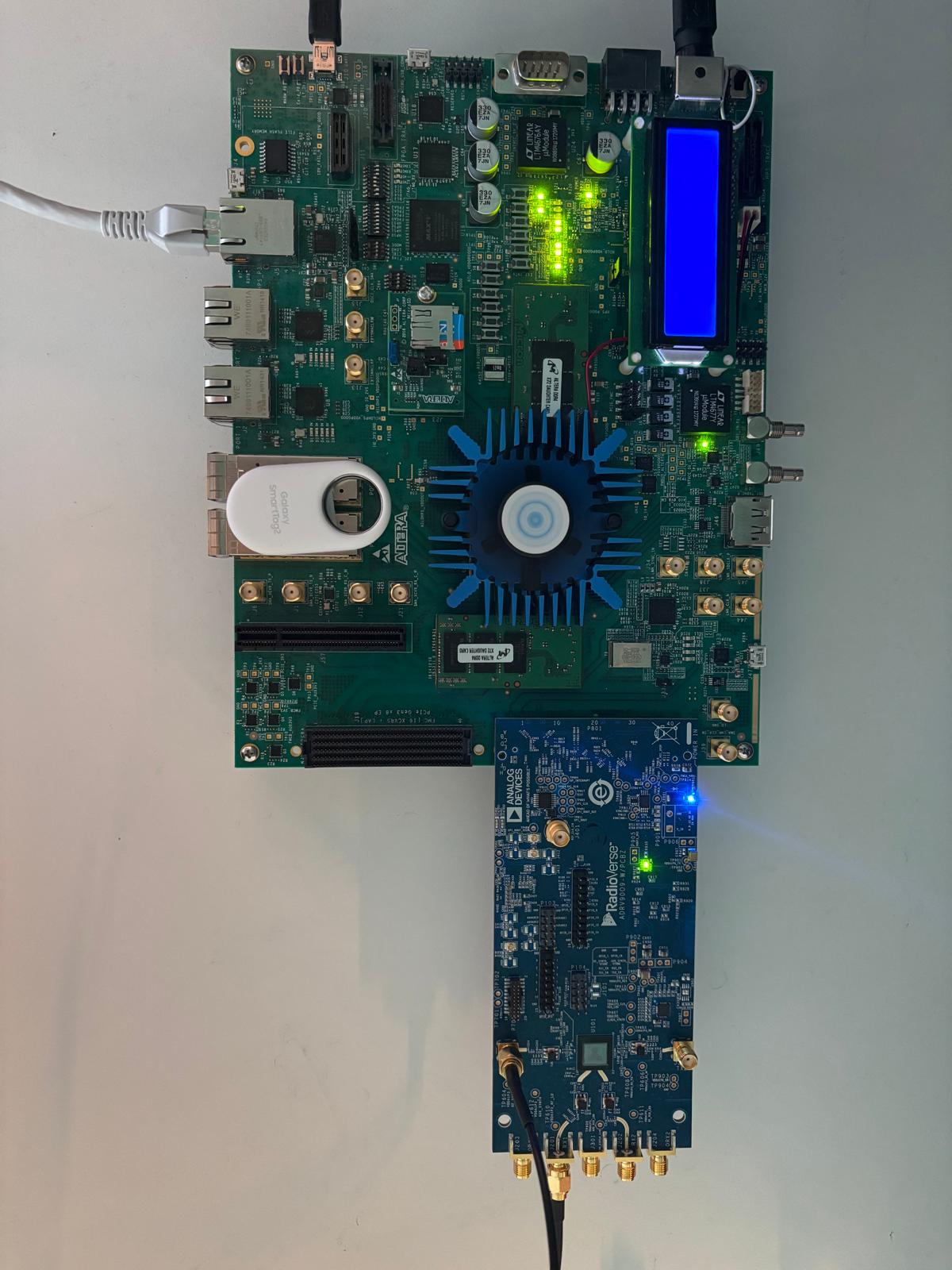

Arria 10 SoC + ADRV9009/PCBZ

Arria 10 GX + ADRV9009/PCBZ
