This guide provides quick instructions on how to set up a PulSAR LVDS ADC evaluation board (EVAL-AD7625, EVAL-AD7626, EVAL-AD7960, or EVAL-AD7961) on:

ZedBoard FMC LPC

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/images/ZedBoard.png — Figure 1 ZedBoard development platform

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.

Using Linux as software

Necessary files

Note

The SD card includes several folders in the root directory of the BOOT partition. In order to configure the SD card to work with a specific FPGA board and ADI hardware, several files must be copied onto the root directory. Using the host PC, drag and drop the required files onto the BOOT partition, and use the EJECT function when removing the SD card from the reader.

The following files are needed for the system to boot:

HDL boot image: BOOT.BIN
Linux Kernel image: uImage
Linux device tree: devicetree.dtb

They can either be taken from the SD card – already generated by us, or you can build them manually:

Instructions on how to choose the boot files from the SD card can be found in the Platform-Specific Manual Steps section from here: Hardware Configuration.
Instructions on how to manually build the boot files from source can be found here:
- Build Zynq Linux kernel and devicetree (the only difference compared to the ZynqMP is that instead of running make adi_zynqmp_defconfig, you must run make zynq_xcomm_adv7511_defconfig)
- PULSAR-LVDS-ADC HDL project build documentation. More HDL build details at Build an HDL project.

Important

Some projects provide multiple devicetree files in the SD card’s boot folders. Make sure you select the devicetree that matches your specific use case.

The HDL project supports a build parameter RESOLUTION_16_18N that must match your evaluation board:

RESOLUTION_16_18N=0: 18-bit mode (for AD7960)
RESOLUTION_16_18N=1: 16-bit mode (for AD7625, AD7626, AD7961)

Required Software

SD Card 16GB imaged with Kuiper (check out that guide on how to do it, then come back to this section)
A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

Required Hardware

AMD Xilinx ZedBoard FPGA board and its power supply (12V)
One of the PulSAR LVDS ADC evaluation boards: EVAL-AD7625, EVAL-AD7626, EVAL-AD7960, or EVAL-AD7961
SD card with at least 16GB of memory
Micro-USB cable (UART)
LAN cable (Ethernet)
Signal generator

More details as to why you need these can be found at Prerequisites.

Testing

Creating the setup

In the following example, we will prepare the evaluation setup by connecting the evaluation board to the ZedBoard and applying a test input signal.

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/pulsar-lvds-adc/images/pulsar_lvds_adc_linux.jpg — Figure 2 PulSAR LVDS ADC/ZED Linux setup

Follow the steps in this order, to avoid damaging the components:

Get the ZedBoard
Configure ZedBoard for SD BOOT by placing the jumpers: JP7 on pins 1-2, JP8 on pins 2-3, JP9 on pins 2-3, JP10 on pins 1-2 and JP11 on pins 1-2.

Figure 3 ZedBoard SD boot jumper configuration (JP7-JP11)

Set the MIO0 jumper (JP6) accordingly. VADJ must be set to 2.5 V using the J18 jumper, as specified in the HDL project at PULSAR-LVDS-ADC HDL project.

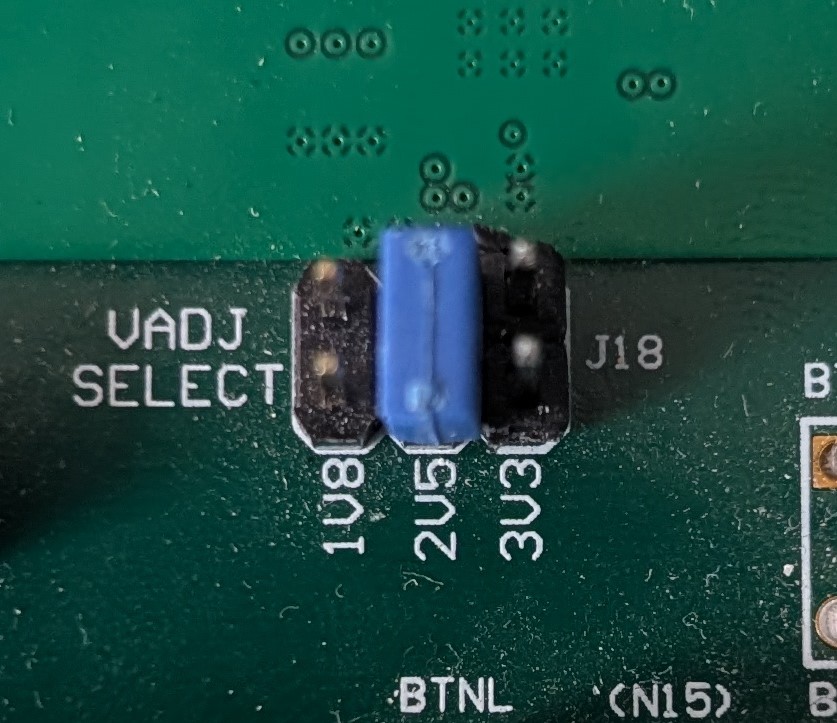

Figure 4 ZedBoard VADJ select jumper (J18) set to 2V5
Insert the SD card into the SD Card Interface Connector (J12)
Connect your signal generator to the analog inputs of the evaluation board using the appropriate SMA connectors or jumper wires.
Plug the evaluation board into the FMC LPC Connector (J1)
Plug the Power Supply into 12 V Power input connector (J20) (DO NOT turn the device on).
Plug-in an Ethernet cable from your router/switch to the Ethernet port on the FPGA board
Connect the UART port of ZedBoard (J14) to a PC via MicroUSB

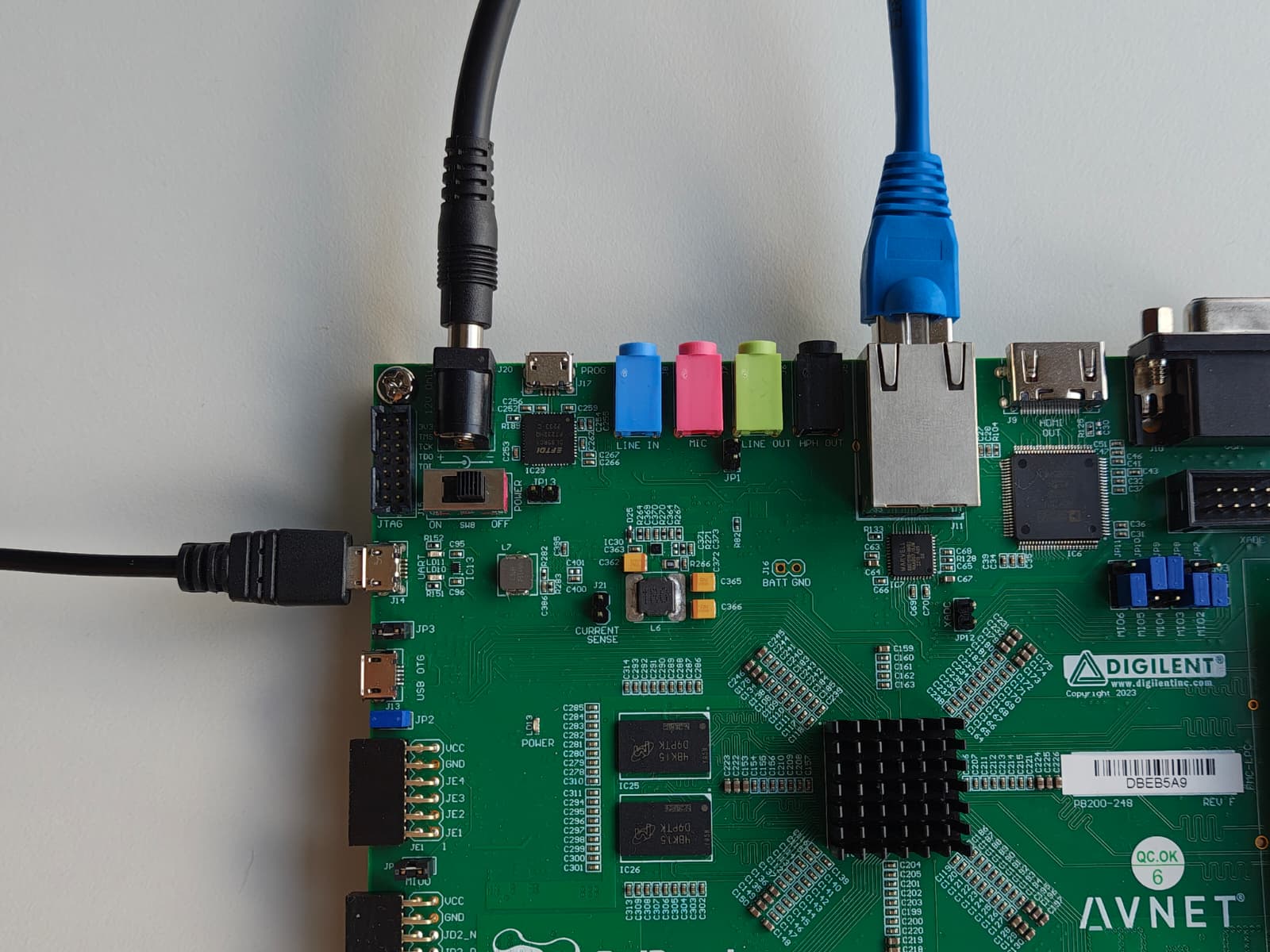

Figure 5 ZedBoard power, Ethernet and UART connections
Turn on the power switch on the FPGA board
Observe Kernel and serial console output messages on your terminal

Using no-OS as software

The no-OS (bare metal) application for the AD796X family is available in the Analog Devices no-OS repository.

Required Software

AMD Xilinx Vivado and Vitis (downloading Vitis from here will include Vivado as well)

Required Hardware

AMD Xilinx ZedBoard FPGA board and its power supply (12V)
One of the PulSAR LVDS ADC evaluation boards: EVAL-AD7625, EVAL-AD7626, EVAL-AD7960, or EVAL-AD7961
Micro-USB cable (UART)
Micro-USB cable (JTAG)
Signal generator

Testing

Creating the setup

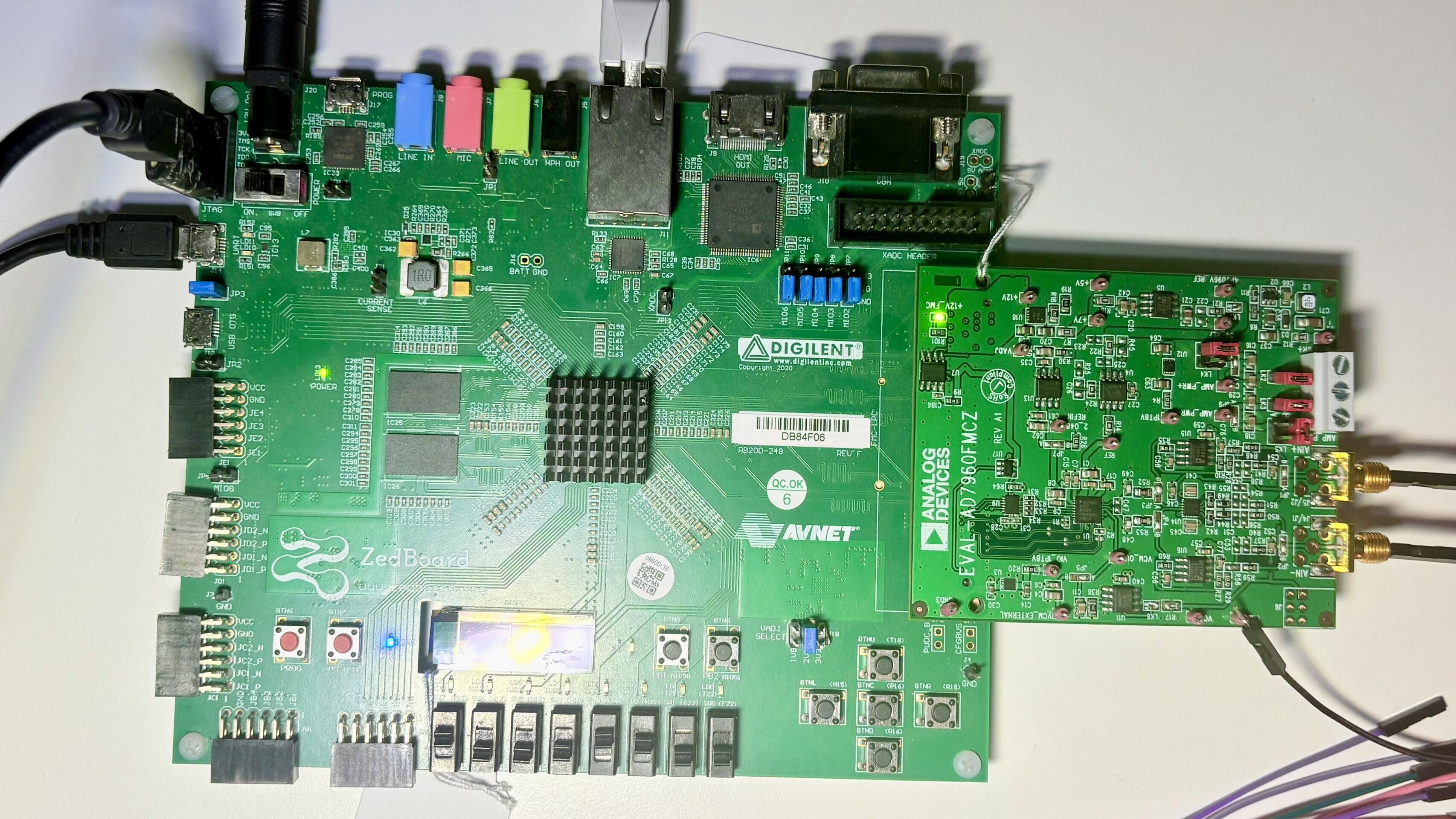

In the following example, we will prepare the evaluation setup by connecting the evaluation board to the ZedBoard, configuring the board for JTAG boot, and applying a test input signal.

Follow the steps in this order, to avoid damaging the components:

Get the ZedBoard
Configure ZedBoard for JTAG boot:

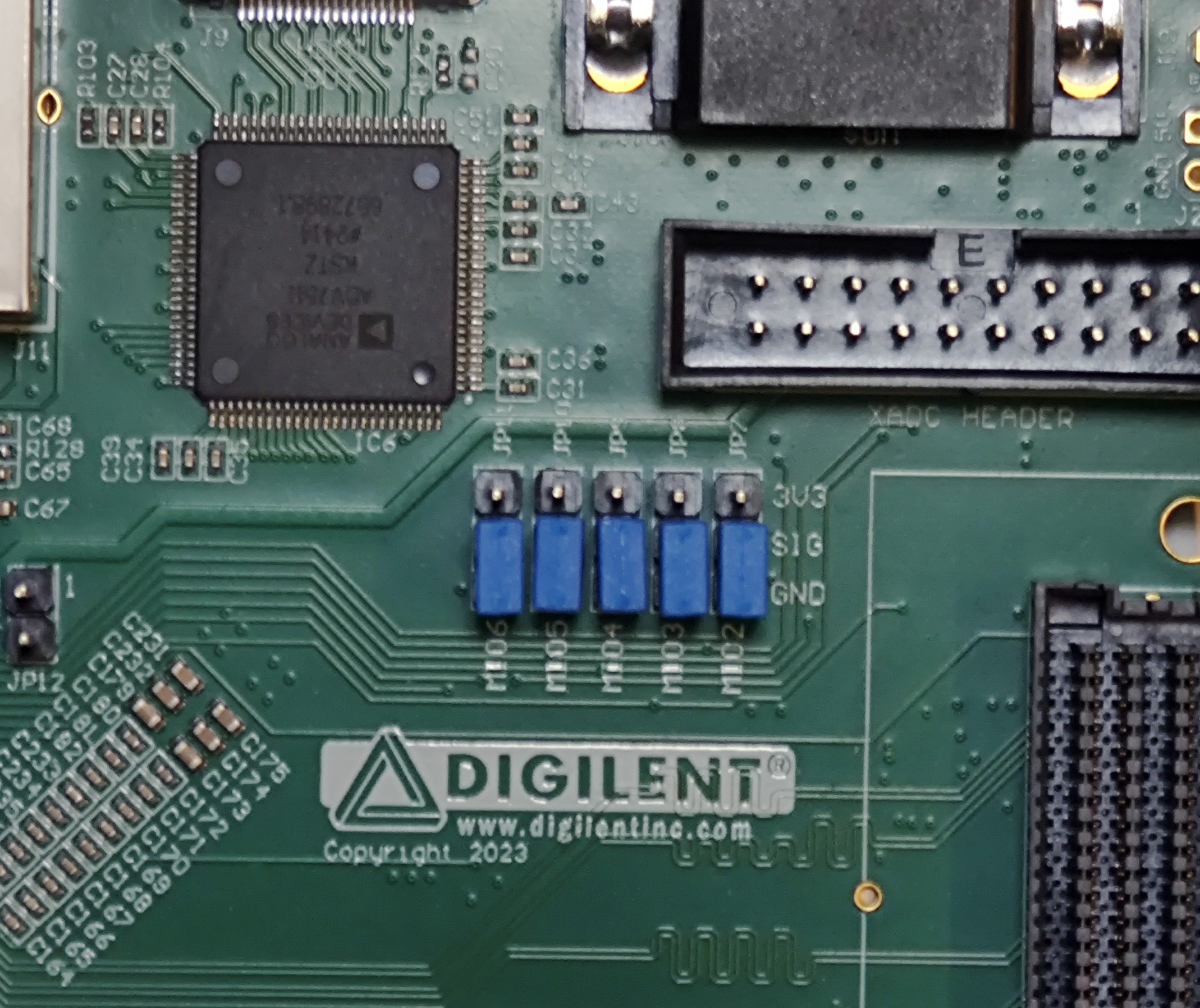

Figure 7 ZedBoard JTAG boot jumper configuration

The BOOT switches (JP7-JP11) and the MIO0 jumper (JP6) must be set for JTAG boot mode. VADJ must be set to 2.5 V, as specified in the HDL project at PULSAR-LVDS-ADC HDL project.
Connect your signal generator to the analog inputs of the evaluation board using the appropriate SMA connectors or jumper wires.
Plug the evaluation board into the FMC LPC Connector (J1)
Plug the Power Supply into 12 V Power input connector (J20) (DO NOT turn the device on).
Connect the UART port of ZedBoard (J14) to a PC via MicroUSB
Connect the PROG port of ZedBoard (J17) to a PC via MicroUSB
Turn on the power switch on the FPGA board
Observe the serial console output messages on your terminal

Console output

The following is what is printed in the serial console, after you have connected to the proper ttyUSB or COM port:

Complete boot log
