AD717x/AD411x

Precision Sigma-Delta ADC family for high-resolution, low-noise measurement.

Overview

The AD717x/AD411x family comprises integrated Sigma-Delta ADCs designed for precision measurement applications. These devices support both single-channel configurations for high-precision, low-noise measurements and multiplexed setups for higher-speed applications such as factory automation PLC input modules.

The family offers output data rates from 5 SPS to 250 kSPS with channel scan rates up to 50 kSPS per channel, and up to 24 noise-free bits of resolution at lower data rates. True rail-to-rail analog and reference input buffers, an on-chip 2.5 V reference with ±2 ppm/°C drift, and an INL of ±1 ppm of FSR make these devices well suited for life science measurements and any application requiring high precision near DC signals.

Supported Devices:

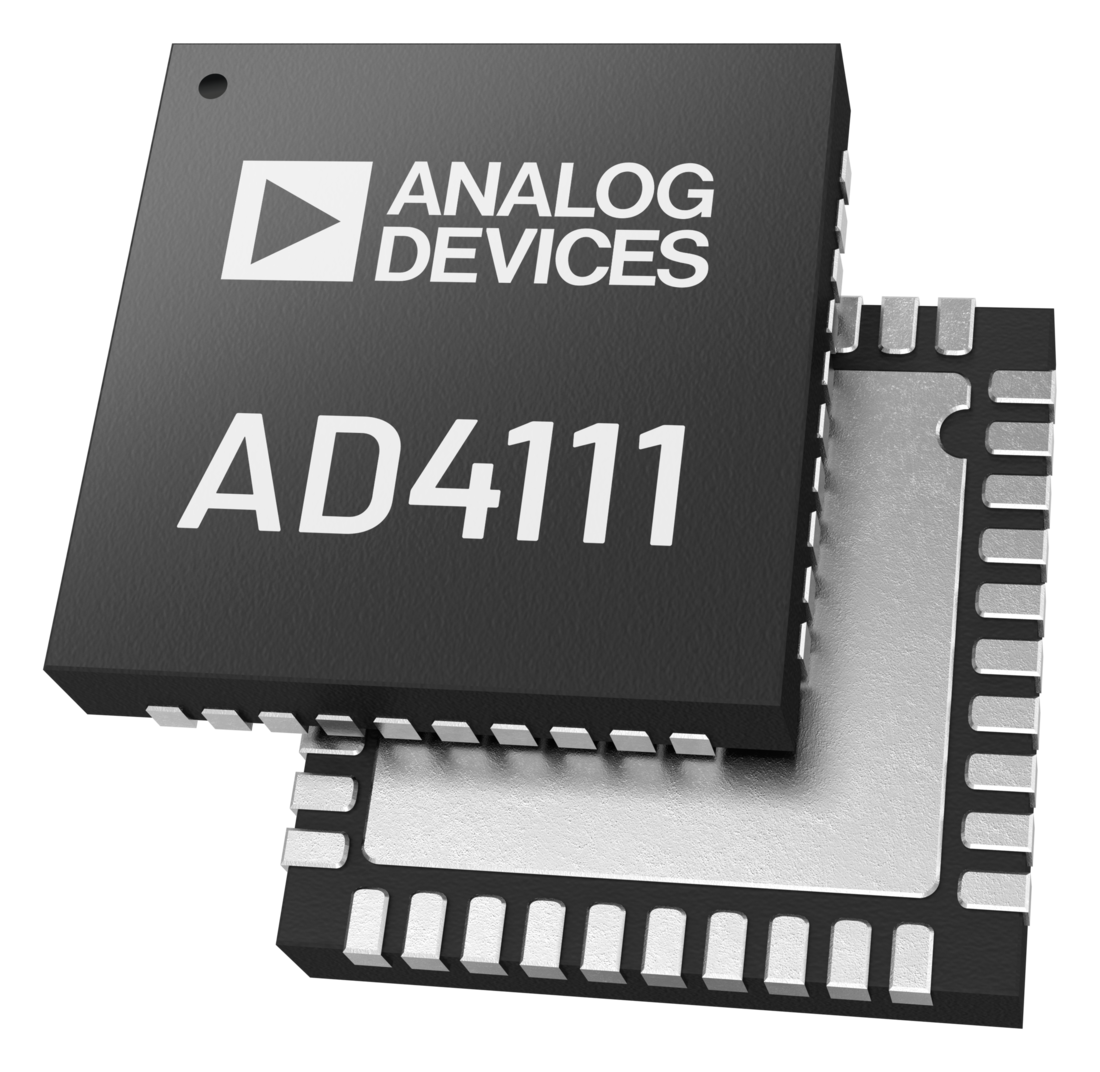

• AD4111

• AD4112

• AD4113

• AD4114

• AD4115

• AD4116

• AD7172-2

• AD7172-4

• AD7173-8

• AD7175-2

• AD7175-8

• AD7176-2

• AD7177-2

Supported Evaluation Boards:

• EVAL-AD4111SDZ

• EVAL-AD4112SDZ

• EVAL-AD4113SDZ

• EVAL-AD4114SDZ

• EVAL-AD4115SDZ

• EVAL-AD7172-4SDZ

• EVAL-AD7172-2SDZ

• EVAL-AD7173-8SDZ

• EVAL-AD7173-8ARDZ

• EVAL-AD7175-2SDZ

• EVAL-AD7175-8

• EVAL-AD7175-8ARDZ

• EVAL-AD7177-2SDZ

Features:

• Output data rates from 5 SPS to 250 kSPS

• Up to 24 noise-free bits of resolution

• True rail-to-rail analog and reference input buffers

• On-chip 2.5 V reference (±2 ppm/°C)

• INL of ±1 ppm of FSR

• 85 dB rejection of 50/60 Hz interference

• SPI-compatible serial interface

Applications:

• Life science / precision near-DC measurements

• Factory automation PLC input modules

• Data acquisition systems

• Process control

Recommendations

People who follow the flow that is outlined, have a much better experience with things. However, like many things, documentation is never as complete as it should be. If you have any questions, feel free to ask on our EngineerZone forums, but before that, please make sure you read our documentation thoroughly.

Table of Contents

1. Getting Started with the Evaluation Board

   1. EVAL-AD717x User Guide - AD717x hardware user guide

   2. EVAL-AD411x User Guide - AD411x hardware user guide

   3. Evaluating the AD7175-2 - Evaluating the AD7175-2

   4. Prerequisites - required hardware and software

2. Reference Designs

   1. AD411x/AD717x HDL Reference Design

1. Evaluation Software

   1. ACE Software Guide - ACE software installation and operation

2. Software Applications

   1. AD717x Console Application

   2. AD717x IIO Application

   3. AD717x No-OS Driver

   4. AD7173 Linux IIO Driver

3. Product Resources

   1. AD717x Family Page

   2. AD4111 Product Page
