EVAL-ADTF3175-NXZ

3D Time of Flight Camera Evaluation Kit featuring the ADTF3175 Module.

Download

Download the latest software package

Overview

Analog Devices 3D time of flight (ToF) camera products capture depth information, enabling advanced machine vision applications and allowing people and devices to sense, capture and interact with their spatial environments.

The EVAL-ADTF3175-NXZ time of flight (ToF) evaluation kit showcases the ADTF3175 module. The kit supports USB connectivity to a PC for real-time visualization, capture and post processing of depth data. The kit includes host PC software (Windows/Linux) and an open source multi-platform SDK for custom application development.

For more information see: Time of Flight Camera - System Overview

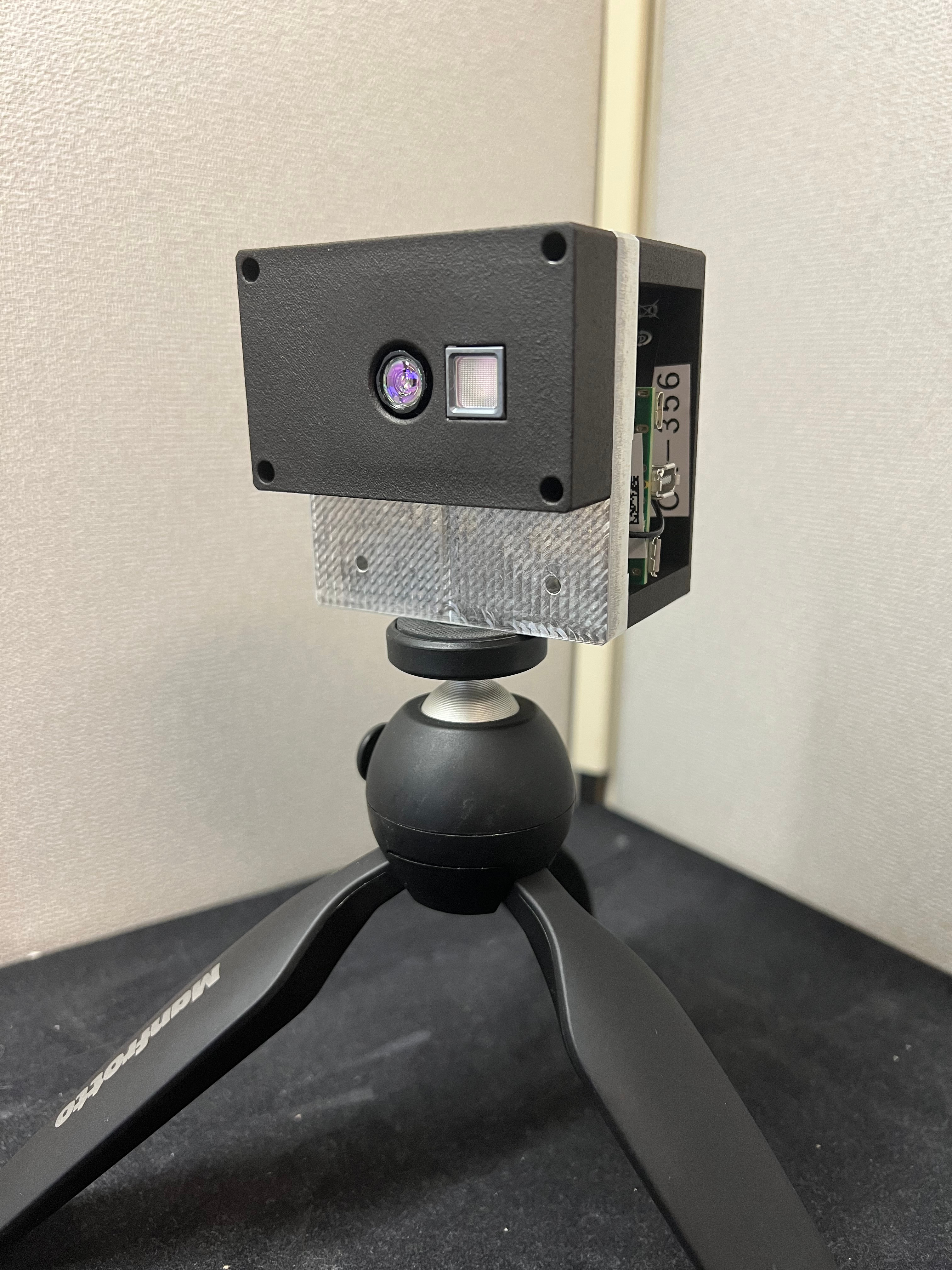

EVAL-ADTF3175-NXZ Evaluation Kit

Figure 1 EVAL-ADTF3175-NXZ Evaluation Kit

Key Features

Parameter

Specification

Resolution

1024x1024 TOF sensor

Illumination

FOI 81° x 81° - 940nm VCSEL

Field of View

FOV 75° x 75°

Operating Range

0.4 to 4m @ 15% reflectance (native)

Depth Noise

<15mm

Accuracy

+/- 3mm depth error

Modes of Operation

Mode Index

Mode

Resolution

Range

FPS*

10

Megapixel (mp)

1024x1024

4m

~10

7

Quarter-Megapixel (qmp)

512x512

4m

~15

Note

FPS is currently limited by CPU processing speed

Kit Contents

  • ADTF3175 Evaluation Module

    • ADSD3175 Module

    • i.MX8 M Plus SOM (SolidRun)

    • Camera Interface Board

  • 16GB flashed microSD card (Inserted in module SD card slot)

  • USB-C to USB-C cable (Supports PD 2.0, and USB 3.1)

  • Tripod

System Information

USB and Power

Minimum Requirements:

  • USB 3.0 (5Gbps)

  • USB Type-C cable

  • 2.0A

Recommended Requirements:

  • USB 3.1 Gen2

  • USB Type-C cable

  • 3.0A

Warning

Do not use USB Type-C to USB Type-A adapters.

Dimensions: 66mm x 58.6mm x 67.9mm

Laser Safety: Class 1

Index of Pages

  1. Startup Guide

  2. Software Installation

  3. ADIToFGUI Tool

  4. Data Collect CLI Tool

  5. Depth Compute

  6. Auxiliary Tools

  7. SDK Development

  8. Hardware Access

  9. NVM Contents

Terms

FOI

Field of Illumination

FOV

Field of View

FPS

Frames per Second

SOM

System On Module

VCSEL

Vertical-Cavity Surface-Emitting Laser

NVM

Non-Volatile Memory

CCB

Camera Calibration Block

Troubleshooting

Common Issues

Green LED illuminates but camera remains undetected:

  • Reconnect the USB cable 3-5 times

  • Try different USB ports

GUI crashes after successfully requesting frames:

  • Restart the GUI without reconnecting the camera

  • Ensure mode switching is done after the module is stopped

Power Delivery negotiation failures:

  • Some Dell Precision laptops have known PD issues

  • Try using a powered USB hub

Slow frame rates (<3-5fps):

  • Adjust laptop power settings

  • Connect external power

  • Use USB 3.0 cables

  • Monitor MTU settings (10,000 bytes preferred)

  • Use iPerf3 for bandwidth testing (target: >1Gbps)

Warning

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.
