AD-M2KCOMPEDU-EBZ

Acknowledgements

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/ad-m2kcompedu-ebz/images/TUCN-logo-1.png

Analog Devices acknowledges the valuable contribution of the Faculty of Electronics, Telecommunications and Information Technology (ETTI), Technical University of Cluj-Napoca (UTCN), to the development and validation of the hardware platform used in this reference design. This collaboration highlights the importance of industry-academia partnerships in developing innovative and effective engineering education solutions.

Overview

The AD-M2KCOMPEDU-EBZ is an ADALM2000 companion board for hands-on electronics education. It combines a standalone arbitrary waveform generator, onboard supplies, adjustable references, sensing, user controls, display support, and CAN communication into one compact USB-powered platform.

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/ad-m2kcompedu-ebz/images/AD-M2KCOMPEDU-EBZ_top-angle-evaluation-board.png

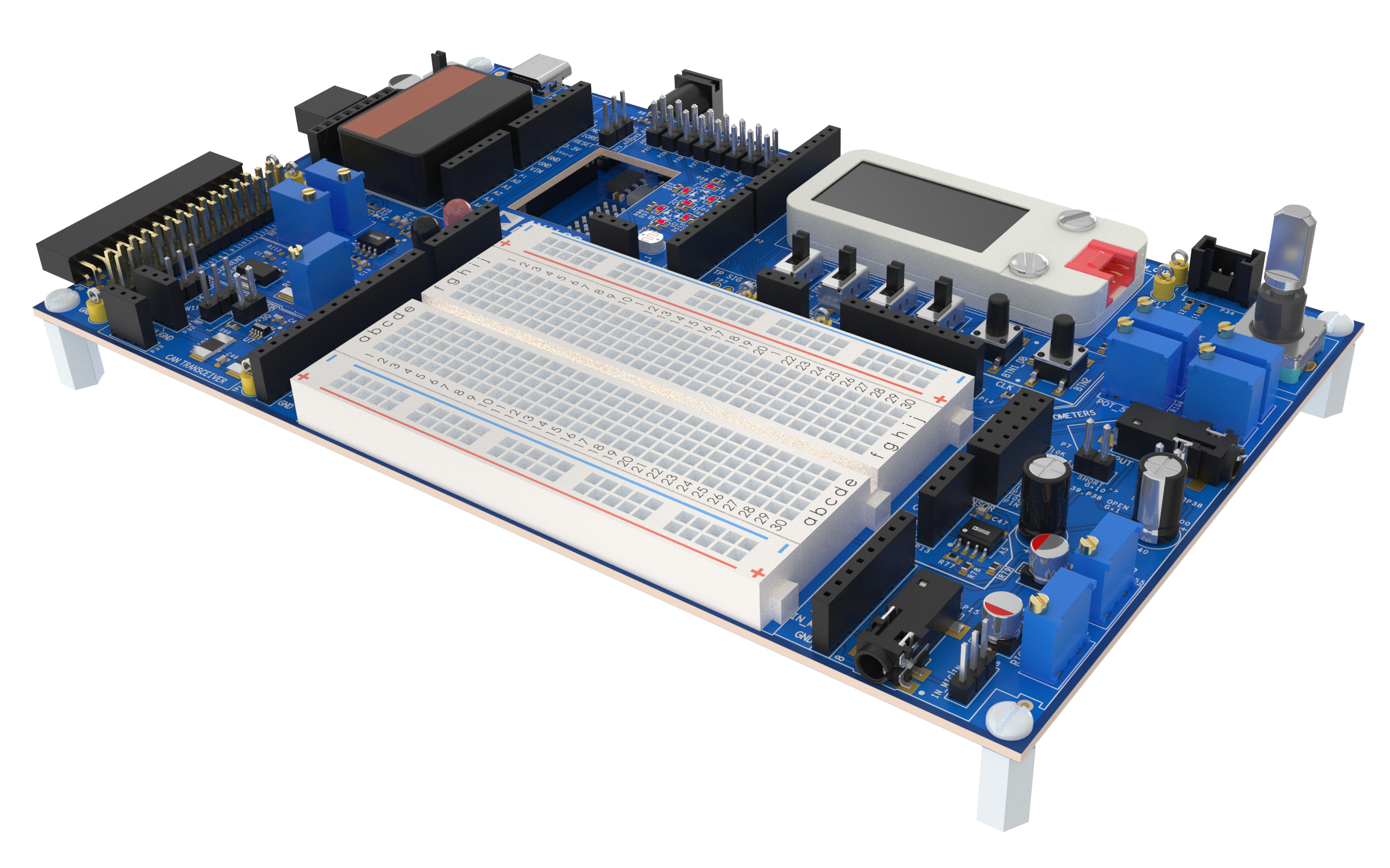

Figure 1 AD-M2KCOMPEDU-EBZ Board

Features

  • USB-C input power with 900mA onboard current limit

  • ADALM2000 and Arduino UNO R4 plug-in option

  • ±12V onboard power supply generators with foldback current limit

  • 2x selectable +3.3V supply sources: Arduino +3.3V rail or onboard local LDO

  • 2x DC reference voltage generators VREF adjustable in a range of ±12V, buffered, and 22mA output current limited

  • 1x DC reference current generators IREF adjustable in a range of 360µA up to 60mA sourced from a 12V supply rail

  • Audio amplifier path for signal-conditioning and audio experiments

  • Onboard temperature and optical sensing, user potentiometers, switches, buttons, LEDs, and display support

  • CAN transceiver support for communication and control exercises

  • Software-controlled signal generator and calibration flow

What’s Inside the Box

  • AD-M2KCOMPEDU-EBZ Evaluation Board

  • Arduino UNO R4

  • M5STACK Display

  • Breadboard

  • Accessories:

    • 1x USB-A to USB-C 3A cable (1m)

    • 2x Screw M4x14mm

    • 2x Nut M4x7mm

    • 15 Jumpers

Applications

  • Classroom electronics labs

  • ADALM2000-based teaching and demonstrations

  • Mixed-signal signal-chain demonstrations

  • Student projects and prototyping

  • Embedded control and communication exercises

  • University, technical faculty, and maker/hobbyist learning environments

System Architecture

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/ad-m2kcompedu-ebz/images/Block-Diagram-Converted.png

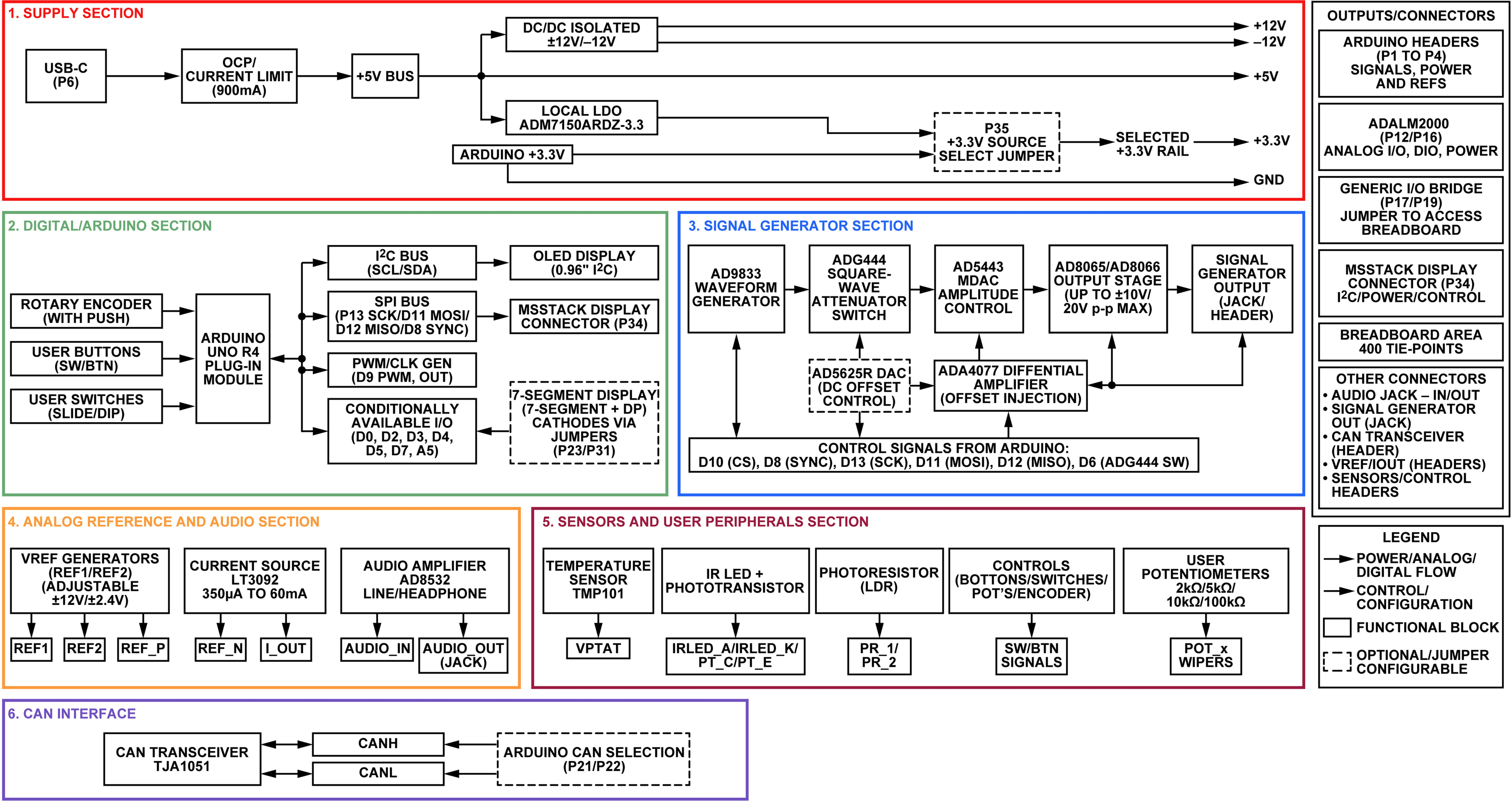

Figure 2 AD-M2KCOMPEDU-EBZ Block Diagram

https://media.githubusercontent.com/media/analogdevicesinc/system-level/main/docs/solutions/reference-designs/ad-m2kcompedu-ebz/images/Electronic-Board-Silkscreen-Floorplan.png

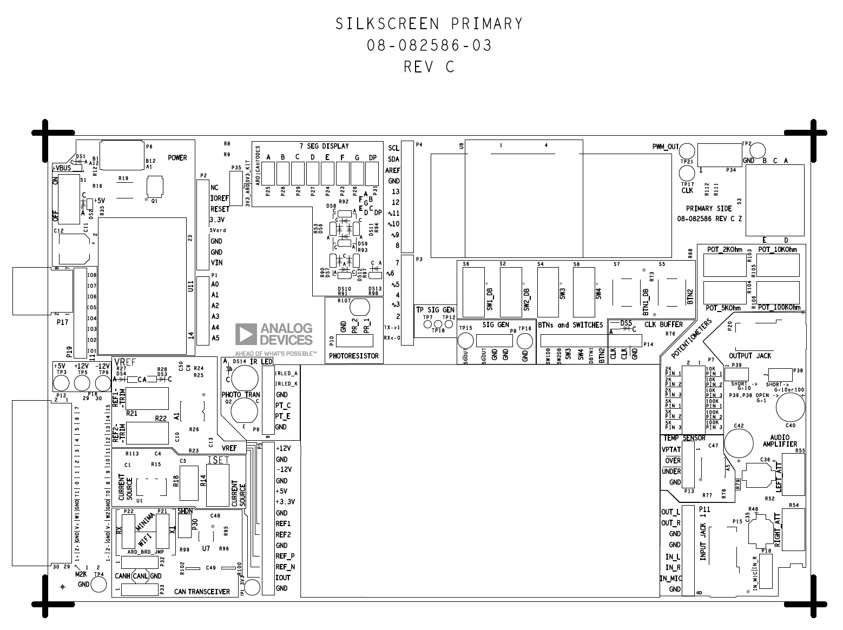

Figure 3 AD-M2KCOMPEDU-EBZ Electronic Board Silkscreen and Floorplan

Resources

Support

For questions and more information, please contact us on the EngineerZone Support Community.

Software

Download

Design and Integration Files

Download

AD-M2KCOMPEDU-EBZ Design Support Package

  • Schematics

  • Bill of Materials

  • Gerber Files

  • Assembly Files

  • Allegro Project File

User Guides

The following user guides are available:
