Quick start
Warning
The AD-FMCMOTCON1-EBZ is a legacy product and is no longer actively supported. This documentation is provided for reference only.
The Quick Start Guides provide step-by-step instructions on how to do an initial system setup for the AD-FMCMOTCON1-EBZ on an FPGA development board.

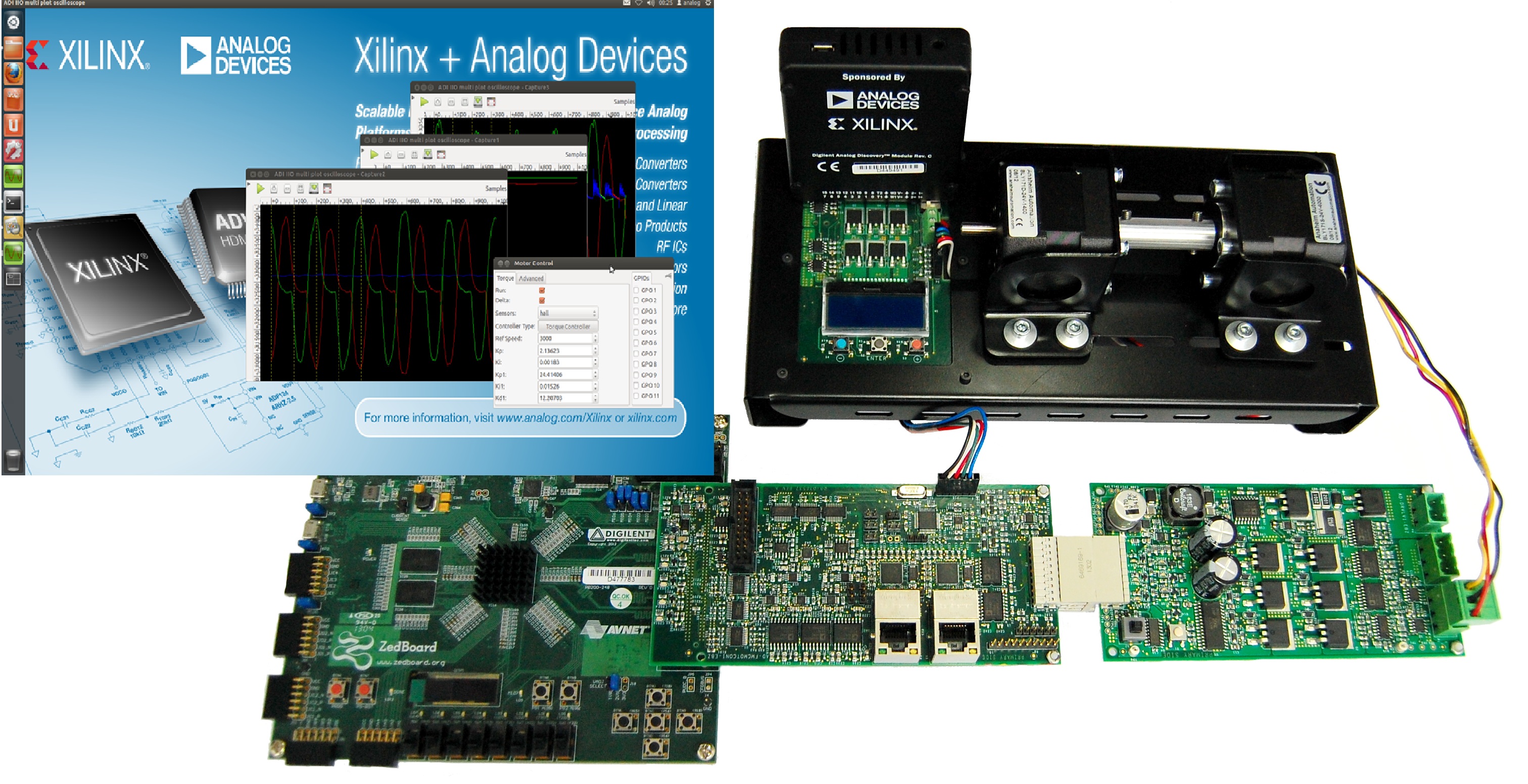

Figure 1 AD-FMCMOTCON1-EBZ on ZedBoard running Linux with IIO Oscilloscope
Supported carriers
The AD-FMCMOTCON1-EBZ board connects to the FMC LPC connector on the carrier.
Board |
AD-FMCMOTCON1-EBZ |
|---|---|
FMC LPC |
Supported environments
Board |
HDL |
Linux |
No-OS |
|---|---|---|---|
Yes (ISE + Vivado) |
Yes |
No |
Hardware setup
