AD-FMCMOTCON2-EBZ Controller Board

Features

• Compatible with all AMD Xilinx FPGA platforms with FMC LPC or HPC connectors

• Digital board for interfacing with the low and high voltage drive boards

• FMC signals voltage adaptation interface for seamless operation on all FMC voltage levels

• Fully isolated digital control and feedback signals

  • 2 isolated GPOs

  • 2 isolated GPIs

  • 18 isolated drive signals - can drive 2 bridges with 4 legs simultaneously

  • 6 high speed ADC digital interfaces (data + clock)

• Isolated AMD Xilinx XADC interface

• 2x Gbit Ethernet PHYs for high speed industrial communication - RGMII mode

• Single ended Hall + Differential Hall + Encoder + Resolver interfaces

  • 2x single ended HALL, 2x differential HALL, 2x encoder interfaces - allows 2 motors to be driven simultaneously

• Digital sensors interfaces

  • EnDat

  • BISS Interface

Block Diagram

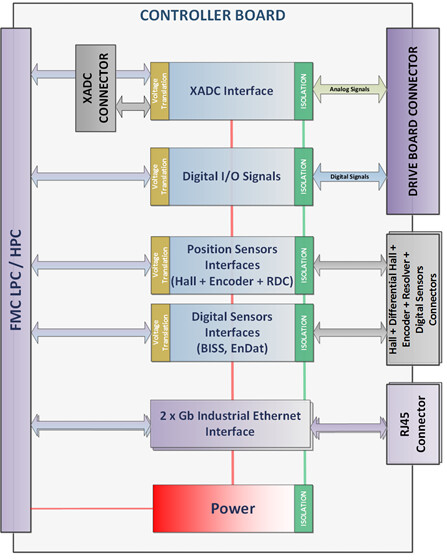

Figure 1 Simplified block diagram

Picture and Main Components

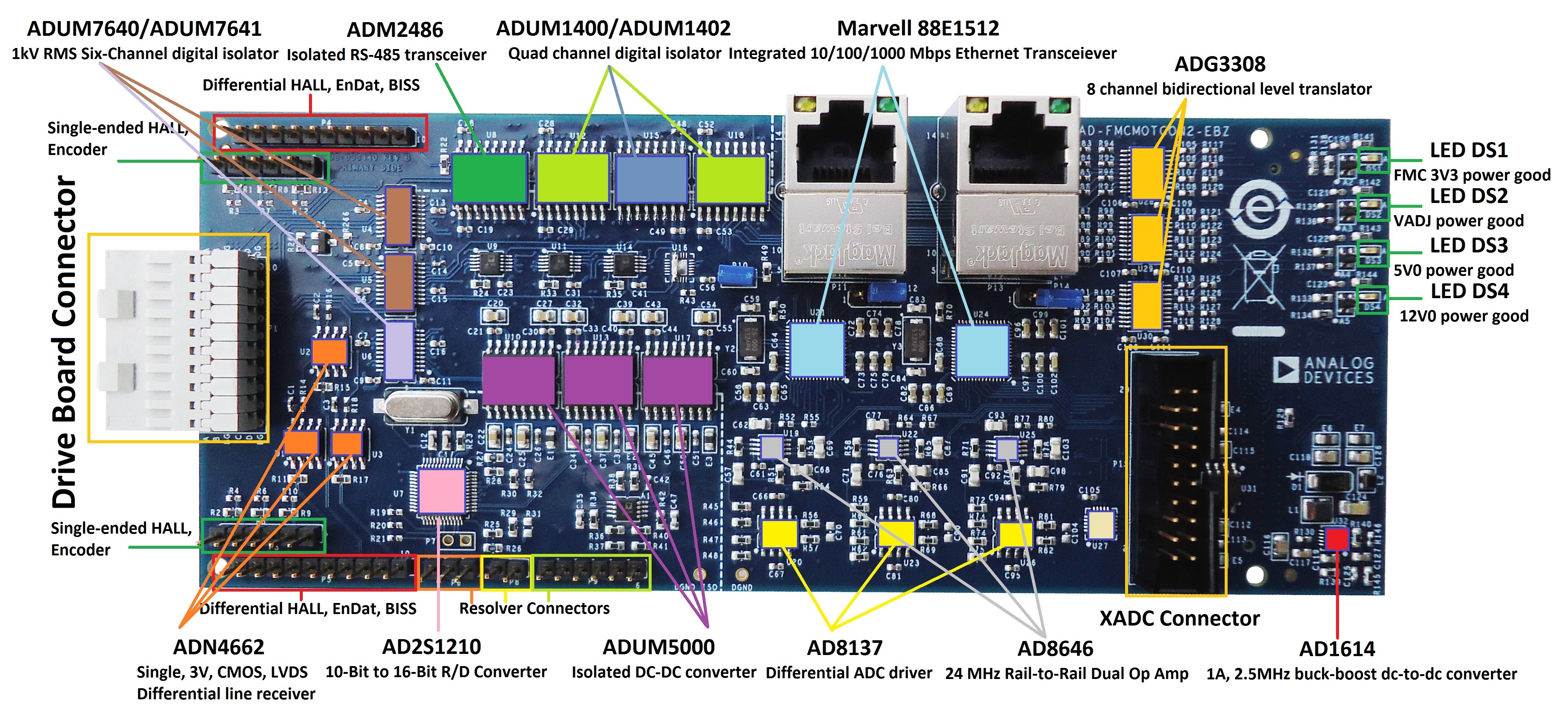

Figure 2 AD-FMCMOTCON2-EBZ top side

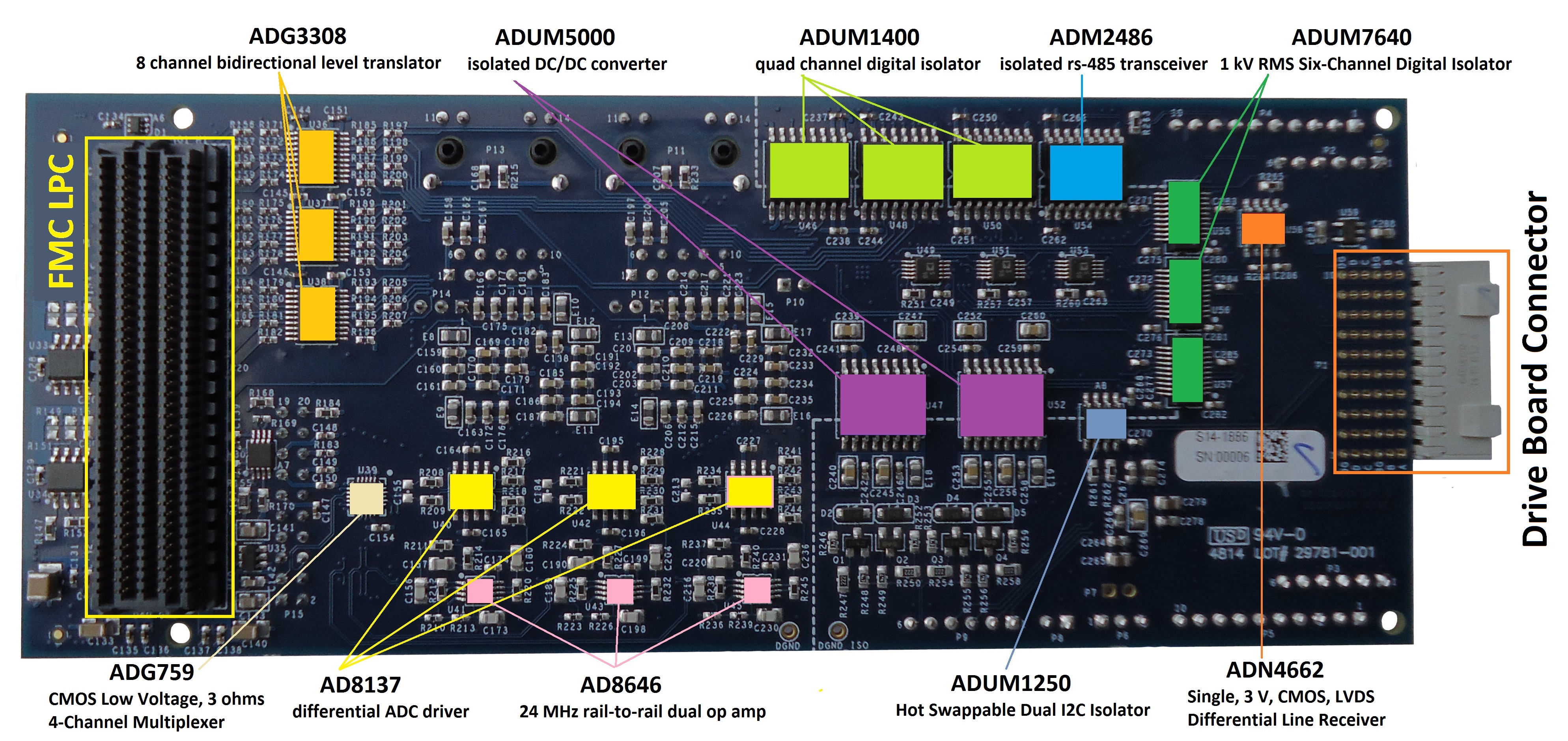

Figure 3 AD-FMCMOTCON2-EBZ bottom side

Key Parts

Part	Description
Measurement
AD8137	Differential ADC driver
AD8646	24 MHz rail-to-rail dual op amp
AD2S1210	Variable resolution, 10-bit to 16-bit R/D converter with reference oscillator
Power
ADuM5000	isoPower® integrated isolated dc-to-dc converter
ADP1614	1000 mA, 2.5 MHz buck-boost dc-to-dc converter
Isolation
ADuM7640/ADuM7641	1 kV RMS six-channel digital isolator
ADuM1400/ADuM1402	Quad channel digital isolator
ADM2486	Isolated RS485 transceiver
ADuM1250	Hot swappable dual I2C isolator
Voltage Translation
ADG3308	8-channel bidirectional level translator
Multiplexers
ADG759	CMOS low voltage, 3 ohms 4-channel multiplexer
Communication
ADN4662	Single, 3V, CMOS, LVDS differential line receiver
88E1512	Marvell Integrated 10/100/1000 Mbps Energy Efficient Ethernet Transceiver

ADC FPGA Interface

The AD7403 Isolated Sigma-Delta Modulators present on the controller board have a 2-wire signal interface with the FPGA:

• 10 / 20 MHz clock input

• 1-bit digital data stream output

The reconstruction of the data provided by the AD7403 modulator can be done using a SINC3 filter. A filter model and HDL implementation are provided in the AD7403 datasheet. Typical filter output characteristics:

• Output code: 16 bit

• Sampling rate: 78 kHz

The output code resolution and sampling rate can be controlled by changing the filter model and decimation. Polyphase interpolation filters are utilized to increase the sampling rate of the system.
