User guide

Warning

The AD-FMCMOTCON1-EBZ is a legacy product and is no longer actively supported. This documentation is provided for reference only.

Hardware guide

The motor control system consists of three boards that work together.

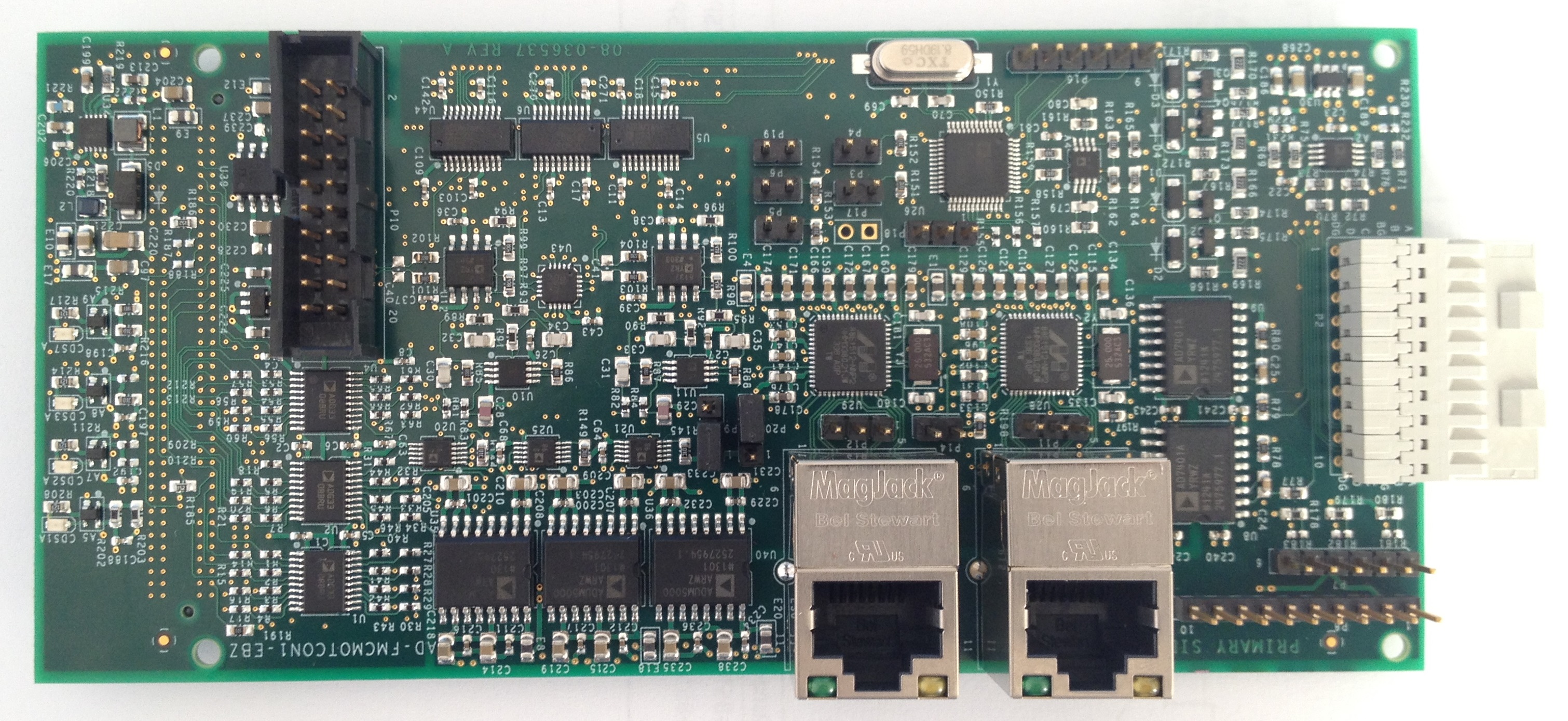

Figure 1 AD-FMCMOTCON1-EBZ

AD-FMCMOTCON1-EBZ - Controller board, compatible with all Xilinx FPGA platforms with FMC LPC or HPC connectors.

• 2x Gbit Ethernet PHYs for high-speed industrial communication

• Hall, Differential Hall, Encoder, and Resolver interfaces

• Current and voltage measurement using isolated ADCs (AD7401A)

• Xilinx XADC interface

• Fully isolated control and feedback signals

Note

The AD-FMCMOTCON1-EBZ supports Brushed DC, BLDC, PMSM, and Stepper motors. For an overview of motor drive classifications (application-specific, standard, servo, high-performance) and the PWM, H-bridge, star/delta, and sensorless control techniques used in this system, see the Motor Control Theory page.

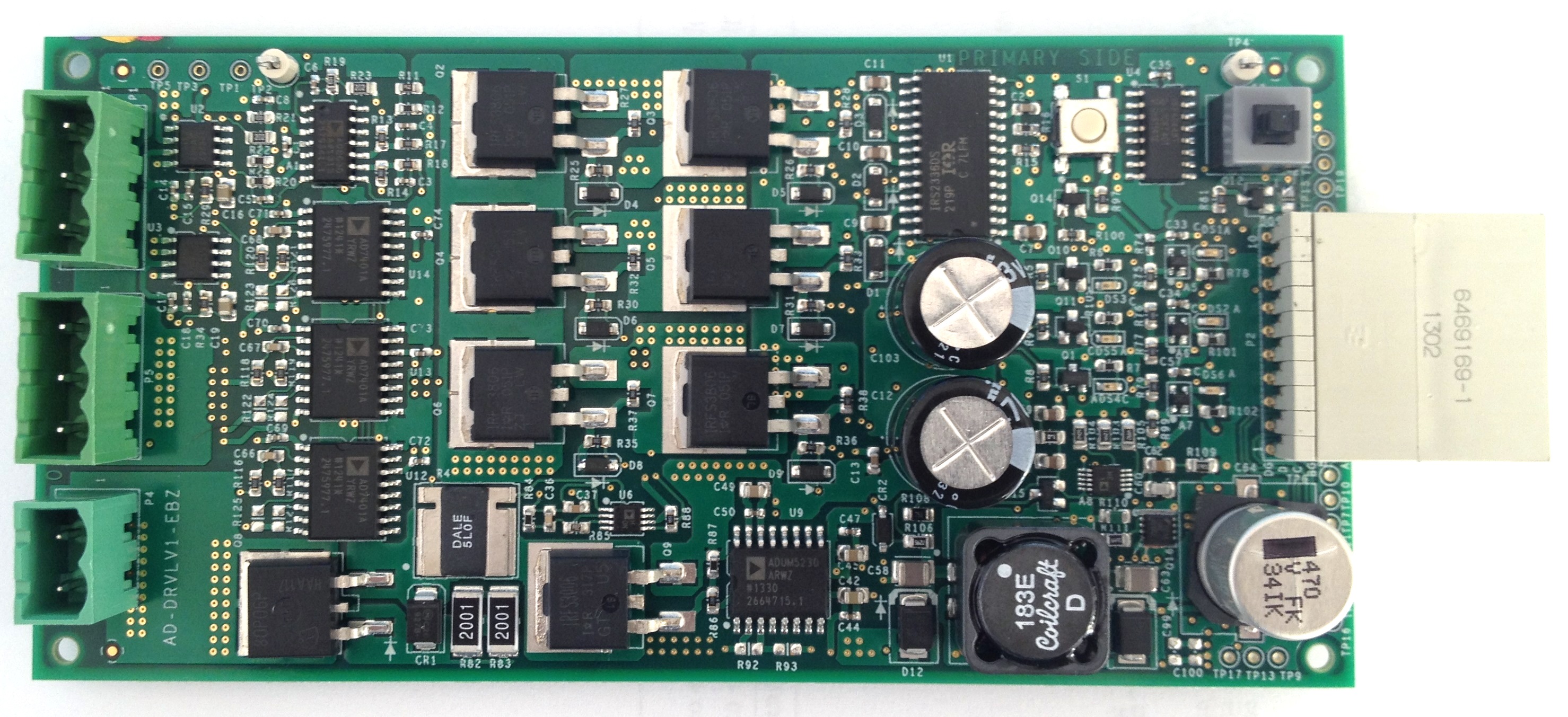

Figure 2 AD-DRVLV1-EBZ

AD-DRVLV1-EBZ - Low voltage drive board. Connects to the Controller board with a power stage that drives Brushed DC / BLDC / PMSM / Stepper motors up to 48 V and 18 A.

• Integrated over-current protection

• Current measurement using isolated ADCs

• Bus voltage, phase currents and total current analog feedback signals

• PGAs to maximize the current measurement input range

• BEMF zero-crossing detection for sensorless control of PMSM or BLDC motors

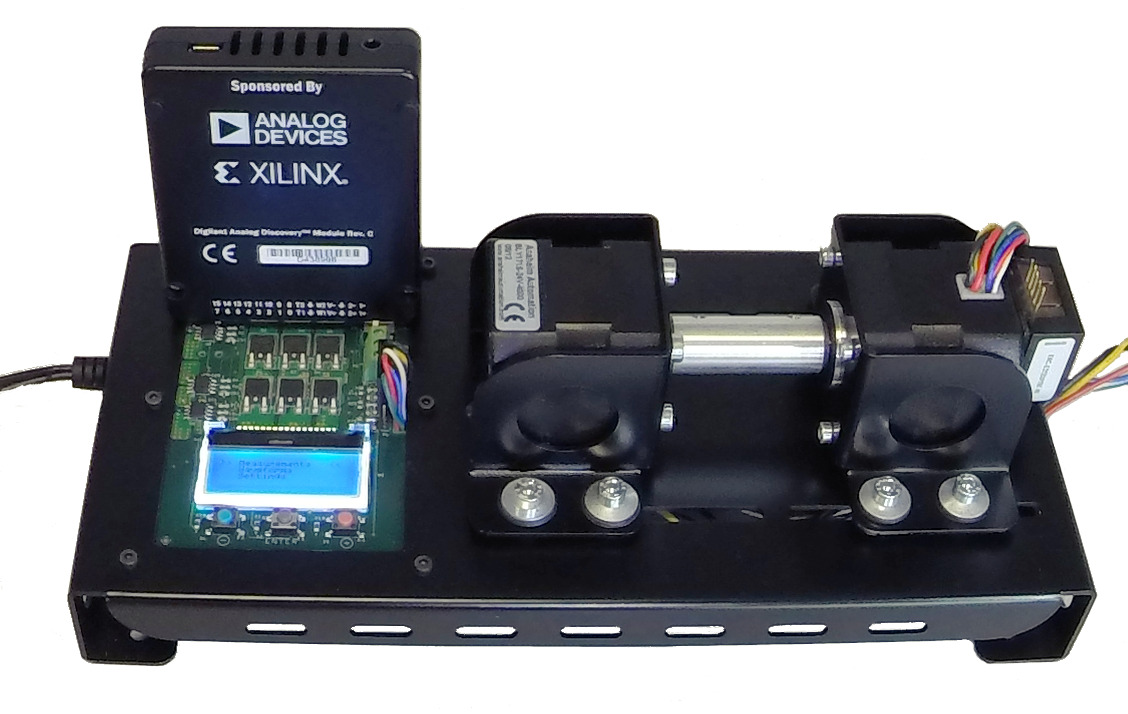

Figure 3 AD-DYNO1-EBZ

AD-DYNO1-EBZ - Dynamometer drive system (optional). An electronically adjustable load for testing real-time motor control performance.

• Two BLDC motors connected in a dyno setup

• Electronically adjustable load via onboard buttons and LCD

• Programmable step and ramp load changes

• Measurement and display of load motor phase currents and speed

• External control using Analog Discovery

Additional hardware documentation:

• Signal measurement chain - Ia/Ib, It, and Vbus measurement chains with signal conditioning and XADC interface formulas.

• Dyno test procedure - Step-by-step procedure for running dyno verification tests with IIO Oscilloscope.

Software guide

HDL reference designs

Two HDL reference designs are provided for the AD-FMCMOTCON1-EBZ: a Vivado/Linux design with full AXI infrastructure and MathWorks FOC integration, and a simpler ISE design for manual control via Chipscope.

Xilinx HDL Reference Design (Linux)

This design targets Zynq-based FPGA systems and includes complete Linux infrastructure. The reference design contains HDL blocks for interfacing with the various components of the motor control hardware:

• ADC Interface - Implements communication with the AD7401 sigma-delta modulators on the AD-FMCMOTCON1-EBZ, including the SINC3 filters for demodulating the 1-bit digital stream. Exposes AXI-Lite registers and an AXI Streaming interface connected to a DMA controller for real-time data streaming to the application layer.

• Controller Interface - Implements the interface to IP control blocks in the system. AXI Streaming interface with DMA for real-time data streaming.

• MathWorks FOC IP - FOC controller model provided by MathWorks, integrated as a standalone IP core packaged using the Simulink Workflow Advisor. Exposes AXI-Lite registers for operation control and interface signals for encoder input, current measurement, inverter control, and monitoring. Monitoring signals connect to the Controller Interface IP and are accessible from IIO Scope. AXI-Lite registers are accessible via the UIO driver in the ADI Zynq Linux distribution.

• Position & Speed Processing - Implements the algorithm for converting Hall, BEMF, and Encoder signals into speed and position data. Exposes AXI-Lite registers and an AXI Streaming interface with DMA.

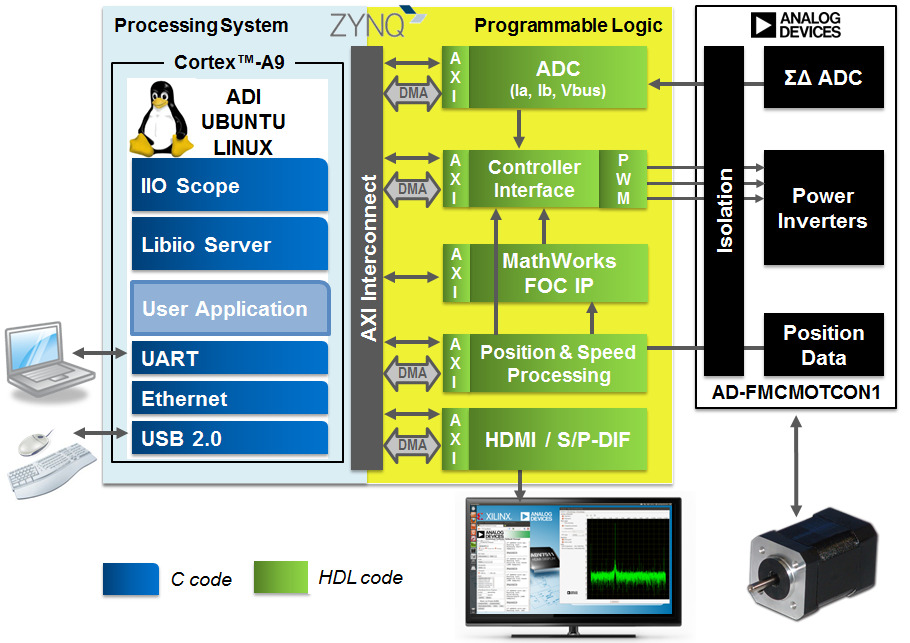

Figure 4 Vivado reference design block diagram

Vivado design generation

Start Vivado in GUI mode on a Windows host and run from the TCL console:

cd [project_path]/projects/motor_control/zed
source ./system_project.tcl

This generates the entire system and creates the bitfile. For instructions on how to set up Linux on the ZedBoard, see the Linux on Zynq Quick Start Guide.

Xilinx ISE HDL Reference Design

This design targets Zynq-based FPGA systems. The reference design contains HDL blocks for interfacing with the various components of the motor control hardware:

• ADC Interface - Implements communication with the AD7401 sigma-delta modulators on the AD-FMCMOTCON1-EBZ and the SINC3 filters for demodulating the 1-bit digital stream.

• Controller - Implements the motor control algorithm, designed and simulated in Simulink (MathWorks) and translated to HDL using the MathWorks HDL Coder.

• Speed Sensor Interface - Implements the algorithm for converting Hall, BEMF, and Encoder signals into speed and position data.

All HDL blocks connect to Chipscope ILA and VIO modules which provide the means to monitor and control their operation. Details about the Chipscope interface and how to run the ISE project can be found in the ISE Project with Chipscope Quick Start Guide.

Linux software

The software suite for Linux consists of:

• Kuiper Linux - includes IIO subsystem drivers for the motor control solution (see driver table below).

• IIO Oscilloscope - Graphical monitoring and control of the motor drive system.

IIO drivers

Driver	Description	Channels
ad-mc-adc	Controller board ADCs	CH1 Ia, CH2 Ib, CH3 It, CH4 Vbus
ad-mc-adc2	Low voltage drive board ADCs	CH1 Ia, CH2 Ib, CH3 It
ad-mc-speed	Speed and position processing block	CH1 Speed measurement
ad-mc-ctrl	Motor controller block	CH1-CH8 controller monitoring signals

IIO Oscilloscope

The IIO Oscilloscope has two main tabs: Capture and Motor Control.

Current monitoring (Capture tab)

Controller board ADC channels (signal pre-amplified on the Low Voltage Drive board; amplification controlled by GPO0 and GPO1):

• in_voltage0 - IA

• in_voltage1 - IB

• in_voltage2 - IT

• in_voltage3 - VBUS

Figure 5 Current measurement - controller board ADCs

Low voltage drive board ADC channels (signal not pre-amplified):

• in_voltage0 - IA

• in_voltage1 - IB

• in_voltage2 - IT

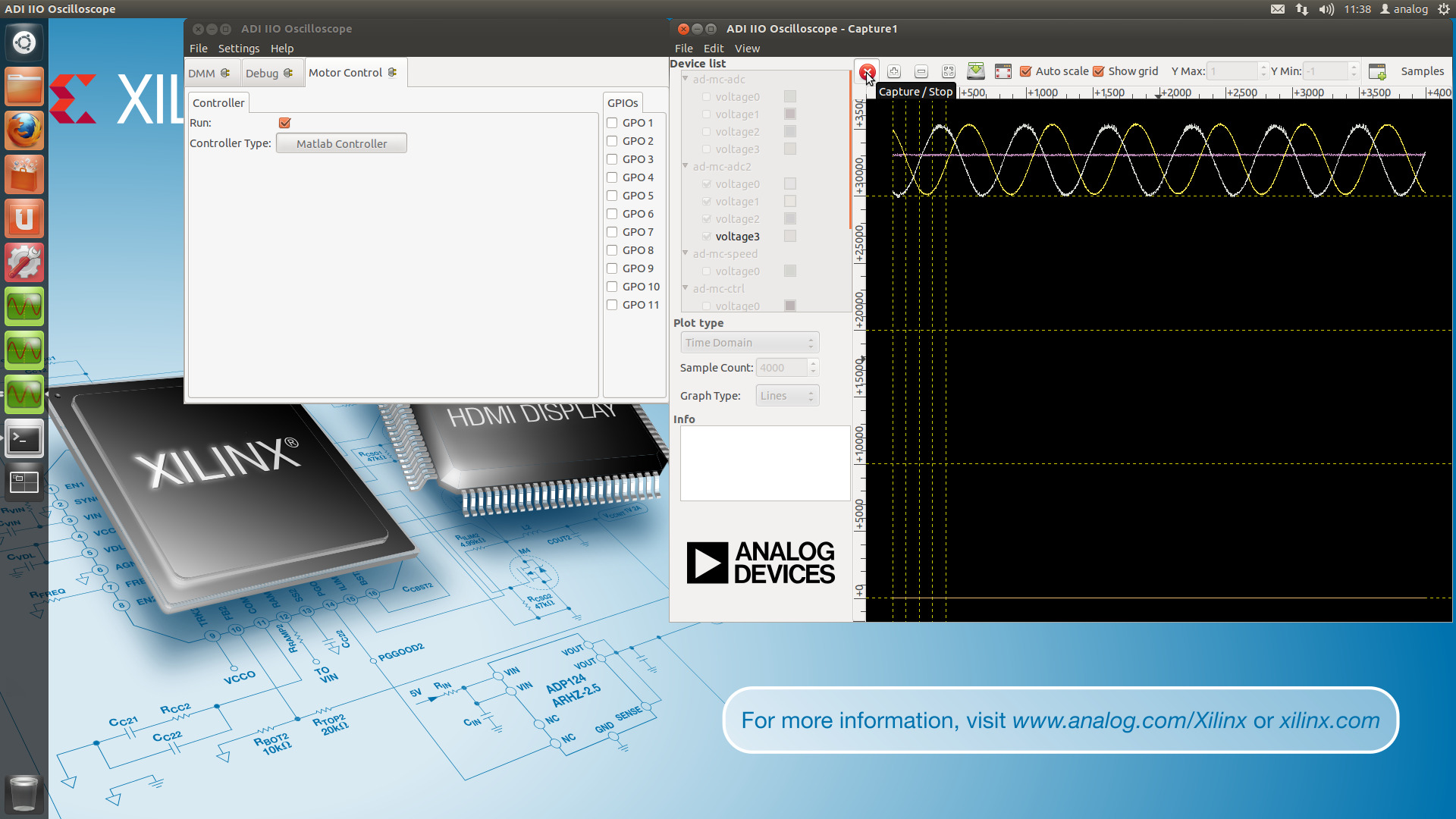

Figure 6 Current measurement - drive board ADCs

Speed monitoring (Capture tab)

The speed IP reports the number of counts (in 10 ns units) between two motor commutations. To display speed in RPM, enable the 1/x option and multiply by 25,000,000.

Figure 7 Speed measurement

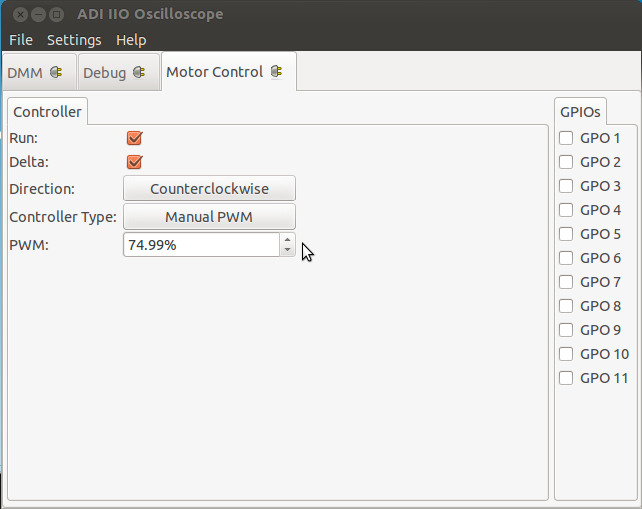

Manual Control (Motor Control tab)

Figure 8 Manual control interface

Control	Description
Run	Starts the motor
Delta	Star-like vs Delta commutation sequence
Direction	Clockwise / counterclockwise rotation
Controller Type	Manual PWM drive or MathWorks FOC Controller
PWM	In Manual mode, settable between 50%-100%

Matlab Controller (Motor Control tab)

Selects the MathWorks FOC IP.

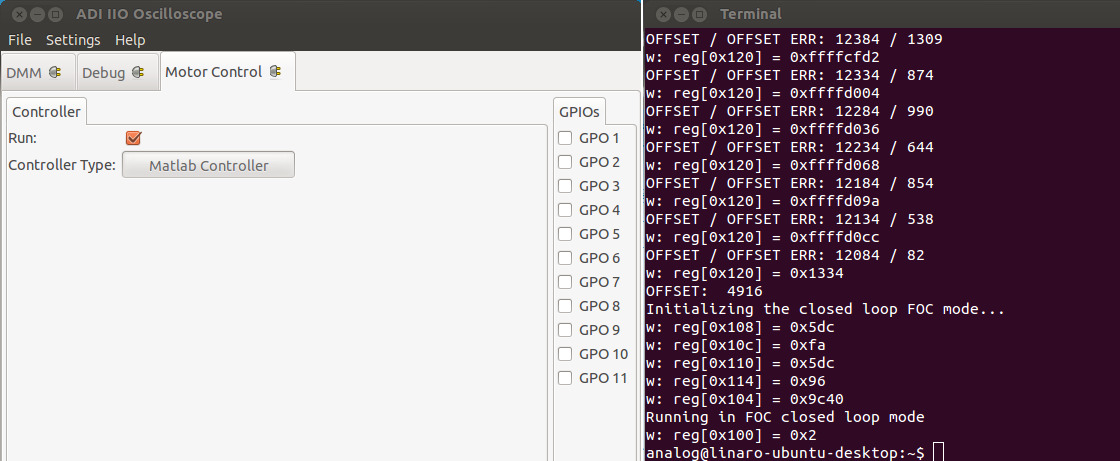

Figure 9 Matlab FOC controller interface

Advanced control

Simulink controller models - FOC (field-oriented control) controller generated from a MathWorks Simulink model using HDL Coder and integrated into the Vivado HDL design via AXI-Lite.

QDESYS Motor Control IP

A FOC implementation targeted for the AD-FMCMOTCON1-EBZ is available from QDESYS. The control algorithm is provided as a highly optimized IP that can be integrated in the FPGA project. Below are screenshots from the user application provided with the IP, taken while running with the AD-FMCMOTCON1-EBZ.

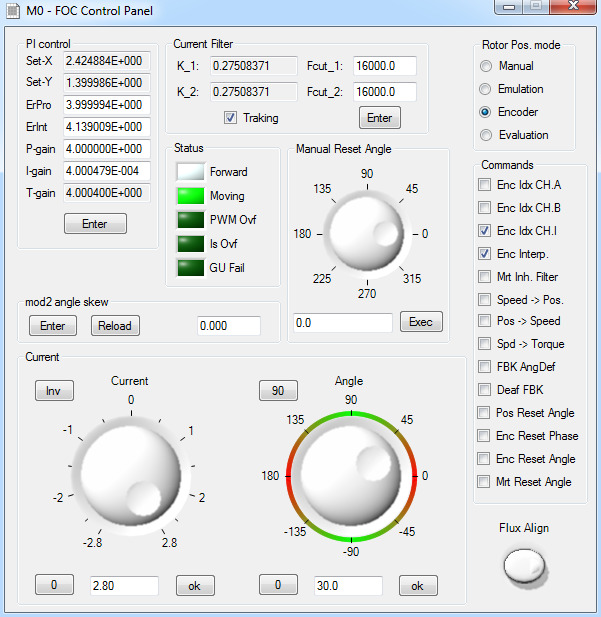

Figure 10 QDESYS main panel

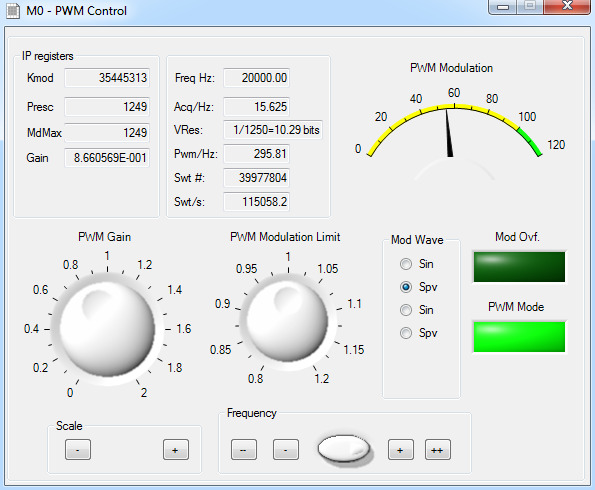

Figure 11 QDESYS PWM control panel

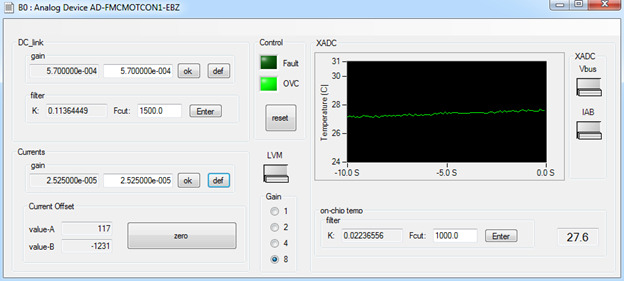

Figure 12 QDESYS current settings panel

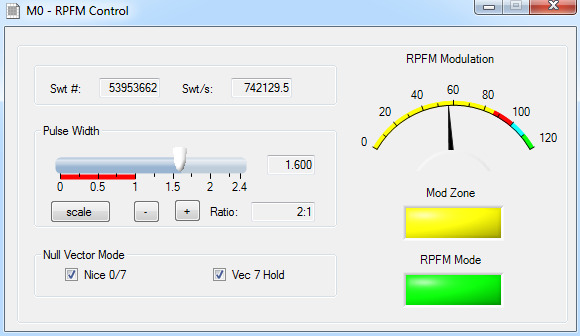

Figure 13 QDESYS RPFM control panel

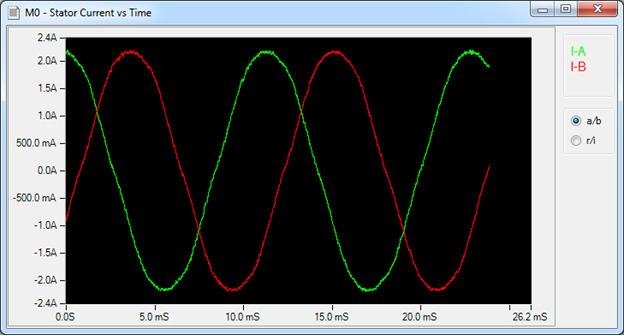

Figure 14 QDESYS phase currents plot

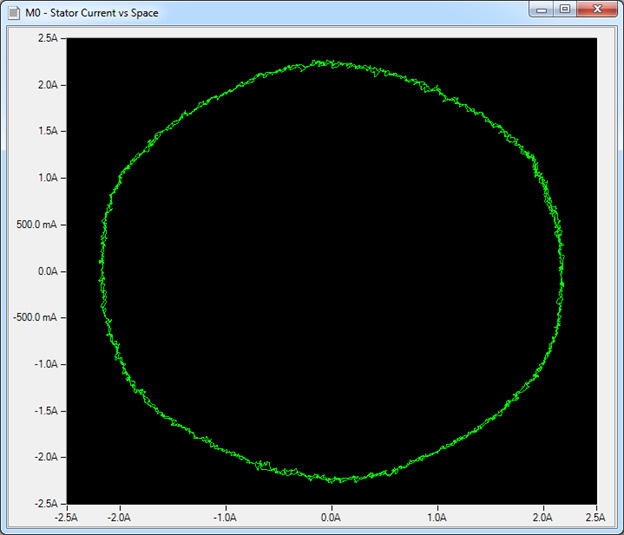

Figure 15 QDESYS stator currents vs space plot
