Quick start

The Quick start guides provide simple step by step instructions on how to do an initial system setup for the EVAL-ADRV904x boards on various FPGA development boards. In these guides, we will discuss how to program the bitstream, run a no-OS program or boot a Linux distribution.

• On ZCU102
  • Using Linux as software
    • Necessary files
    • Required Software
    • Required hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands for the serial terminal
      • Verifying the setup
  • Using no-OS as software
    • Necessary files
    • Required Software
    • Required Hardware
    • Testing
      • Creating the setup
    • Demo applications
      • Console output
      • Verifying the setup
    • Switching between use cases

Supported carriers

The EVAL-ADRV904x, is, by definition a “FPGA mezzanine card” (FMC); that means it needs a carrier to plug into.

The carriers we support are listed below:

FPGA board	EVAL-ADRV9040	EVAL-ADRV9044
ZCU102	FMC HPC0 port with FMC extender standard SAMTEC	FMC HPC0 port with FMC extender standard SAMTEC

Supported Environments

The supported OS are:

FPGA board	HDL	Linux software	No-OS software
ZCU102	Yes	Yes	Yes

Hardware setup

On most carriers, the EVAL-ADRV904X boards connects to the HPC0 connector (unless otherwise noted). The carrier setup requires power, UART (115200), Ethernet (Linux), HDMI (if available) and/or JTAG (no-OS) connections. A few typical setups are shown below.

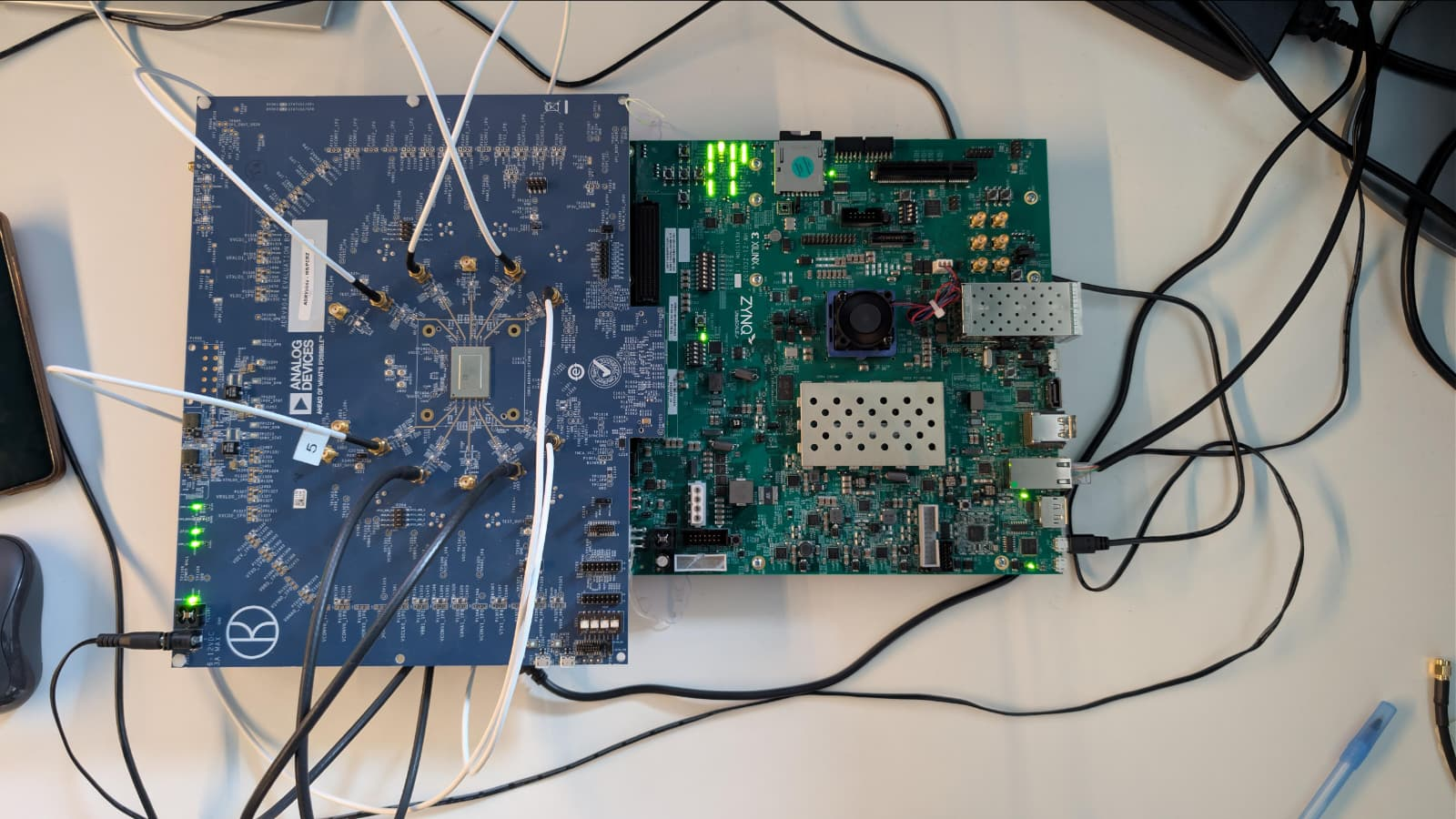

ZCU102 + EVALUATION BOARD

Go to the ZCU102 quickstart guide.
