AD-FMCDAQ2-EBZ Specifications

Transmit Specs

120MHz FFT

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/cha_120mhz_fft.png https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/chb_120mhz_fft.png

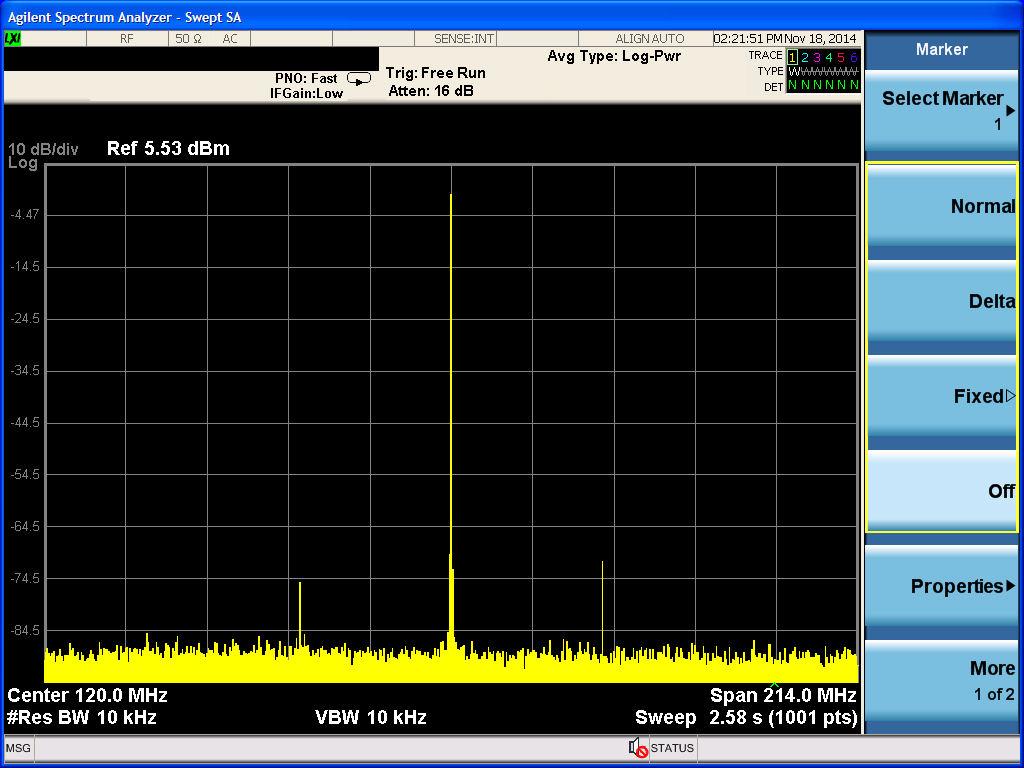

Channel A 120MHz tone, full scale, FFT

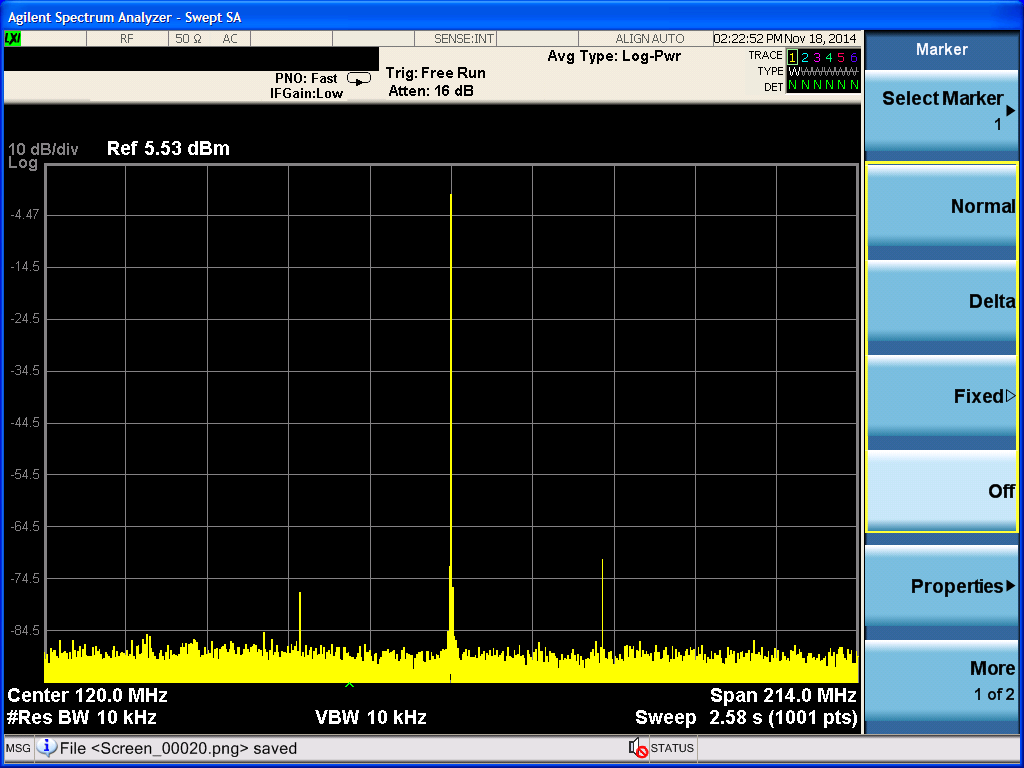

Channel B 120MHz tone, full scale, FFT

Phase Noise

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/cha_40mhz_pn.png https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/chb_40mhz_pn.png

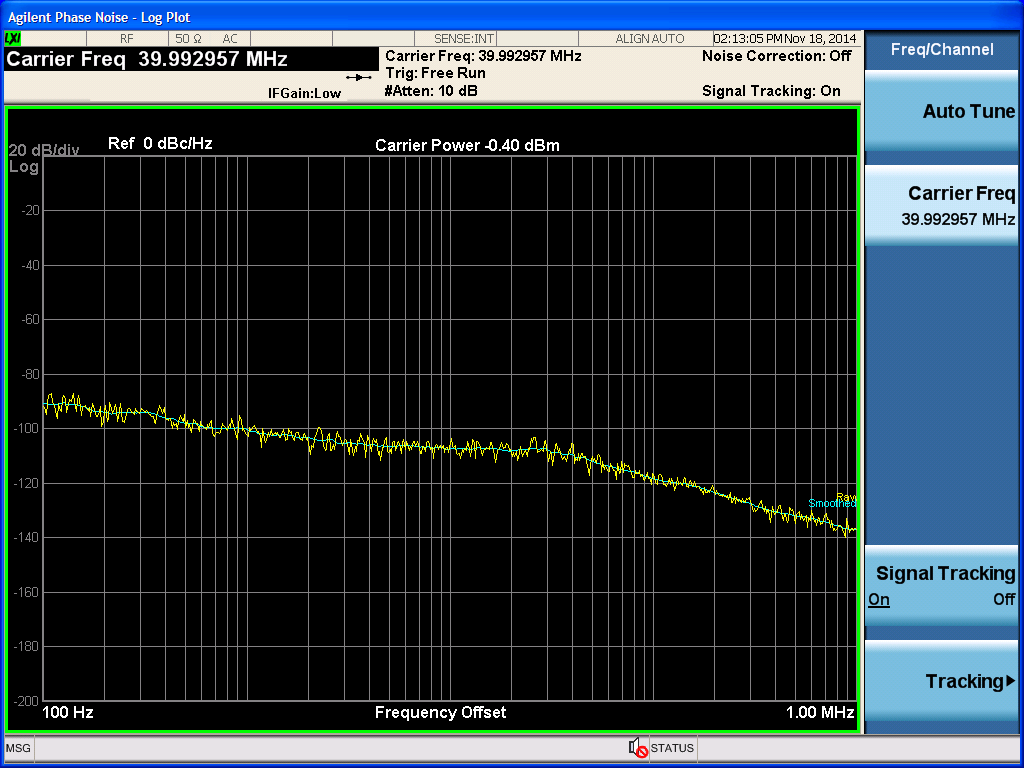

Channel A 40MHz tone, full scale, phase noise

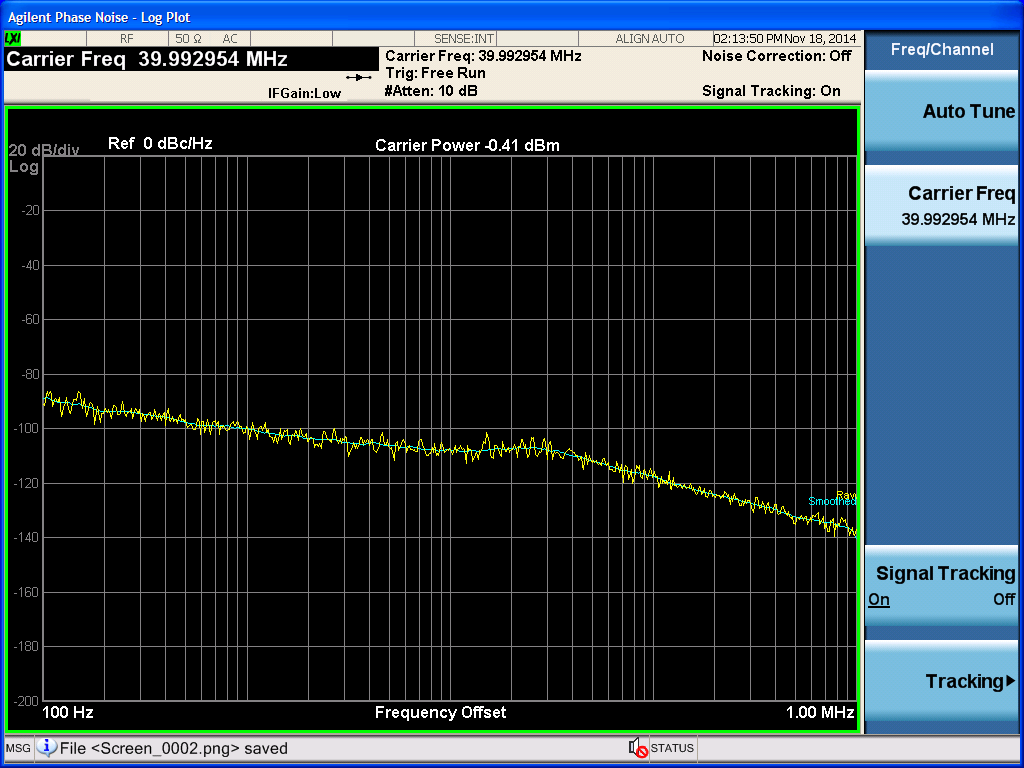

Channel B 40MHz tone, full scale, phase noise
https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/cha_120mhz_pn.png https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/chb_120mhz_pn.png

Channel A 120MHz tone, full scale, phase noise

Channel B 120MHz tone, full scale, phase noise

Receive Specs

SNR

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/snrfs.png

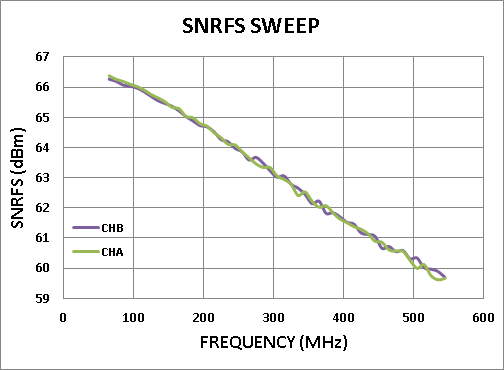

SNR sweep from 60MHz to 550MHz with full scale input.

SFDR

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/sfdr.png https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcdaq2-ebz/images/sfdr_eval_brd.png

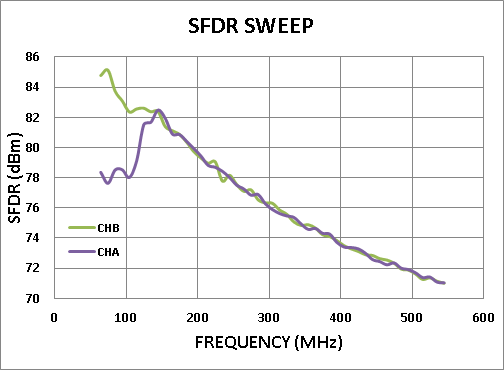

SFDR sweep from 60MHz to 550 MHz with full power input.

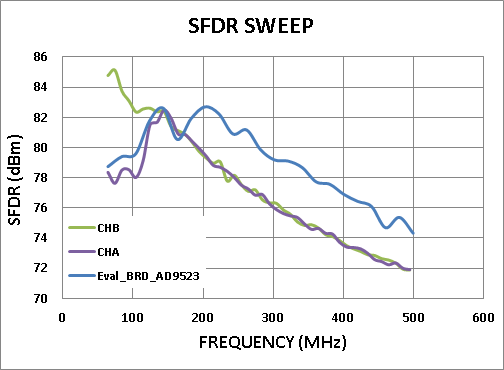

SFDR sweep compared to Eval board with AD9523-1 reference clock
