Quick start guide

The Quick start guide provides simple step by step instructions on how to do an initial system setup for the AD-FMCOMMS11-EBZ board on the ZC706 carrier.

• On ZC706
  • Using Linux as software
    • Necessary files
    • Required software
    • Required hardware
    • Testing
      • Creating the setup
      • Boot messages
      • Useful commands for the serial terminal

Supported carriers

The AD-FMCOMMS11-EBZ, is, by definition a “FPGA mezzanine card” (FMC); that means it needs a carrier to plug into.

The carriers we support are:

FPGA board	AD-FMCOMMS11-EBZ
ZC706	FMC HPC

Supported environments

The supported OS are:

FPGA board	HDL	Linux software	No-OS software
ZC706	Yes	Yes	—

Hardware setup

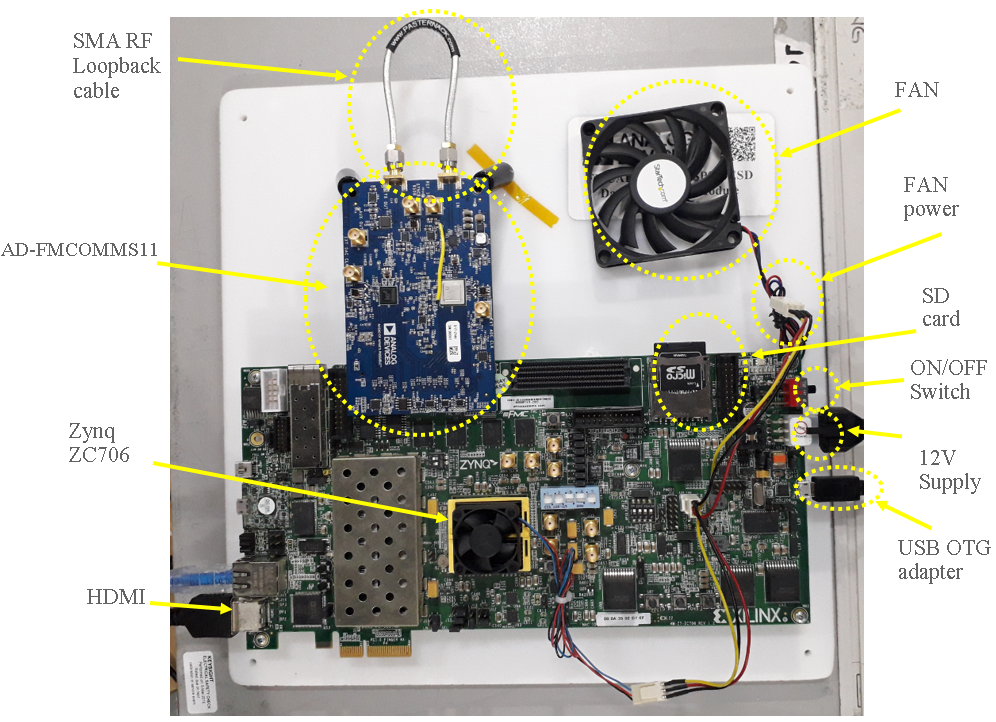

On the ZC706, the AD-FMCOMMS11-EBZ board connects to the FMC HPC connector. The carrier setup requires power, UART (115200), Ethernet (Linux) and HDMI (if available) connections. A typical setup is shown below.

ZC706 + AD-FMCOMMS11-EBZ
