ZCU102 Quick start

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/zcu102.jpg

All the products described on this page include ESD (electrostatic discharge) sensitive devices. Electrostatic charges as high as 4000V readily accumulate on the human body or test equipment and can discharge without detection. Although the boards feature ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. This includes removing static charge on external equipment, cables, or antennas before connecting to the device.

This guide provides quick instructions on how to setup the EVAL-AD9467 on:

Using Linux as software

Necessary files

The following files are needed for the system to boot:

  • HDL boot image: BOOT.BIN

  • Linux Kernel image: Image

  • Linux device tree: system.dtb

They can either be taken from the SD card – already generated by us, or you can build them manually.

In the following sections, we explain how to take them from the SD card.

Instructions on how to manually build the boot files from source can be found here:

Required Software

  • SD Card 16GB imaged with Kuiper (check out that guide on how to do it, then come back to this section)

  • A UART terminal (Putty/Tera Term/Minicom, etc.) with baud rate 115200 (8N1)

  • Scopy v2.0 or later (must contain the IIO plugin)

Required Hardware

  • AMD Xilinx ZCU102 Rev 1.0 FPGA board and its power supply

  • EVAL-AD9467 FMC evaluation board

  • SD card with at least 16GB of memory

  • Micro-USB cable (UART)

  • LAN cable (Ethernet, optional)

  • (Optional) USB keyboard & mouse and a HDMI compatible monitor

  • Clock source (250 MHz, 16 dBm, 50 Ω)

  • Analog signal source with appropriate filter

More details as to why you need these, can be found at Prerequisites.

Testing

Creating the setup

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad9467_fmc_250ebz/images/ad9467_zcu102_setup.jpg

Follow the steps in this order, to avoid damaging the components:

  1. On the ZCU102, set the boot mode switch to SD card boot (mode SW6[4:1] switch in the position OFF,OFF,OFF,ON)

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/zcu102_1p0_bootmode.jpg

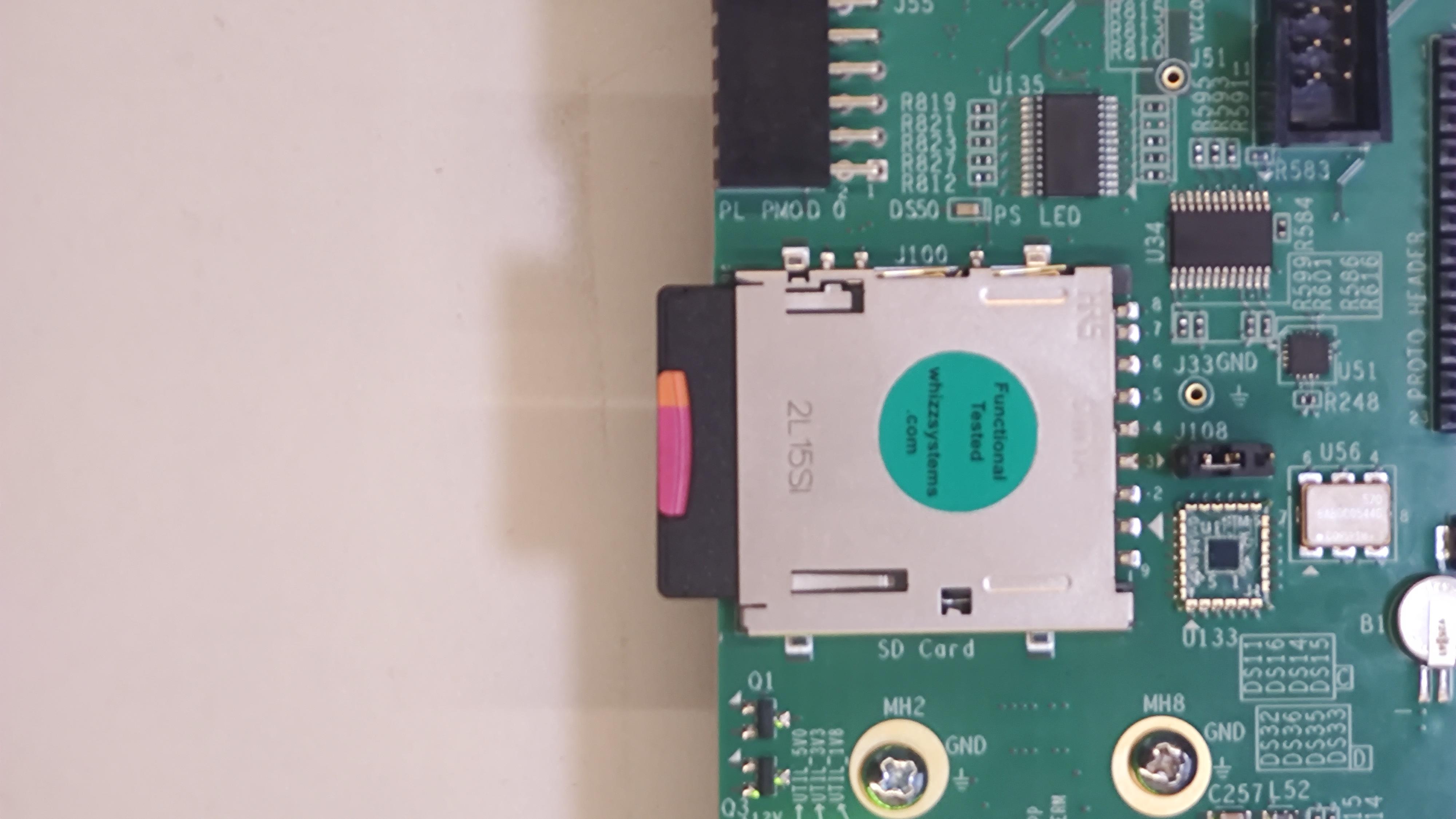

  2. Insert the SD Card into ZCU102 SD Card Interface Connector

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/zcu102_sd.jpg

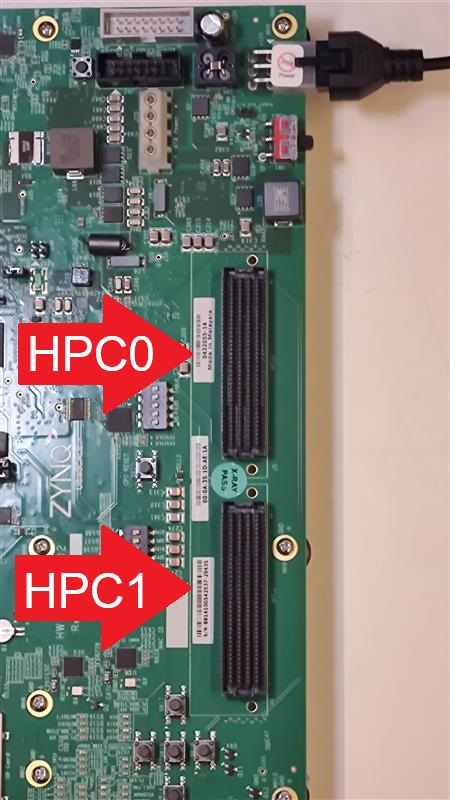

  3. Plug the AD9467-FMC-250EBZ to ZCU102 HPC0 FMC connector

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/zcu102_hpc.jpg

  4. Connect Ethernet cable from your router/switch to the Ethernet port on the FPGA board.

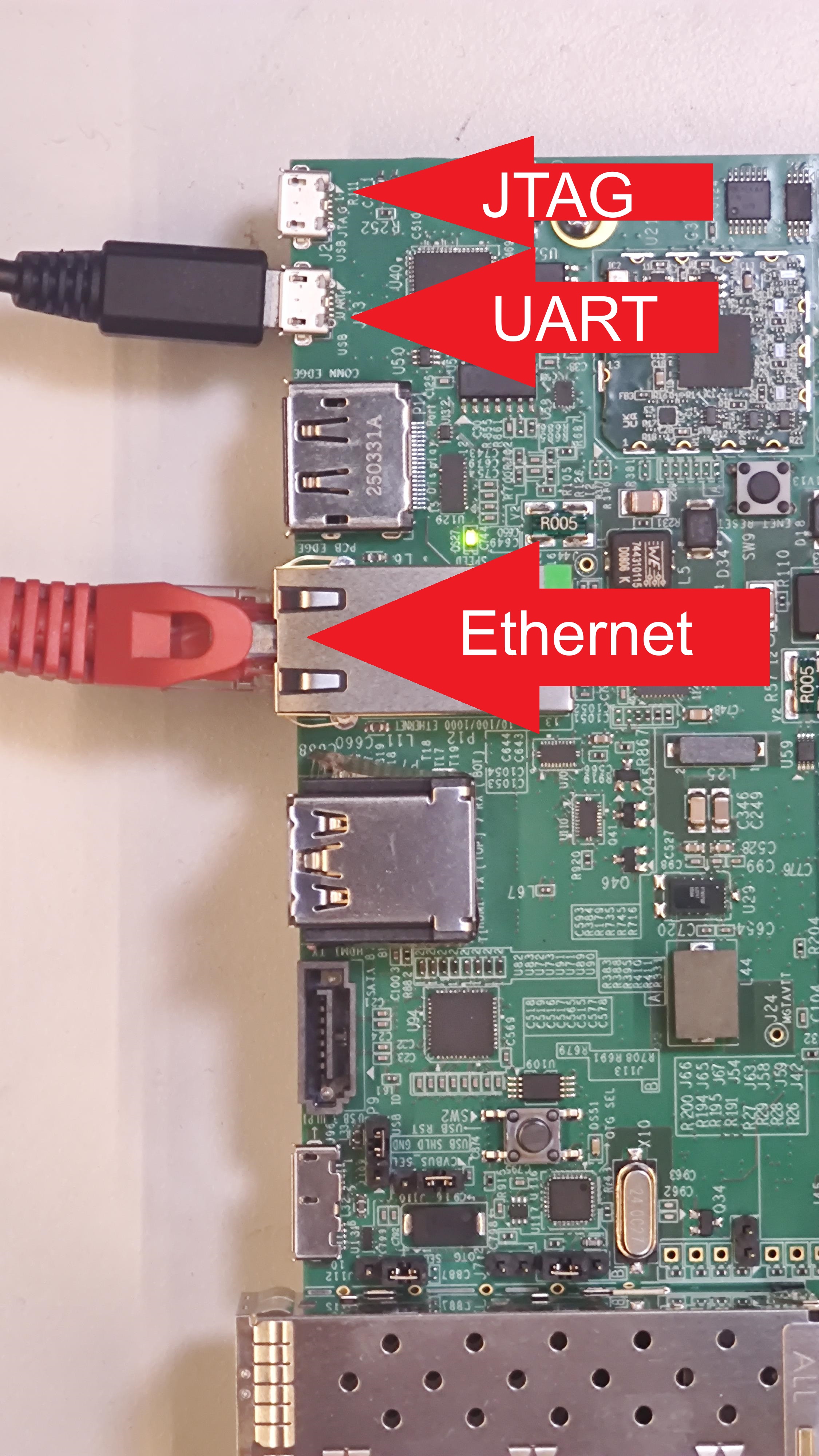

  5. Connect USB UART J83 (Micro-USB) to your host PC

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/zcu102_eth_uart.jpg

  6. On the AD9467-FMC-250EBZ board:

    • Provide a clean, low jitter 250 MHz clock source to connector J201 (set amplitude to 16 dBm)

    • Use SMA male cable for connecting the clock source

    • Provide an analog input signal to connector J100

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad9467_fmc_250ebz/images/ad9467_connections.jpg

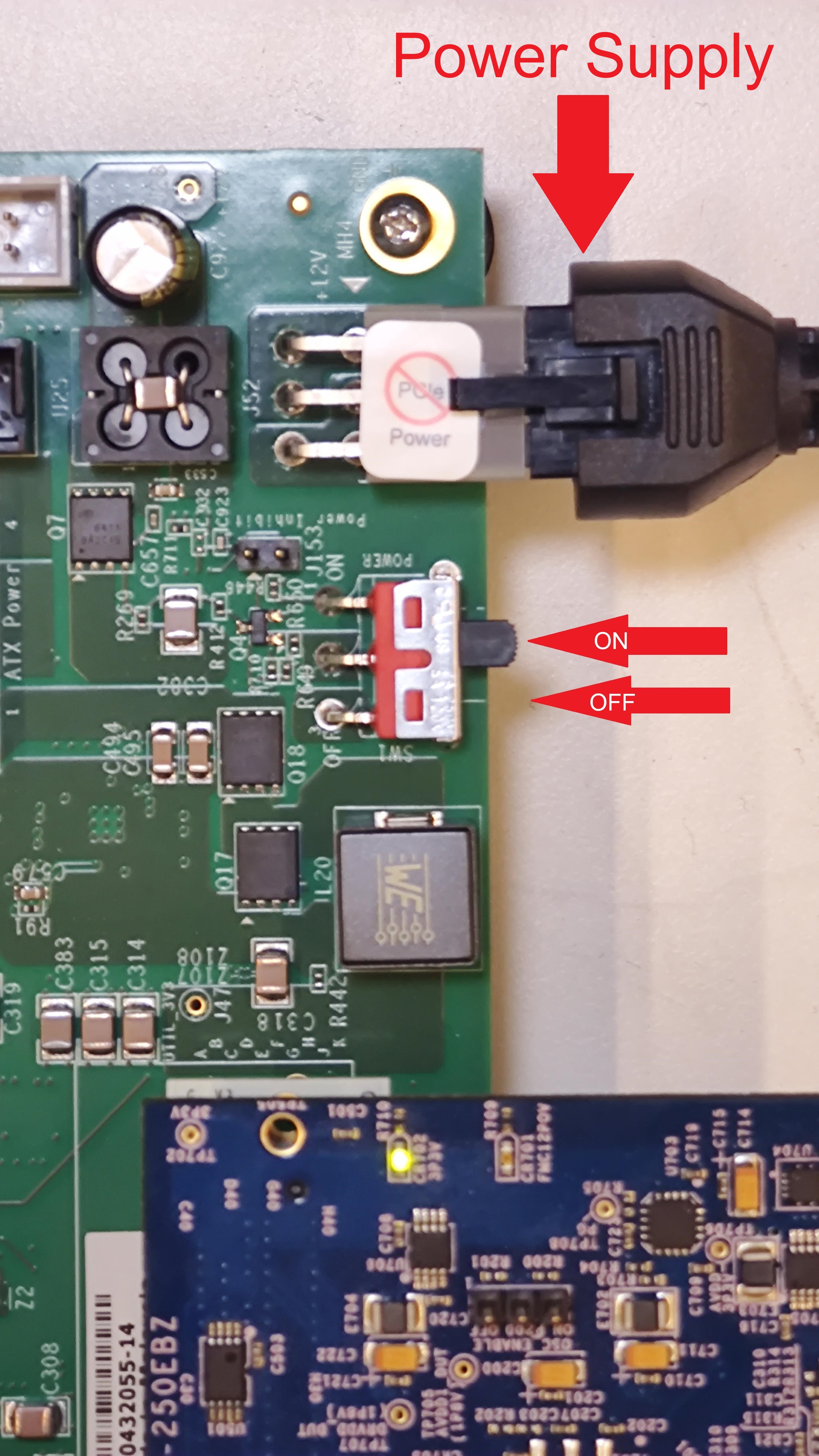

  7. Connect the power supply to the FPGA board.

  8. Turn on the power switch on the FPGA board

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/zcu102_power.jpg

  9. Observe Kernel and serial console output messages on your terminal (use the first ttyUSB or COM port registered)

  10. Open a terminal emulator (PuTTY, Tera Term, Minicom, etc.) with the following settings:

    • Serial line: <ZCU102 COM Port Number>

    • Speed (baud): 115200

    https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/images/putty_connect.png

  • For finding the COM port of your device Device Manager -> Ports(COM & LPT)

  1. (Optional) Connect a monitor to the FPGA by HDMI, and a mouse and a keyboard

Boot messages

The following is what is printed in the serial console after boot:
