RF Splitter & Antenna for MCS Pilot

In addition to an extra Jupiter and a Synchrona, the MCS pilot requires a Tx antenna and Rx array for the OTA portion and/or a 4 to 1 rf splitter for the normal version. This additional hardware is needed to combine the two signals from both Jupiters and show the MCS, thus it is necessary to have 1 of the two setups.

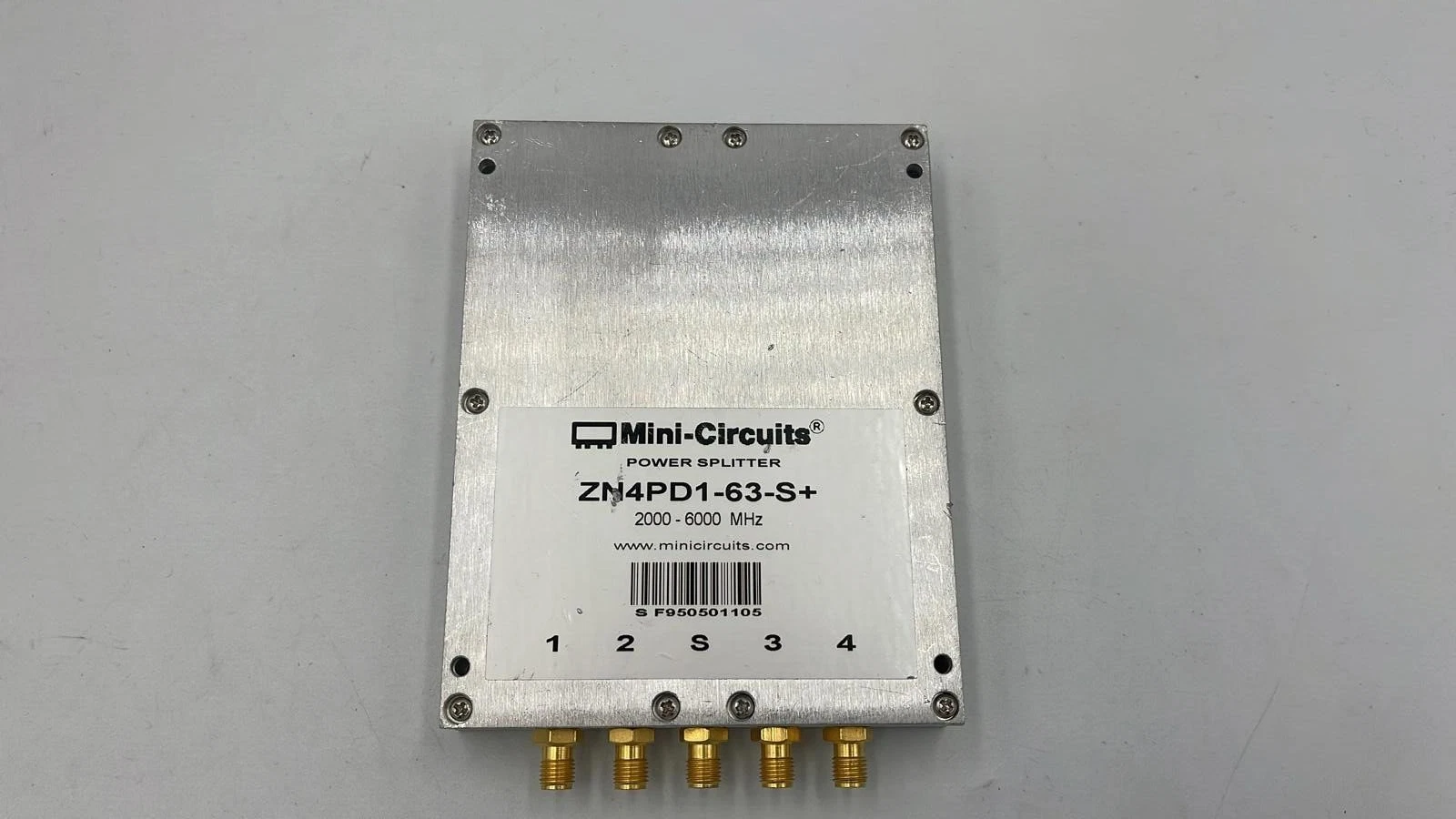

RF splitter: ZN4PD1-63HP-S+ from Mini-Circuits

Put Text Here to Describe the Image

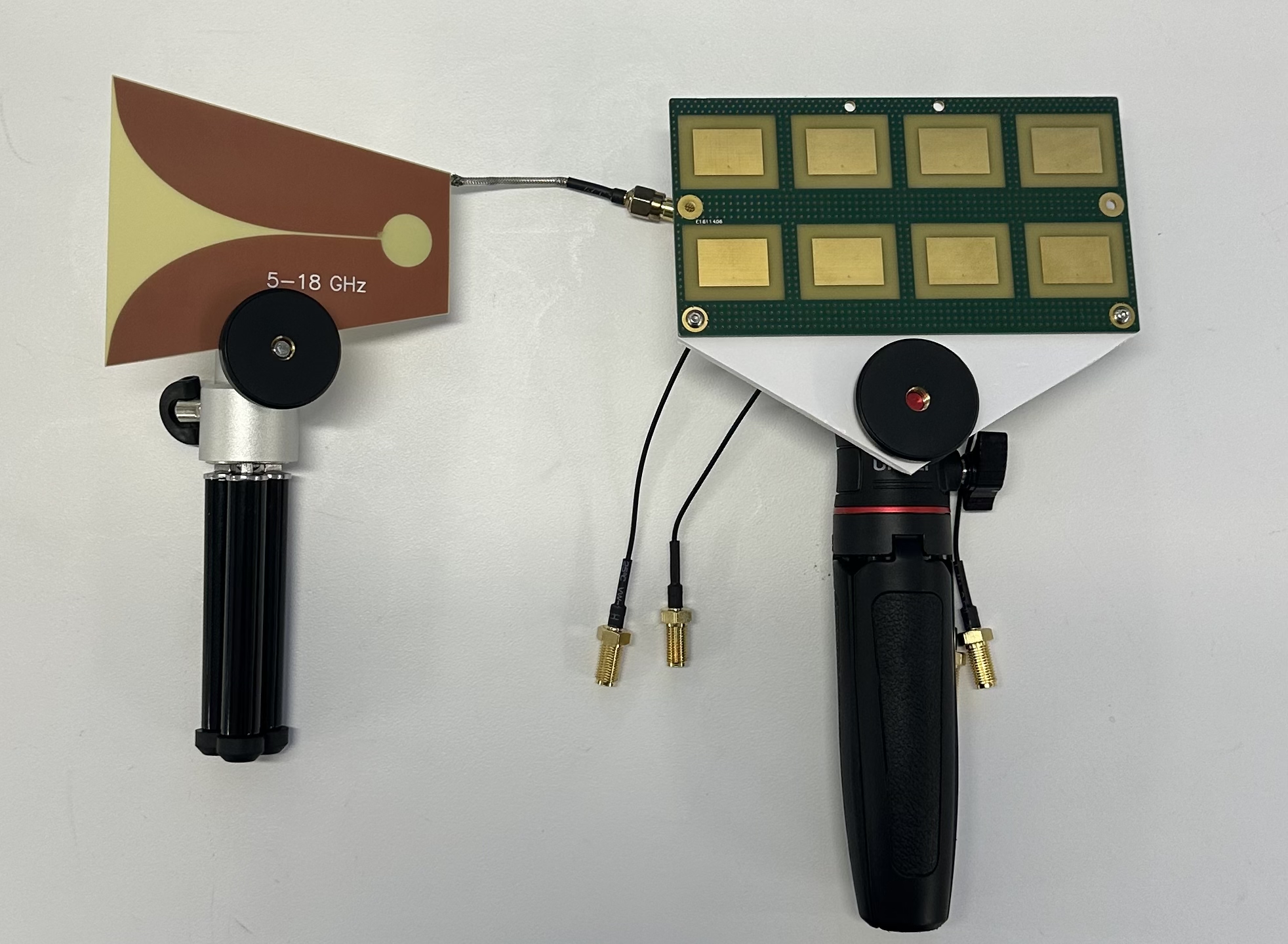

Tx antenna + 8 Channel Array: (The information to remake these will be updated here.)

Put Text Here to Describe the Image
