Quickstart

The Quick Start Guides provide step-by-step instructions on how to do an initial system setup for the EVAL-AD7606B-FMCZ / EVAL-AD7606C-18FMCZ evaluation boards.

FPGA-based evaluation

Use these guides when evaluating with an FPGA carrier board. They cover bitstream programming, no-OS programs, and Linux boot.

• On ZedBoard
  • Using no-OS as software
    • Necessary files
    • Required Software
    • Required Hardware
    • Testing
      • Creating the setup
• On CED1Z (Nios II)
  • Supported Devices
  • Evaluation Boards
  • Overview
    • More Information
  • Getting Started
    • Hardware Items
    • Software Tools
    • Install the USB-Blaster Device Driver
  • AD7606 Evaluation Project Overview
    • CED1Z FPGA Design
      • AD7606 Peripheral Port Definitions
      • AD7606 Peripheral Registers
      • Nios II Read Timing Diagram
      • AD7606 Module
  • More Information

Supported carriers

The EVAL-AD7606B-FMCZ and EVAL-AD7606C-18FMCZ are FMC boards that need a carrier to plug into.

The carriers we support are:

FPGA board	EVAL-AD7606B-FMCZ	EVAL-AD7606C-18FMCZ
ZedBoard	FMC LPC	FMC LPC

The EVAL-AD7606EDZ / EVAL-AD7606-4EDZ / EVAL-AD7606-6EDZ boards are also supported via the EVAL-CED Converter Evaluation and Development (CED) Board using an Altera Nios II processor. See CED1Z FPGA Project for AD7606 with Nios II for details.

Supported environments

Eval board	FPGA board	HDL	Linux	No-OS
EVAL-AD7606B-FMCZ	ZedBoard	Yes	Yes	Yes
EVAL-AD7606C-18FMCZ	ZedBoard	Yes	Yes	Yes
EVAL-AD7606EDZ	CED1Z	Yes	No	Yes (Nios II)

Hardware setup

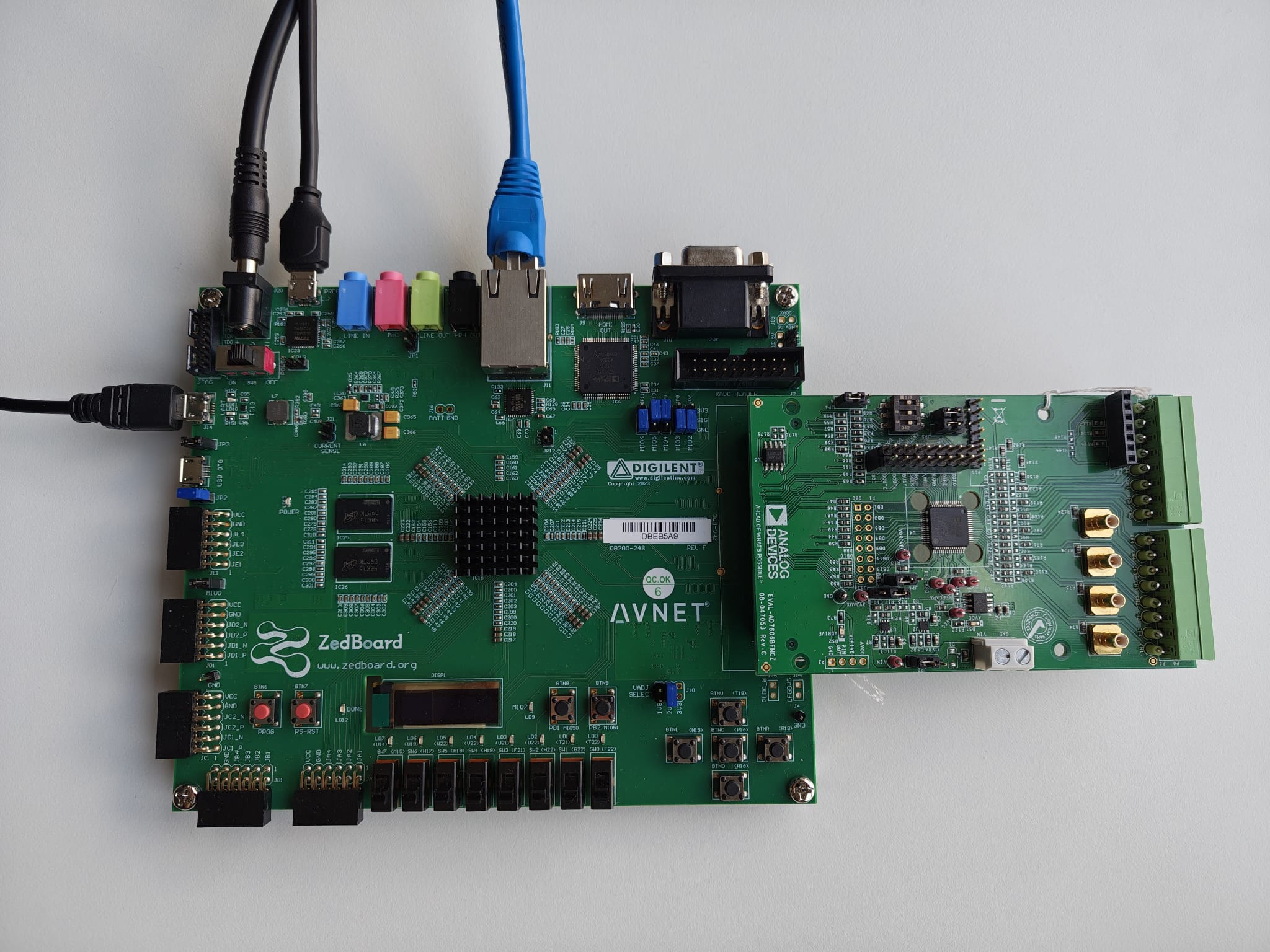

On the ZedBoard, the evaluation board connects to the FMC LPC connector (J1). The carrier setup requires power (12 V), UART (115200 baud), Ethernet (Linux path), and JTAG (no-OS path) connections.
