AD9371/AD9375 IIO Oscilloscope

ADI IIO Oscilloscope

The IIO Oscilloscope is a cross-platform application for interfacing with IIO devices, enabling you to configure device parameters and visualize data.

Important

Make sure to download/update to the latest version of IIO Oscilloscope.

For Linux

Remote run on host

The IIO Oscilloscope application can be used to connect to another platform that has a connected device, to configure the device and read data from it. This application is not for performance testing, but rather showcasing the basic features.

Please see IIO Oscilloscope documentation for installation steps and more details.

Build and start osc on a network-enabled Linux host. For Windows computers, open the application from the start menu.

Once the application is launched, go to Settings > Connect > URI and type “ip:” then the IP address of the target in the pop-up window. This IP can be found out with a command from the previous section of this documentation.

Locally run on the board

If you connected an HDMI monitor to your FPGA and a mouse and a keyboard (both on one dongle), you can navigate the ADI Kuiper Linux that is on the FPGA.

Going to the top left corner icon (the menu icon), search for IIO Oscilloscope. Opening it will automatically connect to the setup and you can use the application.

For no-OS

For connecting IIO Oscilloscope to no-OS applications, they need to be built with the IIOD=y flag. This way, the no-OS applications will run an IIO daemon that is awaiting connections from the IIO Oscilloscope.

Plugin

This project also contains an IIO-Oscilloscope device-specific plugin that enables you to access the unique features and functions of the device.

See also

For more information about this plugin: AD9371/AD9375 Plugin Description

Channel Description

Main receivers RX1 and RX2 are handled by the axi-ad9371-rx-hpc IIO device, while the observation is handled by the axi-ad9371-rx-obs-hpc device.

Channels:

	Receiver Inputs
IIO Device Channels	voltage0_i voltage0_q	voltage1_i voltage1_q
axi-ad9371-rx-hpc	RX1	RX2
axi-ad9371-rx-obs-hpc	OBS RX1

Data capture

Note

Device names and channel definition may differ between no-OS and Linux.

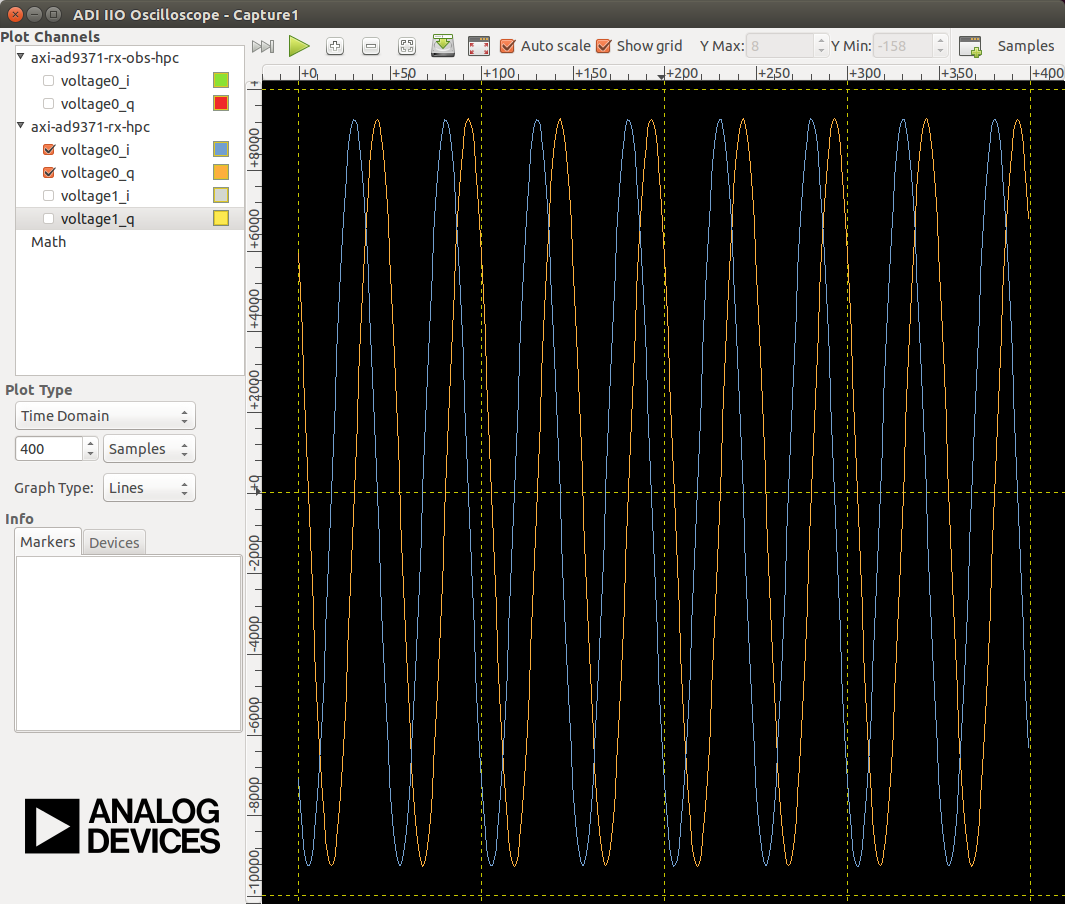

Time domain:

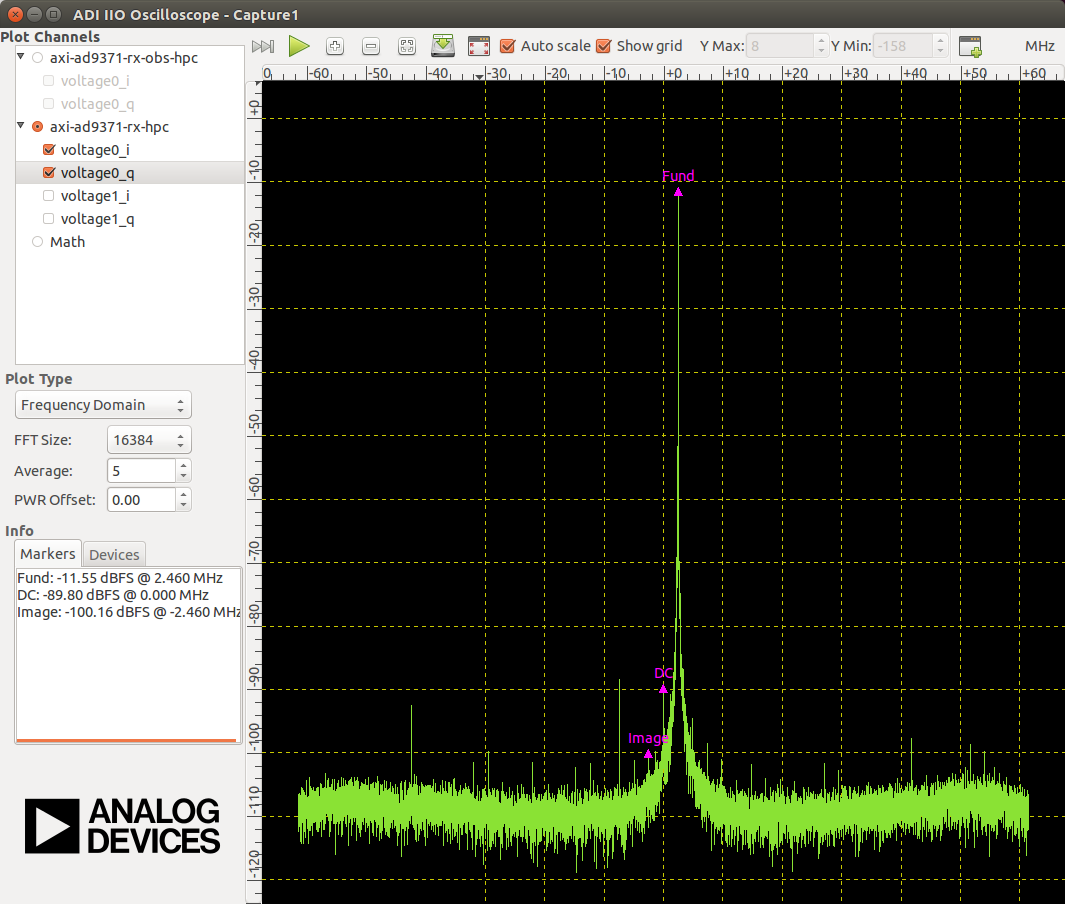

Frequency domain:
