AD-FMCOMMS6-EBZ Hardware

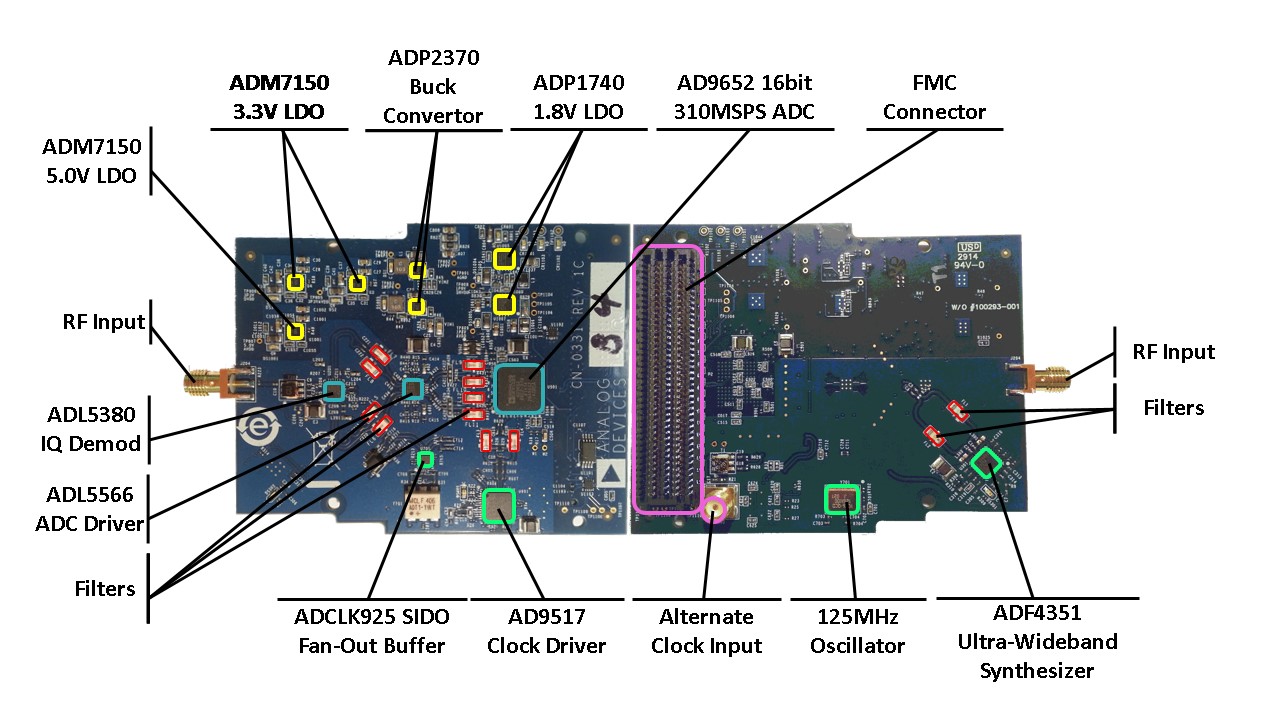

Picture and Main components

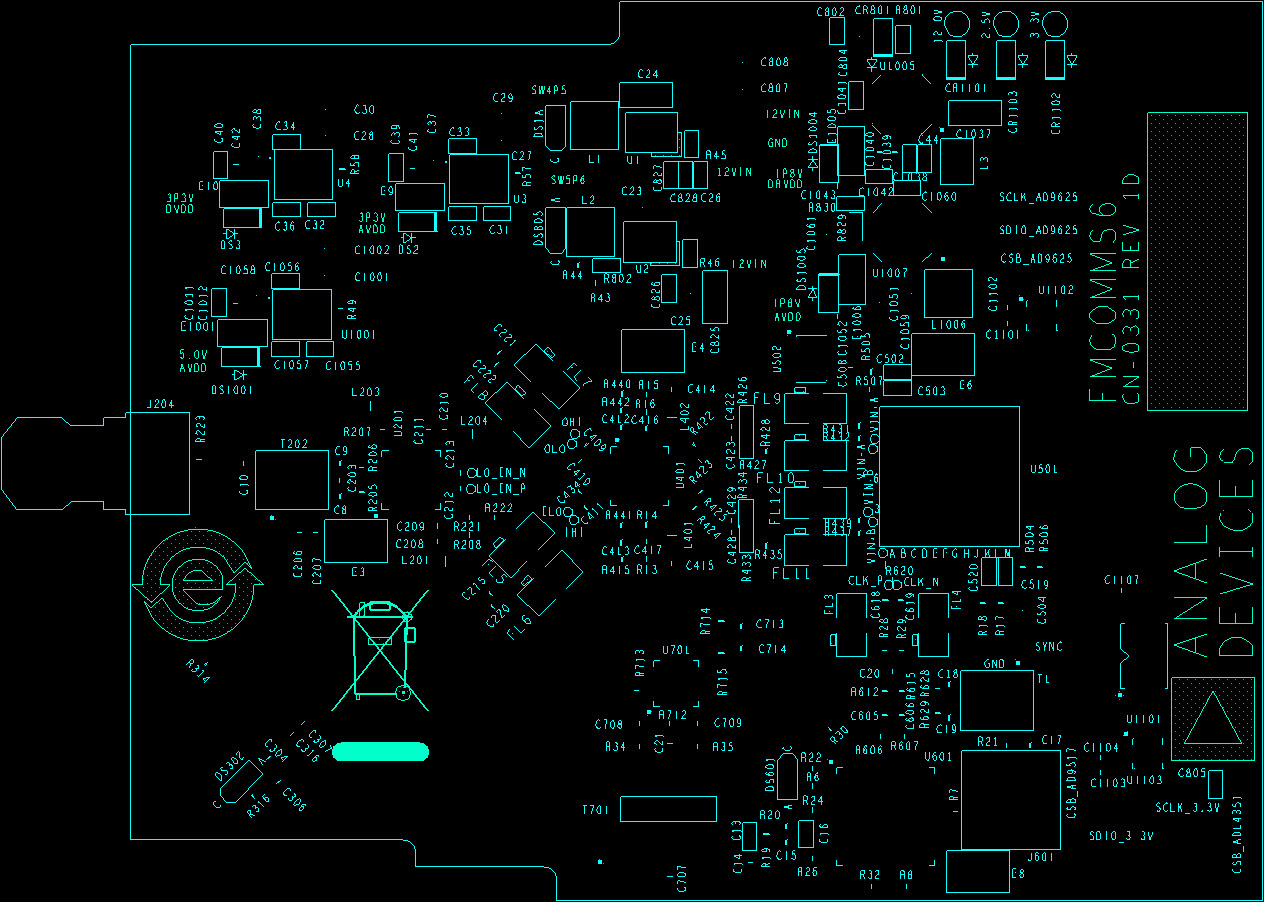

Outline

For those that don’t want to load up the Allegro viewer, here is a basic outline/component placements of the board.

https://media.githubusercontent.com/media/analogdevicesinc/documentation/main/docs/solutions/reference-designs/ad-fmcomms6-ebz/images/fmcomms6_top.jpg

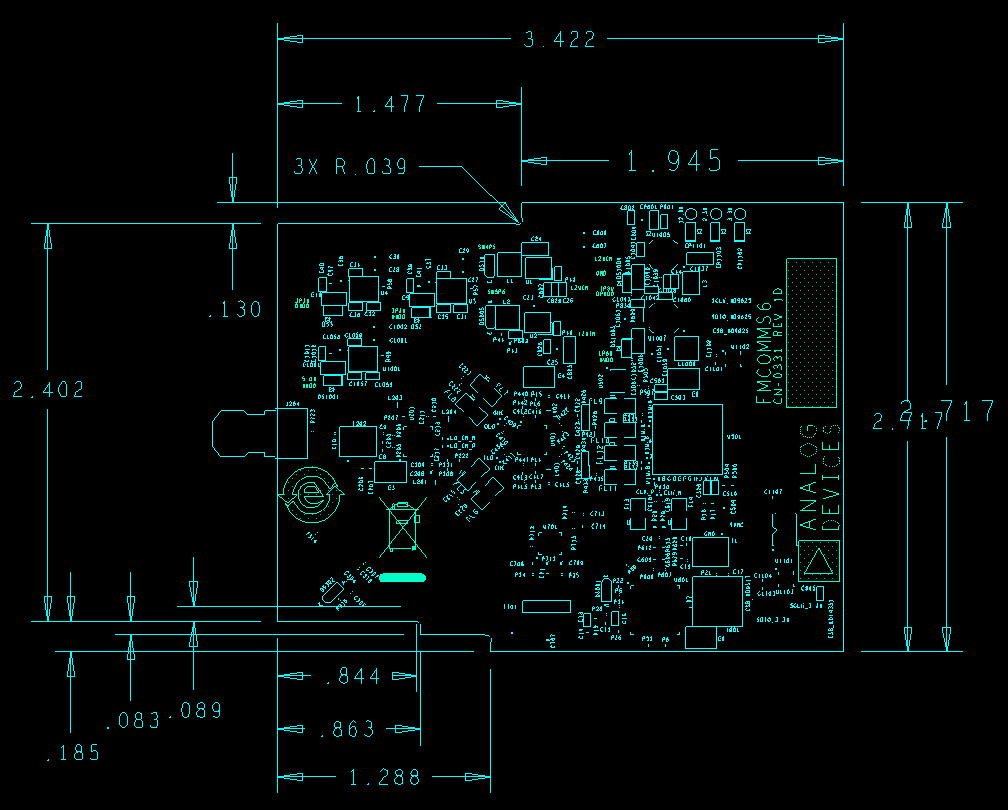

Size

The size of the board (not including the SMA connectors, which project beyond the edge of the board) is 3.42 inches by 2.72 inches (or about 89mm x 69mm). This exceeds the FMC specifications of 84mm x 69mm.

Downloads

Download

Type	Rev 1D
Schematic	`Rev1D Schematic`
Assembly Files	`Rev1D Assembly Files`
Build Files	`Rev1D Build Files`
Allegro Board File	`Rev1D Allegro Board File`
Block Diagram	`Block Diagram`
Power Budget	`Power Budget`
Noise Analysis	`Noise Analysis`
Bill of Material	`radx_1d_bom.xlsx`

Get the Allegro FREE Physical Viewer (You need 16.5 or higher).
